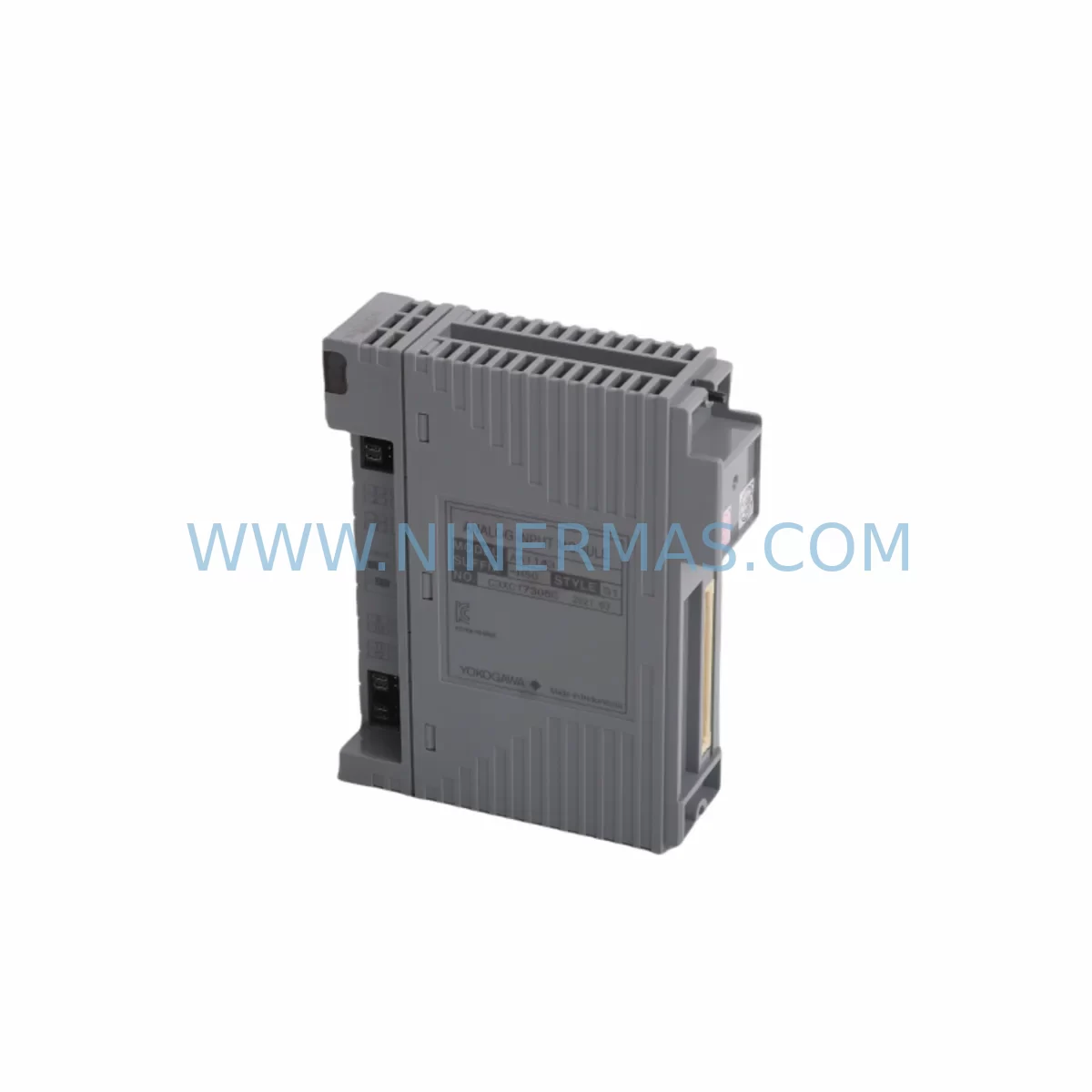

Yokogawa AAI143-H50 S1 Safety-Reliable Analog Input Module

Yokogawa AAI143-H50 S1: Safety-Reliable Analog Input Module for Critical Control Sites

The Yokogawa AAI143-H50 S1 is a high-integrity analog input module engineered for continuous process control environments where signal accuracy, loop stability, and uninterrupted operation are non-negotiable. Designed for integration within Yokogawa’s CENTUM VP distributed control system (DCS) architecture, this module delivers precision 4–20 mA signal acquisition across multiple channels, supporting critical measurement loops in petrochemical, power generation, water treatment, metallurgical, and continuous manufacturing facilities.

In demanding industrial environments — where high electromagnetic interference (EMI), voltage transients, ground loops, dust ingress, humidity, and mechanical vibration are constant threats — the AAI143-H50 S1 maintains stable signal fidelity. Its ruggedized H-series hardware designation confirms suitability for harsh field conditions, reducing the risk of signal drift, false readings, and unplanned control interruptions that can cascade into process shutdowns or safety incidents.

NINERMAS supplies the Yokogawa AAI143-H50 S1 from verified stock, pre-shipment tested, with a 12-month warranty and long-term spare parts availability commitment — ensuring your critical control infrastructure remains protected throughout its operational lifecycle.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered DCS control cabinet, the Yokogawa AAI143-H50 S1 does not operate in isolation — it functions as part of a tightly integrated measurement and control architecture. Signal integrity at the analog input layer directly determines the quality of control decisions made by the CENTUM VP controller unit (e.g., Yokogawa ACM11 or ACM12 CPU modules), which process loop data and issue corrective outputs to field devices.

To protect the AAI143-H50 S1 and the broader I/O nest from power-related disturbances, the cabinet typically incorporates a Yokogawa PW481 or PW482 power supply module, which provides regulated, redundant DC power to the I/O bus. Voltage fluctuations or power interruptions at this layer can corrupt analog readings or trigger spurious alarms — making a stable, redundant power supply architecture essential for any safety-critical loop.

On the field wiring side, surge and transient events from long cable runs — particularly in outdoor substations, mining conveyors, or chemical plant field junction boxes — can inject damaging energy into the analog input channels. Pairing the AAI143-H50 S1 with dedicated signal surge protection barriers (such as MTL or Pepperl+Fuchs Zener barriers or galvanic isolators) at the marshalling cabinet significantly reduces the risk of channel damage and signal drift caused by lightning-induced surges or ground potential differences.

For HART-enabled loops, the module’s HART pass-through capability allows integration with Yokogawa FieldMate or third-party HART communicators for in-situ device diagnostics without loop interruption — a critical feature for maintaining SIL-rated loops under IEC 61511 requirements. This eliminates the need to break the 4–20 mA loop for transmitter calibration or diagnostics, reducing the risk of inadvertent process upsets.

In redundant DCS configurations, the AAI143-H50 S1 is typically paired with a redundant counterpart module in a dual-redundant I/O nest, supported by a Yokogawa ANB10D node interface unit or equivalent bus coupler. This architecture ensures that a single module failure does not interrupt signal acquisition — a fundamental requirement in continuous process plants where a loss of measurement can trigger emergency shutdowns or safety instrumented system (SIS) activation.

Communication integrity between the I/O nest and the DCS controller is maintained through the Yokogawa Vnet/IP or ESB bus architecture, depending on the system generation. Ensuring that bus cables, terminators, and ESB coupler modules are in good condition is equally important — a degraded communication bus can cause the controller to lose visibility of analog inputs even when the AAI143-H50 S1 itself is functioning correctly.

For facilities operating legacy CENTUM CS 3000 systems alongside newer CENTUM VP infrastructure, the AAI143-H50 S1 (with appropriate adapter or nest compatibility verification) can serve as a direct replacement for aging AAI141 or AAI135 series modules, extending the operational life of existing control cabinets without requiring full system migration.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous distillation columns, reactor temperature control loops, and pressure measurement circuits, the AAI143-H50 S1 provides the stable, high-resolution analog input acquisition required to maintain tight process control. Signal drift or input module failure in these environments can result in off-spec product, flare events, or emergency depressurization — making module reliability and rapid spare parts availability a direct safety concern.

Power Generation (Thermal and Hydro): Turbine control systems, boiler drum level measurement, and generator excitation monitoring all rely on accurate 4–20 mA signal acquisition. The AAI143-H50 S1’s EMI shielding and channel isolation make it well-suited for the high-noise electrical environment of power plant control rooms and switchgear buildings, where large motors and transformers generate significant electromagnetic interference.

Mining and Mineral Processing: Conveyor load monitoring, crusher feed rate control, and flotation cell level measurement in mining operations subject I/O modules to extreme vibration, dust, and humidity. The H-series ruggedized designation of the AAI143-H50 S1 addresses these environmental stressors, reducing the frequency of field failures and unplanned maintenance interventions in remote or underground installations.

Water and Wastewater Treatment: Flow measurement, pH monitoring, and chemical dosing control in water treatment facilities require continuous, accurate analog signal acquisition. The AAI143-H50 S1 supports these applications with its multi-channel architecture and high input accuracy, enabling operators to maintain regulatory compliance and process safety without frequent module replacements.

Metallurgy and Steel Production: In electric arc furnace (EAF) control, rolling mill tension measurement, and continuous casting temperature monitoring, the combination of high EMI levels and demanding thermal environments challenges standard I/O hardware. The AAI143-H50 S1’s ruggedized design and surge protection capability make it a reliable choice for these high-stakes production environments.

Port and Marine Automation: Crane load monitoring, ballast control systems, and engine room automation on vessels or port terminals require I/O modules that can withstand salt air, vibration, and wide temperature swings. The AAI143-H50 S1’s environmental ratings support these applications, and its compatibility with CENTUM VP makes it a natural fit for Yokogawa-equipped marine and port control systems.

Safety and Quality FAQ

Q1: Does the Yokogawa AAI143-H50 S1 come with a warranty?
Yes. Every AAI143-H50 S1 supplied by NINERMAS carries a 12-month warranty from the date of shipment. All units undergo pre-shipment functional testing to verify analog input accuracy, channel isolation, and bus communication integrity before dispatch. Documentation of test results is available upon request.

Q2: How is the module tested before shipment?
NINERMAS performs pre-shipment testing on all Yokogawa I/O modules, including the AAI143-H50 S1. Testing covers power-on self-diagnostics, channel-by-channel signal injection verification (4 mA, 12 mA, 20 mA reference points), isolation resistance checks, and bus interface communication validation. Modules that do not pass all test criteria are quarantined and not shipped.

Q3: Is the AAI143-H50 S1 compatible with CENTUM CS 3000 systems?
The AAI143-H50 S1 is natively designed for the Yokogawa CENTUM VP platform. Compatibility with CENTUM CS 3000 depends on the specific nest and bus interface configuration. NINERMAS recommends confirming the target system’s I/O nest model and software revision before ordering. Our technical team can assist with compatibility verification based on your system’s hardware revision and software version.

Q4: Can NINERMAS support long-term spare parts supply for the AAI143-H50 S1?
Yes. NINERMAS operates a long-term spare parts program specifically designed for industrial automation components with extended lifecycle requirements. We maintain stock commitments for the AAI143-H50 S1 and related CENTUM VP I/O modules, with defined lead times and volume reservation options available for facilities requiring multi-year supply assurance. Contact our team at sale@ninermas.com to discuss a supply agreement.
