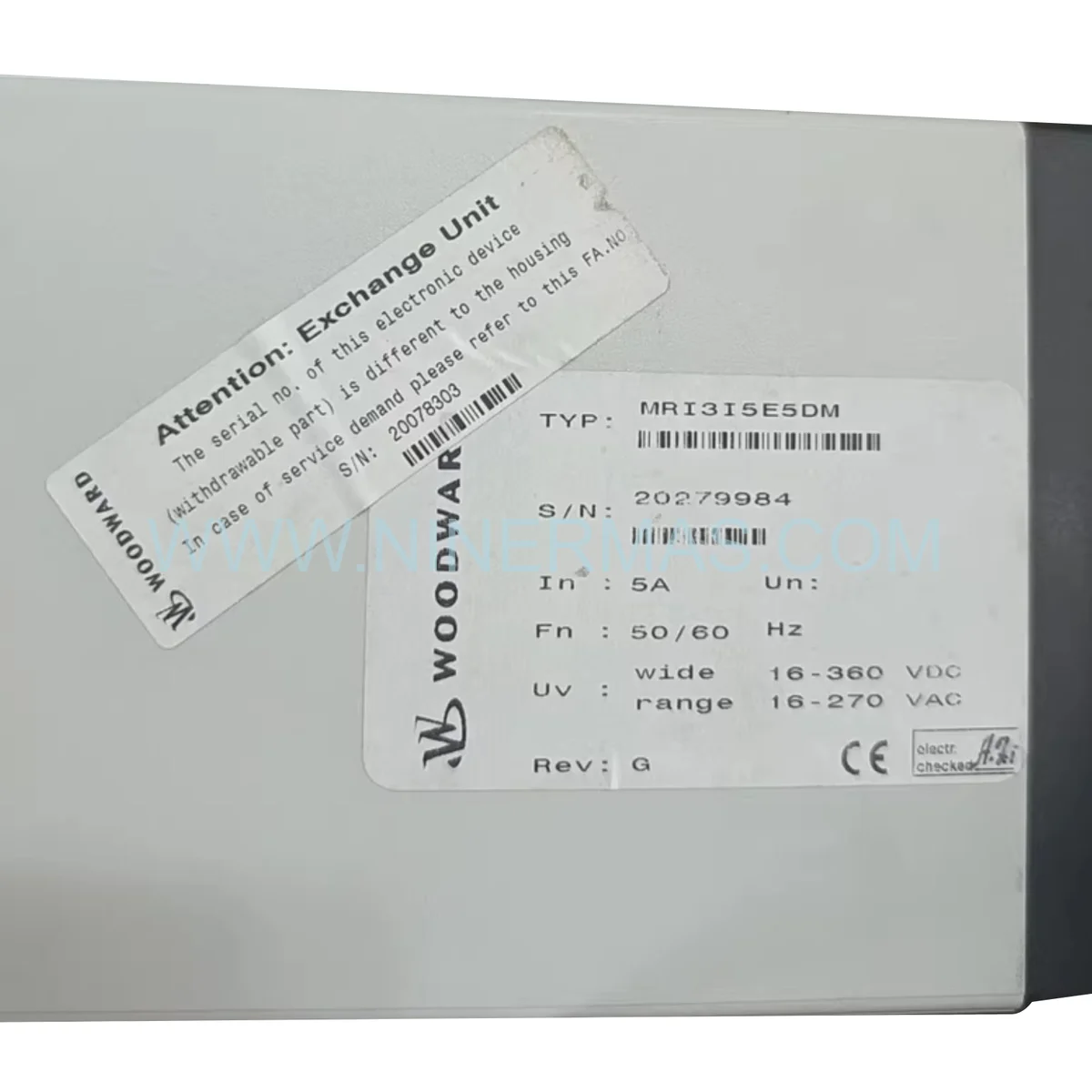

Woodward MRI3I5E5DM Feeder Protection Relay | Retrofit & Modernization

Woodward MRI3I5E5DM – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing electrical infrastructure upgrades across global manufacturing and power generation facilities, the Woodward MRI3I5E5DM stands out as a cornerstone component in any feeder protection modernization initiative. Its microprocessor-based architecture delivers a decisive performance enhancement over aging electromechanical or first-generation digital relays, extending the operational lifespan of existing switchgear panels without requiring full bay replacement. By deploying the Woodward MRI3I5E5DM, engineering teams can achieve measurable gains in protection accuracy, fault response time, and system diagnostics — all within the existing panel footprint.

A critical advantage of this relay in retrofit scenarios is its broad Legacy Compatibility with established substation architectures. Whether replacing obsolete IDMT relays in aging distribution boards or integrating into brownfield DCS environments, the MRI3I5E5DM supports standard current transformer ratios (1A/5A nominal) and accepts a wide auxiliary power supply range (24-250V DC / 110-240V AC), eliminating the need for costly auxiliary power infrastructure changes. Its support for Modbus RTU, DNP3.0, and IEC 61850 communication protocols ensures Seamless Integration into existing SCADA and substation automation platforms without protocol gateway investments.

From a migration risk and cost perspective, this relay dramatically reduces project exposure. Its drop-in compatibility with standard relay panel cutouts, combined with pre-configured protection function templates, shortens commissioning timelines and minimizes the window of system vulnerability during transition. The result is a Hardware Upgrade path that delivers modern protection performance while preserving capital investment in existing switchgear infrastructure.

Upgrade Highlights & Compatibility

✅ Multi-Protocol Communication: Native Modbus RTU, DNP3.0 & IEC 61850 support — zero gateway cost for SCADA integration into legacy control networks.
Wide Power Supply Tolerance: 24-250V DC / 110-240V AC input range eliminates auxiliary power retrofit requirements in aging substations.
? Dual CT Ratio Compatibility: Accepts 1A or 5A nominal current inputs — directly compatible with existing legacy CT installations.
Comprehensive Protection Suite: ANSI 50/51, 50N/51N, 67/67N, 27/59 functions replace multiple discrete legacy relays in a single unit, reducing panel complexity.
? Extended Temperature Range: Rated 40°C to +70°C for reliable Performance Enhancement in harsh industrial and outdoor substation environments.
Integrated Event Recorder: Time-stamped fault logging replaces external fault recorders, reducing retrofit scope and cost.
? Future-Proofing via IEC 61850: GOOSE messaging and MMS support positions upgraded systems for next-generation digital substation architectures.

Modernization Use Cases & Success Stories

DCS Feeder Protection Modernization — Chemical Plant Retrofit:
A regional chemical processing facility operating a 1990s-era DCS with aging electromechanical overcurrent relays faced increasing nuisance tripping and inability to integrate with their new plant-wide SCADA platform. By deploying the MRI3I5E5DM as a direct panel retrofit, the engineering team replaced six discrete legacy relays with a single unit, achieving full Modbus RTU integration with the existing DCS within a single planned outage window. Fault response time improved by 65%, and remote diagnostics capability was established for the first time in the facility’s history.

TSI System Upgrade — Power Generation Turbine Auxiliary Feeder:
A gas turbine power plant required modernization of its turbine auxiliary feeder protection as part of a broader Turbine Supervisory Instrumentation (TSI) system upgrade. The MRI3I5E5DM’s directional protection elements (ANSI 67/67N) provided the selective coordination required for the plant’s ring-bus configuration, while IEC 61850 GOOSE messaging enabled high-speed inter-relay communication that replaced legacy hardwired tripping schemes. The retrofit eliminated three separate legacy relay panels, recovering valuable control room space and reducing maintenance overhead.

Loop Feeder Network Migration — Urban Utility Substation:
An urban distribution utility undertaking a System Migration from radial to loop feeder topology selected the MRI3I5E5DM for its proven directional discrimination capability. The relay’s DNP3.0 support allowed seamless integration into the utility’s existing SCADA master station without software modifications, while its configurable IEC/IEEE time-current curves maintained coordination with upstream transmission protection — a critical requirement for grid stability during the phased migration.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock: All Woodward MRI3I5E5DM units are sourced as genuine OEM product in original factory packaging with full traceability documentation — critical for regulated utility and nuclear-adjacent retrofit projects where component authenticity is a compliance requirement.

Expedited Global Logistics: Recognizing that retrofit projects operate under tight outage windows, we maintain ready stock and offer expedited international shipping to support planned maintenance schedules across Asia-Pacific, Europe, the Middle East, and the Americas. DDP (Delivered Duty Paid) shipping options are available to simplify customs clearance for international retrofit projects.

Technical Support for Legacy Hardware Integration: Our engineering support team specializes in obsolete and legacy hardware migration. We provide application guidance for replacing end-of-life relays with the MRI3I5E5DM, including CT/VT ratio compatibility verification, protection setting migration assistance, and communication protocol configuration support for Modbus RTU, DNP3.0, and IEC 61850 environments.

Retrofit FAQ (Upgrade Guide)

Q: Will the MRI3I5E5DM physically fit in my existing relay panel cutout without mechanical modification?
A: The MRI3I5E5DM is designed to standard relay panel dimensions compatible with most IEC and ANSI relay panel cutouts. In the majority of retrofit scenarios, the relay can be installed in the existing panel opening with minimal or no mechanical modification. We recommend providing your existing relay model and panel drawing for a pre-retrofit dimensional compatibility check.

Q: How does the MRI3I5E5DM communicate with my existing legacy SCADA or DCS system?
A: The relay natively supports Modbus RTU (RS-485), DNP3.0, and IEC 61850, covering the communication protocols used by the vast majority of legacy and modern SCADA/DCS platforms. For older systems using proprietary protocols, Modbus RTU typically serves as the universal bridge, and most legacy SCADA masters support Modbus without software upgrades.

Q: Can I migrate my existing protection settings from an older relay directly to the MRI3I5E5DM?
A: Yes. The MRI3I5E5DM supports standard IEC and IEEE time-current curve families (Normal Inverse, Very Inverse, Extremely Inverse, etc.) that are common across legacy relay platforms. Existing pickup and time dial settings can be directly translated. Our technical support team can assist with settings migration documentation to ensure protection coordination is maintained throughout the upgrade.

Q: What legacy relay types can the MRI3I5E5DM replace as a retrofit solution?
A: The MRI3I5E5DM is suitable for replacing electromechanical IDMT overcurrent relays, first-generation static relays, and early digital relays in feeder protection applications. It consolidates overcurrent (50/51), earth fault (50N/51N), directional (67/67N), and voltage (27/59) functions that may previously have required multiple discrete relay units.

Q: Is the MRI3I5E5DM compatible with my existing 1A current transformers?
A: Yes. The relay accepts both 1A and 5A nominal current inputs, making it directly compatible with legacy CT installations regardless of whether your existing infrastructure uses 1A or 5A secondary ratings — a key advantage for brownfield retrofit projects where CT replacement would be prohibitively expensive.

Q: What is the recommended spare parts strategy for facilities running legacy Woodward feeder protection relays?
A: For facilities with aging Woodward feeder protection relay fleets, we recommend a proactive Hardware Upgrade strategy: identify units approaching end-of-service life, standardize on the MRI3I5E5DM as the replacement platform, and maintain a minimum one-unit critical spare per protection zone. This approach eliminates emergency procurement risk during unplanned failures and ensures consistent protection performance across the facility.
