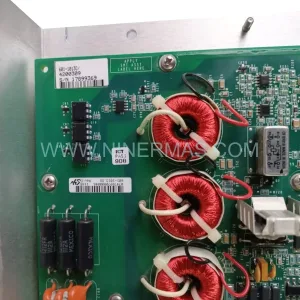

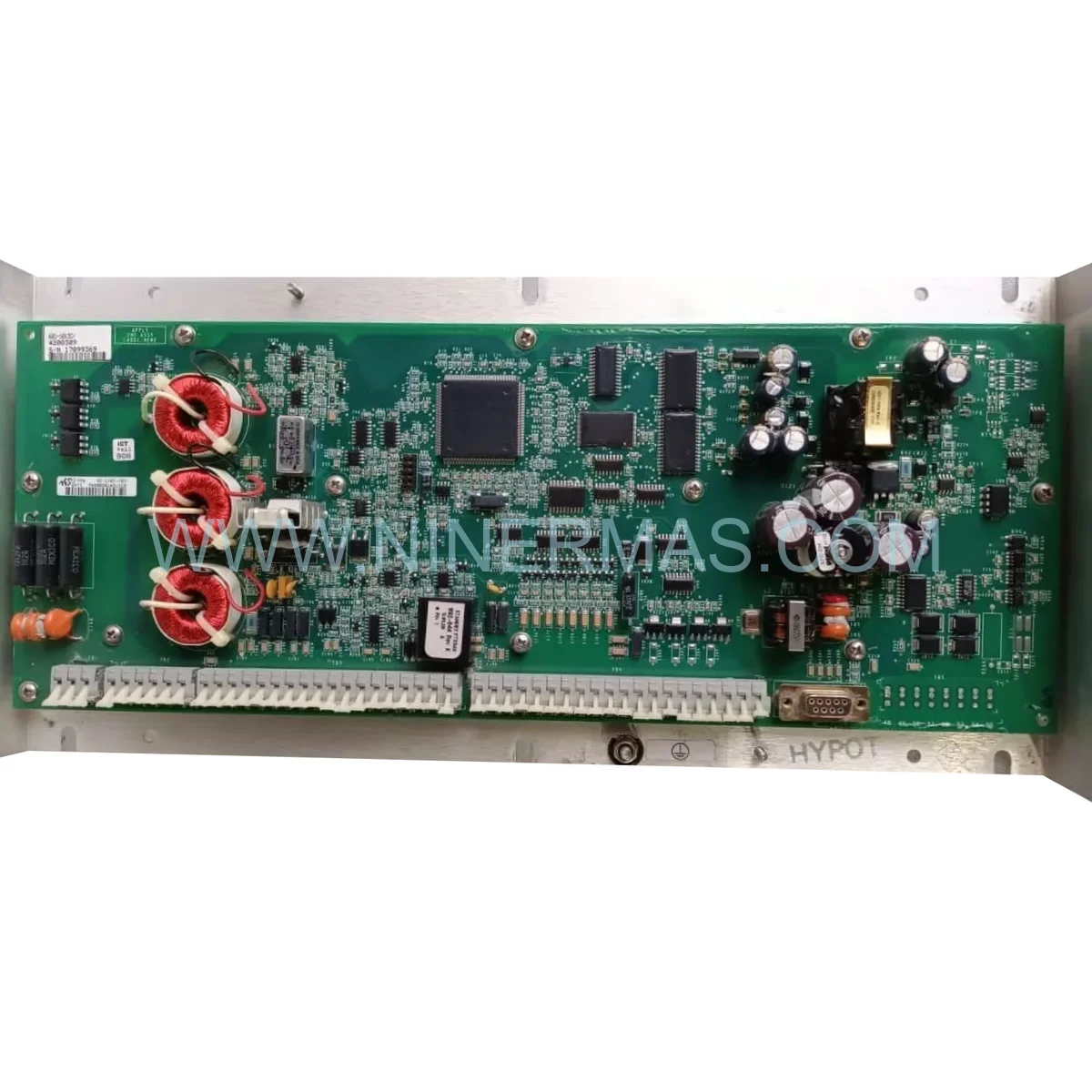

Woodward 8273-140 | 2301D Governor Retrofit & System Upgrade Module

Woodward 8273-140 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial power generation upgrades, the Woodward 8273-140 stands out as a cornerstone component in any system modernization initiative. This 2301D-series digital governor module delivers the precision control architecture needed to elevate aging generator control infrastructures to contemporary performance standards — extending equipment service life while dramatically reducing unplanned downtime. The Woodward 8273-140 bridges the gap between legacy analog governor systems and the demands of modern parallel generation environments, making it the preferred hardware upgrade for facilities seeking measurable performance enhancement without full system replacement.

One of the most compelling advantages of this module is its backward compatibility with established Woodward actuator families and sensor ecosystems. Whether your facility operates aging EGB or EPG electro-hydraulic actuators, or relies on magnetic pickup speed sensing from earlier-generation installations, the 8273-140 integrates without requiring wholesale infrastructure replacement. This legacy compatibility dramatically reduces retrofit project scope, enabling engineering teams to execute phased migration strategies that protect capital investment while progressively modernizing control logic.

From a migration risk perspective, deploying the Woodward 8273-140 as the control nucleus of a retrofit project minimizes both technical uncertainty and financial exposure. Its field-proven 2301D platform has accumulated decades of operational data across diverse industrial environments, providing retrofit architects with a reliable baseline for commissioning timelines, tuning parameters, and failure mode analysis — translating directly into lower total cost of ownership for the modernization program.

Upgrade Highlights & Compatibility

✅ Drop-in Legacy Compatibility: Interfaces with existing Woodward actuators, MPU sensors, and analog load sharing wiring — no rewiring overhaul required.

Dual-Mode Control Architecture: Isochronous mode for isolated microgrids; droop mode for seamless grid-parallel and multi-genset synchronization.

✅ Performance Enhancement via Adaptive Gain: Advanced gain scheduling algorithms suppress transient oscillations, delivering ±0.25% speed regulation — a measurable leap over first-generation analog governors.

Future-Proof Platform: The 2301D series remains an active Woodward product line, ensuring long-term parts availability, firmware support, and technical documentation access.

✅ Wide Environmental Tolerance: Rated -40°C to +70°C operating range supports harsh industrial, offshore, and remote-site deployments without additional thermal management.

Scalable Parallel Operation: Supports 2 to 16+ gensets in synchronized parallel — future-proofing your power plant as capacity demands grow.

Modernization Use Cases & Success Stories

DCS-Integrated Power Plant Retrofit: A regional industrial facility operating a legacy analog governor network across six diesel gensets faced chronic load imbalance and frequency instability during peak demand cycles. By migrating to the Woodward 8273-140 across all units, the engineering team achieved synchronized isochronous load sharing with ±1% load deviation — eliminating the manual rebalancing interventions that had previously consumed 40+ maintenance hours per month. The retrofit was executed unit-by-unit over a single planned outage window, with zero production interruption.

TSI System Modernization in Offshore Gas Platform: An offshore operator running turbine supervisory instrumentation (TSI) on aging first-generation speed controllers required a hardware upgrade path that preserved existing sensor wiring and junction box infrastructure. The Woodward 8273-140 was selected for its native MPU input compatibility and analog output range, enabling a seamless integration that reused 90% of existing field wiring. Post-commissioning speed regulation improved from ±1.5% to ±0.25%, directly reducing fuel consumption and mechanical wear on turbine components.

Hospital Emergency Power System Upgrade: A critical healthcare facility required its backup generator control system to meet updated grid-parallel interconnection standards. The 8273-140’s droop control capability and rapid transient response allowed the facility to achieve compliance without replacing generator sets — a retrofit solution that delivered full regulatory conformance at approximately 15% of the cost of new equipment procurement.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Model Number** | Woodward 8273-140 | | **Series** | 2301D Digital Governor | | **Lifecycle Status** | Active — Current Production | | **Control Modes** | Isochronous / Droop (field-selectable) | | **Input Voltage** | 18-32 VDC (24 VDC nominal) | | **Speed Sensing Input** | Magnetic Pickup (MPU) or Electronic Signal | | **Load Sharing Accuracy** | ±1% of Rated Load | | **Speed Regulation** | ±0.25% (Isochronous Mode) | | **Operating Temperature** | -40°C to +70°C | | **Communication Interface** | Analog Load Sharing Lines | | **Actuator Compatibility** | EGB, EPG, and Electronic Actuator Series | | **Mounting Options** | Panel Mount / DIN Rail Compatible | | **Legacy System Compatibility** | 2301A / 2301B / Early 2301D Installations | | **Warranty** | 12 Months — Manufacturing Defects & Components |

Supply Chain & Deployment Support

Original & Factory Sealed Units: Every Woodward 8273-140 dispatched from our inventory is sourced through authorized distribution channels and shipped in original manufacturer packaging with full traceability documentation — critical for retrofit projects requiring audit-ready component records.

Expedited Global Logistics: We maintain dedicated logistics partnerships for time-sensitive retrofit deployments. Express air freight options are available to all major industrial hubs across Asia-Pacific, the Middle East, Europe, and the Americas — with typical lead times of 3-7 business days for in-stock units.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy Woodward governor systems. We provide pre-installation compatibility assessments, wiring diagram cross-referencing, and commissioning guidance — ensuring your retrofit project proceeds on schedule regardless of the age or complexity of the existing control architecture.

Retrofit FAQ — Upgrade Guide

Q1: Will the Woodward 8273-140 physically fit in the same panel space as my existing 2301A or early 2301D controller?
A: The 8273-140 shares a compatible form factor with the broader 2301D series and is designed for panel or DIN rail mounting. In most retrofit scenarios, the module can be installed in the existing enclosure footprint. We recommend providing your current panel dimensions and mounting configuration for a pre-installation compatibility assessment before procurement.

Q2: How does the 8273-140 communicate with newer DCS or SCADA platforms during a phased migration?
A: The module uses analog load sharing lines as its primary inter-unit communication method. For integration with modern DCS or SCADA systems, signal conditioning interfaces or analog I/O modules on the DCS side are typically used to bridge the communication gap — a standard approach in phased migration architectures that avoids requiring simultaneous replacement of all control layers.

Q3: Can the Woodward 8273-140 serve as a direct replacement for obsolete analog governor controllers from other manufacturers?
A: In many cases, yes — provided the actuator output signal range and speed sensing input type are compatible. The 8273-140’s configurable gain and droop settings allow it to be tuned to match the response characteristics of a wide range of legacy governor systems. A detailed cross-reference of your existing controller’s I/O specifications is recommended before finalizing the retrofit bill of materials.

Q4: What spare parts or backup components should be stocked alongside the 8273-140 for a long-term retrofit program?
A: For multi-unit installations, we recommend maintaining at least one hot-spare 8273-140 module per site, along with compatible MPU sensors and actuator feedback potentiometers. Given the 2301D series’ active lifecycle status, spare parts availability is currently strong — but procurement of strategic reserves is advisable for remote or offshore installations where logistics lead times are extended.

Q5: Is specialized software required to configure the Woodward 8273-140 after installation?
A: Basic operational parameters — including droop percentage, gain, and speed reference — can be set using onboard potentiometers and DIP switches, making initial commissioning accessible without proprietary software. Advanced tuning, diagnostic data logging, and parameter archiving require Woodward’s configuration software and a compatible interface cable, which should be included in the retrofit project toolkit.

Q6: What is the recommended migration sequence when upgrading a multi-genset facility from legacy analog governors to the 8273-140?
A: The recommended approach is a sequential unit-by-unit migration during planned maintenance windows. Begin with the genset carrying the lowest critical load, commission and validate the 8273-140 on that unit, then proceed to subsequent units. This staged retrofit strategy maintains facility power availability throughout the migration and allows the engineering team to refine tuning parameters before applying them fleet-wide.
