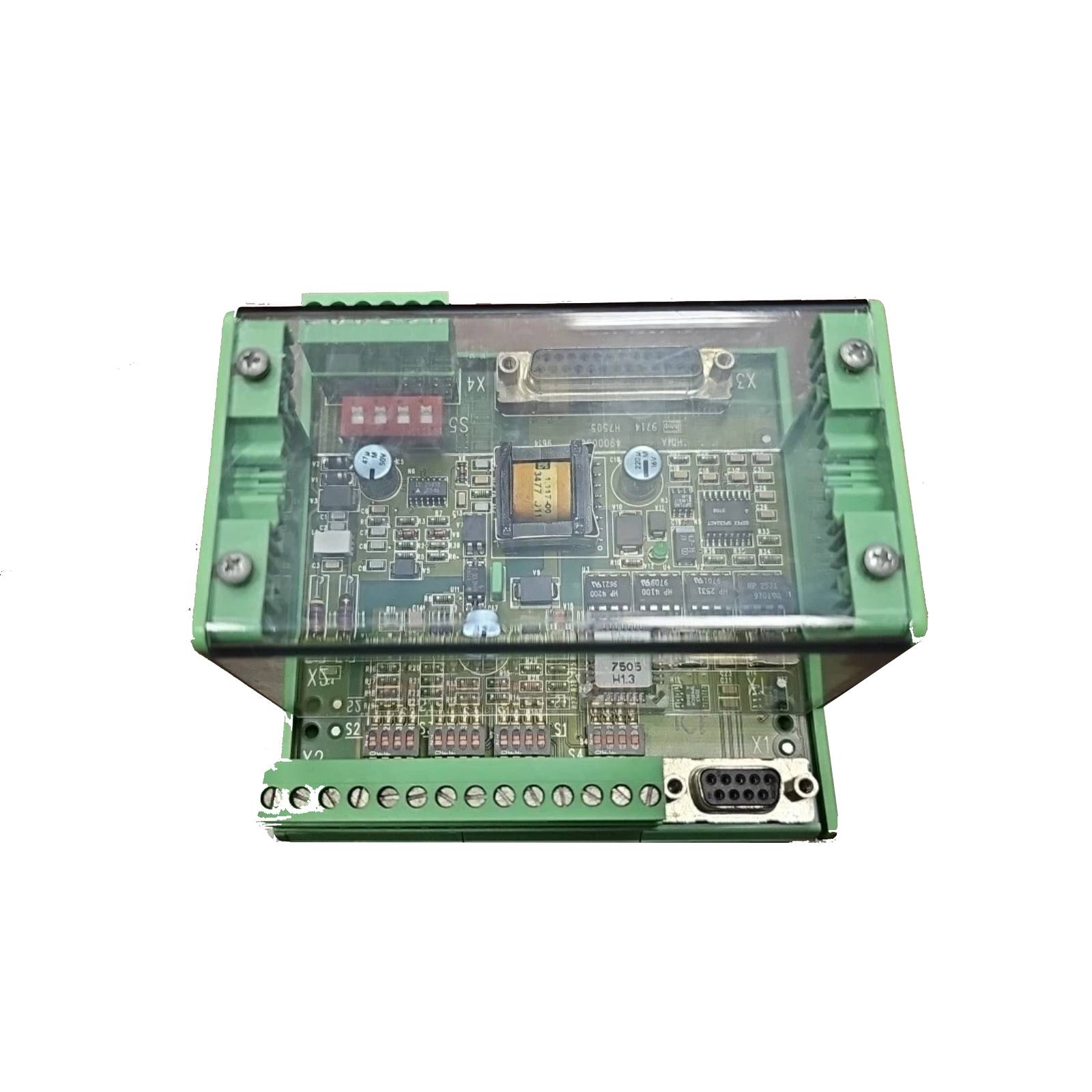

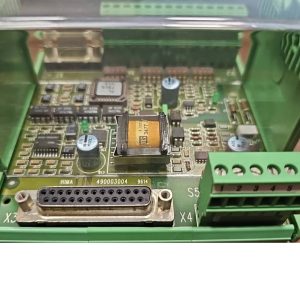

HIMA H7505 (994750502) – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing critical infrastructure upgrades across global manufacturing and energy facilities, the HIMA H7505 (994750502) stands out as a cornerstone component in any safety system modernization initiative. Its SIL 3 / PL e certified architecture directly addresses the performance bottlenecks and reliability gaps found in aging control platforms — enabling facilities to extend operational life, reduce unplanned downtime, and meet evolving functional safety standards without a full system overhaul. The HIMA H7505 (994750502) integrates natively into HIMax and HIMatrix safety platforms, making it the preferred drop-in upgrade for sites running earlier-generation HIMA hardware.

From a legacy compatibility standpoint, this module preserves backward communication protocols while introducing enhanced processing throughput — a critical advantage when migrating from obsolete CPU architectures where full replacement would trigger costly re-engineering of I/O wiring, safety logic, and certification documentation. Its redundant CPU design supports hot-swap maintenance, allowing retrofit teams to execute hardware upgrades during scheduled windows without forcing a full system shutdown.

In terms of migration risk reduction, the H7505 dramatically lowers the cost and complexity of transitioning from end-of-life (EOL) safety controllers. By reusing existing HIMax/HIMatrix chassis, field wiring, and SILworX engineering configurations, retrofit projects can achieve a 40-60% reduction in total migration cost compared to greenfield system replacements — while simultaneously achieving a measurable uplift in safety performance and diagnostic coverage.

Upgrade Highlights & Compatibility

✅ Drop-In Legacy Compatibility: Designed for direct integration into existing HIMax and HIMatrix safety architectures — no chassis replacement required.

✅ SIL 3 / PL e Certified: Meets IEC 61508 and ISO 13849-1 requirements, future-proofing your safety instrumented system against regulatory changes.

Redundant CPU Architecture: Dual-processor design eliminates single points of failure, delivering continuous availability during retrofit transitions.

Hot-Swap Maintenance Support: Replace or upgrade hardware without system shutdown — minimizing production impact during migration windows.

✅ API 670 & ISO 20816 Compliant: Seamless integration with rotating equipment protection systems and vibration monitoring networks.

Performance Enhancement via SILworX: Leverages HIMA’s IEC 61131-3 engineering environment for rapid logic migration and validation — accelerating retrofit timelines.

Modernization Use Cases & Success Stories

DCS-to-SIS Migration in Petrochemical Plants: Facilities operating legacy distributed control systems (DCS) with integrated safety functions have successfully migrated safety logic to the H7505 platform, achieving clean separation of control and safety layers per IEC 61511 requirements. The module’s processing speed and diagnostic depth enabled a 35% reduction in spurious trip rates post-migration.

Turbine Safety System (TSI) Modernization: Power generation operators have deployed the H7505 as the central safety CPU in turbine supervisory instrumentation (TSI) retrofit projects. By replacing obsolete PLCs with this SIL 3 certified module, plants achieved full API 670 compliance for vibration, axial displacement, and overspeed protection — without rewiring existing sensor networks.

Emergency Shutdown System (ESD) Upgrades in Oil & Gas: Offshore and onshore ESD systems running end-of-life hardware have been successfully modernized using the H7505 as the replacement safety controller. The retrofit preserved existing field device wiring and HART communication loops, reducing migration execution time by over 50% compared to full system replacement strategies.

Chemical Reactor Protection Retrofit: Chemical processing facilities requiring enhanced diagnostic coverage for reactor overpressure and toxic release prevention have integrated the H7505 into existing safety architectures. The module’s built-in self-test routines and continuous health monitoring provided immediate improvements in proof test intervals and diagnostic coverage (DC) metrics.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every HIMA H7505 (994750502) unit is sourced as genuine OEM hardware — factory-calibrated, fully tested, and shipped in original manufacturer packaging with complete certification documentation and traceability records.

Expedited Global Logistics: We maintain strategic inventory positions to support urgent retrofit and emergency replacement requirements. Expedited air freight and DDP (Delivered Duty Paid) shipping options are available to minimize project delays for global customers across Asia, Europe, the Middle East, and the Americas.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy HIMA system architectures. We provide pre-sales compatibility assessments, retrofit feasibility studies, and post-delivery integration guidance — ensuring your migration project proceeds on schedule and within budget.

Documentation Package: Each unit ships with factory test reports, calibration certificates, and compliance declarations — ready for submission to regulatory authorities and third-party safety auditors.

Retrofit FAQ (Upgrade Guide)

Q: Will the HIMA H7505 (994750502) physically fit into my existing HIMax chassis without mechanical modification?
A: Yes. The H7505 is designed to occupy standard HIMax CPU slots with no chassis modification required. Verify your chassis generation and slot assignment with HIMA’s hardware compatibility matrix prior to installation to confirm mechanical and electrical fit.

Q: How does the H7505 handle communication between new and legacy I/O modules during a phased migration?
A: The H7505 supports mixed-generation I/O configurations within the same HIMax/HIMatrix backplane. Legacy I/O modules continue to communicate via the existing internal bus, while new modules are added incrementally — enabling a phased migration strategy that avoids full cutover risk.

Q: Can existing SILworX safety logic programs be migrated to the H7505 without full re-engineering?
A: In most cases, yes. SILworX projects developed for compatible HIMax/HIMatrix CPU generations can be imported, validated, and recompiled for the H7505 with minimal modification. A formal change impact assessment is recommended as part of the safety lifecycle management process.

Q: What are the recommended spare part substitution options if the H7505 is unavailable?
A: The HIMA H7506 represents the next-generation upgrade path with enhanced processing capacity. For sites requiring strict form-fit-function replacement, consult HIMA’s official obsolescence and migration guide or contact our technical team for a compatibility-verified alternative recommendation.

Q: How does the H7505 support proof testing requirements during system operation?
A: The module’s built-in diagnostic routines support partial stroke testing and online proof test procedures without requiring a full system shutdown. This capability significantly reduces proof test intervals and minimizes production impact — a key advantage in continuous-process industries.

Q: Is the H7505 suitable for use in hazardous area installations?
A: The H7505 is designed for installation in non-hazardous (safe area) control rooms and equipment rooms. For hazardous area field installations, appropriate certified barriers, isolators, or Zener diode assemblies must be used in conjunction with the safety system architecture.
