Westinghouse 1C31222G01 Retrofit Relay Output Panel for Legacy DCS Systems

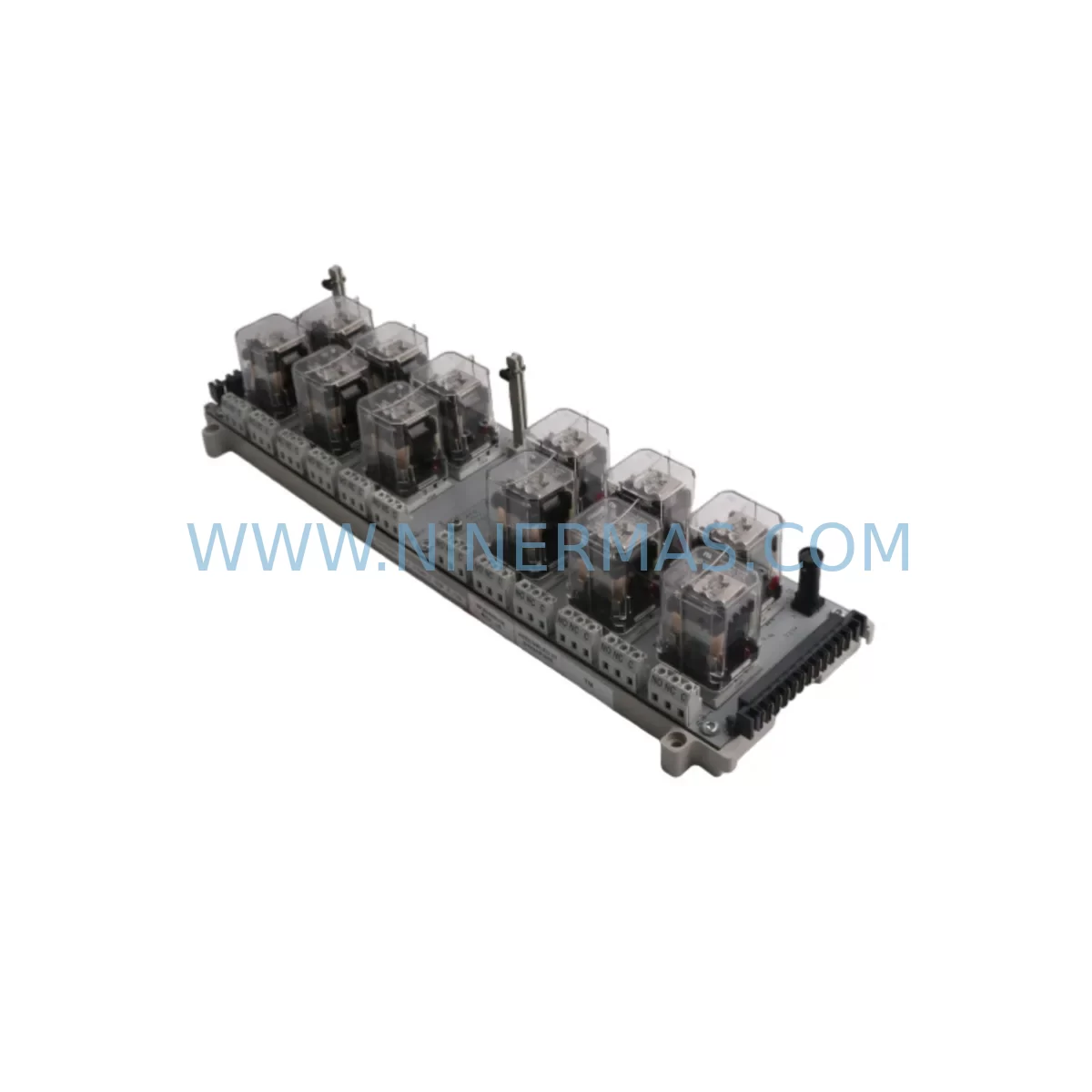

The Westinghouse 1C31222G01 Relay Output Panel, also referenced under assembly part number 5A26458G05, is a critical I/O module within the Ovation Distributed Control System (DCS) platform — a control architecture widely deployed across power generation, fossil fuel, and nuclear process facilities. As Emerson (formerly Westinghouse Process Control) has progressively phased out legacy Ovation hardware, procurement teams and maintenance engineers face increasing pressure to source verified replacement units, validate retrofit compatibility, and execute controlled system migrations with minimal production disruption.

This module provides relay-based discrete output capability within the Ovation I/O subsystem, interfacing directly with the Ovation controller backplane and communicating over the Ovation network. Its relay contacts are designed for switching field devices including motor starters, solenoid valves, annunciator panels, and interlock circuits — making it a high-consequence component in any control loop. When a unit fails or reaches end-of-life, replacement must be executed with precision: incorrect substitution can result in address conflicts, logic mismatch, or unintended field actuation.

NINERMAS maintains verified stock of the 1C31222G01 / 5A26458G05 Relay Output Panel, sourced from original Westinghouse and Emerson supply chains, and each unit undergoes pre-shipment functional testing before dispatch. All units are covered by a 12-month warranty from the date of delivery.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 1C31222G01 Relay Output Panel within an operating Ovation DCS environment requires a structured approach that accounts for the full scope of the I/O subsystem. Engineers should begin by auditing the existing I/O rack configuration — confirming the slot position of the failed or end-of-life module, verifying the backplane revision, and cross-referencing the module address assigned in the Ovation Developer Studio database. Incorrect slot addressing is one of the most common causes of commissioning delays during relay output panel replacements.

In many retrofit scenarios, the 1C31222G01 is housed alongside complementary modules within the same I/O cabinet. These may include the 1C31197G01 Analog Input Module for process variable acquisition, the 1C31116G01 Digital Input Module for field status feedback, and the 1C31110G01 Analog Output Module for control signal generation. The 5X00119G01 Ovation I/O Backplane provides the physical and electrical interface for all modules in the rack — its revision level must be confirmed to ensure compatibility with the replacement 1C31222G01 unit.

Power distribution within the control cabinet is equally critical. The 1C31234G01 Power Supply Module or equivalent Ovation-rated 24 VDC supply must be verified for adequate current capacity before adding or replacing relay output panels, particularly in high-density I/O configurations where multiple relay modules share a common power bus. Terminal block wiring — typically routed through marshalling cabinets using 1C31194G01-style field termination assemblies — must be inspected for correct labeling, conductor sizing, and insulation integrity before the new module is inserted.

For sites undertaking broader control system modernization, the 1C31222G01 replacement is often part of a phased migration from legacy Ovation hardware toward the current Emerson Ovation 3.x platform. In these projects, the OCR400 or OCR1100 Ovation Controller may be retained while I/O modules are refreshed incrementally — a strategy that preserves existing control logic, HMI graphics, and historian configurations while systematically eliminating obsolete hardware. Communication integrity across the Ovation network should be validated using the Ovation Diagnostic Tool after each module swap to confirm that the controller is polling the replacement relay output panel correctly.

Where communication protocol migration is also in scope — for example, transitioning field devices from hardwired relay circuits to FOUNDATION Fieldbus or HART-enabled smart devices — the relay output panel replacement may be accompanied by installation of a 1C31238G01 HART Interface Module or equivalent signal conditioning hardware. Signal isolators rated for the field voltage and current range should be installed at the marshalling cabinet to protect the new relay output panel from transient overvoltage events common in older plant wiring infrastructures.

Downtime Control During System Migration

Minimizing unplanned downtime during a relay output panel replacement in an active Ovation DCS environment requires careful pre-outage preparation. Before the maintenance window opens, the engineering team should export a full backup of the Ovation Developer Studio project database, including all controller configurations, I/O assignments, alarm setpoints, and HMI display bindings. This backup serves as the recovery baseline if the replacement module requires re-addressing or if the controller fails to recognize the new hardware on first scan.

During the physical swap, the affected relay output channels should be placed in manual mode at the HMI operator station — transferring control of connected field devices to local manual operation or hardwired bypass circuits where available. This prevents unintended field actuation during the module removal and insertion sequence. The replacement 1C31222G01 should be inserted into the correct backplane slot with the cabinet de-energized at the I/O rack level; full cabinet de-energization is not always required if the Ovation backplane supports hot-swap procedures for the specific rack revision in use.

After insertion, the Ovation controller should be allowed to complete its I/O scan cycle before the operator attempts to return relay outputs to automatic control. Any mismatch between the module’s hardware configuration and the Developer Studio database — such as a relay output count discrepancy or a contact type conflict — will generate a diagnostic alarm that must be resolved before the module is placed in service. Pre-shipment functional testing of the replacement unit, as performed by NINERMAS prior to dispatch, significantly reduces the probability of encountering hardware defects during this critical commissioning phase.

For sites with strict change management requirements, a parallel testing protocol is recommended: the replacement module is verified in a staging rack or test cabinet using a representative Ovation controller before being installed in the live system. This approach is particularly valuable when the 1C31222G01 is part of a safety-related interlock circuit, where relay contact integrity and response time must be confirmed against the original design specification before the system is returned to automatic operation.

Retrofit Support FAQ

Q1: Is the 1C31222G01 a direct drop-in replacement for the existing unit in my Ovation I/O rack?
Yes — the 1C31222G01 is designed for direct slot replacement within compatible Ovation I/O racks. However, you must verify the backplane revision and confirm the module address in Ovation Developer Studio before insertion. NINERMAS can provide the part’s hardware revision details upon request to assist your compatibility check.

Q2: What pre-shipment testing does NINERMAS perform on the 1C31222G01 before dispatch?
Each unit undergoes functional output testing to verify relay contact operation, backplane connector integrity, and indicator LED response. Units that do not pass functional verification are not dispatched. A test report is available upon request for quality-critical procurement requirements.

Q3: Can the 1C31222G01 be used in an Ovation system that has been partially upgraded to the Ovation 3.x platform?
In most cases, yes — the 1C31222G01 Relay Output Panel is compatible with mixed-generation Ovation I/O configurations where legacy I/O modules coexist with newer Ovation 3.x hardware, provided the backplane and controller firmware support the module type. Confirm compatibility with your Emerson service representative or contact NINERMAS for technical guidance.

Q4: What is the warranty coverage and what does it include?
All 1C31222G01 units supplied by NINERMAS are covered by a 12-month warranty from the date of delivery. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. Warranty claims are processed directly through NINERMAS — contact sale@ninermas.com for support.
