VYKON NPB-PWR Service-Ready Spare Part for Industrial Maintenance

VYKON NPB-PWR Service-Ready Spare Part for Industrial Maintenance

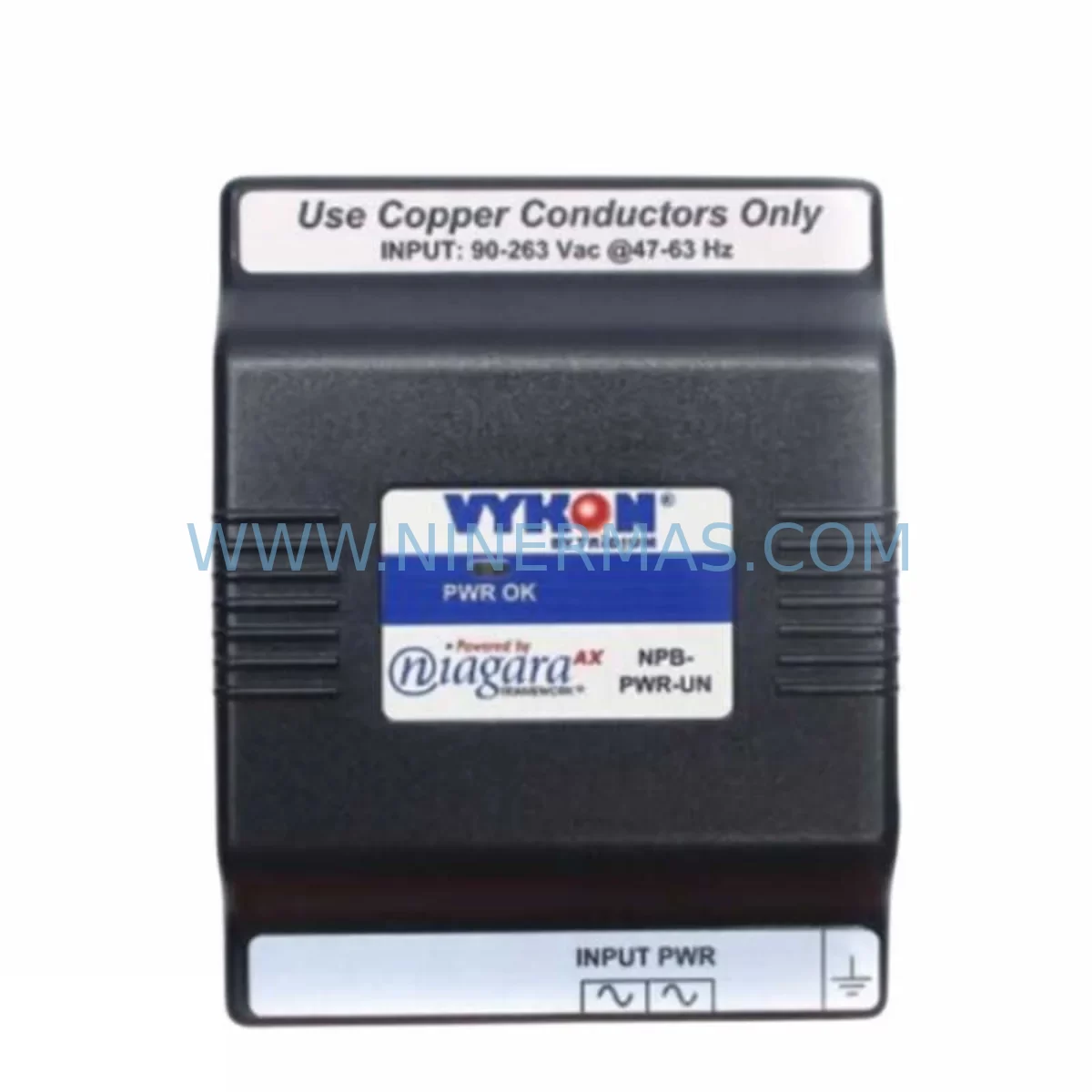

The VYKON NPB-PWR is a ruggedized power supply module engineered for continuous-duty industrial environments where voltage stability and thermal resilience are non-negotiable. Designed to integrate seamlessly within the Tridium Niagara N4 and JACE controller ecosystem, this module delivers regulated DC power to field controllers, I/O expansion racks, and supervisory control nodes operating in harsh ambient conditions — including high-vibration panels, outdoor enclosures, and thermally stressed control cabinets.

For maintenance engineers managing aging BAS (Building Automation Systems), SCADA infrastructure, or distributed control networks, the NPB-PWR represents a critical single-point-of-failure component. A degraded or failed power supply module can cascade into full controller outages, loss of field device communication, and unplanned production downtime. Stocking a verified replacement unit is the most cost-effective insurance against extended mean-time-to-repair (MTTR) on any Niagara-based platform.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the NPB-PWR power supply module, experienced maintenance engineers treat the intervention as an opportunity for a broader control cabinet audit. The power supply is the foundation of every downstream component — a marginal output voltage or excessive ripple will degrade performance across the entire node before causing an outright failure.

Begin by verifying the 24 VDC bus rail integrity at the JACE-8000 or JACE-6 controller backplane. Inspect the NPB-8000 or NPB-600 controller chassis for signs of corrosion on the power input terminals. While the cabinet is open, check the NX-VAR I/O expansion modules — these draw directly from the same regulated rail and are sensitive to supply-side instability. Any intermittent I/O faults logged in the Niagara station history should be cross-referenced against power supply health before replacing field devices.

Simultaneously inspect the 24 VDC field device wiring harness and terminal blocks feeding downstream sensors, actuators, and transmitters. Loose or oxidized terminal connections at the DIN rail terminal strips are a common secondary fault that mimics power supply failure. Replace any discolored or heat-stressed terminals during the same maintenance window.

For sites running Modbus RTU or BACnet MS/TP field buses, verify that the RS-485 communication wiring and termination resistors remain intact — power cycling during a module swap can expose latent bus topology issues. If the site uses NX-IO or NX-AIO analog I/O modules, confirm signal isolation integrity after power restoration, as analog reference rails can drift following a supply interruption.

Procurement engineers should also consider co-stocking the NPB-8000 JACE controller unit and associated NX-COM communication modules as part of a tiered critical-spare strategy. For sites with extended lead times or remote locations, maintaining at least one NPB-PWR on the shelf eliminates the most common cause of multi-day controller outages. Pair this with a spare 24 VDC DIN rail power supply (such as a Phoenix Contact or Weidmuller equivalent rated for the panel load) as a cross-brand backup option for emergency bridging.

Finally, review the UPS or battery backup system feeding the control panel. An aging UPS that fails to hold voltage during a mains interruption will stress the NPB-PWR beyond its design envelope, accelerating capacitor aging and reducing service life. Annual load testing of the UPS, combined with proactive NPB-PWR replacement on a 5–7 year cycle, is the most reliable strategy for zero-unplanned-downtime operation on Niagara-based platforms.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the NPB-PWR, document the current Niagara station status in Workbench. Export the station database backup and confirm all active alarms. Photograph the existing wiring layout at the power input terminals.

Step 2 — Safe Isolation: De-energize the control panel at the upstream MCB or isolator. Verify zero voltage at the NPB-PWR input terminals using a calibrated multimeter. Lock out / tag out (LOTO) per site safety procedures.

Step 3 — Module Removal: Disconnect the AC input wiring and DC output bus connectors. Release the DIN rail locking tab and slide the NPB-PWR free. Note the orientation and connector labeling before removal.

Step 4 — New Module Installation: Clip the replacement NPB-PWR onto the DIN rail. Reconnect AC input and DC output wiring per the original documentation. Torque all terminal screws to specification to prevent contact resistance faults.

Step 5 — Power-Up and Verification: Re-energize the panel. Measure DC output voltage at the bus rail — confirm 24 VDC ±2% under load. Allow the JACE controller to complete its boot sequence. Verify all I/O modules, field devices, and communication links are restored in Niagara Workbench.

Step 6 — Post-Replacement Documentation: Log the replacement in the site maintenance register. Update the spare parts inventory. Schedule the next inspection interval at 12 months.

This workflow minimizes controller downtime to under 30 minutes for a prepared maintenance team, preserving system compatibility and eliminating the risk of configuration loss or field device miscommunication during the transition.

Spare Parts Support FAQ

Q1: Is the VYKON NPB-PWR a direct drop-in replacement for the original factory unit?
Yes. The NPB-PWR supplied by NINERMAS is an original spare part sourced from authorized channels. It is electrically and mechanically identical to the factory-installed unit, requiring no firmware changes or reconfiguration of the Niagara station upon installation.

Q2: What is the recommended spare parts stocking strategy for sites running multiple JACE controllers?
For sites with 3 or more JACE nodes, we recommend maintaining a minimum of one NPB-PWR per 5 controllers as a rotating critical spare. For remote or hard-to-access sites, a 1:3 ratio is advisable. Combine with a spare JACE controller chassis and NX-COM module to cover the most common failure modes without extended lead-time exposure.

Q3: How is the NPB-PWR tested before shipment?
Every unit undergoes bench-level electrical verification at NINERMAS prior to dispatch — including input voltage range testing, DC output regulation measurement under rated load, and thermal cycling inspection. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and electrical performance.

Q4: Can NINERMAS support long-term supply agreements for the NPB-PWR and related VYKON components?
Yes. NINERMAS offers long-term supply commitments for critical industrial spare parts, including the NPB-PWR and associated JACE platform components. Contact our procurement team to discuss annual blanket orders, priority allocation, and extended warranty options tailored to your maintenance cycle and site count.
