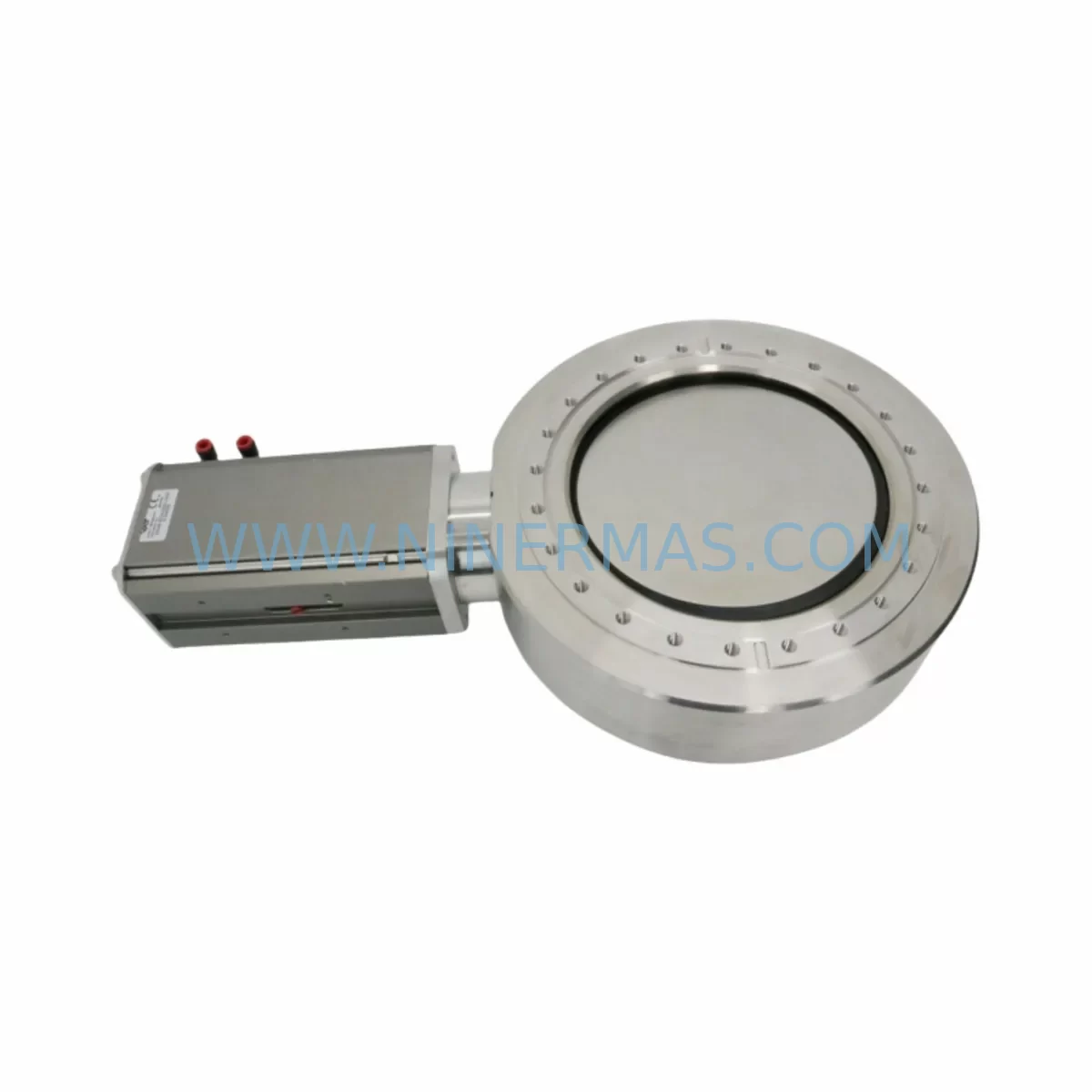

The VAT 20046-XE24-ABB1 is a precision vacuum gate valve component from VAT Group AG, engineered for demanding industrial and semiconductor vacuum environments. As a service-ready spare part, this unit is pre-tested, fully inspected, and backed by a 12-month warranty — making it the preferred choice for maintenance engineers and procurement teams managing critical vacuum systems, process chambers, and automated production lines.

Unplanned downtime caused by a failed vacuum valve can halt an entire production line within minutes. Whether you are managing a semiconductor fab, a flat panel display facility, a solar cell manufacturing plant, or a general industrial vacuum system, having a verified replacement for the VAT 20046-XE24-ABB1 on your spare parts shelf is a fundamental risk mitigation strategy. This unit ships from service-ready inventory, meaning it has been functionally tested prior to dispatch and is accompanied by full traceability documentation.

The VAT 20046 series gate valves are widely deployed in high-vacuum and ultra-high-vacuum (UHV) applications. The XE24 actuator designation indicates an electropneumatic actuator configuration, providing precise open/close control via standard pneumatic supply and electrical position feedback. The ABB1 suffix identifies the specific body and bonnet configuration, including flange dimensions, seal material, and port geometry. Maintenance engineers replacing this component should verify the actuator supply pressure (typically 4–7 bar), the electrical connector pinout for position sensors, and the flange standard (ISO-K or CF) before installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the VAT 20046-XE24-ABB1, experienced maintenance engineers treat the valve replacement as an opportunity to audit the surrounding vacuum circuit and control infrastructure. A gate valve failure rarely occurs in isolation — adjacent components are often subject to the same wear cycles, thermal stress, and contamination exposure.

Begin by inspecting the pneumatic solenoid valve that drives the actuator. A degraded solenoid coil or worn spool can cause slow actuation, partial opening, or erratic position feedback — symptoms that are often misdiagnosed as a gate valve fault. Replacing the solenoid at the same maintenance interval as the VAT 20046-XE24-ABB1 eliminates a common repeat-failure scenario.

Next, verify the position sensor wiring and connector integrity. The XE24 actuator uses a 24 VDC position feedback circuit; corroded terminals or damaged cable shielding can introduce false open/closed signals to the PLC or DCS controller. Inspect the sensor cable from the actuator to the I/O module, and replace any cable showing insulation cracking or connector oxidation.

The vacuum pump inlet filter and foreline isolation valve (often a VAT Series 01.0 or VAT Series 61 angle valve) should also be checked during the same shutdown window. Contamination that bypasses a degraded gate valve seal can migrate downstream and damage the pump’s oil or dry-screw mechanism, significantly increasing repair costs.

For systems using a VAT 20044-XE24 or VAT 20048-XE24 in adjacent positions within the same vacuum manifold, inspect those units for seal wear and actuator response time. Valves in the same series operating under similar duty cycles tend to reach end-of-life within the same maintenance window.

On the electrical side, audit the 24 VDC power supply module feeding the valve actuator and position sensors. An undersized or aging power supply can cause intermittent valve faults under load. Check output voltage under full load and replace if ripple exceeds specification. Similarly, inspect the PLC digital output (DO) module that commands the solenoid — output channel degradation is a known failure mode in high-cycle applications.

If the system uses a pressure transducer or Pirani gauge mounted near the gate valve, calibrate or replace it during the same maintenance event. Accurate pressure readings are essential for confirming that the replacement valve is sealing correctly after installation.

Finally, review the O-ring and seal kit inventory for the VAT 20046 series. Keeping a set of Viton O-rings, bonnet seals, and actuator shaft seals on the shelf allows for rapid field repair if a future failure occurs between full valve replacement cycles. Pair this with a set of ISO-K centering rings and clamps to avoid installation delays caused by missing hardware.

Site Replacement Workflow

Step 1 — Isolation and Venting: Close all adjacent valves to isolate the affected vacuum section. Vent the chamber to atmosphere using the designated vent valve. Confirm pressure equalization before breaking any flange connection. Lock out / tag out (LOTO) the pneumatic supply to the actuator.

Step 2 — Actuator Disconnection: Disconnect the 24 VDC position sensor connector and the pneumatic supply tubing from the XE24 actuator. Label all connections before removal to ensure correct reassembly. Photograph the installation orientation for reference.

Step 3 — Flange Removal: Remove the ISO-K clamps or CF bolts securing the valve body to the vacuum system. Carefully extract the valve, taking care not to contaminate the adjacent flange faces. Inspect the mating flanges for scoring, corrosion, or seal groove damage.

Step 4 — Inspection and Cleaning: Clean the mating flange faces with isopropyl alcohol and lint-free wipes. Install new centering rings and O-rings from the VAT 20046 seal kit. Do not reuse old seals.

Step 5 — Installation of Replacement Unit: Mount the VAT 20046-XE24-ABB1 replacement in the correct orientation (flow direction arrow on body). Torque ISO-K clamps or CF bolts to the manufacturer’s specification. Reconnect pneumatic supply and 24 VDC sensor connector.

Step 6 — Functional Test: Restore pneumatic supply and power. Command the valve open and closed from the PLC or local control panel. Verify position sensor feedback matches physical valve state. Perform a leak check using a helium leak detector or residual gas analyzer (RGA) before returning the system to process.

Step 7 — Documentation: Record the replacement in the maintenance log, including the new part serial number, installation date, and technician name. Update the spare parts inventory to trigger a reorder for the next replacement unit.

Spare Parts Support FAQ

Q1: Is the VAT 20046-XE24-ABB1 a direct drop-in replacement for reference numbers 186001791 and NFOA01A22109?
Yes. The part numbers 186001791 and NFOA01A22109 are cross-reference identifiers associated with the VAT 20046-XE24-ABB1 configuration. Before installation, confirm the flange size (DN 40 or DN 63), actuator voltage (24 VDC), and seal material (Viton) match your system requirements. If you have any doubt, contact our technical team with your system drawings for confirmation.

Q2: What does “service-ready” mean, and how is the unit tested before shipment?
Every VAT 20046-XE24-ABB1 unit shipped from our inventory undergoes a pre-shipment functional test that includes actuator cycle testing (open/close), position sensor output verification, and a visual inspection of seal surfaces and flange faces. Units that do not pass all test criteria are not dispatched. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can you support long-term supply agreements for the VAT 20046-XE24-ABB1?
Yes. We maintain reserved inventory agreements for customers with recurring demand for end-of-life and hard-to-source VAT components. Long-term supply contracts can be structured with agreed lead times, pricing, and minimum order quantities. Contact our procurement team to discuss a supply agreement tailored to your maintenance schedule and annual consumption.

Q4: What is the recommended spare parts holding strategy for the VAT 20046 series?
For facilities operating multiple vacuum systems with VAT 20046 series gate valves, we recommend maintaining a minimum of one complete replacement valve per system, plus a shared seal kit inventory covering all installed units. For high-criticality systems (e.g., single-point-of-failure vacuum lines), a two-unit buffer is advisable. Annual consumption should be reviewed against mean time between replacements (MTBR) data from your CMMS to optimize stock levels and avoid both stockouts and excess inventory carrying costs.
