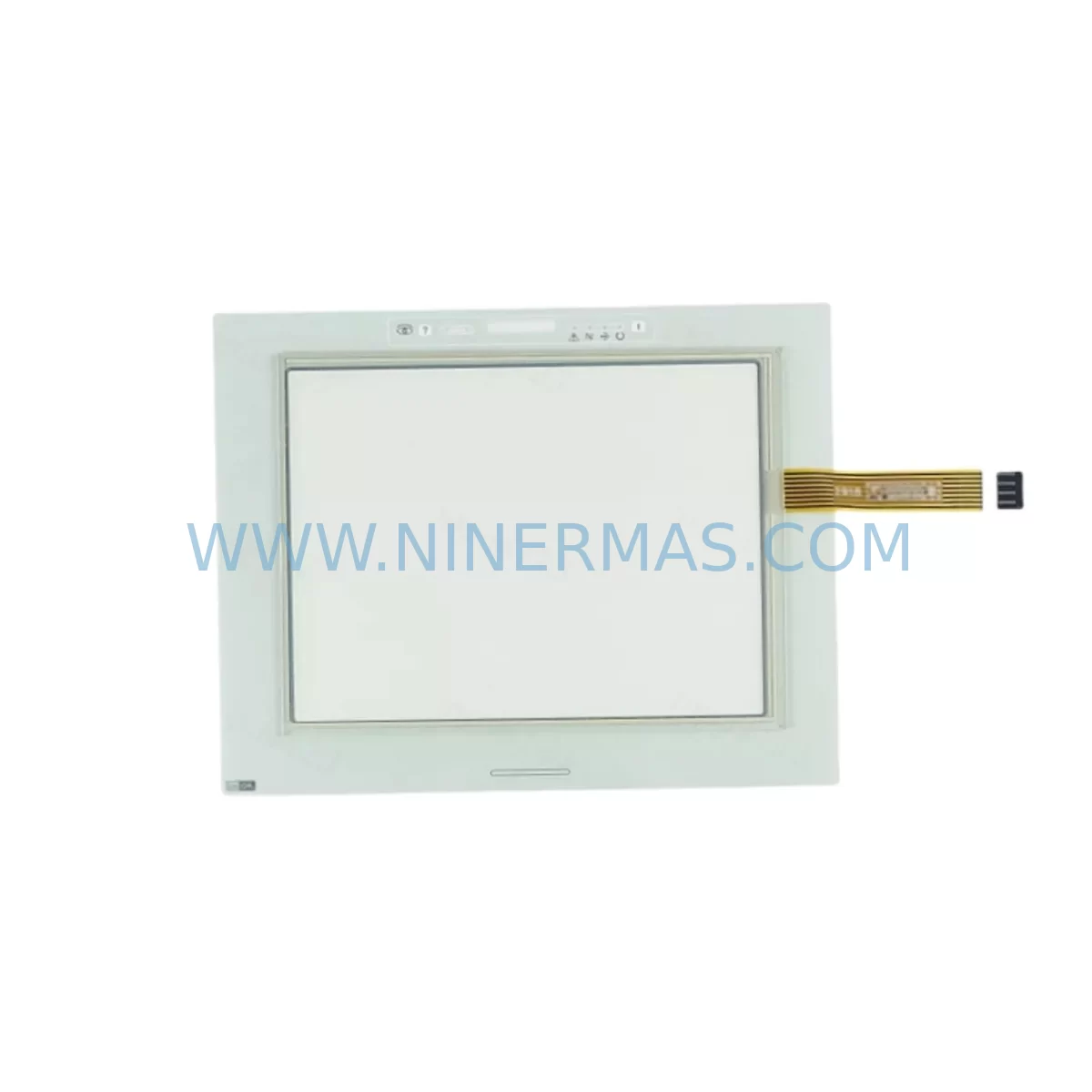

The UniOP eTOP40B-0050 is a compact, operator panel HMI touch screen designed for demanding industrial environments. As a direct replacement unit within the UniOP eTOP series, this spare part is essential for maintenance engineers managing legacy control systems, production line HMI stations, and control cabinet operator interfaces. When an eTOP40B-0050 fails — whether due to touch screen degradation, backlight failure, or communication loss — every minute of unplanned downtime translates directly into production loss. Stocking a verified original spare eliminates the procurement delay that typically extends outages from hours to days.

For procurement engineers sourcing replacement HMI panels, the eTOP40B-0050 represents a low-risk, high-availability spare. Its compatibility with the UniOP eTOP series communication protocols and panel mounting dimensions means no re-engineering is required at the installation site. The unit ships fully tested, with pre-dispatch functional verification covering touch response, display output, and communication port integrity. A 12-month warranty is included with every unit, providing assurance for both immediate replacement and long-term inventory holding.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the eTOP40B-0050 in a live production environment, maintenance engineers should treat the HMI swap as part of a broader control cabinet inspection. The eTOP40B-0050 communicates with the host PLC or controller via serial or Ethernet links, meaning the communication cable — typically a shielded RS-232 or RS-485 cable — should be inspected for insulation damage, connector corrosion, and secure termination before the new panel is powered up. A degraded communication cable is a common root cause of intermittent HMI faults that are misdiagnosed as panel failures.

The 24V DC power supply feeding the eTOP40B-0050 should be load-tested during the replacement window. Units such as the UniOP PS-24V panel power supply or equivalent DIN-rail mounted SMPS modules are frequently found in the same cabinet and are subject to the same aging cycle as the HMI panel itself. Capacitor wear in aging power supplies can cause voltage ripple that shortens HMI backlight life and corrupts display memory. Replacing or verifying the power supply during the same maintenance window prevents a secondary failure shortly after the HMI is restored.

I/O terminal blocks and signal wiring connected to the control system should also be checked. Loose terminal connections on the PLC I/O rack — particularly on analog input modules or digital output modules that feed status data to the HMI — can cause false alarms or blank screen conditions that appear to originate from the HMI itself. During annual overhaul, engineers should also inspect the communication module on the host PLC, such as a UniOP or third-party RS-485 communication card, to confirm baud rate settings and termination resistors are intact.

For facilities running extended production cycles, a recommended spare parts kit alongside the eTOP40B-0050 should include: a replacement 24V DC DIN-rail power supply, a set of RS-232/RS-485 communication cables, spare fuses for the HMI power circuit, a backup communication module for the host controller, and a set of panel-mount gaskets to maintain IP65 sealing integrity after reinstallation. Keeping these components in a dedicated control cabinet spare kit reduces mean time to repair (MTTR) significantly and supports a structured preventive maintenance program.

Site Replacement Workflow

Before removing the eTOP40B-0050, back up the HMI project file from the existing panel if the unit is still partially functional. UniOP eTOP series panels store operator screen configurations internally; if the replacement unit does not carry the same project file, the operator interface will be blank on first power-up. Confirm the project file version is compatible with the eTOP40B-0050 firmware revision before loading.

Power down the control cabinet and isolate the 24V DC supply to the HMI circuit. Disconnect the communication cable and power connector, noting the wiring orientation. Remove the panel from the cut-out by releasing the mounting clamps from the rear. Install the replacement eTOP40B-0050 into the same cut-out — the standard eTOP40 footprint ensures a direct mechanical fit. Reconnect power and communication cables, restore 24V DC supply, and verify the panel boots to the correct operator screen. Perform a full touch calibration and confirm all PLC data tags are reading correctly on the HMI before returning the line to production.

This direct-replacement workflow eliminates the need for control system re-engineering, preserves existing wiring infrastructure, and minimizes downtime to the duration of the physical swap — typically under two hours for a prepared maintenance team.

Spare Parts Support FAQ

Q: Is the eTOP40B-0050 a direct drop-in replacement for the existing panel?
A: Yes. The eTOP40B-0050 uses the standard UniOP eTOP40 panel cut-out dimensions and the same communication interface pinout, making it a direct mechanical and electrical replacement. No cabinet modification is required.

Q: What pre-shipment testing is performed on each unit?
A: Every eTOP40B-0050 is tested for touch screen response accuracy, display output quality, backlight function, and communication port continuity before dispatch. A test report is available upon request.

Q: Can you support long-term supply for this end-of-life HMI model?
A: Yes. NINERMAS maintains sourcing relationships for legacy UniOP eTOP series panels and can support scheduled procurement for annual maintenance programs, multi-site rollouts, and strategic spare parts inventory builds.

Q: What warranty is provided?
A: All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Warranty support includes replacement or repair at no additional cost.
