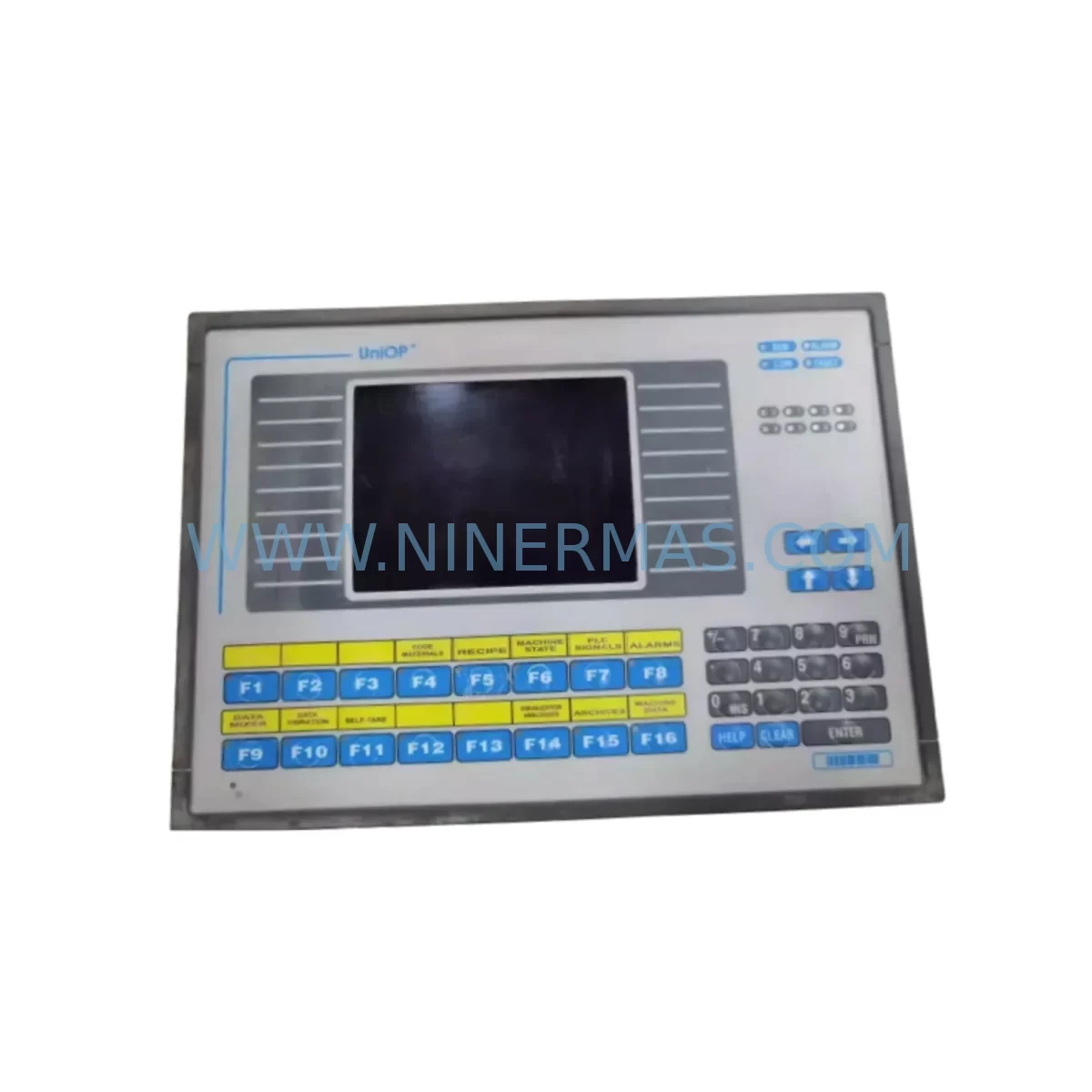

UNIOP EK-16N Safety-Reliable Touch Screen for Critical Control

UNIOP EK-16N Safety-Reliable Touch Screen for Critical Control Sites

The UNIOP EK-16N is a proven industrial operator panel engineered for demanding control environments where uptime, signal integrity, and operator safety are non-negotiable. Designed to integrate seamlessly into legacy and modern PLC-based control architectures, the EK-16N delivers consistent human-machine interface (HMI) performance across continuous production lines, critical interlock circuits, and high-load control cabinets. Whether deployed in petrochemical processing, power generation, mining extraction, water treatment, metallurgical smelting, port logistics, or marine vessel automation, this panel is built to sustain reliable operation under high electromagnetic interference, dust ingress, humidity, thermal cycling, and mechanical vibration.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical control cabinet installations, the UNIOP EK-16N serves as the primary operator interface layer, reducing the risk of misoperation and unplanned shutdowns by providing clear, real-time process visualization. When paired with a Siemens S7-300 or S7-400 PLC via the MPI or PROFIBUS-DP bus, the EK-16N enables deterministic command acknowledgment, minimizing the latency that can cause control loop instability in fast-response interlock systems.

Power supply stability is foundational to HMI reliability. Integrating a Phoenix Contact QUINT 24VDC power supply or equivalent DIN-rail redundant PSU upstream of the EK-16N ensures that voltage sags, surges, and transient spikes — common in heavy motor-start environments — do not corrupt the display controller or cause spurious screen resets. Surge protection devices such as the Phoenix Contact TRABTECH VAL-MS series or Weidmüller VPU surge arresters should be installed on the 24VDC feed to the panel to guard against lightning-induced and switching transients.

For communication integrity in multi-node RS-485 networks, the EK-16N benefits from proper bus termination resistors and ADAM-4520 RS-232 to RS-485 converters or equivalent signal repeaters when cable runs exceed 100 metres. In high-EMI environments such as variable frequency drive (VFD) rooms or arc furnace control buildings, shielded twisted-pair cabling and ferrite core suppressors on communication lines are essential companions to the EK-16N to prevent signal drift and communication timeouts.

Within the same control cabinet, the EK-16N typically operates alongside Omron CJ2M or CP1H PLCs, Schneider Electric Modicon M340 processors, or legacy Allen-Bradley SLC 500 controllers, all of which are supported through UNIOP’s extensive driver library. Relay output modules such as the Phoenix Contact PLC-RSC relay terminal or Wago 750-series I/O modules handle the physical switching of safety-critical loads, while the EK-16N provides the supervisory visualization and operator command layer above them.

For installations requiring safety-rated interlock monitoring, the EK-16N is commonly deployed in conjunction with Pilz PNOZ safety relays or Sick safety controllers, where the HMI displays interlock status, bypass authorizations, and alarm acknowledgment — reducing the risk of operator error during emergency shutdowns and restart sequences. Uninterruptible power supply modules such as the APC Smart-UPS or Eaton 5P series provide ride-through capability during grid disturbances, ensuring the EK-16N remains operational during momentary power interruptions that could otherwise trigger false process trips.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The EK-16N is well-suited for operator stations in distillation column control, compressor surge protection panels, and emergency shutdown (ESD) visualization systems. Its IP65 front panel rating protects against hydrocarbon vapour condensation and cleaning agent ingress during routine maintenance.

Power Generation & Substation Control: In turbine governor control rooms and HV/MV substation relay panels, the EK-16N provides stable operator interface performance despite the intense electromagnetic fields generated by high-voltage switching equipment. Its non-volatile memory ensures that alarm setpoints and display configurations are retained through power cycling events.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme dust loading, vibration from blasting and heavy machinery, and wide temperature swings. The EK-16N’s robust construction and IP65 sealing make it a dependable replacement for worn or obsolete HMI panels in conveyor control, crusher automation, and ventilation management systems.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities require continuous, unattended operation of pump stations, dosing systems, and filtration controls. The EK-16N supports SCADA integration via serial communication, enabling operators to monitor and adjust process parameters without direct PLC programming access, reducing the risk of inadvertent configuration changes.

Metallurgy & Steel Production: In electric arc furnace (EAF) and rolling mill environments, the EK-16N withstands the high radiated EMI from furnace transformers and drive systems. It is commonly used in ladle crane control cabinets, continuous casting machine operator stations, and rolling mill speed reference panels.

Port Logistics & Marine Automation: Ship-to-shore crane control systems, bulk material handling terminals, and vessel engine room automation panels benefit from the EK-16N’s compact DIN-rail-compatible mounting and wide-range DC power input, which accommodates the voltage fluctuations typical of marine and port power distribution systems.

Safety and Quality FAQ

Q1: Does the UNIOP EK-16N come with a warranty?
Yes. Every UNIOP EK-16N unit supplied by NINERMAS COMPANY LIMITED carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with replacement unit dispatch to minimize site downtime.

Q2: Is each unit tested before shipment?
Yes. All EK-16N panels undergo pre-shipment functional testing prior to dispatch. This includes power-on verification, display integrity check, communication port validation, and touchscreen calibration confirmation, ensuring that units arrive at site ready for installation without additional bench testing.

Q3: Is the EK-16N compatible with my existing PLC and SCADA system?
The UNIOP EK-16N supports a broad range of PLC communication drivers including Siemens S5/S7, Allen-Bradley DF1/DH485, Mitsubishi FX/Q series, Omron Host Link/Fins, and Modbus RTU/ASCII. Compatibility with your specific PLC model should be confirmed against the UNIOP driver library. Our technical team can assist with compatibility verification prior to order placement.

Q4: Can long-term spare parts supply be guaranteed?
NINERMAS maintains dedicated inventory of EK-16N units and associated UNIOP EK Series spare parts to support long-lifecycle industrial installations. We specialize in sourcing and supplying obsolete and hard-to-find industrial control components, ensuring that your critical systems can be maintained and restored without forced platform migration.
