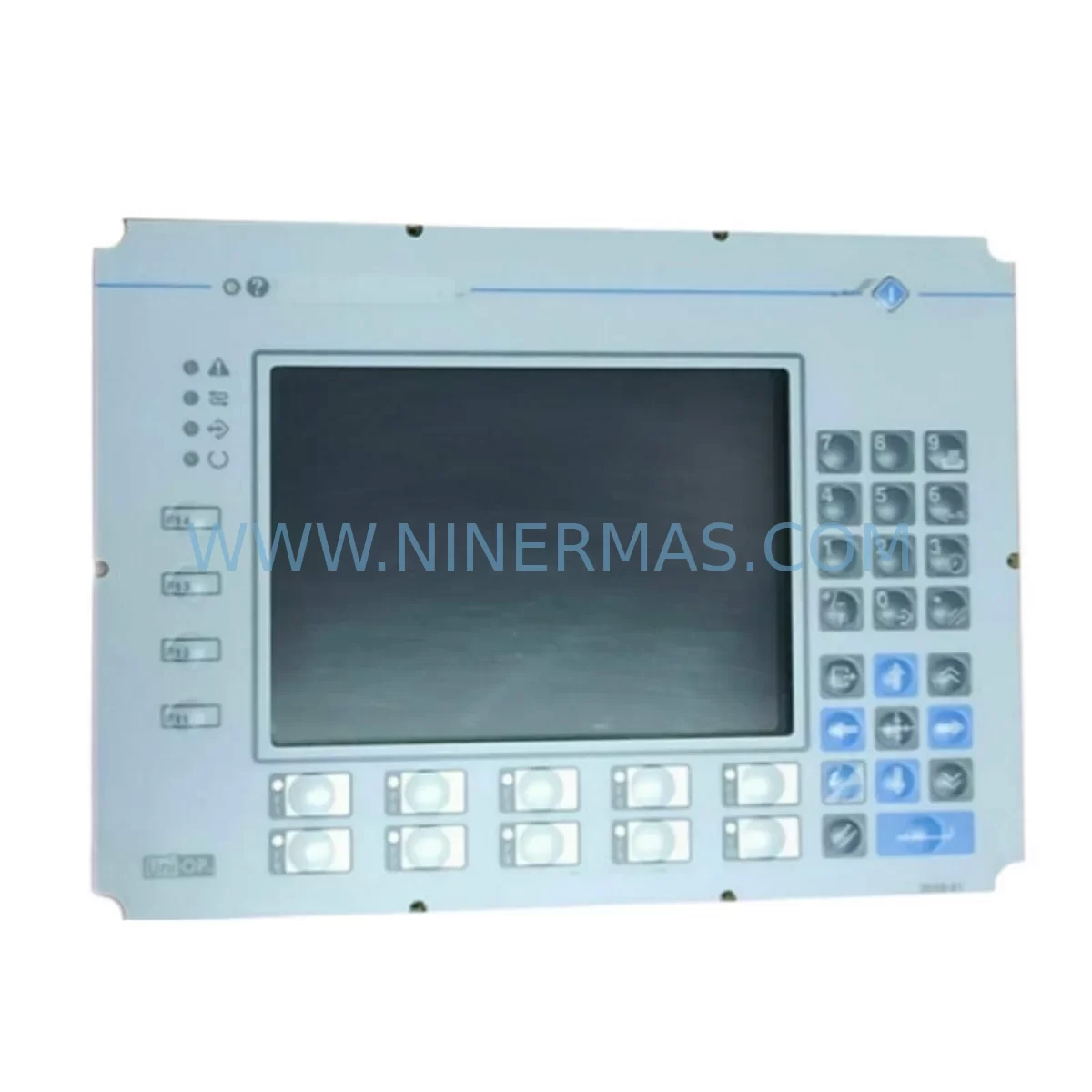

The UNIOP BKDC-16-0045 is a ruggedized Human Machine Interface (HMI) engineered for continuous, uninterrupted operation in the most demanding industrial environments. Designed to meet the exacting requirements of critical control sites — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port logistics systems, and continuous process manufacturing — this operator interface delivers the safety reliability and field-proven durability that modern industrial automation demands.

In high-stakes control environments, operator interface failures are not merely inconvenient — they represent a direct risk to personnel safety, process integrity, and production continuity. The BKDC-16-0045 addresses this challenge with a hardened enclosure, wide operating temperature tolerance, and robust EMI/RFI immunity, ensuring stable display and input response even in the presence of heavy motor drives, variable frequency drives (VFDs), high-voltage switchgear, and dense cable routing within control cabinets.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered control cabinet, the operator interface is the nerve center — the single point through which technicians monitor process variables, acknowledge alarms, and execute control commands. A failure at this layer can cascade into unplanned shutdowns, missed interlock responses, or dangerous process deviations. The UNIOP BKDC-16-0045 is designed to eliminate this vulnerability.

When integrated alongside a UNIOP eTOP507 or eTOP605 HMI panel in a redundant operator station configuration, the BKDC-16-0045 provides a reliable secondary interface for critical alarm acknowledgment and manual override. Paired with a Phoenix Contact QUINT-PS/1AC/24DC/10 power supply or equivalent 24 VDC DIN-rail unit, the system maintains stable voltage delivery even during grid fluctuations — a common cause of HMI lockup and display corruption in field installations.

For communication integrity, the BKDC-16-0045 connects seamlessly to Siemens S7-300/S7-400 PLCs via MPI or Profibus, and to Allen-Bradley ControlLogix or CompactLogix controllers via Ethernet/IP or DF1 serial. In environments where signal integrity is compromised by long cable runs or high-frequency switching noise, the addition of Weidmüller or Phoenix Contact surge protection devices (SPDs) on the RS-485 and Ethernet lines is strongly recommended to prevent communication anomalies and data frame corruption.

In control cabinets housing Schneider Electric Altivar VFDs, ABB ACS series drives, or Siemens SINAMICS frequency converters, the electromagnetic environment can be particularly aggressive. The BKDC-16-0045’s shielded enclosure and optically isolated I/O interfaces provide a critical barrier against induced noise, preventing spurious touchscreen inputs and display artifacts that could mislead operators during critical process transitions. Complementing the HMI with a MURR Elektronik or Wago 750-series I/O module for distributed signal conditioning further reduces the risk of signal drift and false alarm generation.

For safety interlock circuits, the BKDC-16-0045 can be configured to display real-time status of Pilz PNOZ safety relays or Sick safety light curtain feedback signals, giving operators immediate visual confirmation of safety circuit integrity without requiring a separate dedicated safety display panel. This integration reduces hardware complexity, cabinet footprint, and the number of potential single points of failure in the safety architecture.

Critical Industrial Safety Applications

The UNIOP BKDC-16-0045 has been deployed across a broad spectrum of critical industrial applications where operator interface reliability is non-negotiable:

Petrochemical and Refinery Plants: In continuous process environments handling flammable or toxic media, the BKDC-16-0045 serves as the primary operator interface for reactor temperature monitoring, pressure control loop supervision, and emergency shutdown (ESD) system status display. Its IP65-rated front panel resists hydrocarbon vapors, cleaning solvents, and high-pressure washdowns common in these facilities.

Power Generation and Substation Control: Installed in generator control panels and substation automation cabinets, the BKDC-16-0045 provides operators with real-time visibility into breaker status, load balancing parameters, and protection relay outputs. Its wide operating temperature range ensures reliable performance in outdoor switchgear enclosures subject to seasonal temperature extremes.

Mining and Mineral Processing: In underground and surface mining operations, the BKDC-16-0045 withstands the high dust concentrations, mechanical vibration from crushing and conveying equipment, and humidity fluctuations characteristic of these environments. It is commonly used for conveyor belt control, crusher monitoring, and ventilation system management.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on the BKDC-16-0045 for SCADA terminal functions, pump station control, and chemical dosing system supervision. Its corrosion-resistant front panel and sealed construction prevent moisture ingress in high-humidity pump rooms and chemical storage areas.

Metallurgy and Steel Production: In electric arc furnace (EAF) control rooms and rolling mill operator stations, the BKDC-16-0045 operates reliably despite intense electromagnetic fields generated by high-current bus bars, induction heating systems, and large motor starters. Its robust EMI immunity prevents display freezing and communication dropouts during critical production sequences.

Port Logistics and Crane Control: Installed in ship-to-shore crane operator cabins and automated stacking crane control panels, the BKDC-16-0045 provides reliable operator feedback for load monitoring, anti-sway control, and positioning system status — applications where display failure could result in load drops and serious safety incidents.

Safety and Quality FAQ

Q1: What warranty coverage does the UNIOP BKDC-16-0045 carry when purchased from NINERMAS?
All UNIOP BKDC-16-0045 units supplied by NINERMAS COMPANY LIMITED carry a 12-month warranty covering manufacturing defects, component failures, and functional anomalies under normal operating conditions. Warranty claims are processed directly through NINERMAS, with replacement or repair turnaround coordinated to minimize your site downtime. Extended warranty and long-term spare parts supply agreements are available for critical infrastructure customers — contact our technical sales team for details.

Q2: What pre-shipment testing and quality checks are performed on each unit?
Every UNIOP BKDC-16-0045 unit undergoes a comprehensive pre-shipment inspection at our facility, including power-on functional verification, display uniformity check, touchscreen calibration validation (where applicable), communication port continuity testing, and visual inspection for physical damage. Units are shipped in original or equivalent protective packaging with anti-static and moisture-barrier materials to ensure safe transit to your site.

Q3: Is the UNIOP BKDC-16-0045 compatible with my existing PLC or DCS system?
The BKDC-16-0045 supports a wide range of industrial communication protocols including RS-232, RS-485 (Modbus RTU), and Ethernet-based protocols, making it compatible with the majority of mainstream PLC and DCS platforms including Siemens, Allen-Bradley, Schneider Electric, Mitsubishi, and Omron controllers. NINERMAS technical support can assist with protocol compatibility verification and driver configuration guidance prior to purchase.

Q4: Can NINERMAS guarantee long-term supply availability for this model as a critical spare part?
Yes. NINERMAS maintains dedicated inventory reserves for high-demand industrial HMI models including the UNIOP BKDC-16-0045, specifically to support customers with long-lifecycle automation systems that require reliable spare parts availability over multi-year maintenance cycles. We offer blanket order agreements and priority allocation programs for customers with critical spare parts requirements. Contact us at sale@ninermas.com to discuss your long-term procurement needs.
