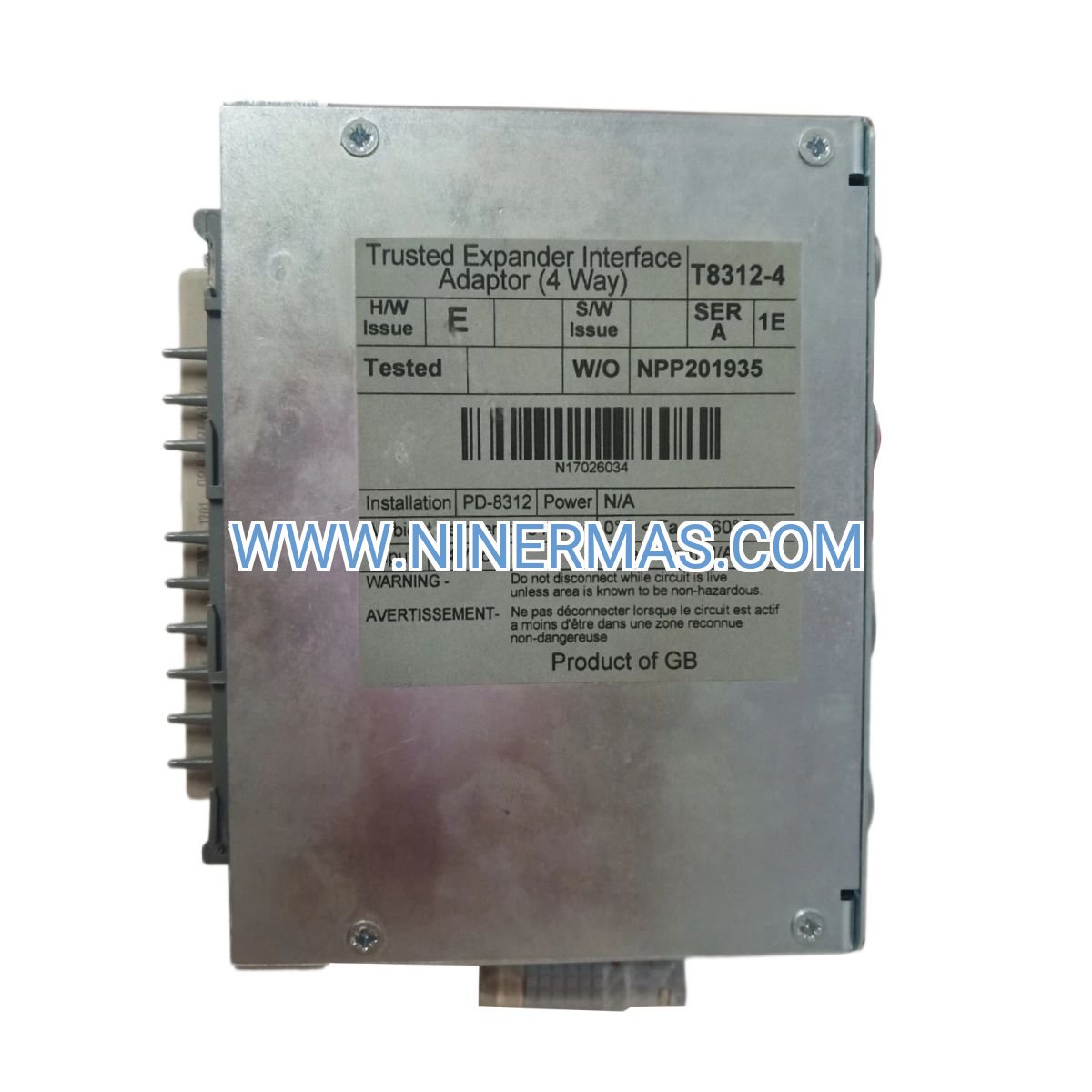

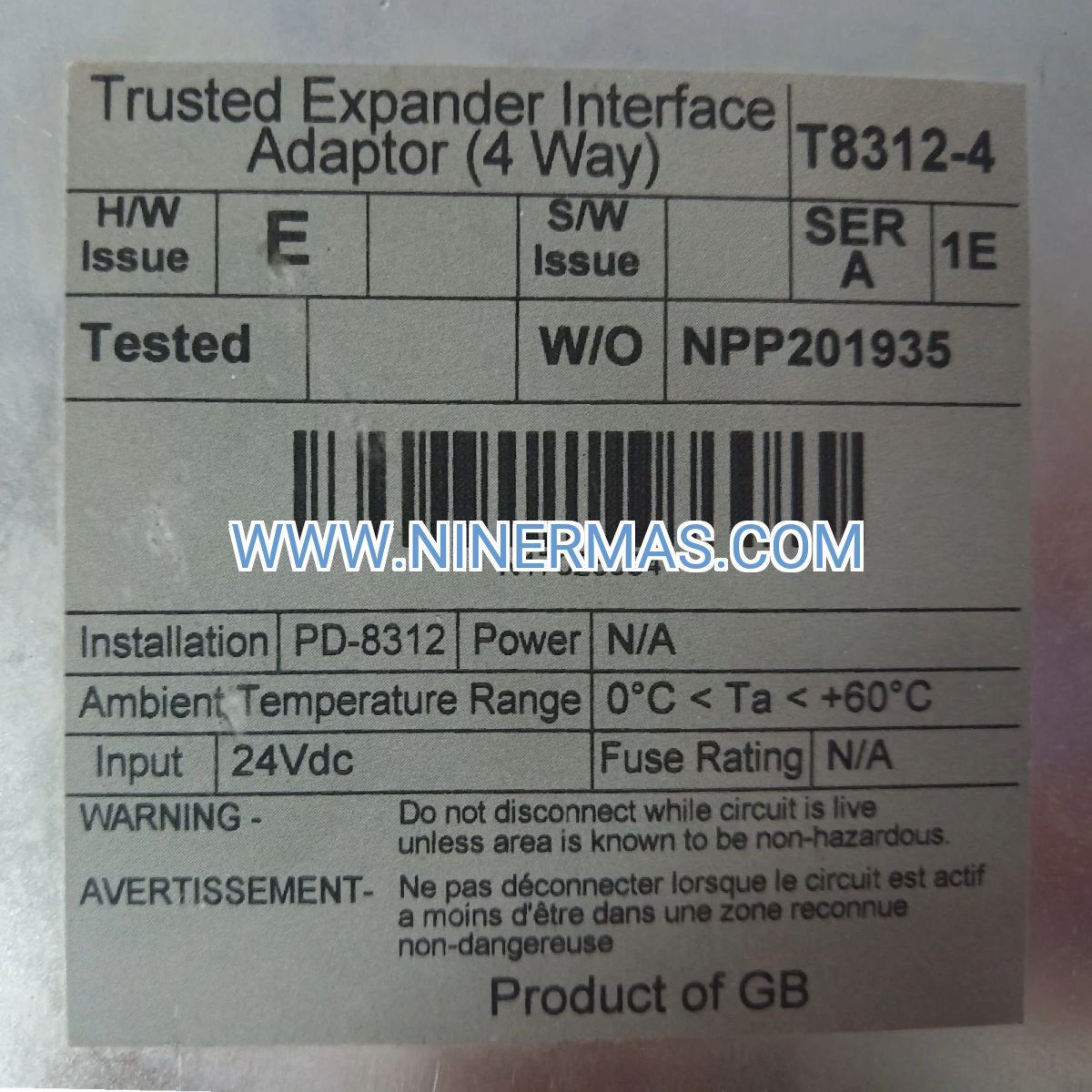

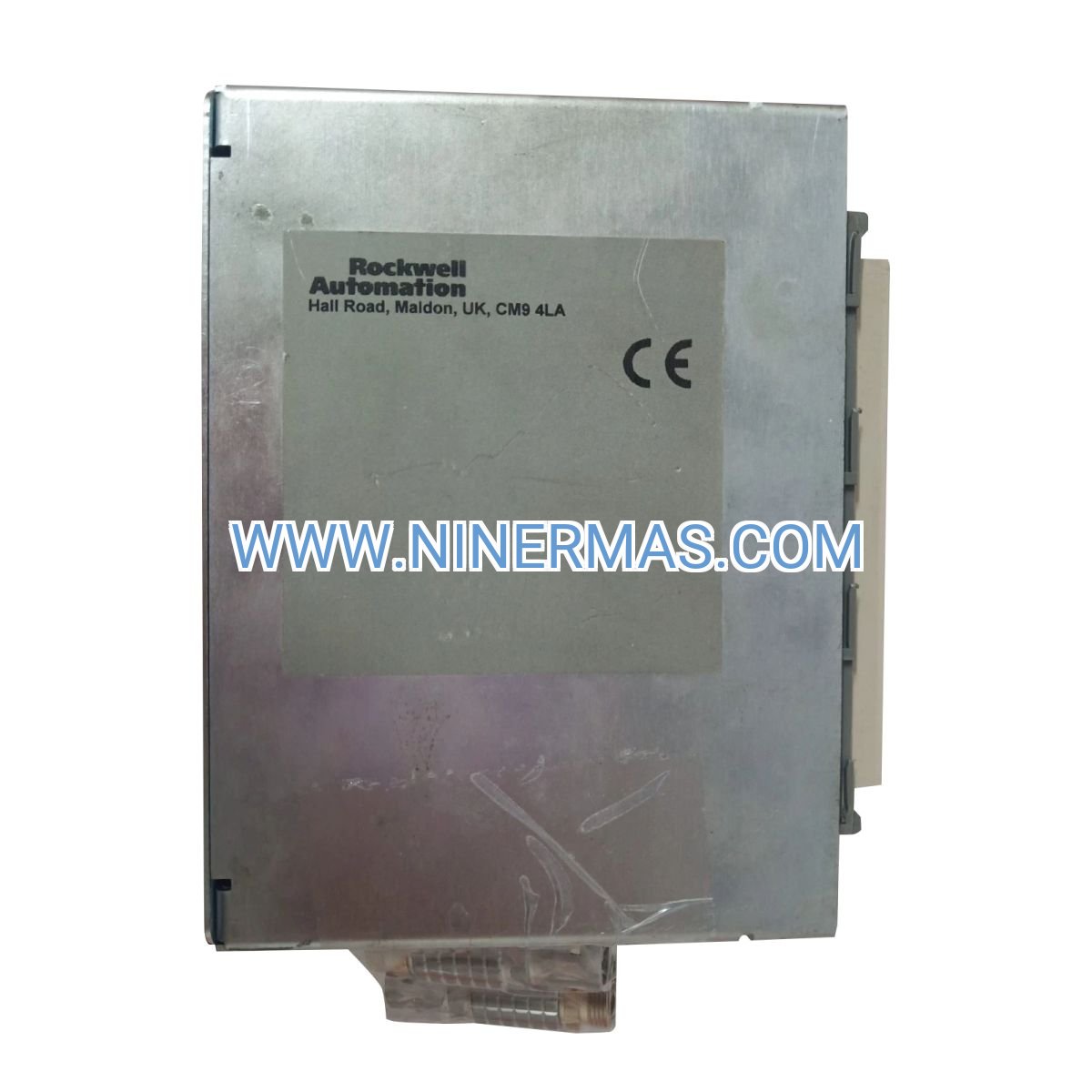

T8312-4 TMR Expander Interface Adapter (Industrial-Grade Chassis Connectivity)

The T8312-4 represents a specialized interface solution engineered to bridge Triconex safety controllers with remote expander chassis through Triple Modular Redundancy architecture. This adapter module enables distributed I/O configurations while maintaining SIL 3 safety integrity levels across extended system topologies. Designed for process industries demanding continuous uptime, the T8312-4 delivers deterministic communication pathways that support real-time control loops and emergency shutdown sequences without single-point failure vulnerabilities.

Industrial facilities operating critical safety instrumented systems face the challenge of scaling I/O capacity while preserving fault tolerance. The T8312-4 addresses this by providing transparent chassis expansion that integrates seamlessly with existing Triconex architectures. Target users include control system engineers, safety instrumented system integrators, and plant automation teams managing oil refineries, chemical processing units, power generation facilities, and pharmaceutical manufacturing operations where equipment failure could result in catastrophic consequences.

Key advantages include hot-swappable installation for zero-downtime maintenance, proprietary TriBus communication protocol ensuring microsecond-level synchronization across redundant channels, and comprehensive diagnostic capabilities accessible through TriStation engineering workstations. The adapter's compact DIN-rail form factor optimizes cabinet space utilization while supporting harsh industrial environments with extended temperature ratings and electromagnetic immunity certifications.

Core Features & Benefits

✓ Triple Modular Redundancy Architecture
Three independent communication channels operate in parallel, continuously cross-checking data integrity. If one channel experiences corruption or failure, the system automatically votes out the faulty path while maintaining full operational capability—delivering 99.99% availability for mission-critical applications.

✓ Scalable Chassis Expansion Capability
Supports connection of multiple remote expander chassis to a single controller, enabling I/O counts exceeding 10,000 points. This modular approach reduces initial capital expenditure while providing growth pathways as process complexity increases, protecting long-term infrastructure investments.

✓ Hot-Swap Maintenance Protocol
Field-replaceable design allows technicians to remove and install adapters during live operation without interrupting safety functions or triggering spurious trips. Reduces mean time to repair (MTTR) by 60% compared to systems requiring full shutdown procedures.

✓ Integrated Diagnostic Intelligence
Real-time health monitoring tracks communication latency, signal quality, and channel synchronization status. LED indicators provide at-a-glance status verification, while TriStation software integration enables predictive maintenance scheduling based on performance trend analysis.

✓ Backward Compatibility Assurance
Maintains interoperability with legacy Triconex controller generations (V9, V10, V11 series) through adaptive firmware protocols. Protects existing automation investments while enabling incremental system modernization without forklift upgrades.

✓ Environmental Hardening Standards
Operates reliably across 0°C to 60°C ambient temperatures with conformal coating protection against moisture, dust, and corrosive atmospheres. Meets IEC 61508 SIL 3 certification requirements for safety-critical installations.

Application Scenarios

→ Offshore Oil & Gas Production Platforms
Remote wellhead monitoring systems require distributed I/O across multiple process areas separated by hundreds of meters. The T8312-4 enables centralized safety logic processing while positioning field I/O modules near sensor clusters, reducing cable runs by 40% and improving signal integrity in high-EMI environments. Delivers fail-safe emergency shutdown coordination across drilling, separation, and compression systems.

→ Chemical Reactor Safety Interlocks
Batch chemical processes demand rapid response to temperature excursions, pressure anomalies, and toxic gas detection. Expander chassis positioned at reactor vessels provide sub-10ms response times for critical shutdowns, while the T8312-4 maintains deterministic communication with central controllers managing recipe sequencing and material tracking. Prevents runaway reactions that could result in explosions or environmental releases.

→ Power Generation Turbine Protection
Steam and gas turbines require monitoring of vibration, bearing temperature, flame detection, and overspeed conditions across geographically dispersed equipment. The adapter supports high-density analog input modules in expander chassis near turbine pedestals, enabling precise condition monitoring while centralizing trip logic in hardened control rooms. Reduces turbine damage incidents by enabling early fault detection.

→ Pharmaceutical Clean Room Environmental Control
Aseptic manufacturing zones mandate strict control of temperature, humidity, differential pressure, and particulate levels across multiple production suites. Distributed expander chassis in each clean room zone connect to HVAC actuators and sensors, while the T8312-4 links to master controllers managing facility-wide environmental coordination. Ensures FDA 21 CFR Part 11 compliance through validated control system architecture.

→ Water Treatment SCADA Networks
Municipal water facilities span multiple treatment stages (coagulation, filtration, disinfection) requiring coordinated valve sequencing and chemical dosing. Remote expander chassis at each process stage reduce fiber optic infrastructure costs while maintaining real-time supervisory control. The T8312-4 enables centralized operator interfaces managing plant-wide operations from a single HMI workstation.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the T8312-4, evaluate total I/O point count requirements, maximum distance between controller and expander chassis (cable length limitations), environmental conditions at installation locations, and existing Triconex controller firmware version. For systems requiring more than 5,000 I/O points or chassis separation exceeding 100 meters, consult factory application engineers to validate communication bandwidth and latency requirements. Ensure compatibility with your TriStation software version to access full diagnostic capabilities.

Extended Functions

Advanced Diagnostic Logging: The T8312-4 maintains internal event buffers capturing communication anomalies, channel voting discrepancies, and performance metrics. These logs integrate with plant historian systems via OPC interfaces, enabling long-term trend analysis and predictive maintenance algorithms that forecast adapter replacement intervals based on actual operating stress.

Cybersecurity Hardening: Modern firmware revisions incorporate authentication protocols and encrypted communication options for installations requiring IEC 62443 industrial cybersecurity compliance. When paired with Triconex controllers running secure firmware, the adapter supports defense-in-depth strategies protecting against unauthorized configuration changes.

Custom Configuration Profiles: Application-specific parameter sets can be pre-loaded during factory configuration, including communication timeout values, diagnostic alarm thresholds, and channel synchronization tolerances. This customization accelerates commissioning timelines and ensures consistent performance across multi-site deployments.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured units or bulk orders (10+ pieces) require 2-3 weeks for factory preparation and quality verification testing.

Warranty Coverage: Each T8312-4 adapter includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring 3-5 year coverage periods.

Technical Support: Our application engineering team provides pre-sales consultation for system architecture design, installation guidance during commissioning, and post-deployment troubleshooting assistance. Support channels include email, phone hotline, and remote diagnostic sessions via secure VPN connections.

Documentation Package: Every shipment includes installation quick-start guide, detailed technical manual with wiring diagrams, safety certification documents (CE, UL, ATEX where applicable), and TriStation configuration templates. Firmware update procedures and revision history available through customer portal access.

Frequently Asked Questions

Q: What is the maximum cable distance supported between controller and expander chassis using the T8312-4 interface?
A: Standard TriBus cabling supports distances up to 100 meters (328 feet) using shielded twisted-pair cables. For extended distances up to 500 meters, fiber optic media converters can be integrated. Always consult cable specification guidelines to maintain signal integrity and meet timing requirements for safety-critical applications.

Q: Can the T8312-4 adapter be used in hazardous area installations requiring explosion-proof ratings?
A: The adapter itself is designed for installation in safe-area control cabinets. For hazardous zone deployments (Class I Div 2, ATEX Zone 2), the adapter must be housed in appropriately rated enclosures with proper purging or pressurization systems. Consult your local electrical code and certification requirements for specific installation methods.

Q: How does the TMR voting mechanism handle transient communication errors versus permanent failures?
A: The T8312-4 employs sophisticated voting algorithms that distinguish between momentary signal disruptions (noise spikes, brief cable disconnections) and sustained faults. Transient errors are filtered through multi-scan validation windows, while persistent discrepancies trigger channel isolation and alarm generation. The system continues operating on the two healthy channels while flagging the faulty path for maintenance attention.

Q: What firmware upgrade procedures are required when updating Triconex controller software versions?
A: The T8312-4 typically maintains backward compatibility across controller firmware revisions. However, major version upgrades (e.g., V10 to V11) may require adapter firmware updates to access new features or performance enhancements. Firmware updates are performed via TriStation software using standard download procedures—consult release notes for specific compatibility matrices and upgrade sequencing requirements.

Q: Does the adapter support redundant controller configurations for high-availability applications?
A: Yes, the T8312-4 integrates seamlessly with redundant Triconex controller pairs (primary/backup configurations). The adapter automatically synchronizes with the active controller and performs bumpless transfer during controller switchover events, ensuring continuous I/O communication without process interruption or data loss.

Q: What energy efficiency benefits does the low-power design provide in large-scale installations?
A: Compared to legacy interface modules, the T8312-4 reduces power consumption by approximately 30%, translating to lower heat generation and reduced cooling requirements in control cabinets. For installations with 20+ adapters, this efficiency gain can eliminate the need for additional HVAC capacity, reducing total cost of ownership over the system's 15-20 year operational lifespan.

Take the Next Step

Ready to expand your Triconex safety system with proven TMR interface technology? Contact our industrial automation specialists today for application-specific guidance, system architecture review, and competitive quotations. Our team can assess your I/O expansion requirements, recommend optimal chassis configurations, and provide detailed project timelines tailored to your operational constraints.

Request a technical consultation: Share your system topology, I/O count projections, and environmental parameters to receive customized recommendations within 24 hours.
