PI2381 Pulse Input Baseplate (Industrial-Grade TMR Interface Module)

The PI2381 (Part Number: 7400221-100) represents a precision-engineered interface baseplate that bridges pulse-generating field instrumentation with Triconex Triple Modular Redundant safety controllers. Designed for mission-critical environments where equipment failure carries severe operational and safety consequences, this baseplate delivers fault-tolerant signal acquisition from encoders, turbine speed sensors, flow meters, and frequency-output transmitters across oil & gas, power generation, and chemical processing facilities.

Industrial operators face mounting pressure to maintain continuous uptime while meeting stringent safety integrity requirements. The PI2381 addresses this challenge by providing a certified SIL 3 interface layer that eliminates single-point vulnerabilities in pulse signal pathways. Whether monitoring turbomachinery overspeed conditions or tracking custody transfer flow measurements, this baseplate ensures signal fidelity through redundant processing channels and comprehensive diagnostic coverage.

Key differentiators include hot-swap capability for zero-downtime maintenance, differential input architecture for superior noise rejection in electrically harsh environments, and seamless integration with Triconex's proven TMR ecosystem. The PI2381 transforms raw pulse trains into actionable safety data while maintaining the deterministic response times demanded by emergency shutdown and burner management applications.

Core Features & Benefits

✓ Triple Modular Redundancy Architecture
Three independent signal processing channels with 2-out-of-3 voting logic eliminate single-point failures. Automatic fault masking maintains system availability even when individual channels experience degradation, delivering >99.9% uptime in safety-critical loops.

✓ SIL 3 Certification for Safety Instrumented Systems
Complies with IEC 61508 functional safety standards, enabling deployment in the highest-risk process applications. Certified for use in emergency shutdown systems, fire & gas detection, and burner management where failure could result in catastrophic events.

✓ Hot-Swap Maintenance Without Process Interruption
Field-replaceable design allows module extraction and insertion during live operation. Maintenance teams can address hardware issues without initiating plant shutdowns, reducing annual maintenance windows by 40-60 hours in typical installations.

✓ High-Speed Pulse Acquisition Up to 20 kHz
Captures rapid pulse trains from high-speed turbomachinery and precision flow meters without signal loss. Supports both frequency measurement and totalizer functions simultaneously, enabling dual-purpose monitoring from single sensor inputs.

✓ Comprehensive Diagnostic Monitoring
Continuous self-test routines verify signal path integrity, power supply health, and communication links. Predictive diagnostics alert operators to degrading components before failures occur, supporting condition-based maintenance strategies.

✓ Industrial-Grade Environmental Tolerance
Operates reliably across -40°C to +70°C temperature range with conformal coating protection against moisture, dust, and corrosive atmospheres. Vibration-resistant terminal blocks maintain connection integrity in high-vibration rotating equipment installations.

Application Scenarios

→ Turbomachinery Overspeed Protection Systems
In gas turbine and steam turbine installations, the PI2381 processes magnetic pickup sensor signals to detect dangerous overspeed conditions. When shaft speed exceeds safe thresholds, the baseplate triggers emergency trip valves within 50 milliseconds, preventing catastrophic turbine disintegration. Typical deployment: offshore oil platforms, combined-cycle power plants, petrochemical compressor trains.

→ Custody Transfer Flow Measurement
Pipeline operators and terminal facilities use the PI2381 to acquire pulse outputs from turbine flow meters measuring crude oil, natural gas liquids, and refined products. The TMR architecture ensures measurement accuracy for financial transactions worth millions of dollars annually, with audit trails meeting API and ISO standards.

→ Burner Management & Combustion Safety
Processing flame scanner pulse outputs in boiler and furnace applications, the PI2381 verifies pilot and main flame presence. Loss of flame detection triggers fuel valve closure within safety time limits, preventing explosive gas accumulation. Deployed in refineries, chemical plants, and industrial boiler houses.

→ Compressor Anti-Surge Control
Monitors compressor shaft speed and flow meter pulses to calculate surge margin in real-time. When operating conditions approach the surge line, the baseplate enables rapid recycle valve actuation, protecting multi-million-dollar centrifugal compressors from mechanical damage.

→ Emergency Shutdown (ESD) Valve Position Verification
Tracks valve stem position via rotary encoders in critical isolation applications. The PI2381 confirms full valve closure during emergency scenarios, providing proof-of-closure signals required by safety instrumented function logic solvers.

Technical Parameters & Selection Guide

Selection Criteria: Choose the PI2381 when your application requires SIL 3-rated pulse signal acquisition with TMR redundancy. Verify that your pulse input modules are compatible with the 7400221-100 baseplate revision. For applications requiring analog signal conditioning or discrete I/O, consult alternative Triconex baseplate families. Confirm that your operating environment falls within the -40°C to +70°C temperature envelope and that installation location provides adequate ventilation for convection cooling.

Extended Functions

IoT Integration & Remote Monitoring: When connected to Triconex TriStation 1131 software, the PI2381 enables real-time diagnostic data streaming to SCADA systems, historian databases, and cloud-based asset performance management platforms. Operators can monitor baseplate health metrics, signal quality indicators, and fault logs from centralized control rooms or mobile devices.

Advanced Pulse Processing Modes: Supports configurable pulse counting modes including frequency measurement, period measurement, pulse accumulation (totalizer), and quadrature decoding for bidirectional encoder applications. Programmable input filtering eliminates contact bounce and electrical noise without sacrificing response time.

Customization Options: Available with factory-configured terminal labeling, extended temperature screening for extreme environments, and conformal coating upgrades for offshore/marine installations. Consult factory for lead times on custom configurations.

Delivery & Service Assurance

Standard Delivery: In-stock PI2381 baseplates ship within 3-5 business days via express courier with full tracking. International shipments include all necessary export documentation and customs support.

Custom Configuration Lead Time: Factory-programmed or specially screened units require 4-6 weeks from order confirmation. Expedited processing available for critical outage situations.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Warranty includes advance replacement service to minimize downtime during failure events.

Technical Support: Lifetime access to application engineering support for installation guidance, configuration assistance, and troubleshooting. Support available via email, phone, and remote desktop sessions during commissioning.

Documentation Package: Each baseplate ships with installation manual, wiring diagrams, dimensional drawings, and safety certification documents. TriStation configuration examples and sample ladder logic available upon request.

Frequently Asked Questions

Q: Which Triconex pulse input modules work with the PI2381 baseplate?

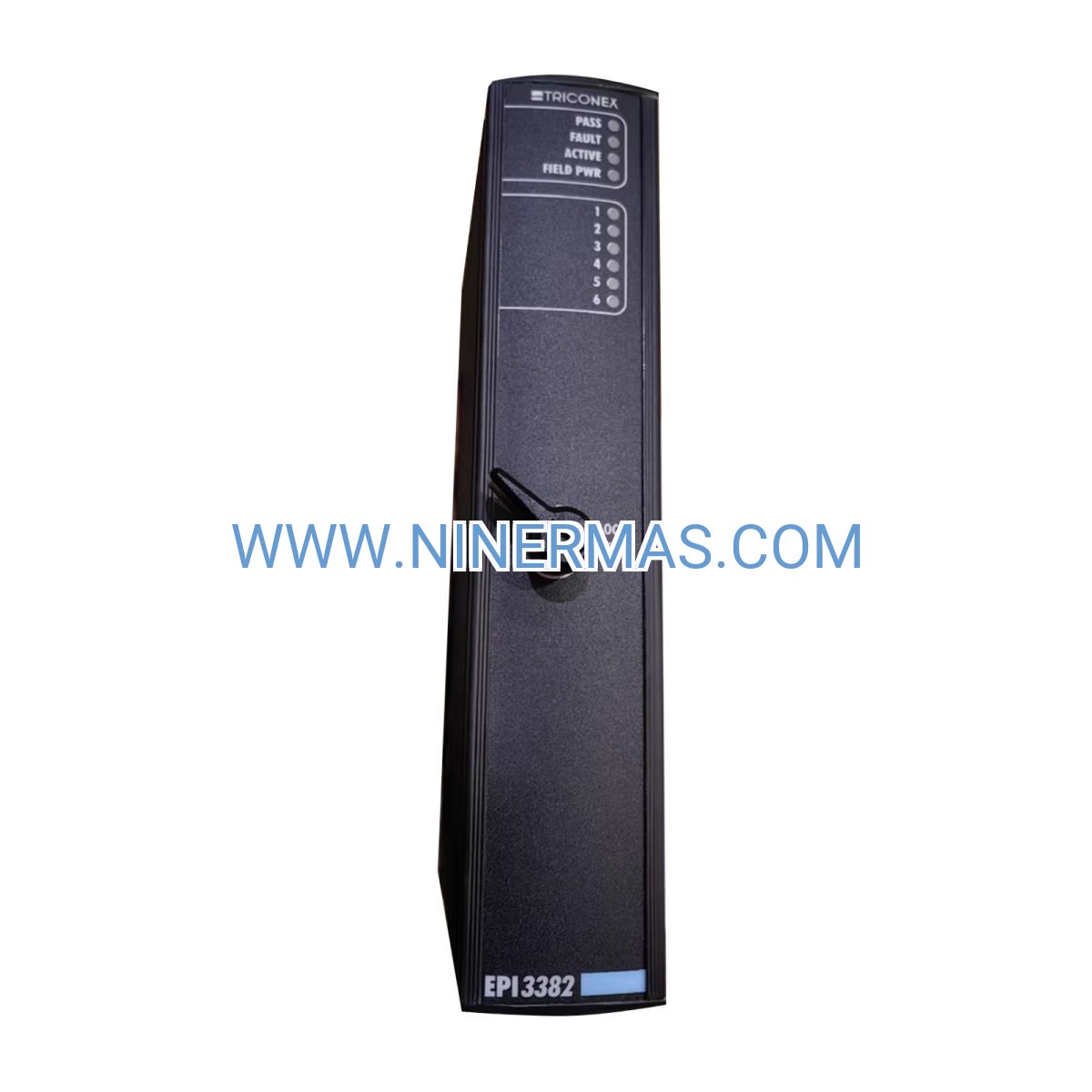

A: The PI2381 supports the 3510 (8-channel), 3515 (16-channel), PI3381, and PI3382 pulse input module families. Always cross-reference the Triconex hardware compatibility matrix in the installation manual to confirm module-baseplate pairing for your specific controller revision.

Q: Can I replace a PI2381 baseplate during system operation without shutting down the safety controller?
A: Yes, the hot-swap design allows removal and insertion while the Triconex controller remains energized. Follow proper ESD precautions and use the TriStation software to place the module in bypass mode before physical extraction to prevent spurious trips.

Q: What maximum pulse frequency can the PI2381 interface handle from turbine speed sensors?
A: Maximum frequency depends on the connected pulse input module specification. The 3510 module supports up to 20 kHz, suitable for most turbomachinery applications. For higher-frequency requirements, consult the PI3381 advanced pulse module datasheet.

Q: Does the PI2381 meet requirements for SIL 3 safety instrumented functions in emergency shutdown systems?
A: Absolutely. The PI2381 carries IEC 61508 SIL 3 certification when used with certified Triconex controllers and modules. The TMR architecture provides the hardware fault tolerance and diagnostic coverage required for the highest safety integrity applications.

Q: How do I configure pulse counting modes and input filtering on the PI2381?
A: Configuration is performed through Triconex TriStation 1131 software, not on the baseplate itself. The baseplate provides the physical interface; the pulse input module and controller firmware handle signal processing parameters such as counting mode, filter time constants, and scaling factors.

Q: What preventive maintenance does the PI2381 require in continuous operation?
A: The baseplate is solid-state with no moving parts, requiring minimal maintenance. Quarterly inspection of terminal block connections for tightness and annual cleaning of dust accumulation are recommended. Monitor diagnostic status through TriStation to detect degradation before failures occur.

Ready to Enhance Your Safety System Reliability?

Contact our industrial automation specialists to discuss your pulse input requirements, verify compatibility with your existing Triconex infrastructure, and receive a detailed quotation. Our team provides application-specific recommendations to optimize signal integrity and system availability.
