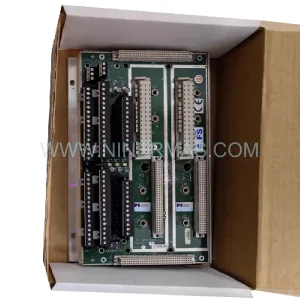

Triconex PI2381 Pulse Input Baseplate (7400221-100) | New & Original

Triconex PI2381 (7400221-100) | Reliable Automation Component for Mission-Critical Safety Systems

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, maintaining system availability in safety-instrumented environments demands components with zero tolerance for signal degradation. The Triconex PI2381 (P/N: 7400221-100) is a purpose-engineered pulse input baseplate that serves as the backbone interface between high-frequency field devices and Triconex Triple Modular Redundant (TMR) controllers. Its role in process optimization is direct: by delivering uninterrupted, high-fidelity pulse signal acquisition from turbine speed encoders, flow meters, and rotating equipment sensors, the PI2381 (7400221-100) actively reduces unplanned downtime and supports operational excellence across oil & gas, power generation, and petrochemical facilities.

Engineered for deployment in harsh industrial environments, this baseplate sustains reliable performance across an operating temperature range of -40°C to +70°C. Its differential input architecture provides inherent noise immunity against electromagnetic interference — a critical advantage in high-voltage switchgear rooms and motor control centers. During installation, engineers should verify chassis slot alignment and confirm module-baseplate compatibility against the Triconex hardware installation manual prior to energizing the system. Torque specifications for terminal connections must be observed to prevent intermittent signal faults under vibration.

As production lines age and OEM support windows close, securing verified spare inventory of the PI2381 becomes a strategic imperative. End-of-life (EOL) and legacy module availability directly impacts mean time to repair (MTTR). Stocking this baseplate as a critical spare eliminates the risk of extended lead times during emergency shutdowns, protecting both personnel safety and production continuity.

Key Operational Features

Triple Modular Redundancy (TMR): Three independent signal paths with automatic 2-of-3 voting logic eliminate single-point failures and ensure high availability.
SIL 3 Certification (IEC 61508): Fully qualified for deployment in the highest-integrity safety instrumented functions.
Hot-Swap / Online Replacement: Modules can be replaced under live system conditions without initiating a process shutdown — a cornerstone of seamless integration.
High-Speed Pulse Processing: Supports frequency measurement and pulse totalization up to 20 kHz, enabling precise turbine overspeed detection and flow custody transfer.
Built-In Diagnostics: Continuous self-test routines monitor signal path integrity and report faults to TriStation software in real time.
Scalable I/O Architecture: Baseplate design accommodates system expansion without reconfiguration of existing I/O modules, supporting long-term process optimization goals.

Maintenance & Performance Benchmarks

The PI2381 baseplate is architected to integrate into both compact single-chassis Tricon systems and distributed multi-chassis Trident configurations. In large-scale industrial network architectures — such as those found in LNG terminals or refinery units with hundreds of field instruments — the baseplate’s passive design minimizes its own failure contribution to overall system MTTR. Diagnostic transparency through TriStation 1131 software allows maintenance teams to isolate faults to the module level without physical inspection, reducing mean time to diagnose (MTTD) by enabling remote fault localization.

Periodic maintenance best practice includes quarterly review of diagnostic logs, annual torque verification of field wiring terminals, and firmware compatibility checks when upgrading Triconex controller software. The baseplate itself contains no active components requiring scheduled replacement, contributing to a low total cost of ownership over multi-decade plant lifecycles.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Triconex PI2381 (7400221-100) unit dispatched from our inventory is supplied in original factory packaging with full traceability documentation. For in-stock orders, same-day dispatch is available upon order confirmation before the daily cut-off time, supporting urgent maintenance scenarios where every hour of downtime carries measurable financial impact.

Our global supply network is specifically structured to serve facilities operating EOL and legacy Triconex platforms. As Schneider Electric transitions product lines, sourcing verified original components becomes increasingly complex. We maintain dedicated inventory buffers for mission-critical automation components including the PI2381, ensuring availability when standard distribution channels cannot fulfill emergency requirements. Worldwide express logistics partnerships enable delivery to major industrial hubs across North America, Europe, the Middle East, and Asia-Pacific within 3-7 business days.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the PI2381 baseplate in a Tricon chassis?
A: Power down the chassis slot (or confirm hot-swap authorization in TriStation), align the baseplate guide rails with the chassis slot, seat firmly until the locking lever engages, then insert the compatible pulse input module. Verify module status LEDs and confirm fault-free status in TriStation before returning the loop to service.

Q2: Which pulse input modules are verified compatible with the 7400221-100 baseplate?
A: The PI2381 baseplate is designed for Triconex pulse input modules including the 3510, 3515, PI3381, and PI3382 series. Cross-reference the Triconex Hardware Installation Guide (document 9600-0001) for the complete compatibility matrix before procurement.

Q3: How do I verify firmware version compatibility between the PI2381 and my Tricon controller?
A: Firmware compatibility is governed by the Triconex Software/Hardware Compatibility Matrix available from Schneider Electric. In TriStation 1131, navigate to Controller Diagnostics — Module Status to confirm the baseplate is recognized and no version mismatch alarms are active.

Q4: What is the warranty claim process for a PI2381 unit purchased from your inventory?
A: Contact our technical support team at sale@ninermas.com with your order reference, a description of the observed fault, and TriStation diagnostic screenshots if available. We will initiate an RMA within 24 business hours and arrange return logistics at no cost to the customer during the 12-month warranty period.

Q5: Can the PI2381 baseplate be used in a Trident system as well as Tricon?
A: Yes. The PI2381 is compatible with both Tricon and Trident TMR platform chassis. Verify slot type and backplane connector configuration against your specific chassis model in the hardware documentation before installation.

Q6: Is the PI2381 suitable for custody transfer flow measurement applications?
A: Yes. When paired with a certified pulse input module, the PI2381 supports high-accuracy pulse totalization required for fiscal metering and custody transfer in accordance with applicable industry standards. Confirm module accuracy class with your metrology authority.
