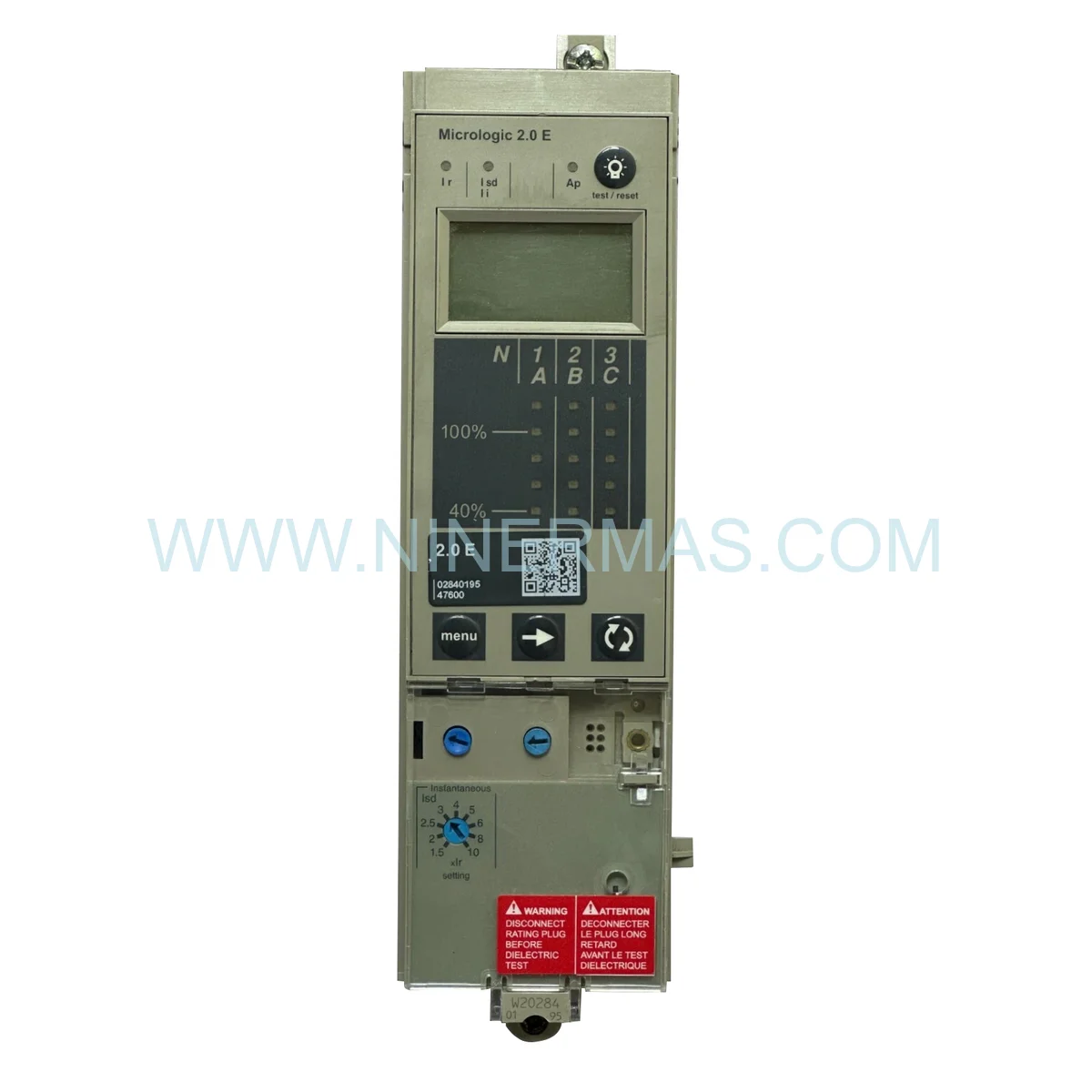

Schneider Electric 47600 MicroLogic 2.0E Trip Unit | MasterPact NT NW

Schneider Electric 47600 MicroLogic 2.0E Trip Unit – Industrial Process Solution

Technical Overview & First Impression

As a seasoned Industrial Solution Architect, I can confirm that the Schneider Electric 47600 MicroLogic 2.0E occupies a mission-critical position within modern Distributed Control System (DCS) architectures and power distribution networks. This electronic trip unit is engineered specifically for MasterPact NT and NW series circuit breakers, providing the long-time (LI) overload and instantaneous short-circuit protection that Process Control environments demand — where a single unplanned outage can cascade into millions in lost production. The Schneider Electric 47600 MicroLogic 2.0E integrates seamlessly into both legacy Fieldbus-based panels and contemporary digital substations, making it an indispensable Legacy Component for facilities that cannot afford system downtime.

From a technical compatibility standpoint, this unit supports a broad current rating range of 630A to 6300A at 50°C ambient, with fully adjustable protection parameters: Ir (0.4-1.0 — In), tr (0.7-600s), and Ii (1.5-10 — Ir). These settings allow engineers to fine-tune coordination curves across complex distribution hierarchies — a capability that generic aftermarket alternatives simply cannot replicate. Its thermal memory function retains trip history for 20 minutes, ensuring accurate re-energization decisions in high-cycle industrial environments.

Original stock of this DCS Hardware component is increasingly scarce. As Schneider Electric continues to evolve its MasterPact platform, Factory Sealed units of the 47600 series represent a finite and diminishing supply. Securing genuine inventory now is a strategic imperative for any maintenance team responsible for aging switchgear infrastructure.

Key Technical Highlights

Wide Current Rating: 630A — 6300A (at 50°C), covering the full spectrum of industrial distribution panels
Protection Functions: Long-time (LI) overload + instantaneous short-circuit — dual-layer defense for Process Control stability
Adjustable Coordination: Ir, tr, and Ii fully configurable for precise selectivity in multi-tier Fieldbus and DCS networks
Thermal Memory: 20-minute retention prevents premature re-closing after thermal stress events
Integrated Energy Metering: Real-time digital display of load current and energy consumption — no external meter required
Redundancy-Ready Design: Compatible with 3P and 4P configurations (3t, 4t, 3t+N/2), supporting redundant bus architectures
Factory Sealed Condition: Each unit ships in original manufacturer packaging with full traceability documentation

Vertical Industry Applications

Petrochemical & Refining: In high-hazard process plants, the 47600 MicroLogic 2.0E provides the precise overload discrimination needed to isolate faults without tripping upstream feeders — reducing system downtime from hours to seconds in critical distillation and compression circuits.

Mining & Mineral Processing: Underground and surface mining operations subject switchgear to extreme thermal cycling. The unit’s -25°C to +70°C operating range and robust thermal memory make it the preferred choice for dragline, crusher, and conveyor motor protection panels.

Marine & Offshore Platforms: Offshore installations demand components that meet stringent vibration and humidity standards. The 47600 series is widely deployed in marine switchboards where Legacy Components must remain operational for decades without replacement.

Power Generation & Utilities: Grid-connected generation facilities rely on coordinated protection schemes. This trip unit’s adjustable Ii settings allow seamless integration into existing relay coordination studies, preserving system stability during fault events.

Pharmaceutical & Food Processing: GMP-regulated facilities require documented, traceable components. Factory Sealed 47600 units come with full manufacturer certification, satisfying audit requirements for critical process electrical infrastructure.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the Schneider Electric 47600 MicroLogic 2.0E supplied through our channel is 100% Original — sourced directly from authorized distribution networks and verified against Schneider Electric’s manufacturer serial number database. We do not deal in refurbished, remanufactured, or grey-market components.

Our 12-Month Comprehensive Warranty covers all defects in materials and workmanship under normal operating conditions. Should a unit fail within the warranty period, we provide direct replacement with zero bureaucratic delay — because in industrial environments, time is the most expensive commodity.

For Emergency Repair scenarios, we offer priority dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Express. Most in-stock orders ship within 24 hours of payment confirmation, reaching destinations across North America, Europe, Southeast Asia, and the Middle East within 3-7 business days. Custom documentation packages (commercial invoice, packing list, certificate of origin, test reports) are prepared upon request to facilitate smooth customs clearance.

Buyer’s FAQ — Selection Guide

Q1: How can I verify that the 47600 MicroLogic 2.0E I receive is 100% original and not counterfeit?
A: Genuine units carry a holographic Schneider Electric authenticity label on the housing, a laser-etched serial number traceable through Schneider’s product verification portal, and original factory packaging with intact tamper-evident seals. We provide full unboxing documentation and, upon request, a third-party inspection report from a certified testing laboratory.

Q2: How do I obtain the official datasheet and wiring diagram for the 47600 MicroLogic 2.0E?
A: The official technical datasheet (reference document NVE41302EN) is available through Schneider Electric’s technical library. Our sales team can also provide application notes, coordination study templates, and installation guides as part of the pre-sales technical support package — at no additional cost.

Q3: Is the 47600 compatible with older MasterPact NT breakers manufactured before 2010?
A: Yes. The MicroLogic 2.0E trip unit is backward-compatible with MasterPact NT and NW frames produced from 2000 onward. For breakers manufactured before 2000, a mechanical adapter kit may be required. Contact our engineering team with your breaker nameplate data for a definitive compatibility assessment.

Q4: What is the lead time for emergency orders, and do you support partial shipments?
A: For in-stock units, emergency orders are dispatched within 24 hours. For quantities exceeding available stock, we support partial shipments — shipping available units immediately while sourcing the balance from our global supplier network. Typical full-order lead time for larger quantities is 5-15 business days.

Q5: Can the 47600 MicroLogic 2.0E be used as a direct replacement for the MicroLogic 2.0 (non-E variant)?
A: The 2.0E variant adds integrated energy metering to the base 2.0 protection functions. It is mechanically and electrically interchangeable with the standard MicroLogic 2.0 in all MasterPact NT/NW applications. The additional metering capability requires no external wiring changes and activates automatically upon installation.

Q6: What documentation is provided for customs clearance on international shipments?
A: We provide a full export documentation package including commercial invoice (with HS code 8536.20), packing list, certificate of origin (Form A or CO as required), and manufacturer’s certificate of conformity. For regulated markets, we can arrange third-party inspection certificates from SGS or Bureau Veritas upon request.
