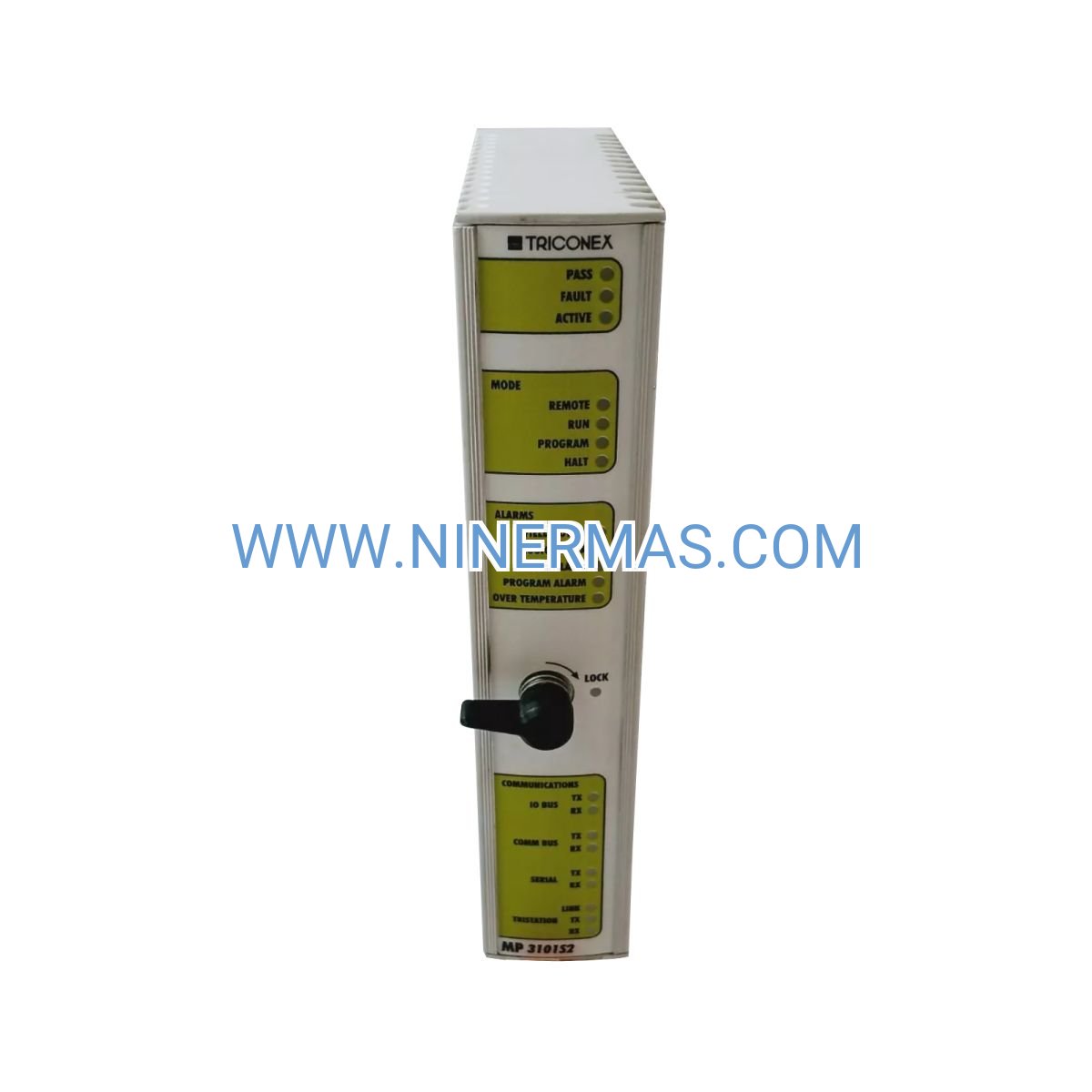

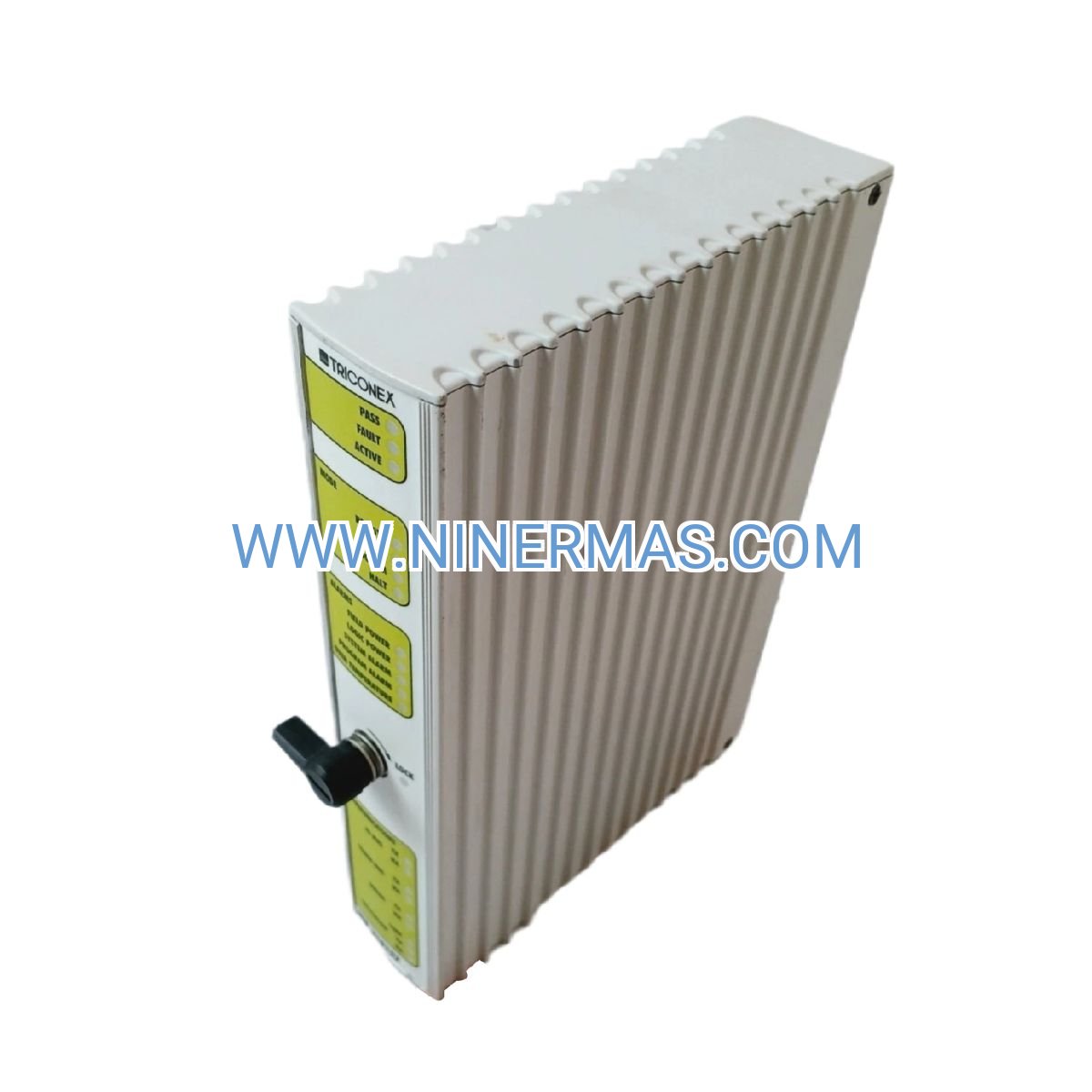

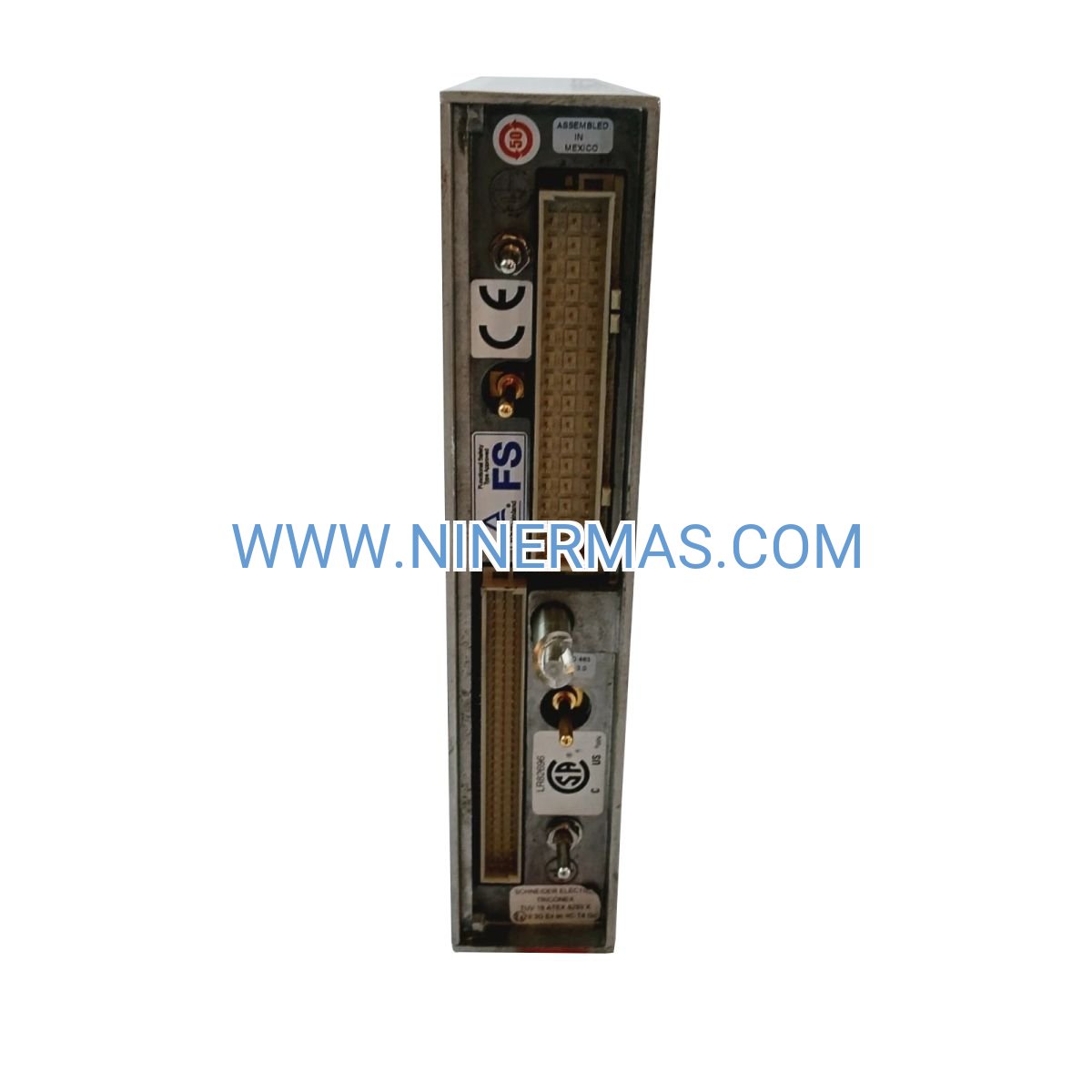

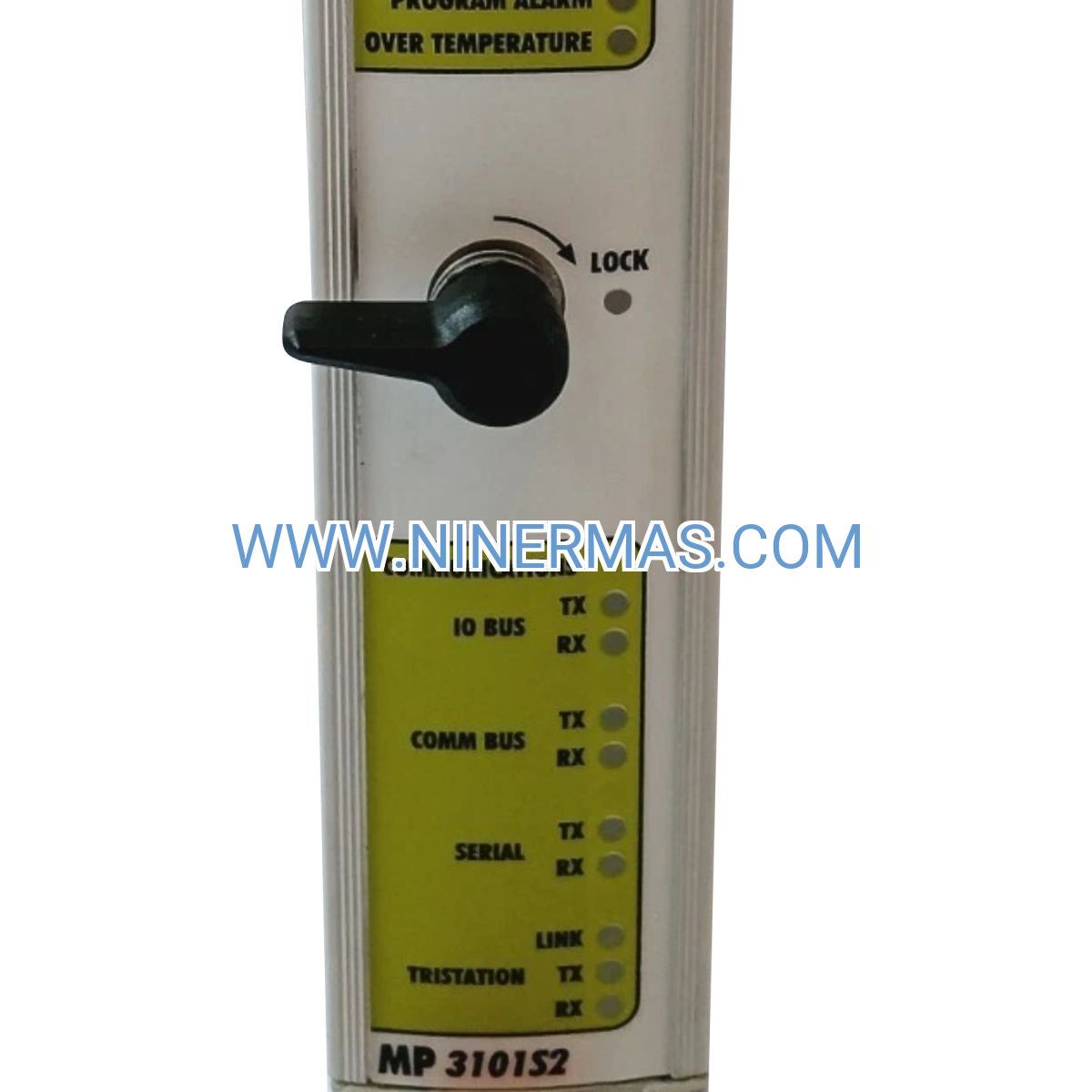

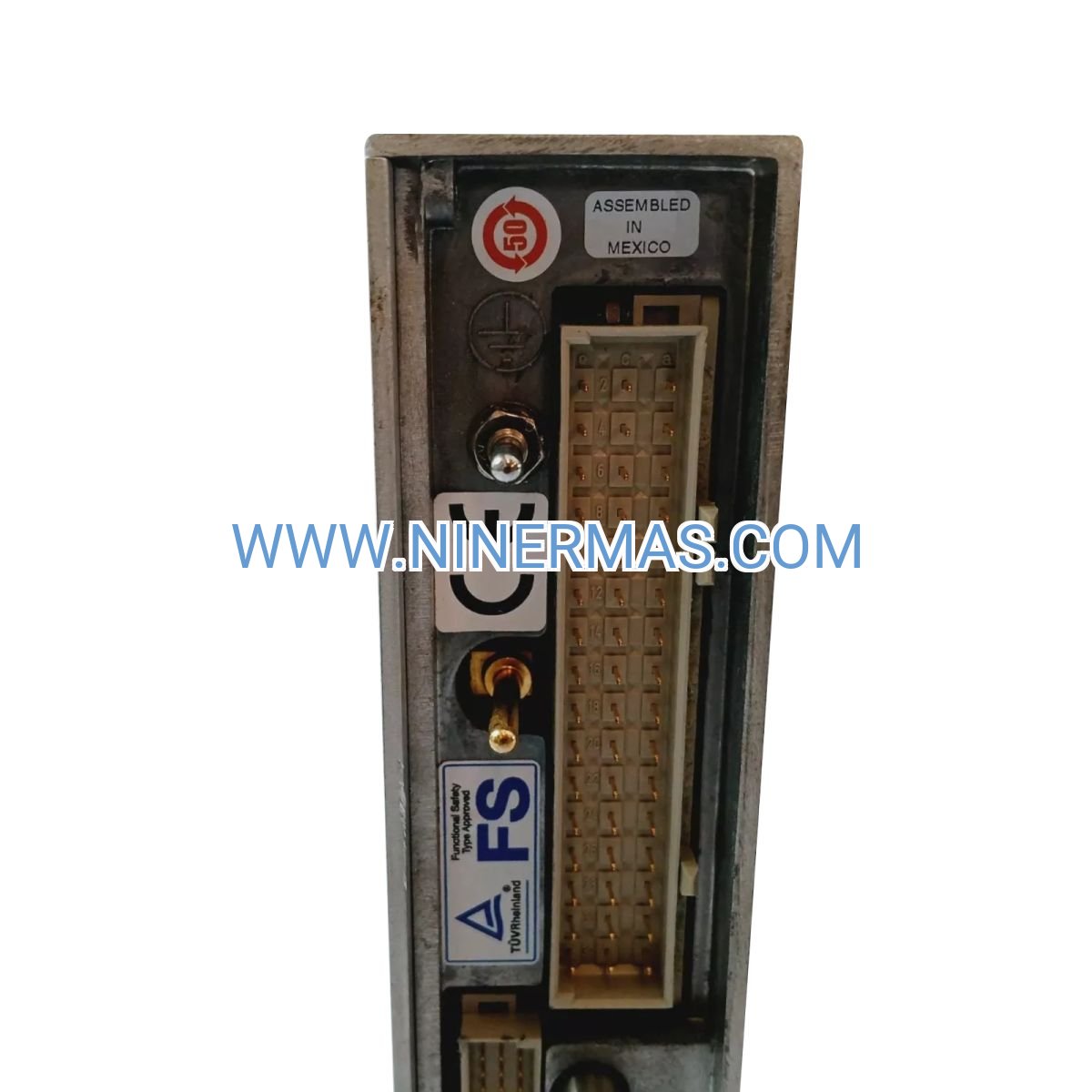

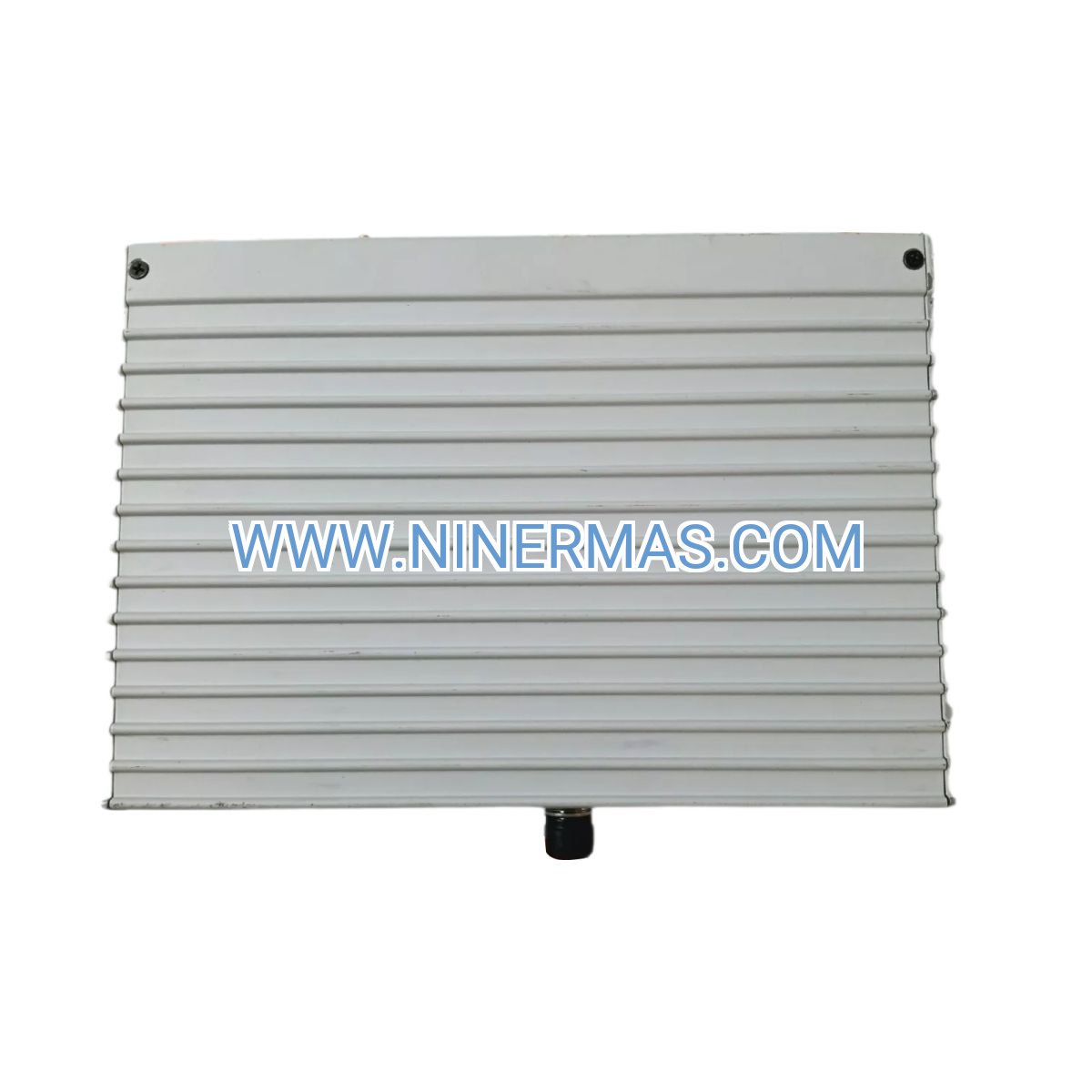

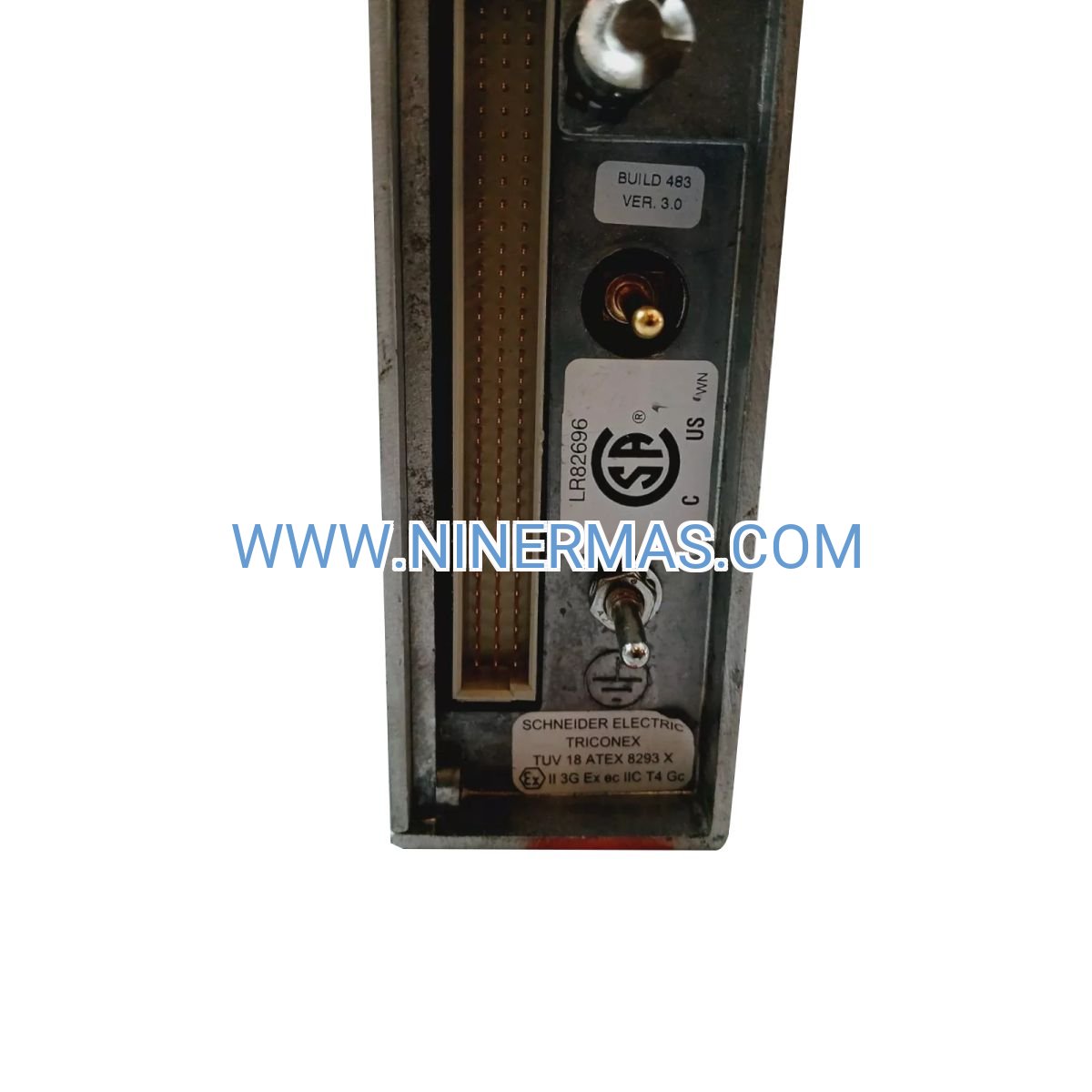

MP3101 S2 Main Processor (Industrial-Grade Triple Redundant Safety Brain)

The MP3101 S2 represents the computational core of Triconex safety instrumented systems, engineered to protect lives, assets, and environments in the world's most hazardous industrial operations. This processor module delivers fail-safe control through patented Triple Modular Redundant (TMR) architecture, where three independent processors execute identical logic and vote on every output—ensuring that single-point failures never compromise safety integrity.

Designed for facilities where unplanned shutdowns cost millions per hour and safety incidents are unacceptable, the MP3101 S2 serves process engineers, safety managers, and automation specialists who demand IEC 61508 SIL 3 performance without compromise. From offshore oil platforms to chemical refineries, this processor has logged billions of operational hours protecting critical infrastructure worldwide.

Key differentiators include deterministic scan execution for predictable response times, hot-swappable architecture enabling maintenance without process interruption, and backward compatibility that protects decades of safety logic investment while supporting modern integration requirements.

Core Capabilities & Business Impact

→ Fault-Tolerant Architecture: TMR design with 2oo3 voting logic automatically masks hardware failures, eliminating spurious trips that cost $500K-$2M per incident in lost production while maintaining SIL 3 integrity throughout the safety lifecycle.

✓ Diagnostic Excellence: Greater than 99% fault coverage with continuous self-testing detects latent failures before they impact safety performance, reducing proof test intervals and lowering total cost of ownership by 30-40% versus conventional systems.

✓ Zero-Downtime Serviceability: Online module replacement capability allows corrective and preventive maintenance during normal operations, maximizing plant availability in continuous process industries where shutdown windows are measured in years.

→ Deterministic Performance: Fixed scan cycle execution with microsecond-level precision ensures consistent response times for time-critical safety functions, meeting the most stringent process safety time (PST) requirements in high-speed applications.

✓ Integration Flexibility: Native support for Modbus TCP/RTU, OPC DA/UA, and proprietary protocols enables seamless data exchange with DCS, SCADA, and asset management systems while maintaining functional separation per IEC 61511.

✓ Cybersecurity Hardening: Built-in security features including role-based access control, encrypted communications, and audit logging address IEC 62443 requirements for industrial control system protection in connected environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose the MP3101 S2 when your safety instrumented functions require SIL 3 capability, when process complexity demands >1000 I/O points, or when integration with legacy Tricon systems is necessary. For smaller applications (SIL 2, <500 I/O), consider compact safety PLCs. For SIL 4 or diverse redundancy requirements, consult factory application engineers.

Industry Applications & Problem Resolution

Oil & Gas Production: Offshore platforms deploy MP3101 S2 processors in emergency shutdown (ESD) systems that isolate wells, depressurize pipelines, and activate blowdown valves within 2-second safety response times—preventing catastrophic releases that could cost billions in environmental damage and regulatory penalties.

Petrochemical Manufacturing: Refineries and chemical plants utilize these processors for burner management systems (BMS) controlling furnace startups, where improper sequencing could trigger explosive atmospheres. The TMR architecture eliminates nuisance trips that previously caused $1.5M+ revenue loss per false shutdown.

Power Generation: Combined-cycle plants rely on MP3101 S2 modules for turbine overspeed protection and boiler safety interlocks, where failure to trip could destroy $50M+ turbomachinery assets, while false trips disrupt grid stability and incur capacity penalties.

Pipeline & Midstream: Long-distance transmission systems implement these processors for leak detection and automatic valve isolation across hundreds of kilometers, meeting regulatory mandates for rapid response to pipeline integrity threats.

Pharmaceutical & Life Sciences: Batch reactors handling hazardous intermediates depend on MP3101 S2 safety logic for temperature/pressure interlocks and emergency venting—protecting both personnel and high-value product batches from runaway reaction scenarios.

Extended Functionality

Peer-to-Peer Safety Networking: TriStation protocol enables direct safety data exchange between multiple Triconex controllers without intermediate gateways, supporting distributed safety architectures across multi-unit facilities while maintaining SIL 3 integrity end-to-end.

Advanced Diagnostics & Prognostics: Embedded health monitoring tracks processor loading, memory utilization, and I/O scan performance—feeding predictive maintenance algorithms that forecast component degradation 6-12 months before functional failure.

Simulation & Virtual Commissioning: Hardware-in-the-loop (HIL) testing capabilities allow full safety logic validation in offline environments, reducing commissioning time by 40% and eliminating costly field modifications during startup.

Custom Function Blocks: User-programmable logic extensions support proprietary algorithms and specialized calculations beyond standard IEC 61131-3 function libraries, enabling differentiated safety strategies without compromising certification.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units with factory seals and full traceability documentation. Expedited same-day shipping available for critical outage support (additional fees apply).

Custom Configurations: 10-15 business days for pre-loaded application programs, custom firmware versions, or factory acceptance testing (FAT) with witnessed validation protocols.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service with 24-hour dispatch for qualified emergencies.

Technical Support: Unlimited access to application engineers with Triconex system expertise, including configuration review, troubleshooting assistance, and performance optimization guidance. Response within 4 business hours for standard inquiries, 1 hour for critical safety system issues.

Documentation Package: Complete technical manual set including installation procedures, wiring diagrams, configuration software, IEC 61508 certification documents, and material traceability certificates (MTCs) for quality assurance compliance.

Frequently Asked Questions

How does triple modular redundancy improve safety system reliability compared to dual-redundant designs?
TMR architecture provides fault masking rather than fault detection—the system continues operating safely even with one failed channel, whereas dual-redundant systems must shut down to diagnose which channel failed. This eliminates 80-90% of spurious trips while maintaining SIL 3 integrity, directly translating to millions in avoided production losses for continuous process facilities.

What communication protocols does the MP3101 S2 support for integration with existing plant control systems?
Native protocol support includes Modbus TCP/RTU for SCADA connectivity, OPC DA/UA for DCS integration, and proprietary TriStation for engineering access. Third-party gateways enable Profibus, DeviceNet, and Foundation Fieldbus connectivity while maintaining functional separation per IEC 61511 requirements.

Can I upgrade from legacy Tricon V9 or V10 processors to the MP3101 S2 without rewriting safety logic?
Yes—the MP3101 S2 maintains backward compatibility with Tricon application programs developed in TriStation 1131 software versions 4.x and later. Existing logic, function blocks, and I/O configurations migrate directly, though validation testing per IEC 61511 modification of management is required before returning to service.

What cybersecurity features protect the MP3101 S2 from unauthorized access in networked environments?
Built-in security includes role-based access control with password protection, encrypted Ethernet communications, configuration change audit logging, and physical keyswitch for run/program mode selection. These features address IEC 62443-3-3 security level 2 requirements for industrial automation and control systems.

How do I size the processor for my application's I/O count and logic complexity?
The MP3101 S2 supports up to 118 I/O modules (approximately 3,000+ I/O points) with scan cycles as fast as 10ms. For applications requiring >50,000 logic elements or <5ms response times, consult factory application engineers for multi-processor architectures or specialized high-speed configurations.

What proof testing intervals are required to maintain SIL 3 certification with this processor?
With >99% diagnostic coverage, the MP3101 S2 typically supports 10-year proof test intervals per IEC 61511 requirements, significantly longer than conventional safety PLCs requiring 1-3 year testing. Actual intervals depend on overall SIF design, including field device characteristics and common cause failure analysis.

Take the Next Step

Protect your critical operations with proven safety technology trusted by Fortune 500 companies worldwide. Contact our application specialists for system architecture review, budget quotations, or technical clarification on your specific safety instrumented function requirements. Volume pricing and multi-year service agreements available for plant-wide deployments.
