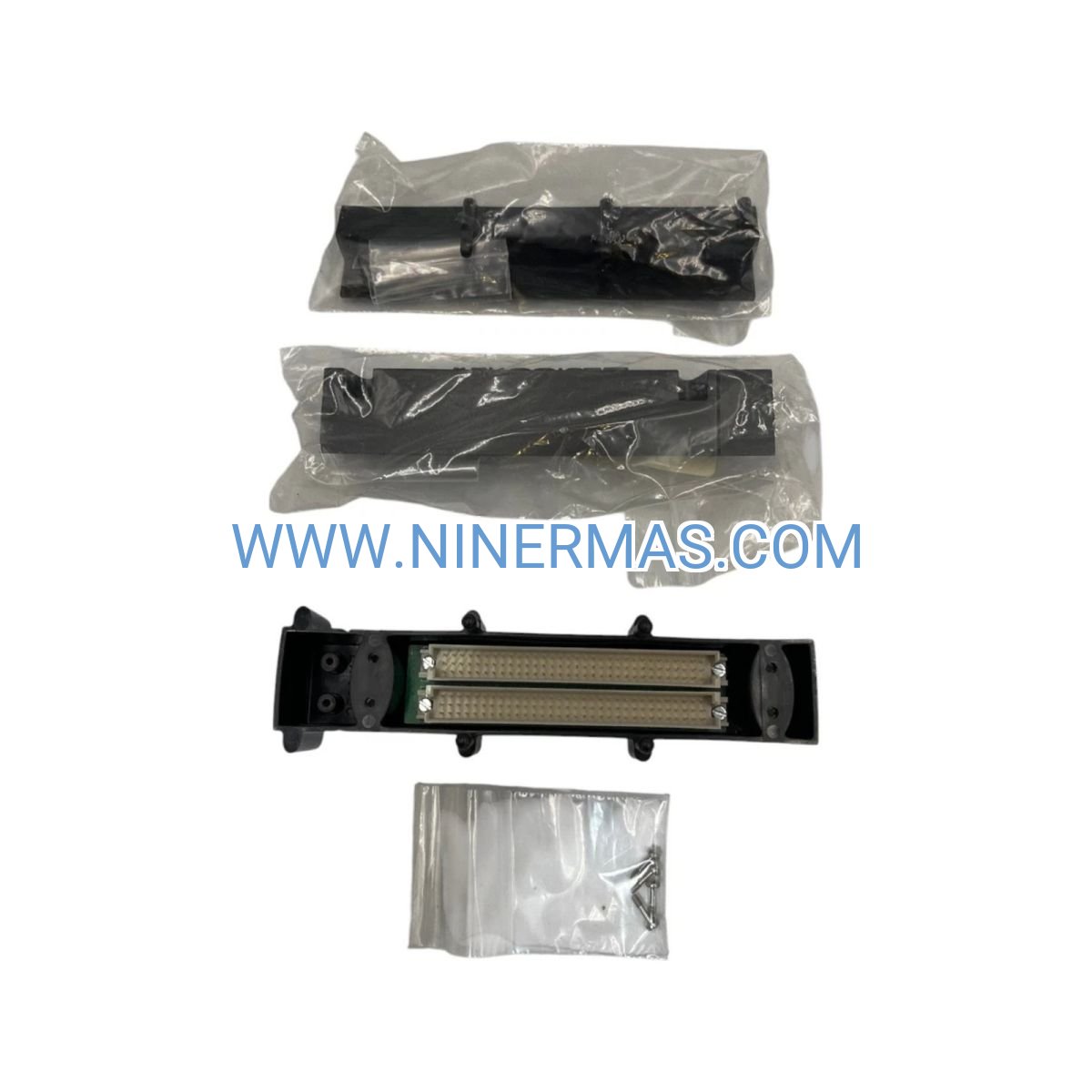

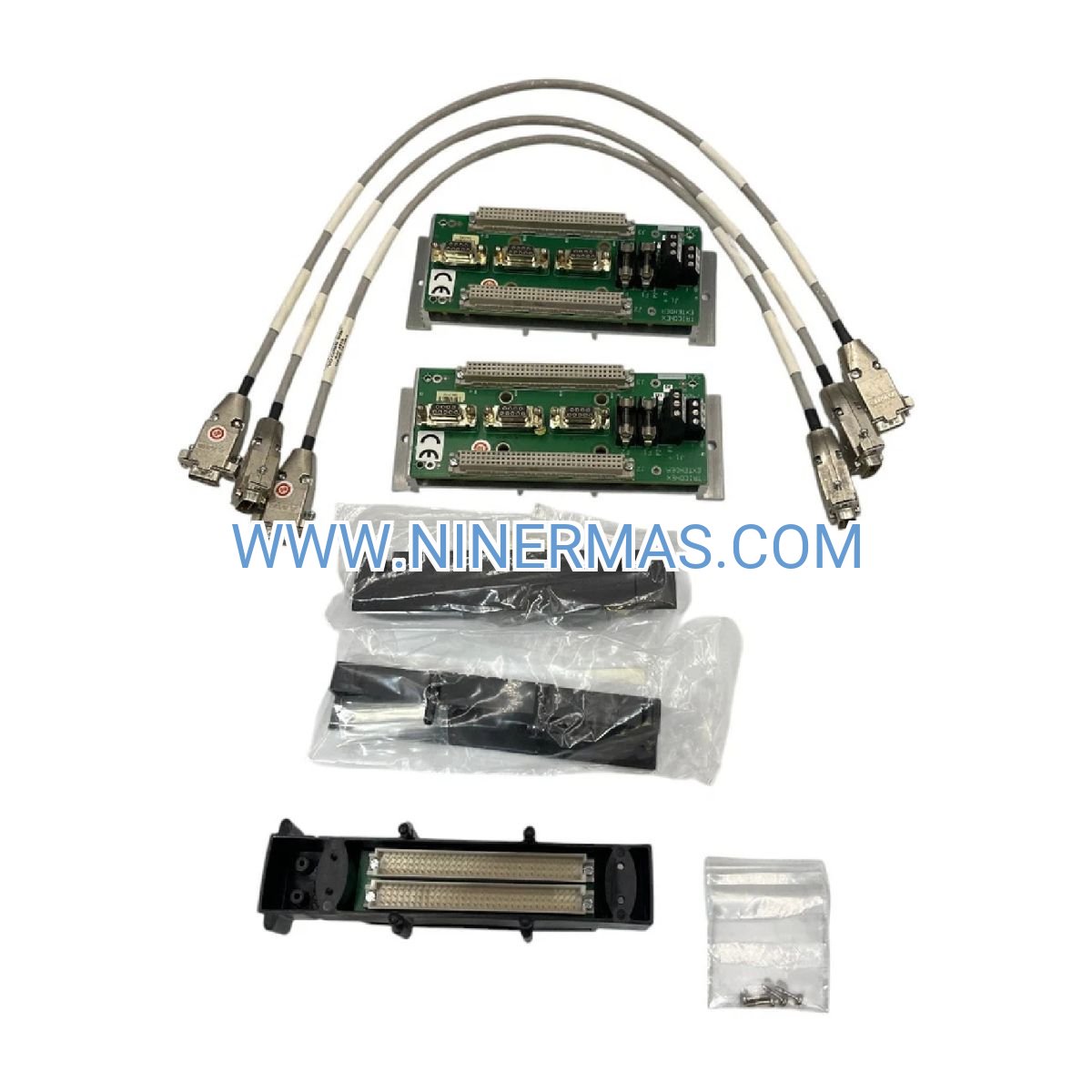

EM 2292 I/O Bus Extender Module (Industrial-Grade System Expansion)

The EM 2292 I/O Bus Extender Module represents a proven solution for expanding Triconex Triple Modular Redundant (TMR) safety systems beyond single-chassis limitations. Designed for process industries where safety integrity and system availability are non-negotiable, this extender module enables distributed I/O architectures while preserving fault-tolerant operation across extended networks.

Industrial facilities face a common challenge: as operations scale, safety systems must grow without compromising reliability. The EM 2292 addresses this by providing seamless bus extension between Triconex chassis, allowing control engineers to position I/O modules closer to field devices while maintaining centralized processing. This architecture reduces wiring costs, simplifies troubleshooting, and improves system maintainability in complex installations.

Built to meet SIL 3 safety requirements, the EM 2292 ensures that extended I/O networks maintain the same voting logic and diagnostic capabilities as local configurations. Whether you're retrofitting an existing safety system or designing a new multi-zone facility, this module delivers the expansion capacity needed for long-term operational flexibility.

Core Features & Technical Advantages

✓ Multi-Chassis Architecture Support
Enables distributed I/O configurations across multiple racks and enclosures, supporting facility layouts where control points are geographically separated. Ideal for large-scale plants requiring zone-based safety logic.

✓ TMR Integrity Preservation
Maintains triple modular redundancy across extended bus networks, ensuring that diagnostic voting and fault detection operate identically to local I/O configurations. Critical for applications demanding continuous SIL 3 compliance.

✓ Hot-Swap Capability in Redundant Systems
Supports online module replacement when deployed in redundant configurations, minimizing unplanned downtime during maintenance windows. Reduces mean time to repair (MTTR) in 24/7 operations.

✓ Wide Environmental Operating Range
Operates reliably in temperatures from 0°C to 60°C with 5-95% non-condensing humidity tolerance. Suitable for harsh industrial environments including offshore platforms and desert facilities.

✓ Low Power Consumption Design
Optimized power draw reduces heat generation and allows higher module density per chassis. Lowers total cost of ownership through reduced cooling requirements.

✓ Plug-and-Play Integration
Automatic recognition by TriStation 1131 programming software eliminates manual configuration steps. Reduces commissioning time by up to 40% compared to legacy expansion methods.

Application Scenarios & Industry Solutions

→ Oil & Gas Processing Facilities
In refineries and gas processing plants, the EM 2292 enables distributed safety logic across multiple process units while maintaining centralized monitoring. Addresses the challenge of extending emergency shutdown (ESD) systems to remote wellheads, separators, and compressor stations without compromising response times. Typical installations reduce field wiring by 30-50% compared to centralized I/O architectures.

→ Chemical Manufacturing Plants
Chemical facilities with multiple reaction zones benefit from localized I/O placement near critical sensors and final control elements. The EM 2292 allows safety instrumented functions (SIF) to span across buildings while preserving sub-100ms response requirements. Particularly valuable in batch processes where recipe changes require flexible I/O allocation.

→ Power Generation Stations
Thermal and combined-cycle power plants use the EM 2292 to extend turbine protection systems, boiler management, and balance-of-plant safety functions across large footprints. Solves the problem of monitoring distributed auxiliary systems (cooling towers, fuel handling, emissions control) without deploying multiple standalone controllers.

→ Pharmaceutical Production Lines
GMP-compliant facilities leverage the module to segregate I/O between cleanroom zones and equipment rooms, reducing contamination risks while maintaining validated safety logic. Supports 21 CFR Part 11 audit trail requirements through centralized programming and change management.

→ Offshore Oil & Gas Platforms
Space-constrained offshore installations utilize the EM 2292 to distribute I/O across topside modules, subsea control systems, and living quarters fire & gas detection. Withstands vibration, salt fog, and temperature cycling inherent to marine environments.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the EM 2292 when your Triconex system requires I/O distribution beyond a single chassis. Evaluate total I/O count, physical separation distances, and environmental conditions. For installations exceeding 100 meters between chassis, consult factory specifications for cable type and signal integrity requirements. In redundant configurations, deploy paired extender modules to maintain fault tolerance.

Advanced Integration Capabilities

SCADA & HMI Connectivity: The EM 2292 transparently extends I/O visibility to supervisory systems via standard Triconex communication protocols (Modbus, OPC). Remote I/O points appear identical to local modules in operator interfaces, simplifying graphics development and alarm management.

Cybersecurity Considerations: When deploying extended I/O across network boundaries, the module supports segmentation strategies compliant with IEC 62443 industrial cybersecurity standards. Pair with managed switches and VLANs to isolate safety networks from enterprise IT infrastructure.

Retrofit & Upgrade Paths: Existing Triconex installations can incorporate the EM 2292 without controller replacement or logic recompilation. Backward compatibility ensures that legacy systems gain expansion capacity while preserving validated safety functions and historical configuration databases.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units. Expedited shipping available for critical outage scenarios.
Custom Configurations: 7-10 business days for factory-tested kits with specific cable assemblies or mounting accessories.
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and performance deviations from published specifications.
Technical Support: Pre-sales application engineering, installation guidance, and post-commissioning troubleshooting included. Access to Triconex-certified engineers for complex integration questions.
Documentation Package: Installation manual, wiring diagrams, TriStation configuration examples, and safety certification documents (SIL 3 compliance reports) provided with every order.

Frequently Asked Questions

How does the EM 2292 maintain safety integrity across extended I/O networks?
The module preserves TMR voting logic by replicating diagnostic data across all three channels of the extended bus. Each I/O module connected through the extender participates in the same fault detection and voting algorithms as locally mounted modules, ensuring SIL 3 compliance end-to-end.

What is the maximum distance supported between chassis using the EM 2292?
Cable length limits depend on environmental factors (EMI/RFI levels, temperature extremes) and cable specifications. Typical installations support 50-100 meters using shielded twisted-pair cabling. For distances exceeding 100 meters, fiber optic extenders or repeater modules may be required—consult technical documentation for site-specific recommendations.

Can I add the EM 2292 to an operational safety system without shutting down the process?
In redundant Triconex configurations, the extender module supports hot-insertion when proper procedures are followed. Single-channel systems require a planned shutdown for installation. Always coordinate with process operations and follow lockout/tagout protocols during any hardware modifications.

Does the EM 2292 require special programming or configuration in TriStation 1131?
No additional programming is required. The TriStation software automatically detects the extender module during system scan and maps remote I/O addresses transparently. Existing logic references remain unchanged, simplifying commissioning and reducing validation effort.

What diagnostic capabilities are available for troubleshooting extended I/O issues?
The module provides LED indicators for power status, communication health, and fault conditions. TriStation diagnostic screens display real-time bus utilization, signal quality metrics, and module-level error logs. Advanced diagnostics include cable integrity tests and latency measurements for performance optimization.

Is the EM 2292 compatible with older Triconex controller generations?
Yes, the module maintains backward compatibility with legacy Triconex platforms including Tricon, Trident, and TriStation controllers. Firmware updates may be required for optimal performance—verify compatibility with your specific controller model and software version before ordering.

Ready to Expand Your Safety System?

Contact our industrial automation specialists for application-specific guidance, system architecture reviews, or volume pricing. Our team provides complimentary pre-sales engineering to ensure the EM 2292 meets your facility's unique requirements. Request a quote today or speak with a Triconex-certified engineer to discuss your expansion project.
