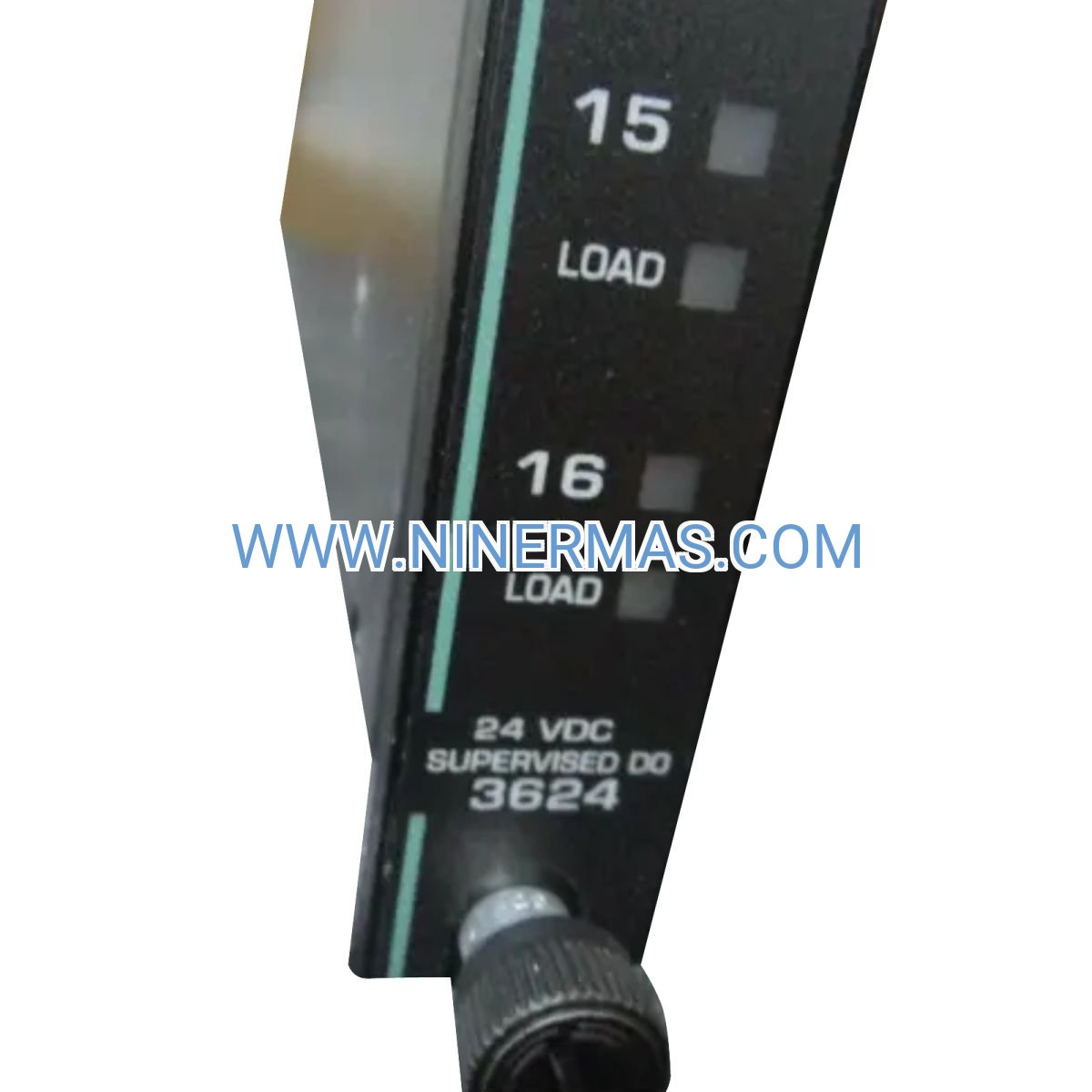

DO3624 Triconex 24VDC Digital Output Module (Industrial-Grade Safety I/O)

The DO3624 represents Schneider Electric's flagship 24-volt DC digital output solution for safety-critical process control environments. Featuring 32 independently controlled output channels within a triple modular redundant framework, this module serves as the final control element interface for emergency shutdown systems, fire protection networks, and burner management applications where failure is not an option.

Designed for industries where unplanned downtime translates to millions in lost revenue—oil refineries, LNG terminals, petrochemical complexes, and power generation facilities—the DO3624 addresses the fundamental challenge of maintaining continuous operation while meeting stringent safety integrity requirements. Plant operators gain the ability to execute online maintenance without process interruption, while safety engineers achieve IEC 61508 SIL 3 certification through proven TMR voting architecture.

What sets this module apart is its combination of field-proven reliability (MTBF exceeding 100 years), comprehensive diagnostic coverage above 99%, and seamless backward compatibility with legacy Triconex v9/v10 platforms. Whether you're upgrading an existing safety system or designing a greenfield facility, the DO3624 delivers the performance, certification, and lifecycle support that critical infrastructure demands.

Core Features & Business Value

✓ 32-Channel 24VDC Output Capacity – Drive solenoid valves, motor contactors, alarm annunciators, and actuator controls from a single module, reducing cabinet footprint and wiring complexity by up to 40% compared to dual-redundant architectures.

✓ Triple Modular Redundant (TMR) Voting Logic – Three independent processing channels continuously cross-check output commands; automatic fault masking maintains operation during single-channel failures, eliminating spurious trips that cost $50K-$500K per incident in lost production.

✓ Hot-Swappable Field Replacement – Replace failed modules during operation without system shutdown or safety compromise; reduces mean time to repair (MTTR) from hours to minutes, protecting uptime SLAs and avoiding emergency maintenance premiums.

✓ Advanced Diagnostic Intelligence – Real-time monitoring of output current, open/short circuit detection, power supply health, and backplane communication status; predictive alerts enable proactive maintenance before failures impact operations.

✓ IEC 61508 SIL 3 Certification – TÜV-approved for the highest safety integrity level in functional safety standards; satisfies regulatory requirements for OSHA PSM, EPA RMP, and international equivalents without additional engineering analysis.

✓ 1500V Channel Isolation – Protects control system from field-side electrical faults, lightning strikes, and ground potential differences; prevents cascade failures that could compromise multiple safety functions simultaneously.

Application Scenarios Across Industries

→ Oil & Gas Emergency Shutdown (ESD) Systems
In offshore platforms and onshore processing facilities, the DO3624 controls critical shutdown valves, blowdown systems, and isolation actuators. When hazardous conditions are detected—high pressure, toxic gas release, or fire—the module executes coordinated shutdown sequences within milliseconds, preventing catastrophic equipment damage and protecting personnel. The TMR architecture ensures that sensor failures or control system faults never prevent genuine emergency responses.

→ Chemical Plant Process Safety Interlocks
Chemical manufacturers deploy DO3624 modules to manage reactor cooling systems, pressure relief valves, and material isolation controls. During runaway reaction scenarios or utility failures, the module activates multiple safety barriers simultaneously—emergency cooling, reactant isolation, and inert gas blanketing—while maintaining diagnostic visibility for post-incident analysis and regulatory reporting.

→ Power Generation Burner Management Systems (BMS)
Coal, gas, and biomass-fired boilers rely on DO3624 modules to control fuel valves, ignition transformers, and purge dampers. The module's deterministic response time (typically <10ms) ensures precise sequencing during startup, load changes, and emergency trips, preventing furnace explosions and tube failures that can sideline generation capacity for months.

→ Fire & Gas Detection Response Networks
Refineries and LNG terminals use DO3624 modules to activate deluge systems, foam generators, ventilation controls, and evacuation alarms. When flame detectors or gas sensors trigger, the module coordinates multi-zone suppression strategies while maintaining independent control of each protection layer—water curtains, foam application, and HVAC isolation—according to pre-engineered cause-and-effect matrices.

→ Pipeline Compressor Station Safety Systems
Natural gas transmission operators integrate DO3624 modules to manage compressor shutdown valves, blowdown controls, and station isolation systems. During overspeed, vibration, or seal failure events, the module executes rapid depressurization sequences while preventing hydraulic shock and equipment damage through controlled valve actuation profiles.

Technical Parameters & Selection Guide

Selection Criteria for Your Application:

Choose the DO3624 when your application requires 24-32 digital outputs with SIL 3 integrity. For higher channel density (48-64 outputs), consider the Triconex 3664 model. If your final elements require supervised outputs with trip coil monitoring, the 3636T variant provides enhanced diagnostics. Applications demanding relay isolation should evaluate the 4351B relay output module. Always verify that your field devices operate within the 18-30VDC range and that inrush current during valve actuation remains below 2A per channel.

Extended Functions & Integration Capabilities

SCADA/DCS Integration: The DO3624 communicates via Triconex's proprietary TriStation protocol, enabling real-time status monitoring, force/unforce operations, and alarm management from operator workstations. OPC DA/UA servers provide seamless integration with third-party SCADA platforms (Wonderware, Ignition, iFIX) for unified plant visualization.

Asset Management Connectivity: Module diagnostics integrate with AMS Device Manager and Emerson AMS Suite, providing predictive maintenance insights, configuration version control, and lifecycle tracking. Automated health reports identify degrading channels before failures occur, optimizing spare parts inventory and maintenance scheduling.

Cybersecurity Hardening: When deployed with Triconex v11 controllers, the DO3624 benefits from IEC 62443 security features including role-based access control, encrypted configuration downloads, and audit logging. Air-gapped safety networks prevent unauthorized access while maintaining operational visibility through unidirectional gateways.

Custom Output Profiles: Engineering tools allow configuration of pulse-width modulation (PWM) outputs for proportional valve control, time-delayed energization to prevent inrush current spikes, and sequential startup patterns for motor starters. Custom cause-and-effect logic accommodates complex interlocking requirements without external relay panels.

Delivery Timeline & Service Guarantee

Standard Delivery: Factory-sealed DO3624 modules ship within 3-5 business days to destinations worldwide. All units include factory calibration certificates, test reports, and material traceability documentation required for project quality assurance programs.

Expedited Options: Critical outage situations qualify for 24-hour emergency dispatch via air freight. Our global distribution network maintains strategic inventory in Houston, Singapore, Rotterdam, and Dubai to minimize transit time for urgent replacements.

Warranty Coverage: Every DO3624 module includes a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs (24/36 months) are available for capital projects requiring long-term asset protection.

Technical Support: Our certified Triconex specialists provide 24/7/365 phone and email support for installation guidance, configuration assistance, and troubleshooting. Remote diagnostic services via secure VPN connections accelerate issue resolution without site visits.

Documentation Package: Each module ships with installation manual, wiring diagrams, dimensional drawings, and safety certification documents. Digital resources include AutoCAD panel layouts, EPLAN macros, and sample TriStation configuration files to accelerate engineering workflows.

Frequently Asked Questions

How does the DO3624 maintain output control during module replacement?
The TMR architecture employs 2-out-of-3 voting logic. When you remove one module for replacement, the remaining two modules continue controlling all 32 outputs without interruption. Once the new module is installed and synchronized (typically 30-60 seconds), full triple redundancy is restored. This hot-swap capability is validated during factory acceptance testing and field-proven in thousands of installations.

What field devices are compatible with the DO3624 output specifications?
The module drives any 24VDC device drawing ≤0.5A continuous current: solenoid valves (ASCO, Bürkert, Parker), motor starters (ABB, Siemens contactors), alarm beacons (Federal Signal, E2S), and actuator controls (Rotork, AUMA). For devices exceeding 0.5A, use the DO3624 to control intermediate relay modules (Phoenix Contact, Weidmüller) rated for higher currents. Always verify that device inrush current remains below 2A to prevent nuisance faults.

Can I integrate DO3624 modules into existing Triconex v9 or v10 systems?
Yes, the DO3624 maintains full backward compatibility with Triconex v9.x and v10.x controllers through firmware abstraction layers. You can mix DO3624 modules with legacy 3624 models in the same chassis without configuration changes. However, advanced diagnostic features (predictive alerts, enhanced current monitoring) require v10.5 or later controller firmware. Consult factory application notes for specific version compatibility matrices.

What diagnostic capabilities help prevent unplanned downtime?
The module continuously monitors 15+ parameters: output current per channel, open circuit detection, short circuit detection, overload conditions, backplane communication health, power supply voltage, module temperature, and TMR synchronization status. Diagnostics operate independently of the main controller, ensuring fault visibility even during controller failures. Configurable alarm thresholds trigger maintenance notifications before failures impact operations—for example, detecting gradual valve coil degradation through current trend analysis.

How do I size power supplies for DO3624 installations?
Calculate total load current by summing all connected device currents, then add 20% margin for inrush and aging. A fully loaded DO3624 (32 channels × 0.5A) requires 16A at 24VDC, plus 8W for module electronics. Use redundant power supplies (N+1 configuration) rated for 125% of calculated load. Triconex recommends Phoenix Contact QUINT or Allen-Bradley 1606-XL series supplies with current-sharing and diagnostics. Always install output fusing (2A fast-blow per channel) to protect wiring and field devices.

What training is required for DO3624 installation and maintenance?
Basic installation (module insertion, wiring termination) requires standard electrical technician skills and familiarity with DIN rail mounting systems. Configuration and troubleshooting demand Triconex TriStation software training (typically 3-5 day courses offered by Schneider Electric University). For SIL 3 applications, IEC 61508 functional safety training is recommended to understand proof test procedures, partial stroke testing, and safety lifecycle management. We provide application-specific training for complex integrations.

Ready to Enhance Your Safety System Reliability?

Contact our industrial automation specialists today for technical consultation, application engineering support, or immediate order processing. Whether you're replacing a failed module, expanding an existing Triconex system, or designing a new safety instrumented system, our team provides the expertise and inventory to keep your critical operations running.

Request a quote now or speak with a certified Triconex engineer to discuss your specific requirements.
