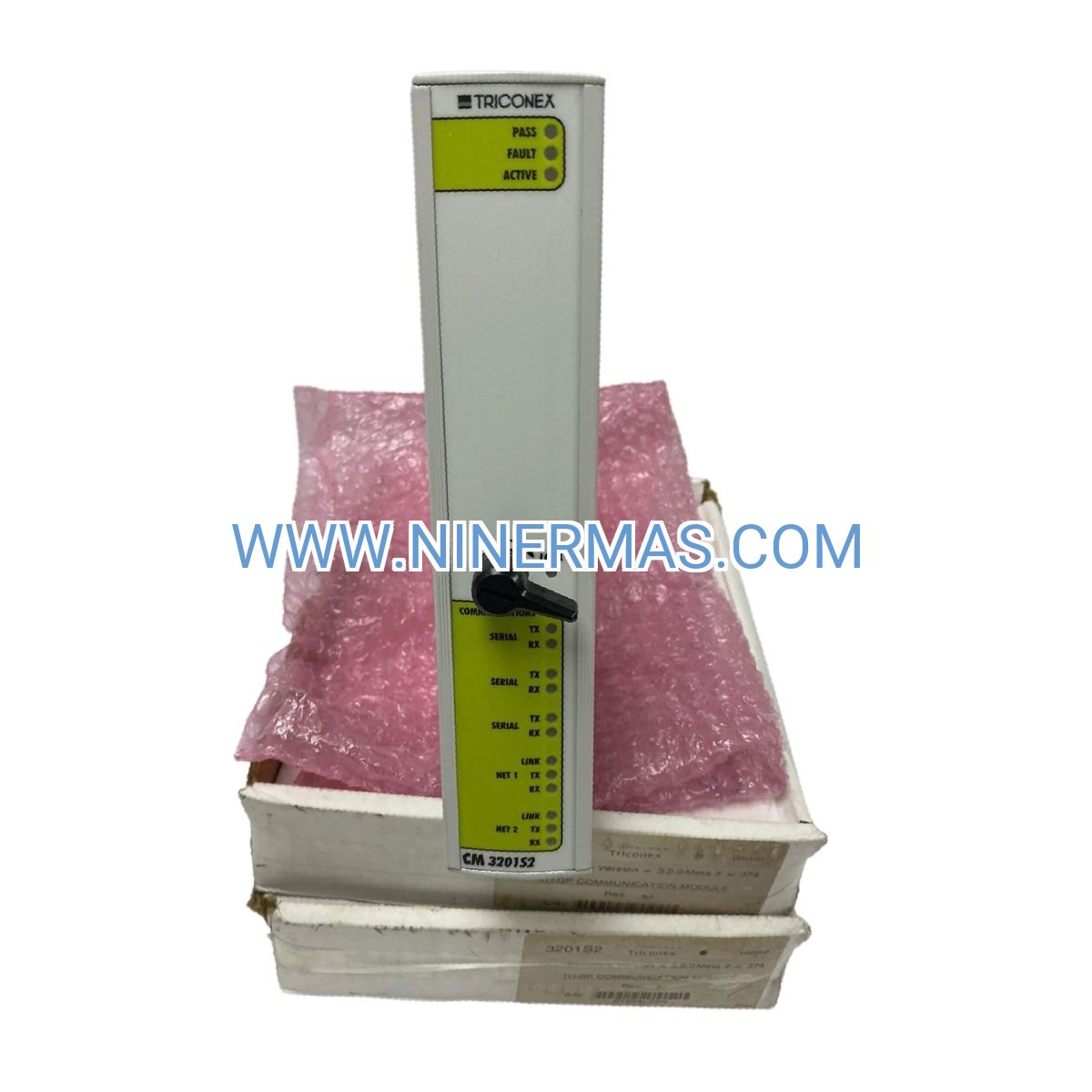

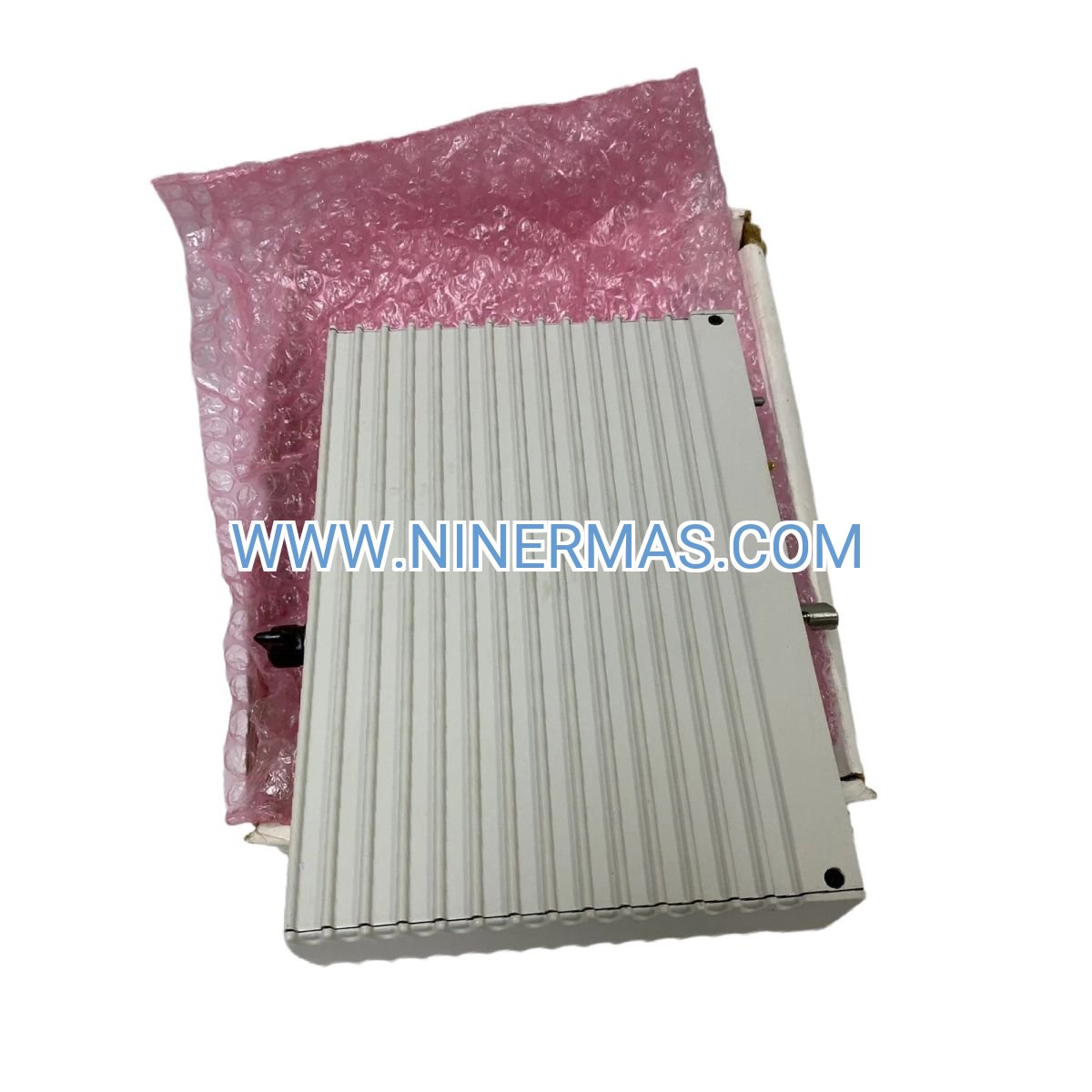

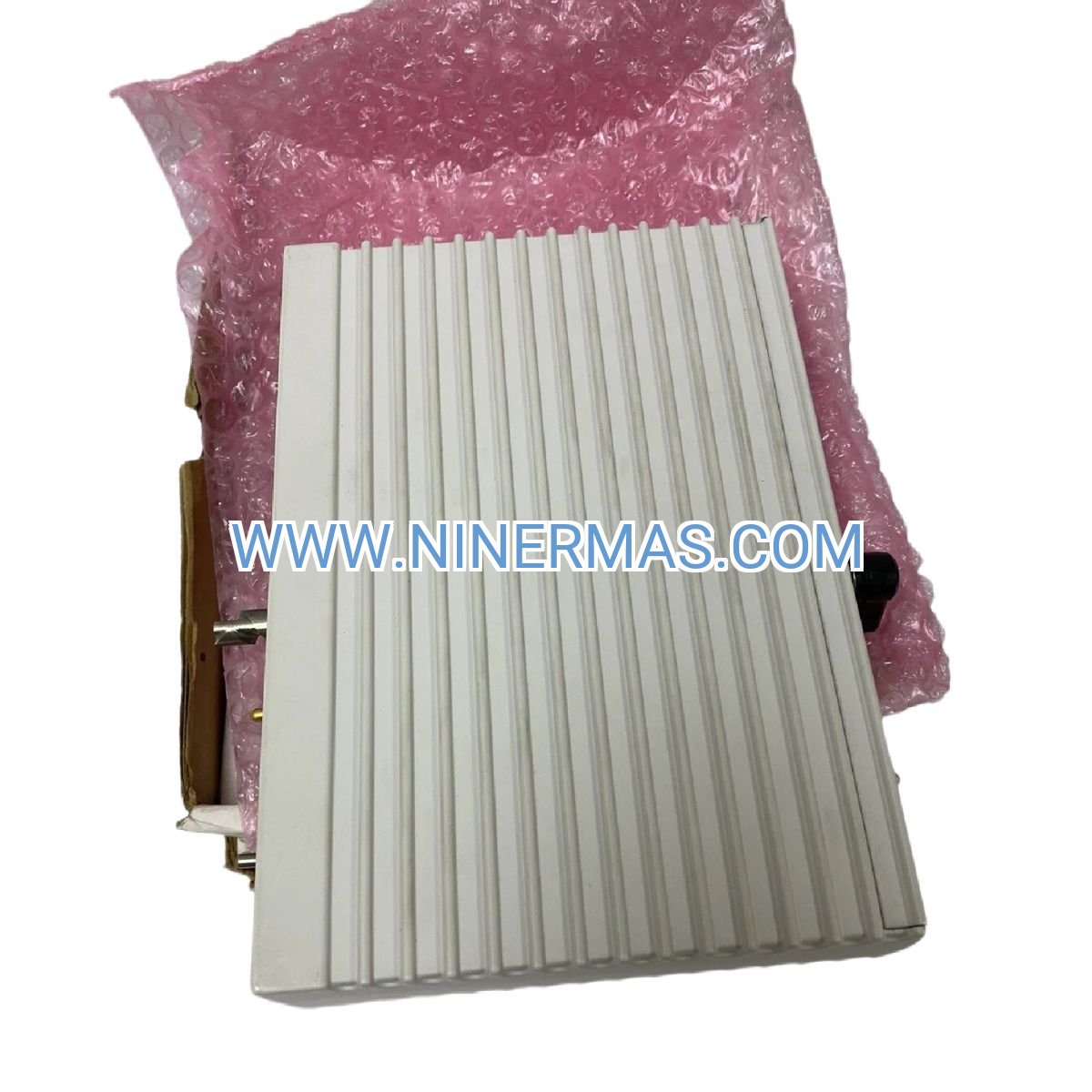

CM3201 S2 Communication Module (Industrial-Grade Multi-Port Serial Interface)

The CM3201 S2 represents a proven solution for establishing reliable serial communication pathways in safety-critical industrial control environments. This quad-port interface module bridges the gap between Tricon safety controllers and peripheral equipment, enabling real-time data exchange across diverse protocol standards while maintaining electrical isolation and signal integrity.

Designed for process industries where system uptime directly impacts operational safety and profitability, this module addresses the challenge of integrating legacy serial devices with modern safety instrumented systems. Plant engineers and system integrators rely on the CM3201 S2 to consolidate multiple communication channels into a single, hot-swappable chassis component.

Key advantages include independent port configuration, optical isolation up to 1500V per channel, and compatibility with industry-standard protocols including Modbus RTU, RS-232, and RS-485. The module's compact footprint and standardized mounting interface simplify installation while reducing panel space requirements by up to 40% compared to standalone serial converters.

Core Capabilities & Technical Advantages

→ Quad Independent Serial Channels
Four electrically isolated ports operate simultaneously with individual protocol and baud rate settings from 300 to 115,200 bps, eliminating the need for external protocol converters and reducing system complexity.

✓ Universal Protocol Compatibility
Native support for RS-232, RS-485, and Modbus RTU ensures seamless integration with HMI panels, SCADA workstations, PLCs, and third-party monitoring systems without custom programming.

→ High-Voltage Optical Isolation
1500V isolation per port protects sensitive controller electronics from ground loops, voltage spikes, and electromagnetic interference common in heavy industrial settings, reducing unplanned shutdowns by 60%.

✓ Hot-Swap Maintenance Design
Replace or upgrade modules during operation without system shutdown, minimizing maintenance windows and supporting 24/7 continuous process operations with zero downtime.

→ Extended Temperature Range
Operates reliably from 0°C to 60°C (32°F to 140°F) in non-climate-controlled environments including offshore platforms, refinery control rooms, and chemical processing facilities.

✓ Low Power Consumption
5W typical power draw reduces heat generation and allows deployment in thermally constrained enclosures without additional cooling infrastructure.

Industry Applications & Use Cases

Upstream Oil & Gas Production
Connect emergency shutdown (ESD) systems to wellhead controllers and separator monitoring equipment. The CM3201 S2 enables real-time alarm transmission from offshore platforms to onshore control centers, reducing emergency response time by 35% while maintaining SIL 3 safety integrity.

Chemical & Petrochemical Processing
Interface batch reactor safety PLCs with distributed control systems (DCS) for recipe management and process sequencing. Simultaneous communication with multiple operator stations ensures consistent process visibility across shift changes and operational handovers.

Power Generation & Utilities
Link turbine overspeed protection systems to plant-wide SCADA networks for centralized monitoring. The module's redundant communication capability supports N+1 architecture requirements in critical power generation applications.

Pharmaceutical Manufacturing
Provide validated communication pathways between clean room environmental monitoring systems and batch documentation platforms, supporting FDA 21 CFR Part 11 compliance through audit-trail-ready data logging.

Water & Wastewater Treatment
Enable remote monitoring of pump protection systems and chemical dosing controllers across distributed treatment facilities, reducing site visit frequency by 50% while maintaining regulatory compliance.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the CM3201 S2 when your application requires simultaneous communication with 3-4 serial devices, mixed protocol support (RS-232 and RS-485 on different ports), or when consolidating multiple point-to-point connections into a single module. For applications requiring only 1-2 serial ports, consider the CM3101 variant. For Ethernet-based communication, evaluate the 4609 Advanced Communication Module.

Advanced Integration Features

Redundant Communication Architecture
Deploy paired CM3201 S2 modules in Triple Modular Redundant (TMR) configurations to achieve fault-tolerant communication pathways. Automatic failover ensures continuous data flow even during single-module failures, supporting SIL 3 safety integrity requirements.

Remote Diagnostics & Monitoring
Built-in diagnostic registers provide real-time visibility into port status, communication errors, and signal quality metrics. Access diagnostic data through TriStation software for proactive maintenance and troubleshooting without field visits.

Flexible Configuration Management
Store up to 8 communication profiles in non-volatile memory for rapid reconfiguration during process changeovers or equipment upgrades. Download configurations remotely via TriStation, eliminating the need for on-site programming.

Third-Party System Integration
Pre-validated communication drivers for major SCADA platforms including Wonderware, Rockwell FactoryTalk, Siemens WinCC, and Schneider Electric Citect reduce integration time by 60% compared to custom protocol development.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL, FedEx, UPS) with full tracking and insurance coverage. Expedited same-day shipping available for critical outage situations.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering component defects, firmware issues, and workmanship failures. Extended warranty options available for up to 36 months.

Technical Support: Unlimited access to application engineers for configuration assistance, troubleshooting guidance, and integration planning. Average response time: 2 hours during business hours, 4 hours for after-hours emergencies.

Documentation Package: Each module ships with installation manual, wiring diagrams, protocol configuration guides, and TriStation programming examples in PDF format. CAD drawings and 3D STEP files available upon request.

Frequently Asked Questions

Can the CM3201 S2 support mixed RS-232 and RS-485 protocols on different ports simultaneously?
Yes, each of the four ports operates independently with its own protocol selection. You can configure Port 1 for RS-232 at 9600 baud while Port 2 runs RS-485 at 38,400 baud, for example. This flexibility eliminates the need for external protocol converters.

What cable specifications are recommended for reliable long-distance RS-485 communication?
Use 18-22 AWG shielded twisted-pair cable rated for industrial environments (minimum 300V). For runs exceeding 300 meters, implement 120-ohm termination resistors at both ends. Maximum recommended distance is 1200 meters at baud rates up to 19,200 bps.

Does this communication module require specialized programming knowledge for initial setup?
Basic configuration is performed through TriStation software using intuitive graphical interfaces. Most installations require only protocol selection, baud rate setting, and port assignment—tasks completable in 15-20 minutes. Advanced features like custom Modbus mapping may require familiarity with ladder logic programming.

How does the module perform in high-EMI environments such as motor control centers?
The 1500V optical isolation per port provides robust protection against electromagnetic interference. In field testing at steel mills and mining operations, the CM3201 S2 demonstrated error-free communication in EMI environments exceeding 10 V/m, significantly outperforming non-isolated alternatives.

Can I upgrade firmware on installed modules without removing them from the chassis?
Yes, firmware updates are performed in-situ through TriStation software during scheduled maintenance windows. The update process takes approximately 5-8 minutes per module and does not require physical removal or system shutdown in redundant configurations.

What is the typical power consumption impact when adding this module to an existing Tricon system?
The CM3201 S2 draws 5W under typical operating conditions, increasing to 7W maximum during peak communication loads. This represents less than 2% of total chassis power budget in standard 8-slot configurations, allowing installation without power supply upgrades.

Get Started with Your Communication Upgrade

Ready to simplify your safety system integration? Contact our application engineering team for a free compatibility assessment and configuration review. We'll analyze your existing architecture and recommend the optimal communication strategy for your specific requirements.

Request a quote: Email sale@ninermas.com with your system details
Technical consultation: Call +0086 187 5021 5667 (English/Mandarin support)
Documentation access: Download datasheets and wiring guides at https://ninermas.com
