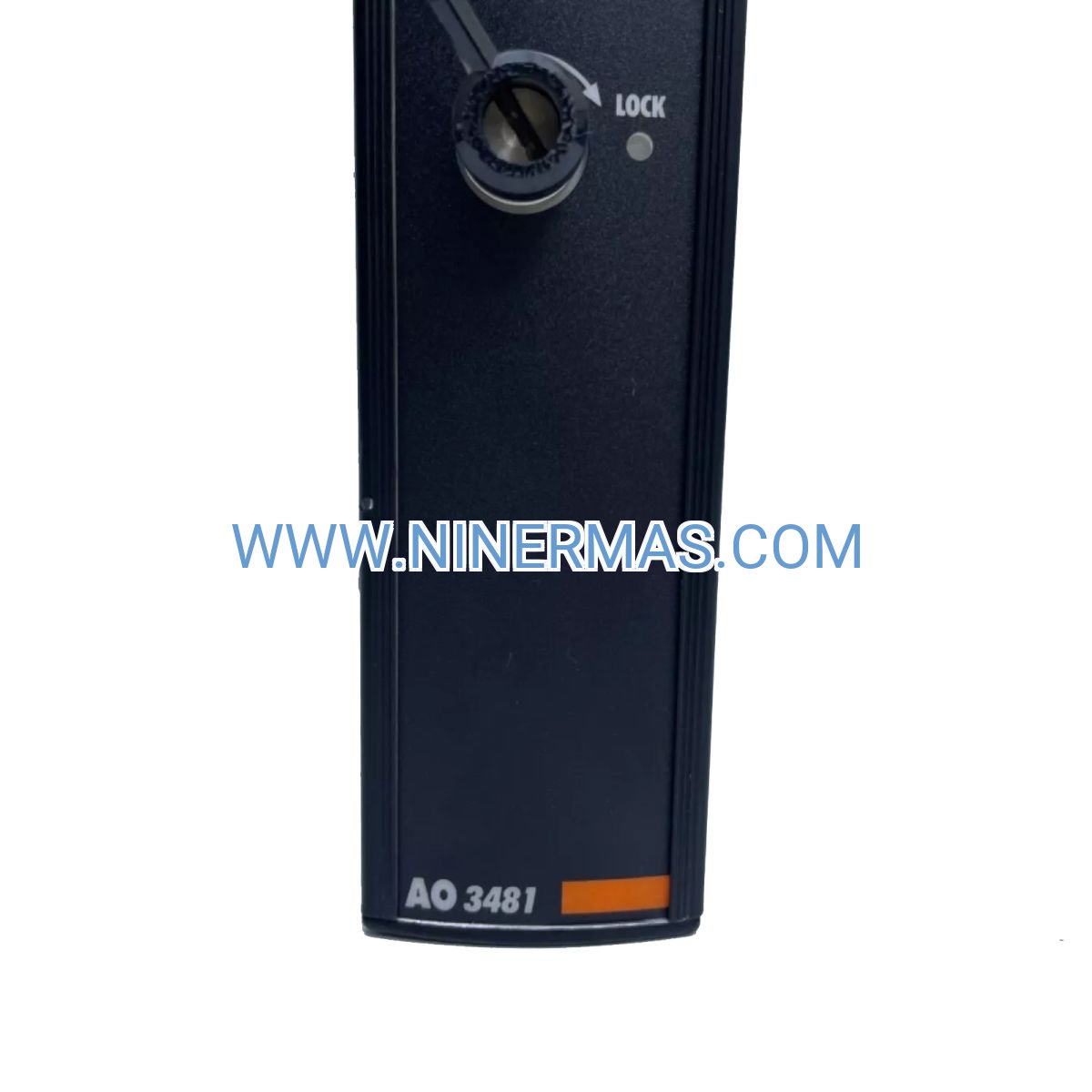

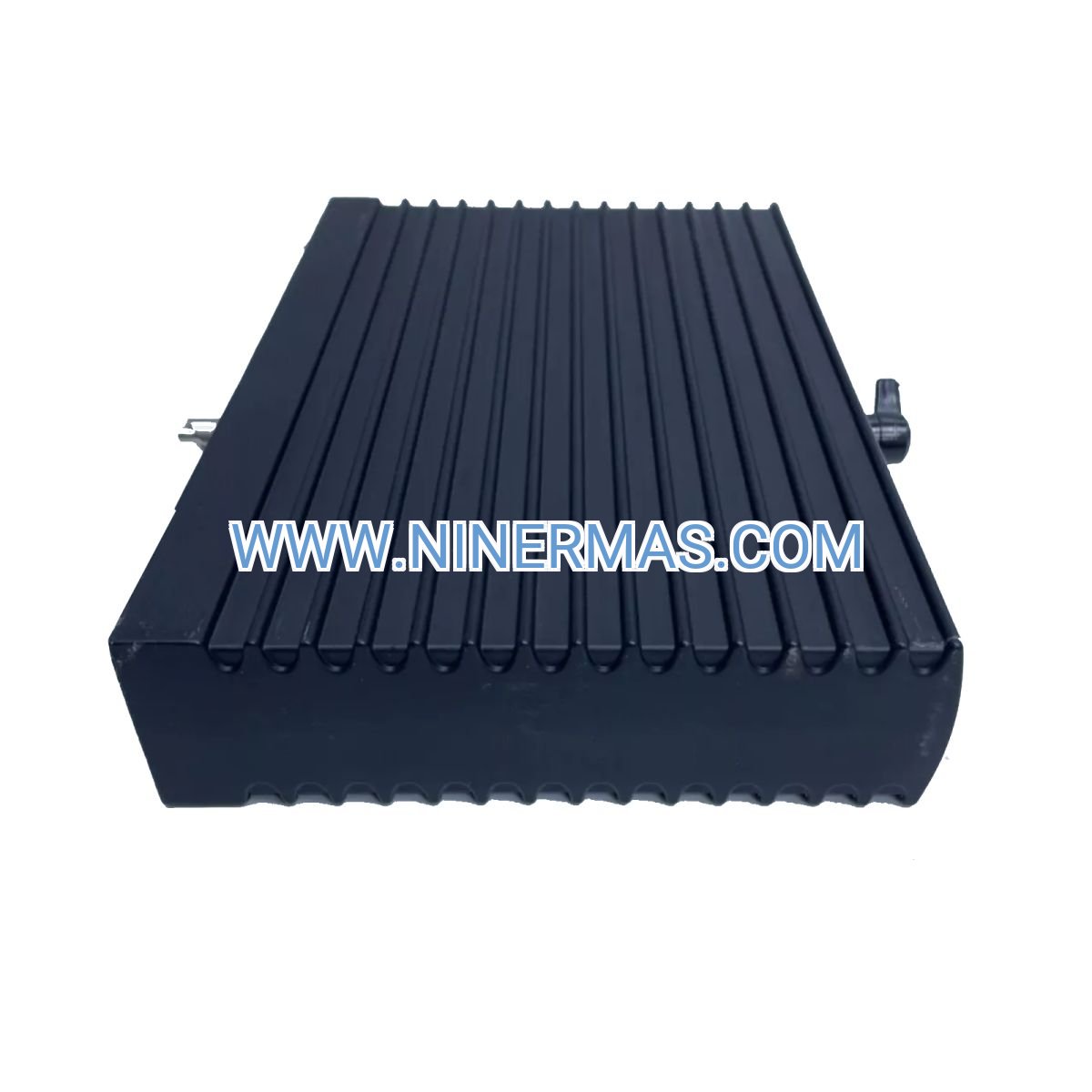

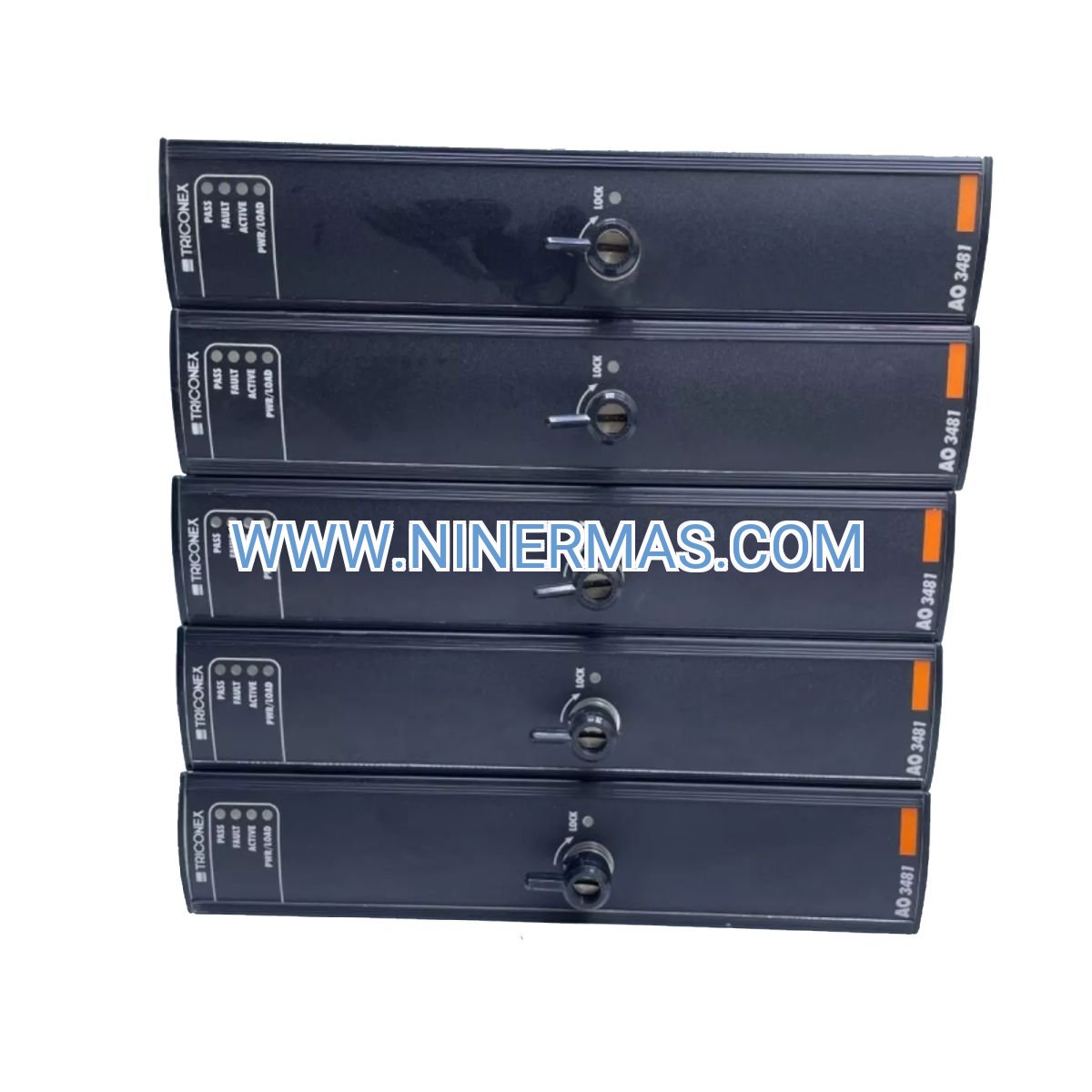

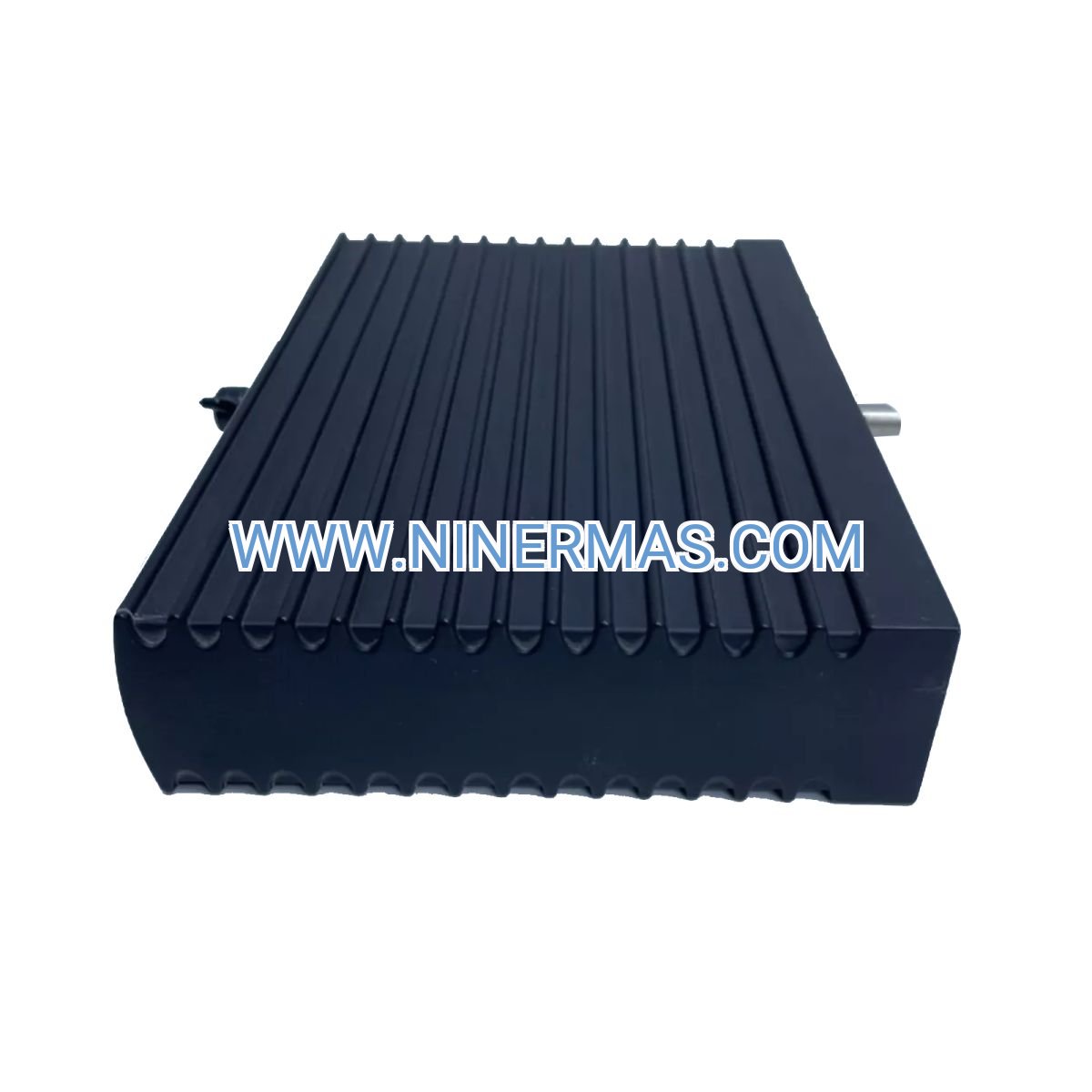

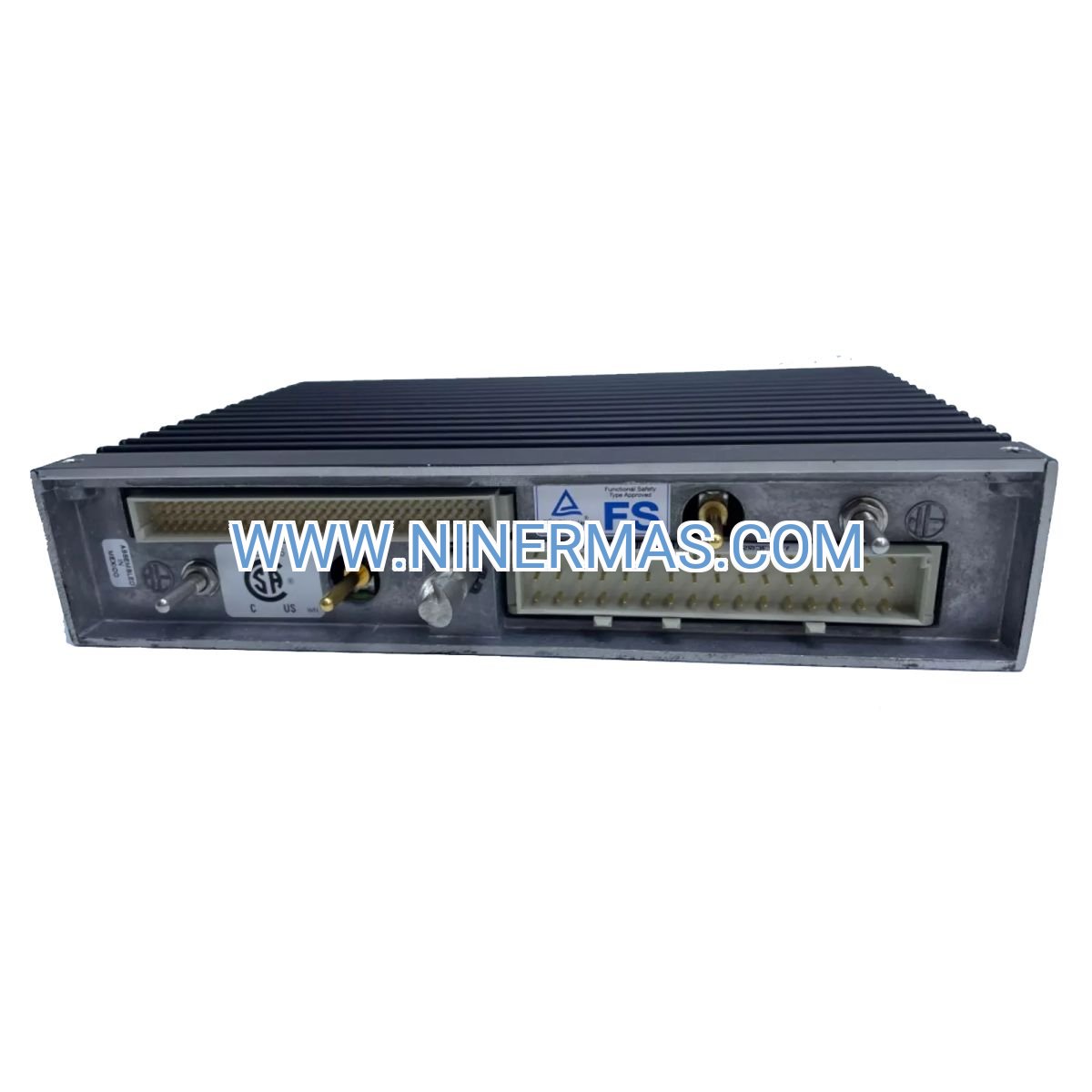

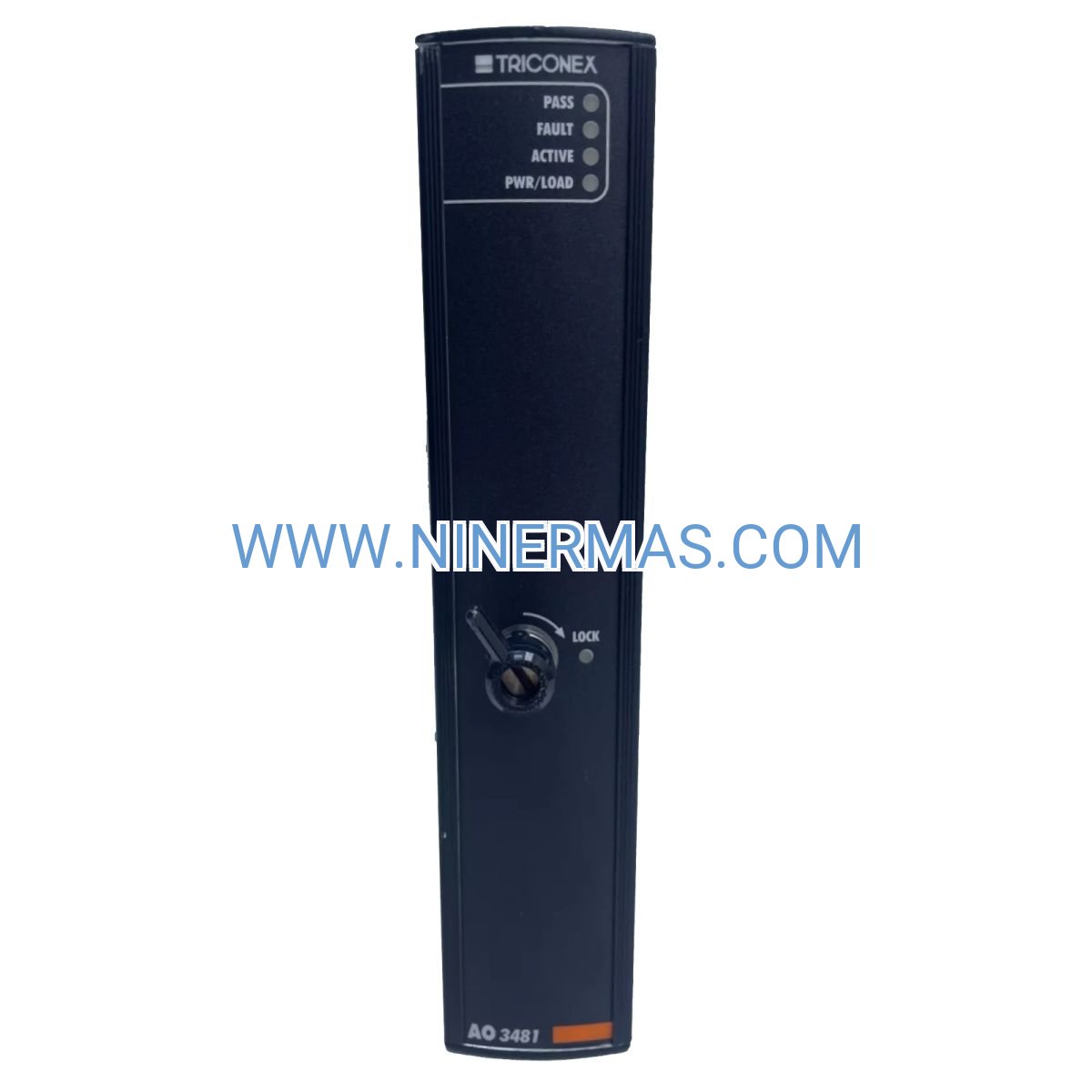

AO3481 S2 Analog Output Module (Industrial-Grade TMR Control Solution)

The AO3481 S2 represents a critical component in safety-instrumented control architectures, delivering four isolated 4-20 mA current outputs through proven triple modular redundant technology. Designed for process industries where operational continuity and safety integrity cannot be compromised, this module combines deterministic performance with fault-tolerant design principles.

Industrial facilities requiring SIL 3-rated control systems depend on the AO3481 S2 for precise analog signal transmission to field devices including control valves, variable frequency drives, and pneumatic positioners. The module's TMR voting architecture ensures uninterrupted operation during component-level failures, while continuous diagnostics provide real-time visibility into system health.

Whether you're upgrading legacy safety systems or designing new installations, the AO3481 S2 delivers the reliability and accuracy demanded by critical process control applications across oil & gas, chemical processing, power generation, and pharmaceutical manufacturing sectors.

Core Features & Benefits

✓ Triple Modular Redundancy: TMR voting logic eliminates single points of failure, maintaining output integrity even during module faults—reducing unplanned shutdowns by up to 40% compared to simplex architectures.

✓ Four Isolated Output Channels: Independent 4-20 mA current loops with 600-ohm drive capability enable direct connection to industry-standard field devices without signal conditioning requirements.

✓ SIL 3 Safety Certification: IEC 61508 compliant design meets the highest safety integrity requirements for emergency shutdown systems and critical process control applications.

✓ Hot-Swap Capability: Online module replacement without system interruption minimizes maintenance windows and supports continuous operation in 24/7 production environments.

✓ Advanced Diagnostics: Real-time monitoring of output current accuracy, loop integrity, and voting discrepancies with detailed fault annunciation reduces troubleshooting time by 60%.

✓ 12-Bit Resolution: High-precision digital-to-analog conversion delivers ±0.1% accuracy across the full 4-20 mA span, ensuring tight process control and regulatory compliance.

Application Scenarios

→ Upstream Oil & Gas Production
Emergency shutdown valve control in offshore platforms and wellhead facilities. The AO3481 S2 manages critical isolation valves during overpressure events, with TMR architecture ensuring fail-safe operation even in harsh marine environments. Typical deployment: 8-12 modules per platform controlling 32-48 safety-critical valves.

→ Chemical Reactor Temperature Management
Precise control of cooling water flow and steam injection in exothermic reaction processes. The module's 100ms update rate enables rapid response to temperature excursions, preventing runaway reactions. Addresses the challenge of maintaining ±2°C setpoint accuracy in batch polymerization processes.

→ Power Plant Turbine Control Systems
Governor valve positioning and fuel flow regulation in combined-cycle gas turbines. The AO3481 S2's deterministic output timing supports synchronization requirements for grid-connected generators, while SIL 3 certification satisfies NERC reliability standards.

→ Pharmaceutical Clean Room Pressurization
Differential pressure control across sterile manufacturing zones through modulating damper actuators. The module maintains FDA-compliant environmental conditions with documented traceability through integrated diagnostic logging.

→ Pipeline Compressor Station Automation
Anti-surge valve control and capacity modulation in natural gas transmission systems. TMR redundancy ensures continuous operation during maintenance activities, supporting pipeline availability targets exceeding 99.5%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AO3481 S2 when your application requires SIL 3 safety integrity, TMR fault tolerance, or hot-swap maintenance capability. For non-safety applications with lower channel counts, consider standard analog output modules. Verify that your field devices accept 4-20 mA input signals and that loop impedance remains within 600-ohm limits including cable resistance.

Extended Functions

TriStation Integration: Full configuration and monitoring through TriStation 1131 software enables graphical programming, real-time trending, and alarm management. Support for Modbus TCP/IP and OPC DA protocols facilitates integration with plant-wide SCADA and historian systems.

Predictive Maintenance: Embedded diagnostics track output drift, calibration status, and component aging indicators. Maintenance alerts generated 30-60 days before predicted failure enable proactive replacement scheduling.

Custom Scaling Options: Software-configurable output scaling supports non-standard ranges and reverse-acting signals without hardware modifications. Linearization tables accommodate non-linear valve characteristics and flow curves.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-fresh modules with full traceability documentation.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, performance specifications, and workmanship. Extended warranty programs available for critical applications.

Technical Support: Pre-sales application engineering assistance, post-installation commissioning support, and 24/7 emergency troubleshooting hotline. Remote diagnostic services available via secure VPN connection.

Documentation Package: Product datasheet, installation manual, TriStation configuration guide, SIL certification documents, and calibration test reports included with every shipment.

Frequently Asked Questions

Q: What is the maximum cable length supported between the AO3481 S2 module and field devices?
A: Cable runs up to 1,500 meters (5,000 feet) are supported when using twisted-pair shielded cable with loop impedance maintained below 600 ohms. For longer distances, consider 4-wire transmitter configurations or signal repeaters.

Q: Can the AO3481 S2 drive valve positioners requiring HART communication protocol?
A: The module provides standard 4-20 mA analog output only. For HART-enabled field devices, the analog signal passes through transparently, but HART digital communication requires a separate HART-compatible interface module.

Q: How does the TMR voting mechanism handle output discrepancies between redundant channels?
A: The Triconex controller continuously compares outputs from all three TMR modules. When one module deviates beyond configured tolerance (typically ±0.5%), the system generates a diagnostic alarm while maintaining output based on the two agreeing modules. The faulty module can be replaced online without process interruption.

Q: What calibration interval is recommended for maintaining ±0.1% accuracy specification?
A: Factory calibration typically remains stable for 24-36 months under normal operating conditions. Annual verification is recommended for SIL 3 applications, with full recalibration every 3 years or per site-specific maintenance procedures.

Q: Is the AO3481 S2 compatible with legacy Triconex chassis and controllers?
A: The S2 revision is backward-compatible with Tricon v9 and later controllers. Verify firmware compatibility through TriStation software before installation. Mixing S1 and S2 revisions within the same TMR voting group is not recommended.

Q: What environmental protection rating does the module housing provide?
A: The module is designed for installation in NEMA 1 or IP20-rated control cabinets. For harsh environments requiring higher ingress protection, install the Triconex chassis in appropriately rated enclosures with environmental controls.

Ready to Enhance Your Safety System?

Contact our industrial automation specialists for application-specific guidance, system integration support, or volume pricing. Our team provides detailed technical consultations to ensure optimal module selection and configuration for your critical control requirements.

Request a quote today or speak with an engineer about your specific safety-instrumented system needs.
