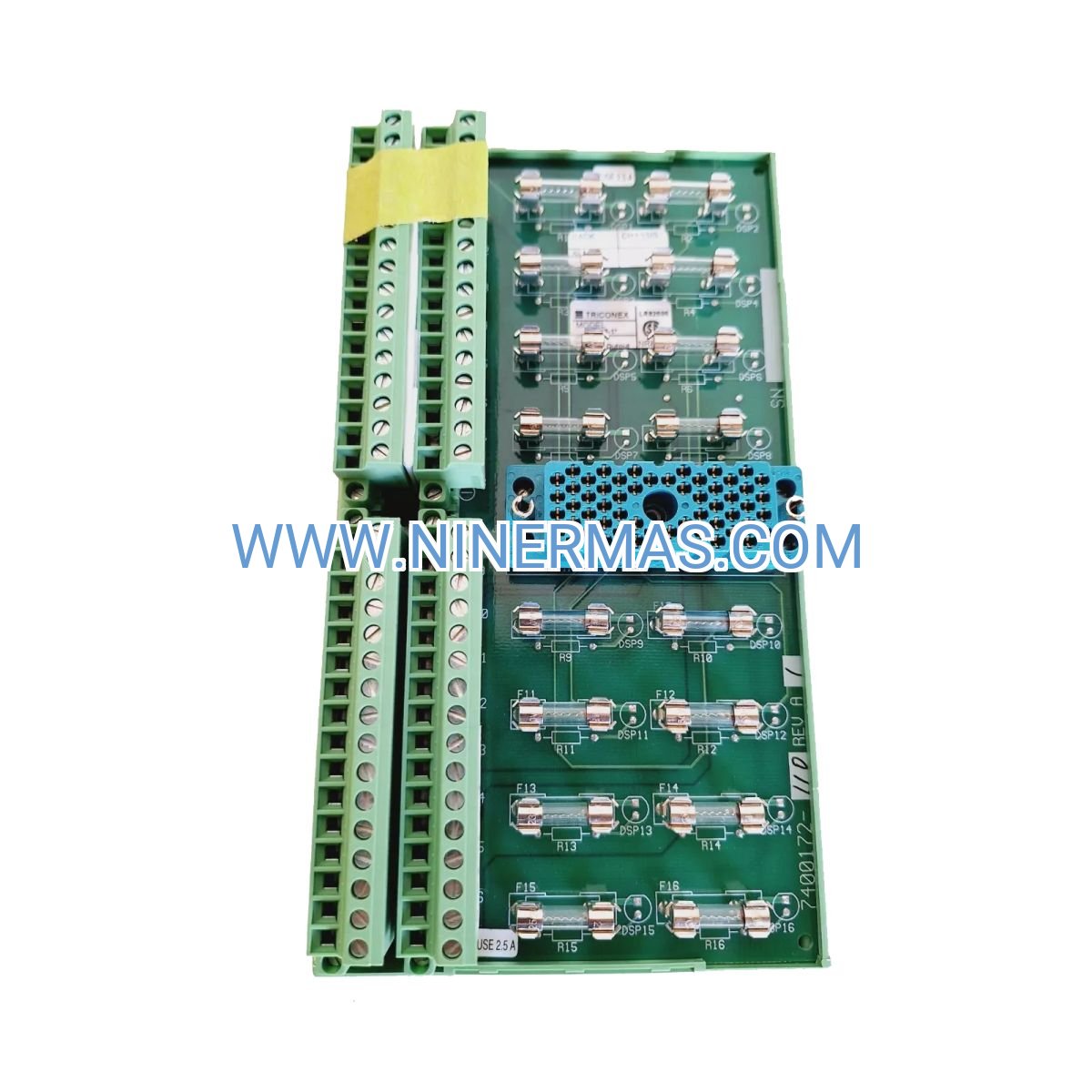

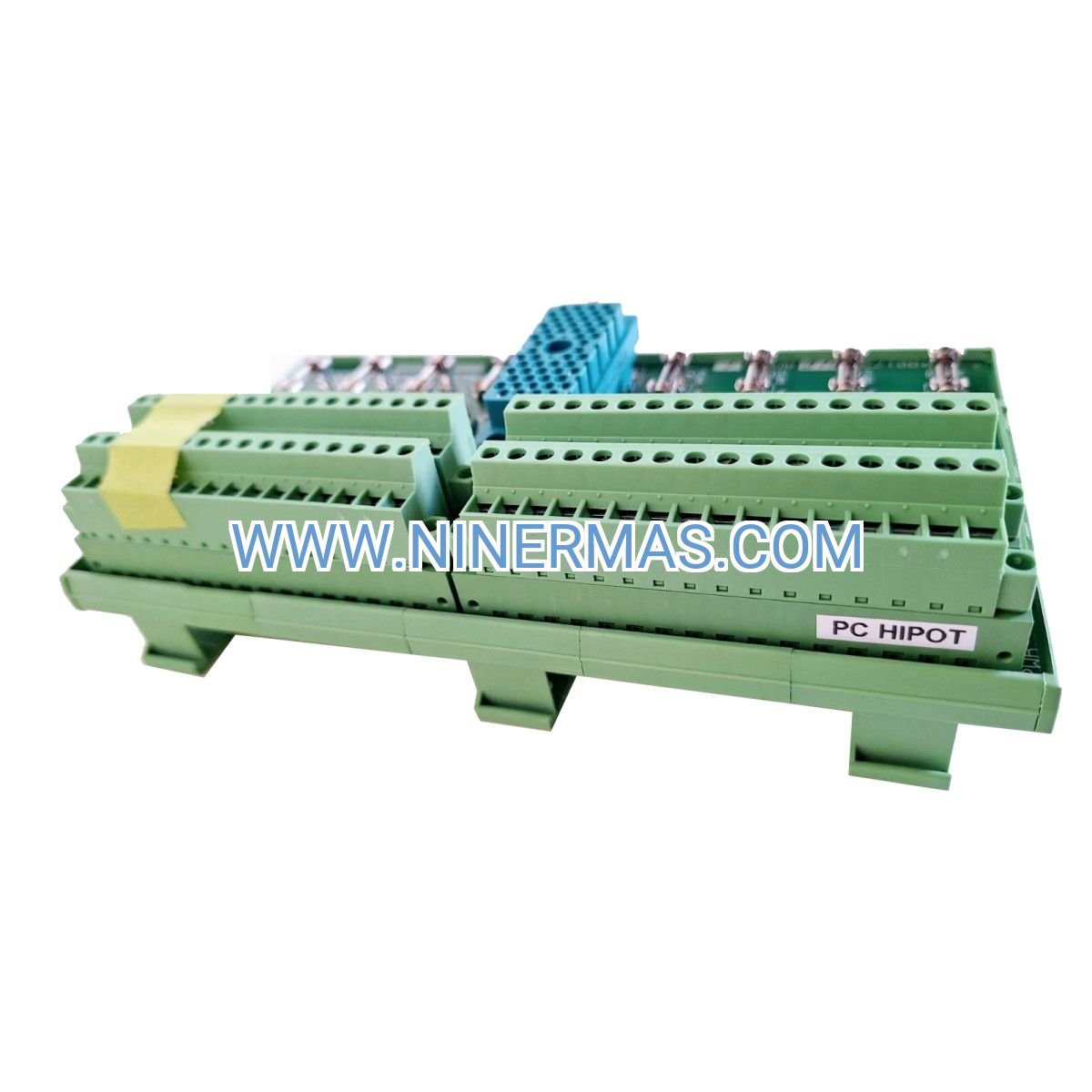

9863-710F Analog Output Termination Panel (Industrial-Grade Field Interface)

The 9863-710F represents a precision-engineered field wiring solution designed specifically for Triconex safety instrumented systems requiring analog output connectivity. This termination assembly bridges the critical gap between your control infrastructure and field instrumentation, delivering fail-safe signal routing in environments where process safety cannot be compromised. Built for engineers and system integrators managing high-integrity control applications, the panel eliminates common wiring errors through clearly labeled terminal blocks and standardized connection protocols. Whether you're commissioning a new SIS installation or retrofitting legacy equipment, the 9863-710F accelerates deployment while maintaining the rigorous safety standards demanded by IEC 61511 and ANSI/ISA-84 compliance frameworks.

Core Capabilities & Technical Advantages

→ Triple-Redundant Signal Architecture
Supports Triconex's patented Triple Modular Redundant (TMR) topology, ensuring continuous operation even during single-point failures. Each analog output channel maintains independent signal paths with automatic fault detection.

✓ Rapid Installation Design
Pre-configured terminal blocks reduce field wiring time by 35-45% compared to traditional marshalling panels. Color-coded wire guides and integrated labeling minimize commissioning errors and simplify troubleshooting.

✓ Extended Environmental Tolerance
Operates reliably across -40°C to +70°C temperature ranges with conformal coating protection against humidity, dust, and corrosive atmospheres typical in chemical processing and offshore platforms.

→ Flexible Mounting Options

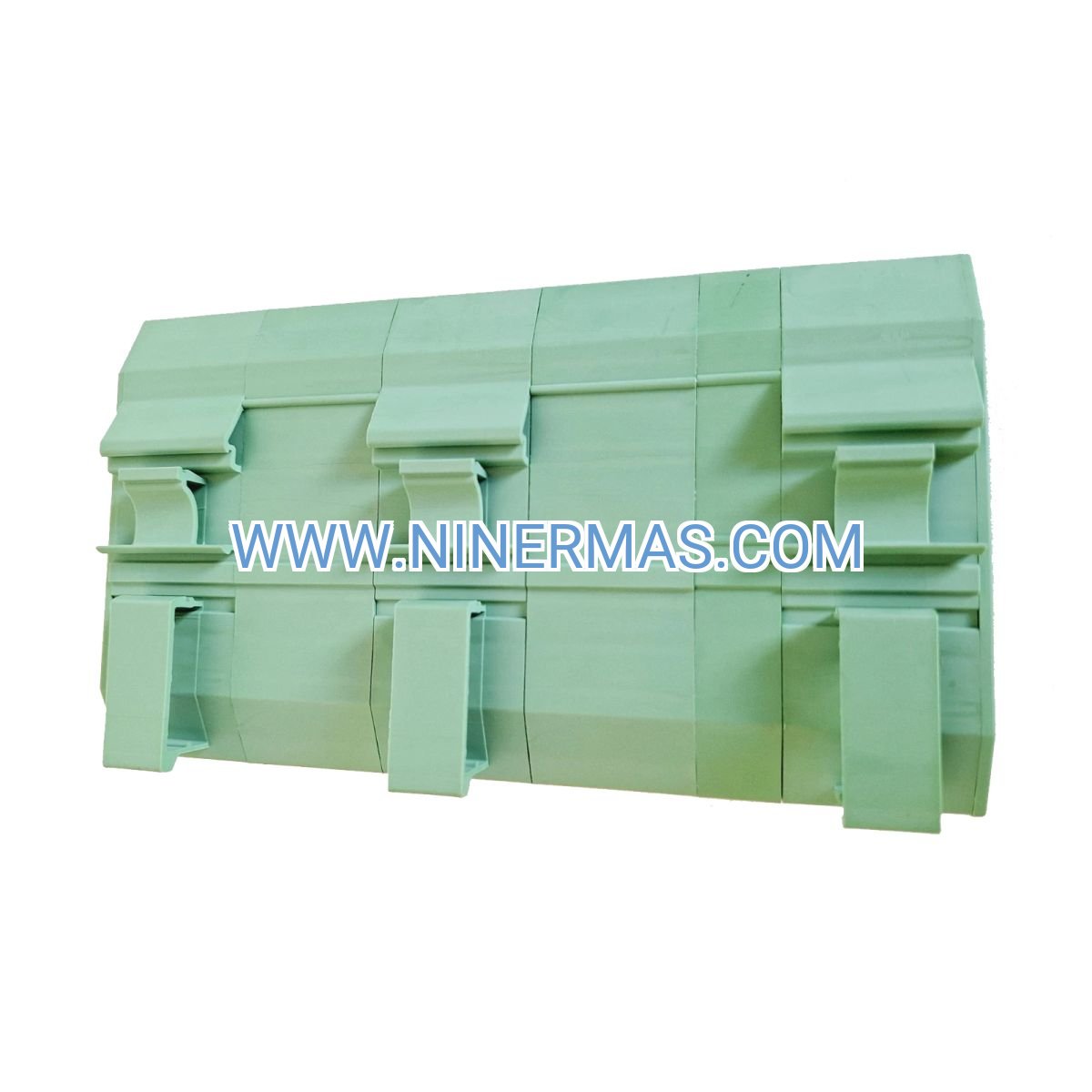

Universal DIN rail clips enable tool-free installation in standard 35mm rail enclosures, while optional panel-mount adapters accommodate custom cabinet configurations without modification.

✓ Built-In Surge Suppression
Integrated transient voltage protection circuits safeguard sensitive analog modules from voltage spikes up to 2.5kV, extending equipment lifespan in electrically noisy industrial environments.

→ Hot-Swap Capability
Modular terminal block design permits field device replacement during live operation, eliminating costly process shutdowns for routine maintenance activities.

Typical Application Scenarios

Oil & Gas Production Facilities
In offshore platforms and refinery units, the 9863-710F manages analog control signals for emergency shutdown valves, pressure relief systems, and flow control actuators. The panel's corrosion-resistant construction withstands harsh marine environments while maintaining SIL 3 safety integrity levels required for hydrocarbon processing.

Chemical Manufacturing Plants
Batch reactor control systems rely on precise 4-20mA signals to regulate temperature, pressure, and flow parameters. The termination panel's noise immunity ensures accurate setpoint delivery to control valves even in facilities with heavy motor loads and VFD interference.

Power Generation Stations
Turbine control systems and boiler management applications demand fail-safe analog output distribution. The 9863-710F's redundant signal paths prevent spurious trips that could cascade into grid instability or equipment damage.

Pharmaceutical Production Lines
Clean room environments require compact, low-emission wiring solutions for process analytical instruments and sterile valve actuators. The panel's IP20-rated enclosure meets pharmaceutical engineering standards while simplifying validation documentation.

Water Treatment Infrastructure
Municipal and industrial water systems use the termination panel to interface with chemical dosing pumps, pH control valves, and filtration system actuators, where signal reliability directly impacts regulatory compliance and public safety.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 9863-710F, verify your Triconex analog output module model number to ensure pin-out compatibility. For hazardous area installations (Zone 1/Division 1), pair this panel with certified intrinsic safety barriers or isolators. Consider cable run lengths exceeding 100 meters may require shielded twisted-pair conductors to maintain signal integrity. Consult your system integrator for multi-panel configurations in distributed control architectures.

Extended Functions

IoT Integration Readiness: While the 9863-710F operates as a passive termination interface, it seamlessly integrates with Triconex systems connected to modern SCADA platforms and Industrial IoT gateways. Analog output signals can be mirrored to cloud-based analytics platforms for predictive maintenance and performance optimization.

Customization Options: Factory-configured variants are available with customer-specific terminal labeling, pre-installed surge protection modules, and alternative connector types for specialized field devices. Contact our engineering team for projects requiring more than 50 panels with standardized configurations.

Retrofit Compatibility: The panel's footprint matches legacy Triconex termination assemblies, enabling drop-in replacement during system upgrades without cabinet redesign or rewiring of field devices.

Delivery Timeline & Service Guarantee

Standard Lead Time: In-stock units ship within 1-3 business days via express courier services. Typical delivery to major industrial hubs ranges from 3-7 days depending on destination.

Custom Configuration: Factory-programmed or labeled panels require 10-15 business days for production and quality verification before shipment.

Warranty Coverage: Each 9863-710F termination panel includes a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Our application engineers provide pre-sales consultation, installation guidance, and post-deployment troubleshooting assistance at no additional charge. Support available via email, phone, and remote diagnostic sessions.

Documentation Package: Every shipment includes installation manual, wiring diagrams, terminal block layout drawings, and compliance certificates. CAD files and 3D models available upon request for cabinet design integration.

Frequently Asked Questions

What wire termination method works best with the 9863-710F analog output panel?
We recommend ferrule-crimped conductors for optimal contact pressure and long-term reliability. The screw-clamp terminals accept 12-22 AWG wire, with 16 AWG being the most common choice for 4-20mA signal circuits. Avoid tinned wire ends as they can cold-flow under terminal pressure.

Can this termination panel handle HART protocol communication signals?
Yes, the 9863-710F passes HART digital signals superimposed on 4-20mA analog outputs without attenuation. Ensure your field devices and Triconex modules support HART functionality, and use shielded cable for runs exceeding 50 meters to prevent signal degradation.

How much energy efficiency improvement can I expect from upgrading to the 9863-710F?
The panel itself consumes no power as a passive termination device. However, its improved signal integrity reduces control loop oscillation, which can decrease valve cycling by 15-25% in typical process applications, indirectly lowering energy consumption and mechanical wear.

What installation clearances are required for proper thermal management?
Maintain minimum 50mm (2 inches) spacing above and below the panel when DIN rail mounted in enclosed cabinets. For ambient temperatures exceeding 50°C, increase clearance to 75mm and ensure adequate cabinet ventilation to prevent heat buildup affecting adjacent electronics.

Does the 9863-710F support remote monitoring of termination panel status?
The panel does not include built-in diagnostics. However, when connected to Triconex modules with enhanced diagnostics features, the system can detect open circuits, short circuits, and out-of-range signals, with alarms routed to your DCS or SCADA interface.

Are replacement terminal blocks available separately for field service?
Yes, individual terminal block assemblies can be ordered as spare parts. Each block is keyed to prevent incorrect installation and includes integrated wire retention clips. Replacement typically takes 10-15 minutes without removing the panel from the DIN rail.

Take the Next Step

Ready to enhance your Triconex safety system reliability? Contact our industrial automation specialists today for application-specific recommendations, volume pricing, or technical consultation. Our team can provide CAD drawings for cabinet integration, assist with hazardous area certifications, and coordinate factory acceptance testing for critical projects.
