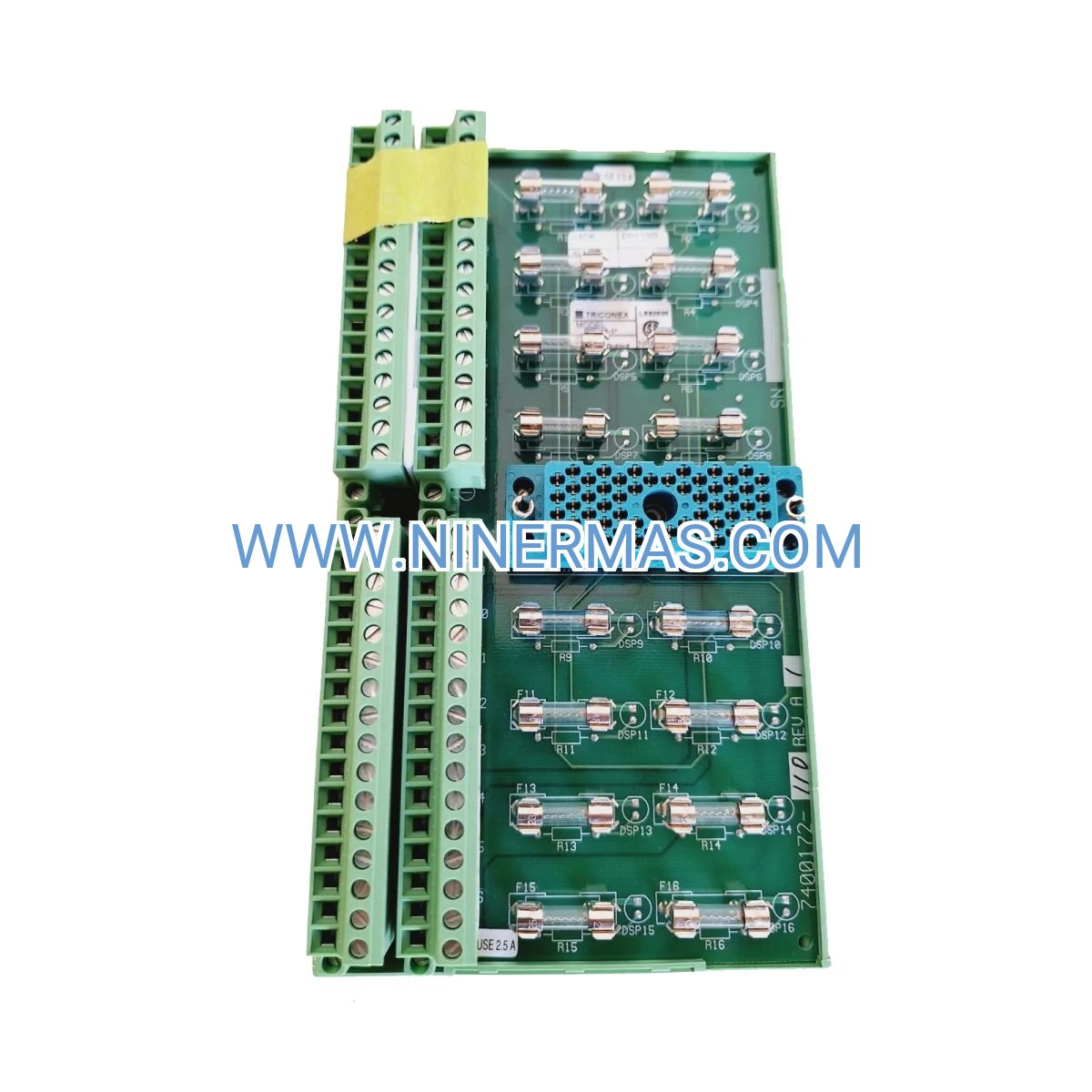

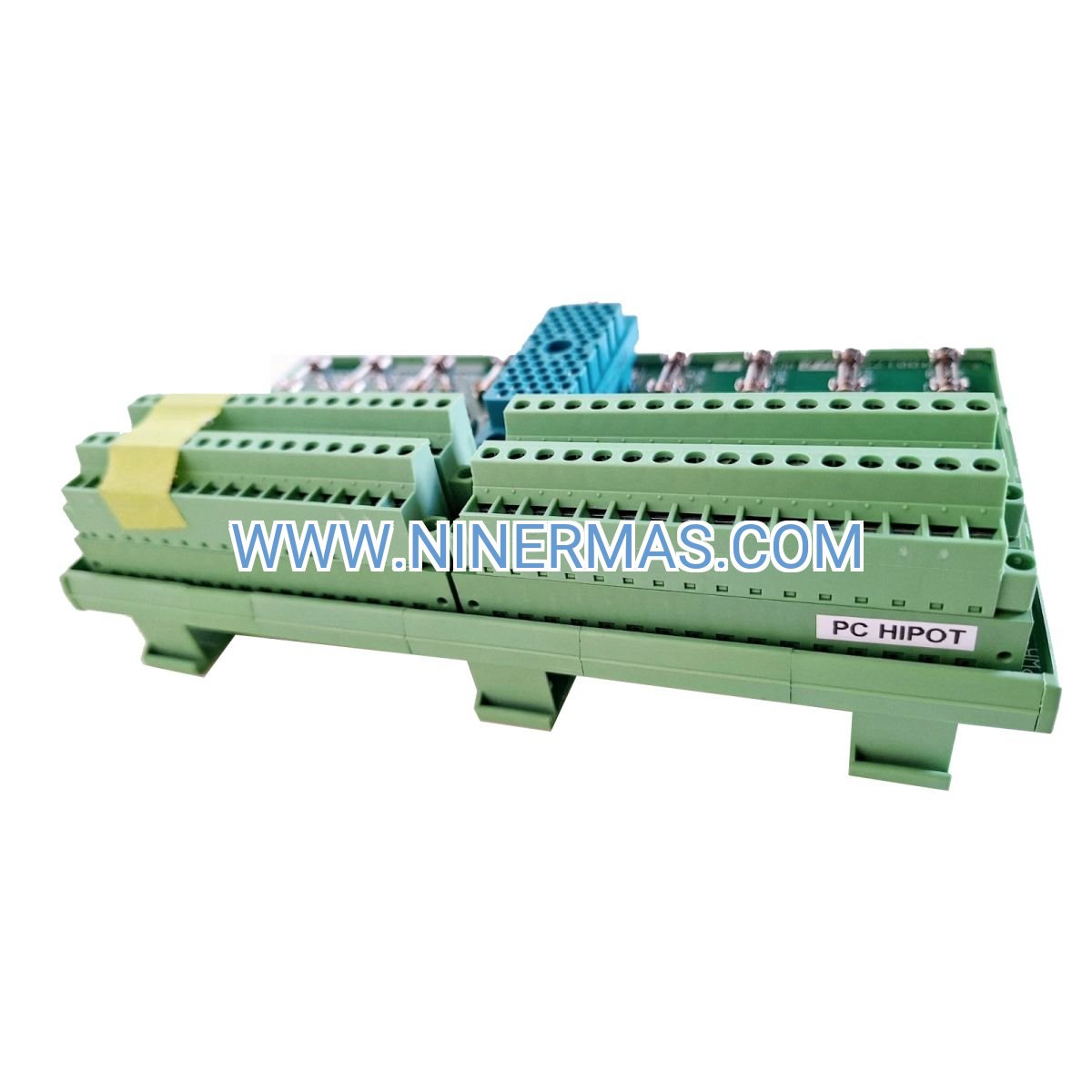

9863-710 Analog Output Terminal Panel (Industrial-Grade Safety Interface)

The 9863-710 represents a mission-critical wiring interface engineered specifically for Triconex Tricon safety instrumented systems. Designed to bridge control logic and field instrumentation, this analog output termination panel delivers dependable signal routing in high-stakes industrial environments where process integrity and personnel safety are paramount.

Built for engineers and system integrators managing complex safety applications, the 9863-710 eliminates common field wiring vulnerabilities through organized terminal architecture and robust electromagnetic shielding. Whether you're commissioning new installations or upgrading legacy control infrastructure, this panel streamlines deployment while maintaining compliance with international safety standards.

With SIL 3 certification and proven performance across oil & gas, chemical processing, and power generation sectors, the 9863-710 delivers the reliability your operations demand—backed by comprehensive technical documentation and responsive engineering support.

Core Capabilities & Engineering Value

→ Precision Signal Integrity: Advanced terminal block design minimizes voltage drop and electromagnetic interference, ensuring accurate 4-20mA signal transmission to critical actuators and control valves—reducing calibration drift by up to 40% compared to generic terminal solutions.

✓ Rapid Commissioning Architecture: Color-coded, clearly labeled connection points with integrated wire management channels cut installation time by 30-50%, while reducing human error during startup and troubleshooting phases.

✓ Environmental Resilience: Operating range of -40°C to +70°C with 95% humidity tolerance protects signal quality in harsh conditions—from offshore platforms to desert refineries—without performance degradation.

✓ Safety-Certified Integration: SIL 3 rating ensures seamless compliance with IEC 61508 functional safety requirements, eliminating costly re-engineering during safety audits and regulatory inspections.

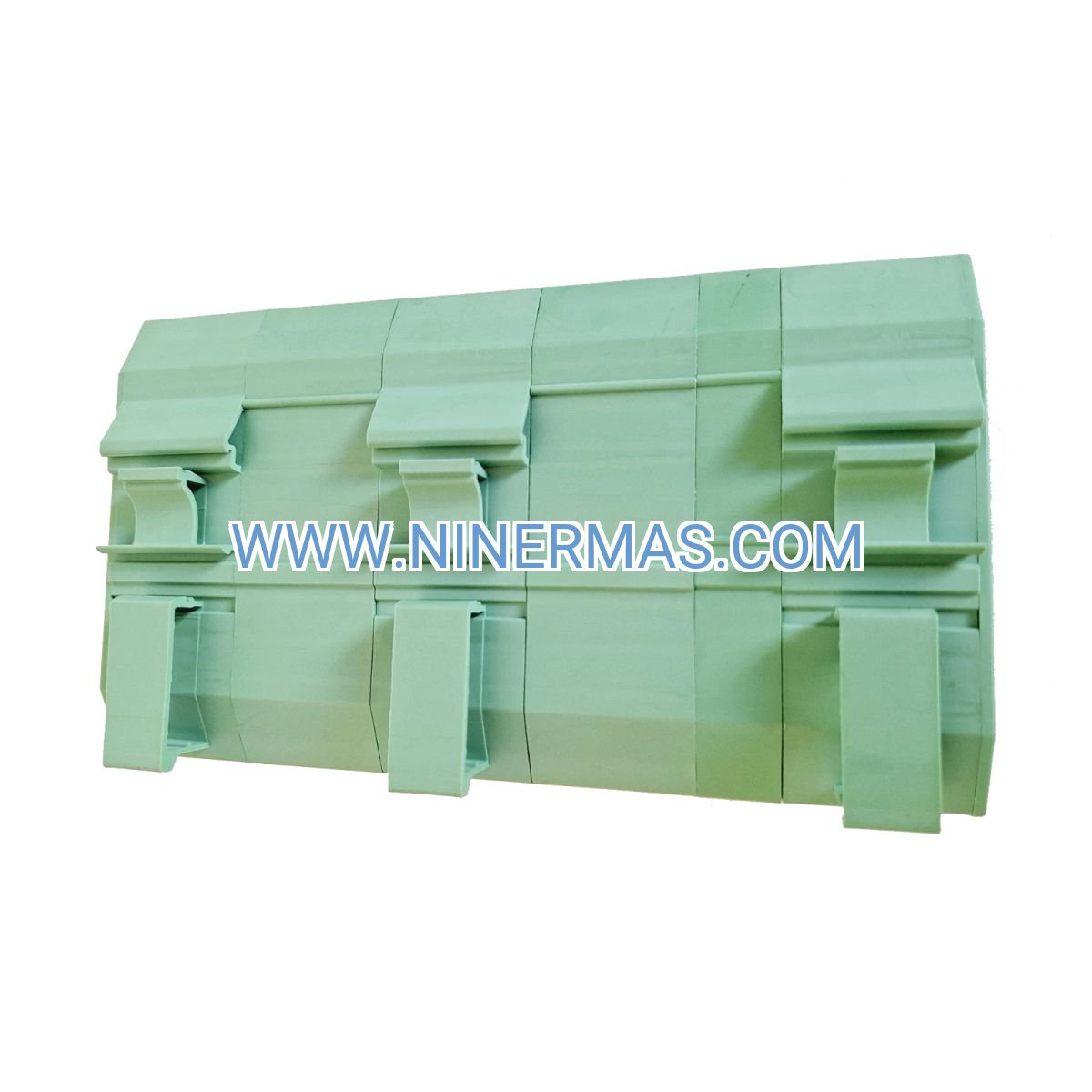

→ Maintenance-Friendly Design: DIN rail mounting with tool-free removal enables swift panel replacement during scheduled outages, minimizing production downtime and maintenance labor costs.

✓ Universal Wire Compatibility: Accepts 12-22 AWG conductors, accommodating diverse field wiring standards without requiring specialized crimping tools or adapters.

Industrial Application Scenarios

Petrochemical Emergency Shutdown Systems: In offshore drilling platforms and refinery units, the 9863-710 connects Triconex controllers to pneumatic shutdown valves and pressure relief actuators. When hazardous conditions trigger emergency protocols, reliable analog output ensures fail-safe valve positioning—preventing catastrophic releases and protecting personnel.

Chemical Reactor Temperature Control: Batch processing facilities leverage the panel's precision signal delivery to modulate heating/cooling valve positions within ±0.5% accuracy. This tight control prevents thermal runaway scenarios while optimizing reaction yields and reducing energy consumption by 12-18%.

Power Plant Turbine Governing: Steam and gas turbine control systems depend on the 9863-710 for governor valve positioning during load changes and emergency trips. The panel's low-latency signal path supports sub-100ms response times critical for grid stability and equipment protection.

Manufacturing Machine Safety Interlocks: Automated production lines use the termination panel to interface safety PLCs with hydraulic press controls and robotic arm actuators. Certified safety integrity prevents unauthorized movement during maintenance, reducing workplace injuries.

Pipeline Pressure Management: Long-distance transmission systems employ the 9863-710 in compressor stations to regulate discharge pressures via analog control of anti-surge valves, maintaining optimal flow rates while preventing equipment damage from pressure excursions.

Technical Parameters & Selection Criteria

Selection Guidance: Verify your Triconex analog output module part number before ordering to ensure terminal count compatibility. For hazardous area installations (Zone 1/2, Div 1/2), confirm that your enclosure provides appropriate environmental protection—the panel itself requires additional housing for explosive atmosphere compliance. When planning cabinet layouts, allocate 150mm clearance above and below the panel for wire bending radius and service access.

Extended Integration Capabilities

SCADA & HMI Connectivity: While the 9863-710 handles physical signal termination, it integrates seamlessly with Triconex TriStation software for real-time output monitoring and diagnostic trending. Engineers can track output current levels, detect wiring faults, and log calibration data through the Tricon's built-in communication interfaces.

Redundant Architecture Support: In triple-modular redundant (TMR) configurations, multiple 9863-710 panels work in parallel with voting logic to ensure continuous operation even during single-point failures—critical for applications requiring 99.99%+ availability.

Custom Labeling Options: For large-scale projects with hundreds of I/O points, custom terminal labeling services are available to match your P&ID tag numbers and loop diagrams, accelerating commissioning and reducing long-term maintenance confusion.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock units ship within 2-3 business days via express courier. For bulk orders (10+ units), expect 5-7 business days for quality inspection and packaging.

Custom Configuration: Pre-wired assemblies or panels with factory-installed labels require 10-15 business days for engineering review and production.

Warranty Coverage: 12-month comprehensive warranty from delivery date, covering material defects and workmanship issues. Warranty includes free replacement parts and return shipping.

Technical Support: Unlimited phone and email support from Triconex-certified engineers. Typical response time: 4 hours for critical issues, 24 hours for general inquiries.

Documentation Package: Each panel includes installation manual, terminal wiring diagrams, dimensional drawings, and safety certification documents in PDF format.

Frequently Asked Questions

How do I verify compatibility between the 9863-710 panel and my existing Triconex analog output module?
Cross-reference your module's part number with the Triconex hardware compatibility matrix (available in the TriStation configuration software). The 9863-710 is designed for standard Triconex AO modules; if you're using specialty high-density or HART-enabled modules, contact our engineering team to confirm terminal count matching.

What wire preparation is required for optimal connection reliability?
Strip wire insulation 8-10mm from the end, use ferrules for stranded conductors (recommended for vibration-prone environments), and torque terminal screws to 0.5-0.6 N⋅m. Avoid tinning wire ends with solder, as this can cause cold flow and connection loosening over time.

Can the 9863-710 termination panel reduce signal noise in electrically noisy industrial environments?
Yes—the panel's grounded metal backplane and segregated terminal layout provide inherent EMI shielding when properly installed in a grounded enclosure. For maximum noise immunity, route analog signal cables in dedicated conduit separate from AC power wiring, and use twisted-pair shielded cable with shield grounded at the panel end only.

Is hot-swapping supported during live process operation?
While the panel's mechanical design allows physical removal under power, hot-swapping is not recommended without following your facility's Management of Change procedures. Uncontrolled output signal interruption can cause process upsets or safety system trips. Coordinate with operations and implement bypass procedures before maintenance.

What diagnostic capabilities help troubleshoot field wiring issues?
The Triconex controller continuously monitors output loop current and can detect open circuits, short circuits, and out-of-range conditions. TriStation software displays real-time current values and historical fault logs, allowing technicians to isolate wiring problems to specific terminal points without multimeter probing.

Does the panel require periodic calibration or preventive maintenance?
The 9863-710 is a passive termination device with no active electronics requiring calibration. Recommended maintenance includes annual visual inspection for terminal tightness, corrosion, and wire insulation damage. In high-vibration applications, check terminal torque every 6 months.

Ready to Enhance Your Safety System Reliability?

Contact our industrial automation specialists today for application-specific guidance, volume pricing, or technical consultation. Whether you're designing a new safety instrumented system or upgrading existing Triconex infrastructure, we'll ensure you receive the right components with expert support from specification through commissioning.

Request a quote now: Email sale@ninermas.com or call +0086 187 5021 5667 to speak with a Triconex-certified engineer.
