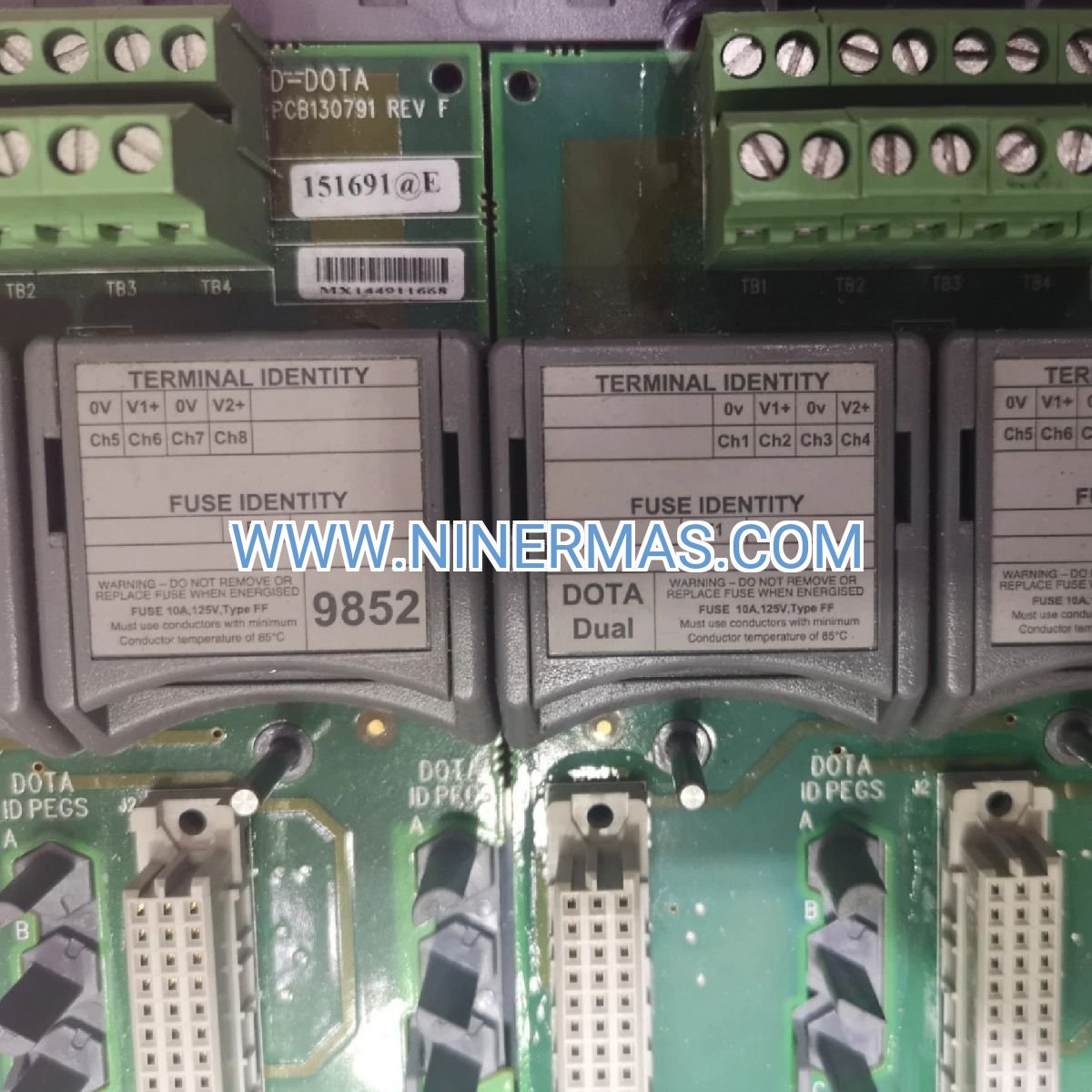

Triconex 9852 Dual-Channel Universal Analog Input Module (Industrial-Grade Multi-Signal Processor)

The Triconex 9852 represents a versatile universal input solution engineered for safety-critical industrial automation environments. This dual-channel analog module integrates seamlessly into Triple Modular Redundancy (TMR) architectures, delivering SIL 3-certified performance across diverse signal types including RTD sensors, thermocouples, millivolt signals, and current loops.

Designed for process industries where measurement accuracy directly impacts operational safety, the 9852 eliminates the complexity of managing multiple specialized input cards. Plant engineers and system integrators rely on this module to consolidate temperature, pressure, and flow measurements within a single, fault-tolerant platform that maintains continuous operation even during component failures.

With 16-bit resolution, 1500V galvanic isolation, and hot-swappable architecture, the Triconex 9852 delivers the precision and uptime required for burner management systems, reactor control, turbine protection, and other mission-critical applications where sensor data integrity cannot be compromised.

Core Capabilities & Technical Advantages

→ Universal Signal Compatibility
Accepts RTD (2/3/4-wire configurations), thermocouples (J/K/E/T/R/S/B types), millivolt signals, and 4-20mA/0-20mA current loops on independently configurable channels. Reduces spare parts inventory by 60% compared to single-function modules.

→ Triple Modular Redundancy Architecture
Three parallel processing paths with continuous voting logic ensure uninterrupted operation during single-point failures. Achieves 99.99% availability in safety instrumented systems per IEC 61508 standards.

→ High-Precision A/D Conversion
16-bit analog-to-digital conversion with ±0.1% full-scale accuracy delivers measurement resolution suitable for pharmaceutical batch control, petrochemical distillation, and power generation applications.

✓ Field-Serviceable Design
Hot-swap capability allows module replacement during live operation without process interruption. Reduces mean time to repair (MTTR) by 75% compared to systems requiring shutdown for maintenance.

✓ Integrated Diagnostics
Continuous self-testing monitors sensor health, wiring integrity, signal drift, and calibration status. Predictive fault detection reduces unplanned downtime by identifying degraded sensors before failure occurs.

✓ Extended Cable Run Support
Drives 4-20mA loops up to 300 meters with proper shielding, enabling flexible sensor placement in large-scale facilities without signal degradation or additional amplification.

Industrial Application Scenarios

Oil & Gas Production Facilities
Burner management systems require simultaneous monitoring of flame temperature (thermocouples) and fuel pressure (4-20mA transmitters). The 9852's dual-channel design handles both signal types within a single module, simplifying cabinet layout while maintaining SIL 3 safety integrity for emergency shutdown sequences.

Chemical Manufacturing & Refining
Reactor vessels demand precise temperature profiling using multiple RTD sensors at different elevations. Independent channel configuration allows mixing Pt100 3-wire RTDs with Type K thermocouples for jacket temperature monitoring, providing comprehensive thermal management in a compact footprint.

Power Generation Turbines
Steam turbine protection systems monitor bearing temperatures, exhaust gas temperatures, and vibration sensor outputs. The 9852 processes thermocouple inputs from critical bearing points while simultaneously handling mV signals from proximity probes, enabling coordinated trip logic.

Pharmaceutical Clean Room Control
Environmental monitoring in sterile manufacturing zones requires tracking temperature, humidity (4-20mA transmitters), and differential pressure. The module's 1500V isolation prevents ground loop interference in electrically noisy environments with multiple sensor types.

Food & Beverage Pasteurization
Pasteurization tunnels use RTD sensors for product temperature verification and thermocouples for steam jacket control. The 9852's universal input capability consolidates these measurements into a single safety-rated module for HACCP compliance documentation.

Technical Specifications & Selection Guide

Selection Criteria: Choose the Triconex 9852 when your application requires flexible signal type handling within a safety-rated platform. For installations with more than 4 channels of a single signal type (e.g., all thermocouples), consider dedicated modules like the 3706 for optimized density. The 9852 excels in mixed-signal scenarios where cabinet space is limited and hot-swap serviceability is essential.

Advanced Integration Features

SCADA & DCS Connectivity
Seamless data exchange with Honeywell Experion, Emerson DeltaV, and Siemens PCS 7 systems via Modbus TCP and OPC UA protocols. Real-time sensor values, diagnostic status, and alarm conditions are accessible to plant-wide monitoring systems without custom programming.

Cybersecurity Hardening
Firmware-level protection against unauthorized configuration changes, with role-based access control and audit logging. Meets IEC 62443 industrial cybersecurity standards for safety instrumented systems in critical infrastructure.

Calibration Management
Field-adjustable zero and span calibration with digital certificates stored in non-volatile memory. Supports automated calibration verification routines to maintain measurement traceability per ISO 9001 quality management requirements.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock modules with factory-sealed packaging and full documentation.
Custom Configuration: 7-10 business days for pre-programmed modules with customer-specific channel assignments and calibration settings.
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues.
Technical Support: Unlimited phone and email support for configuration assistance, troubleshooting, and system integration guidance.
Documentation Package: Installation manual, wiring diagrams, configuration software, and IEC 61508 safety certification documents included with every shipment.

Frequently Asked Questions

Can the Triconex 9852 module handle simultaneous RTD and thermocouple inputs on different channels?
Yes, each of the two channels operates independently with its own signal conditioning circuitry. You can configure Channel 1 for a Pt100 RTD and Channel 2 for a Type K thermocouple without any interaction or cross-talk between channels.

What is the maximum distance for 4-20mA current loop sensors connected to this universal input module?
The module supports cable runs up to 300 meters (approximately 1000 feet) for 4-20mA current loops when using properly shielded twisted-pair cable. For longer distances, consider installing a loop-powered isolator at the sensor location.

Does the 9852 require external termination components for RTD or thermocouple connections?
No external termination is required. All necessary signal conditioning, cold junction compensation (for thermocouples), and termination resistors are integrated within the module's internal circuitry, simplifying field wiring and reducing installation errors.

Is this module compatible with older Triconex safety systems running legacy firmware?
The Triconex 9852 requires Tricon controller firmware version 9.0 or later. If your system is running an earlier version, a firmware upgrade may be necessary. Contact our technical team to verify compatibility with your specific controller model and firmware revision.

How does the hot-swap capability work during live operation without causing process interruptions?
The TMR architecture maintains two redundant processing paths while the third module is removed and replaced. The system continues normal operation using the remaining two modules, then automatically synchronizes the new module upon insertion without requiring a controller restart.

What diagnostic information does the module provide for predictive maintenance programs?
The 9852 continuously monitors sensor open/short circuit conditions, signal drift beyond configured limits, A/D converter health, power supply voltage levels, and internal temperature. Diagnostic data is accessible via the Triconex TriStation software for trending and alarm management.

Ready to Enhance Your Safety System?

Contact our industrial automation specialists to discuss your specific application requirements, receive technical configuration assistance, or request a formal quotation. Our team provides comprehensive support from initial system design through commissioning and ongoing maintenance.
