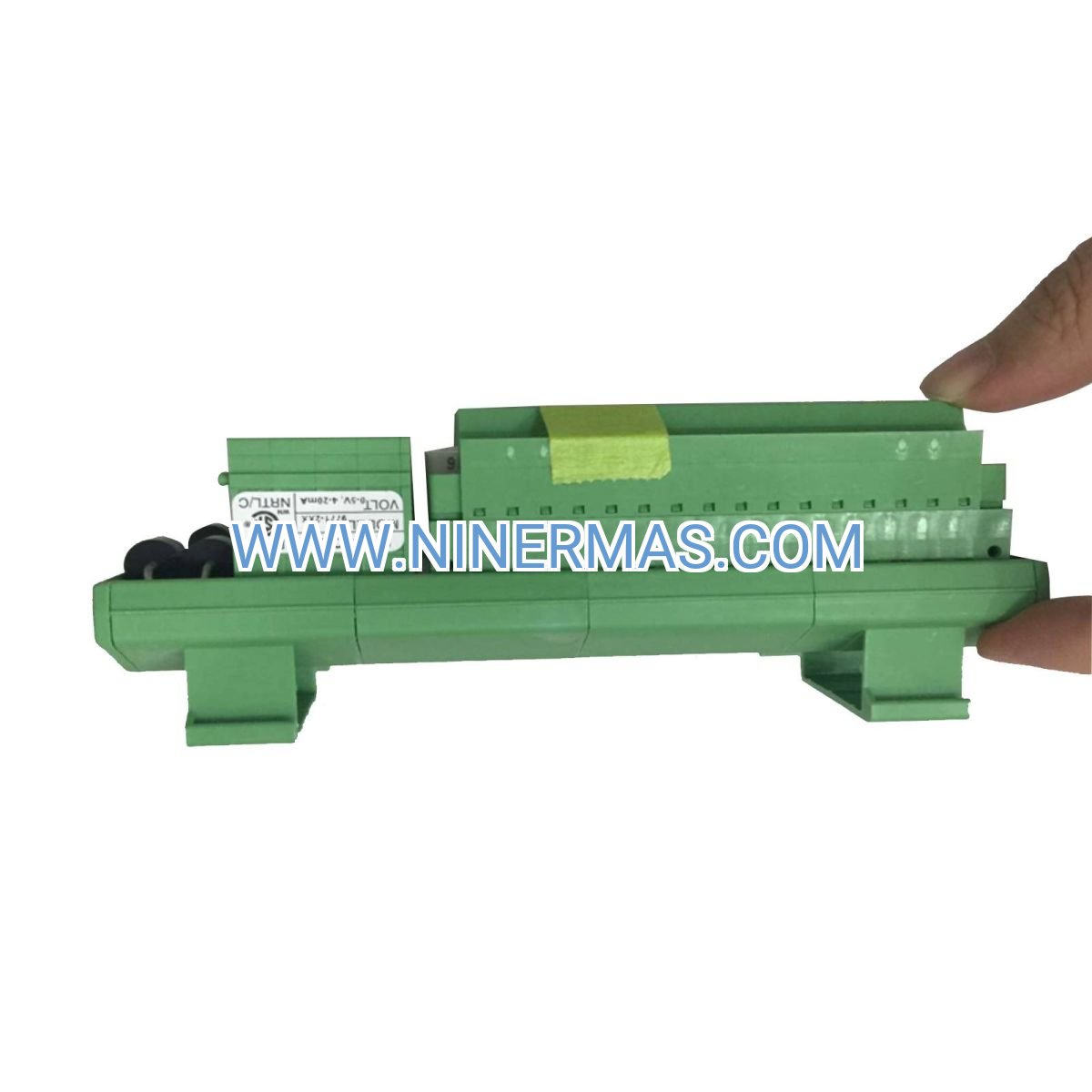

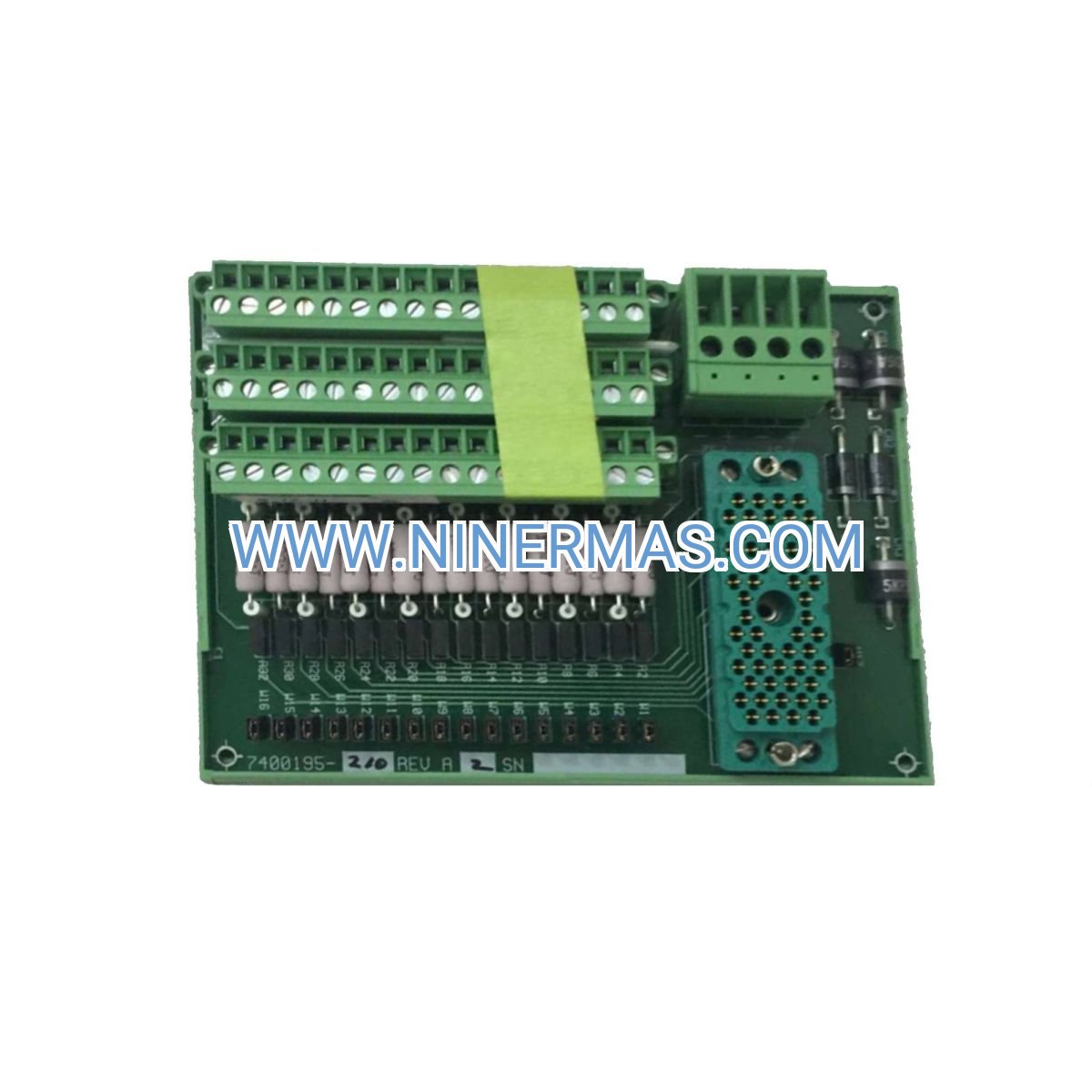

9771-2XX Analog Input Termination Panel (Industrial-Grade Signal Interface)

The 9771-2XX represents a critical infrastructure component within Triconex Triple Modular Redundant (TMR) safety architectures, providing robust field-to-module signal conditioning for analog measurement circuits. This termination assembly bridges the gap between process instrumentation and Triconex control platforms, delivering fault-tolerant connectivity that meets the stringent demands of safety-critical industrial operations.

Designed for engineers managing high-availability control systems in hazardous environments, the 9771-2XX addresses the fundamental challenge of maintaining signal integrity across extended cable runs while providing accessible termination points for maintenance personnel. Its passive design eliminates single points of failure, while standardized terminal layouts accelerate commissioning and reduce human error during installation.

Key differentiators include SIL 3 certification compliance, wide environmental operating range (-40°C to +70°C), and seamless integration with Triconex 3700-series analog input modules. The panel's screw-terminal design accommodates 14-22 AWG field wiring, supporting both current loop (4-20mA) and voltage (1-5V DC) signal types commonly deployed in process measurement applications.

Core Features & Benefits

✓ Triple-Redundant Signal Architecture
Supports TMR voting logic by providing three independent signal paths per measurement point, ensuring continuous operation even during single-channel failures. This redundancy translates to 99.9%+ system availability in critical safety loops.

→ Pre-Wired Backplane Connectivity
Factory-installed connectors mate directly with Triconex chassis backplanes, eliminating custom cable assemblies and reducing installation labor by approximately 40% compared to traditional field-wired solutions.

✓ Labeled Terminal Blocks
Laser-etched channel identifiers correspond to Triconex module addressing schemes, minimizing wiring errors during commissioning and simplifying troubleshooting during plant operations. Documentation time reduced by up to 60%.

→ Extended Environmental Tolerance
Operates reliably in ambient temperatures from -40°C to +70°C with 5-95% relative humidity (non-condensing), making it suitable for outdoor enclosures, offshore platforms, and extreme climate installations.

✓ DIN Rail Mounting System
Standard 35mm DIN rail compatibility enables flexible panel layout configurations and tool-free installation/removal, reducing mean time to repair (MTTR) during emergency maintenance scenarios.

→ Passive Signal Conditioning
No external power requirements or active electronics minimize failure modes and eliminate the need for redundant power supplies, reducing total cost of ownership while enhancing long-term reliability.

Application Scenarios

Oil & Gas Production Facilities
In offshore platforms and onshore processing plants, the 9771-2XX terminates signals from pressure transmitters monitoring separator vessels, temperature sensors in distillation columns, and flow meters tracking custody transfer points. The panel's corrosion-resistant construction and wide temperature range ensure reliable operation in harsh marine environments where equipment failures can trigger emergency shutdowns costing $500K+ per incident.

Chemical Manufacturing Plants
Reactor temperature control loops, batch process monitoring systems, and emergency shutdown (ESD) circuits rely on the 9771-2XX to maintain signal integrity for analog inputs measuring pH levels, conductivity, and concentration values. SIL 3 certification satisfies regulatory requirements for process safety management (PSM) compliance.

Power Generation Stations
Turbine control systems, boiler feedwater regulation, and emissions monitoring applications utilize the 9771-2XX to interface field instrumentation with Triconex safety controllers. Triple-redundant signal paths prevent spurious trips that could force unit shutdowns, protecting revenue streams exceeding $1M per day for large combined-cycle facilities.

Pharmaceutical Production Lines
Clean room environmental monitoring, bioreactor temperature control, and sterile filtration pressure measurement systems depend on the 9771-2XX for validated signal termination that meets FDA 21 CFR Part 11 requirements. The panel's passive design eliminates electronic components that could introduce electromagnetic interference in sensitive analytical equipment zones.

Water Treatment Infrastructure
Municipal wastewater plants and industrial effluent treatment facilities deploy the 9771-2XX to terminate signals from dissolved oxygen sensors, turbidity meters, and chemical dosing flow transmitters. The panel's humidity tolerance (up to 95% RH) ensures reliable operation in high-moisture environments typical of clarifier buildings and pump stations.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 9771-2XX, confirm that your Triconex chassis configuration includes compatible analog input modules (3700A or 3700E series). Verify that field instrument signal types match the panel's 4-20mA or 1-5V DC capabilities—note that RTD, thermocouple, and HART signals require different termination assemblies. For installations in extreme environments, consult factory engineering to validate temperature and humidity specifications against site conditions. Always order spare panels to minimize downtime during unplanned maintenance events.

Extended Functions

Diagnostic Integration: While the 9771-2XX itself is a passive component, it works in conjunction with Triconex TriStation software to enable advanced diagnostics. Technicians can monitor individual channel health, detect open-circuit conditions, and identify ground loop issues through the Triconex controller's built-in diagnostic routines.

Retrofit Compatibility: The panel supports legacy Triconex installations dating back to early 3000-series controllers, enabling phased system upgrades without complete panel replacements. Consult migration guides when integrating with newer Tricon CX or Trident platforms.

Custom Labeling Options: For large-scale projects requiring site-specific tag numbering, factory custom labeling services are available. Submit P&ID tag lists during order placement to receive panels with pre-printed terminal identifiers matching your instrument database.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured panels with factory labeling require 4-6 weeks. Expedited processing available for emergency outage support—contact our technical sales team for rush order options.

Warranty Coverage: 12-month comprehensive warranty from shipment date, covering material defects and workmanship failures. Warranty excludes damage from improper installation, environmental contamination, or electrical overstress events.

Technical Support: Lifetime access to application engineering support via email (sale@ninermas.com) and phone (+0086 187 5021 5667). Support includes wiring diagram review, compatibility verification, and troubleshooting assistance. Average response time: 4 hours during business hours (GMT+8).

Documentation Package: Each panel ships with installation manual, terminal wiring diagrams, SIL certification documents, and material traceability certificates. CAD drawings (DXF/DWG format) and 3D STEP models available for download from our technical library.

Frequently Asked Questions

What is the maximum cable length between field instruments and the 9771-2XX termination panel?
For 4-20mA current loops, cable runs up to 1,500 meters are feasible with appropriate wire gauge (typically 18 AWG or larger). Voltage signals (1-5V DC) should be limited to 300 meters to minimize noise pickup and voltage drop. Always use shielded twisted-pair cable with shields grounded at the panel end only.

Can this termination panel be installed in hazardous area enclosures?
The 9771-2XX itself carries no intrinsic safety (IS) certification. For Class I Division 2 or ATEX Zone 2 installations, mount the panel inside a purged/pressurized enclosure or general-purpose cabinet located in the safe area. Field wiring from hazardous zones must pass through appropriate IS barriers or isolators before terminating at the panel.

How do I identify which terminal corresponds to each analog input channel?
Terminal blocks are sequentially numbered and correspond directly to the channel numbering on the mating Triconex analog input module. Refer to the module's faceplate labeling and the termination panel's installation drawing (included in documentation package) for exact terminal-to-channel mapping.

What maintenance procedures are recommended for the 9771-2XX panel?
Perform annual visual inspections to check for loose terminal screws (re-torque to 0.5-0.6 Nm), corrosion on terminals, and physical damage to the housing. Use compressed air to remove dust accumulation. No calibration or electronic testing is required due to the panel's passive design.

Is the 9771-2XX compatible with HART-enabled field transmitters?
Yes, the panel passes HART digital signals superimposed on 4-20mA analog currents without attenuation. However, ensure that your Triconex analog input module supports HART communication—consult module specifications or contact technical support for compatibility confirmation.

What is the typical failure rate for these termination panels in industrial service?
Field reliability data indicates mean time between failures (MTBF) exceeding 200,000 hours under normal operating conditions. Most failures result from external factors (lightning strikes, wiring errors, environmental contamination) rather than panel component degradation.

Ready to Enhance Your Safety System Reliability?

Contact our industrial automation specialists today to discuss your Triconex system requirements. We provide application-specific recommendations, competitive pricing for volume orders, and expedited shipping for critical projects. Request a formal quotation by emailing your system configuration details to sale@ninermas.com or call +0086 187 5021 5667 to speak with a technical sales engineer.
