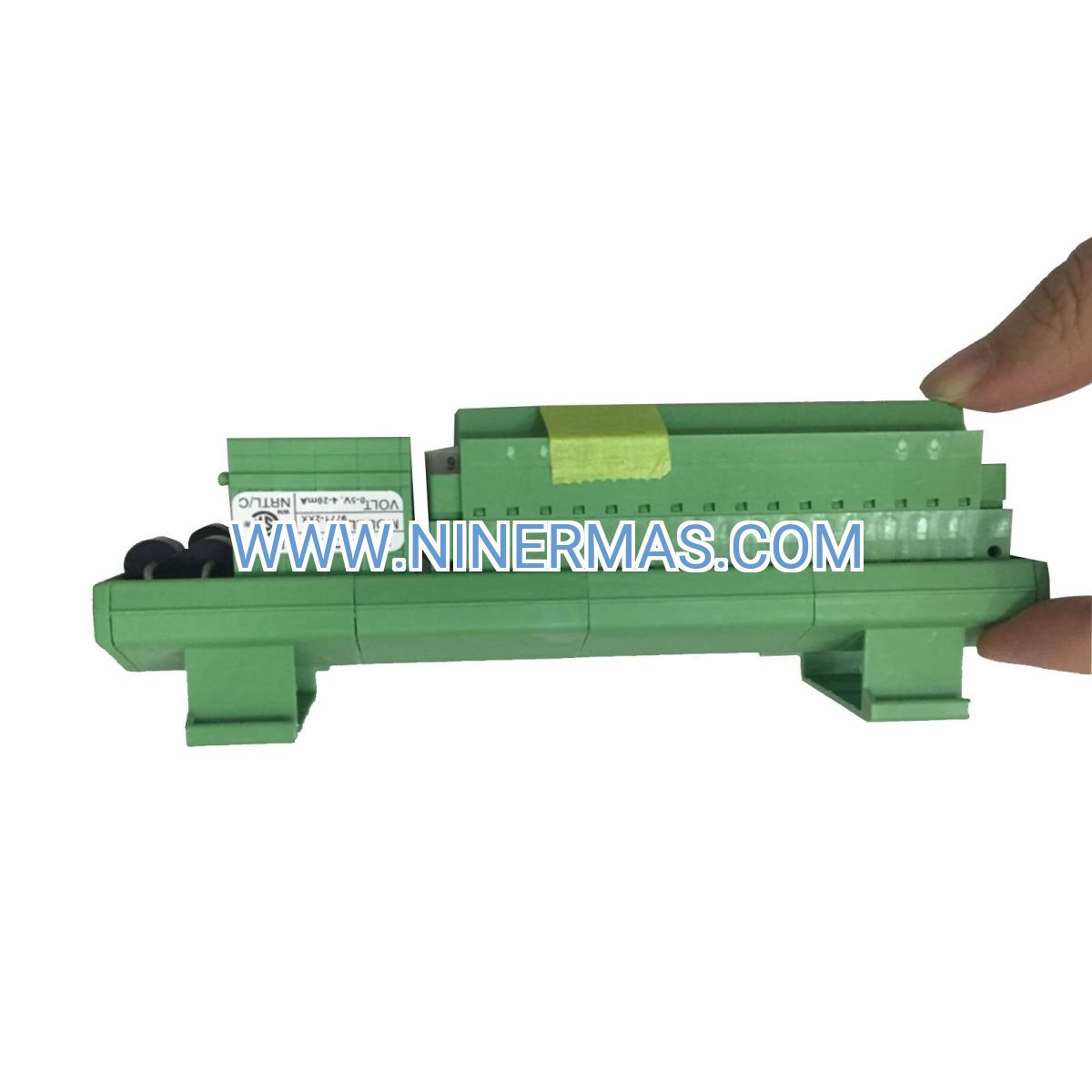

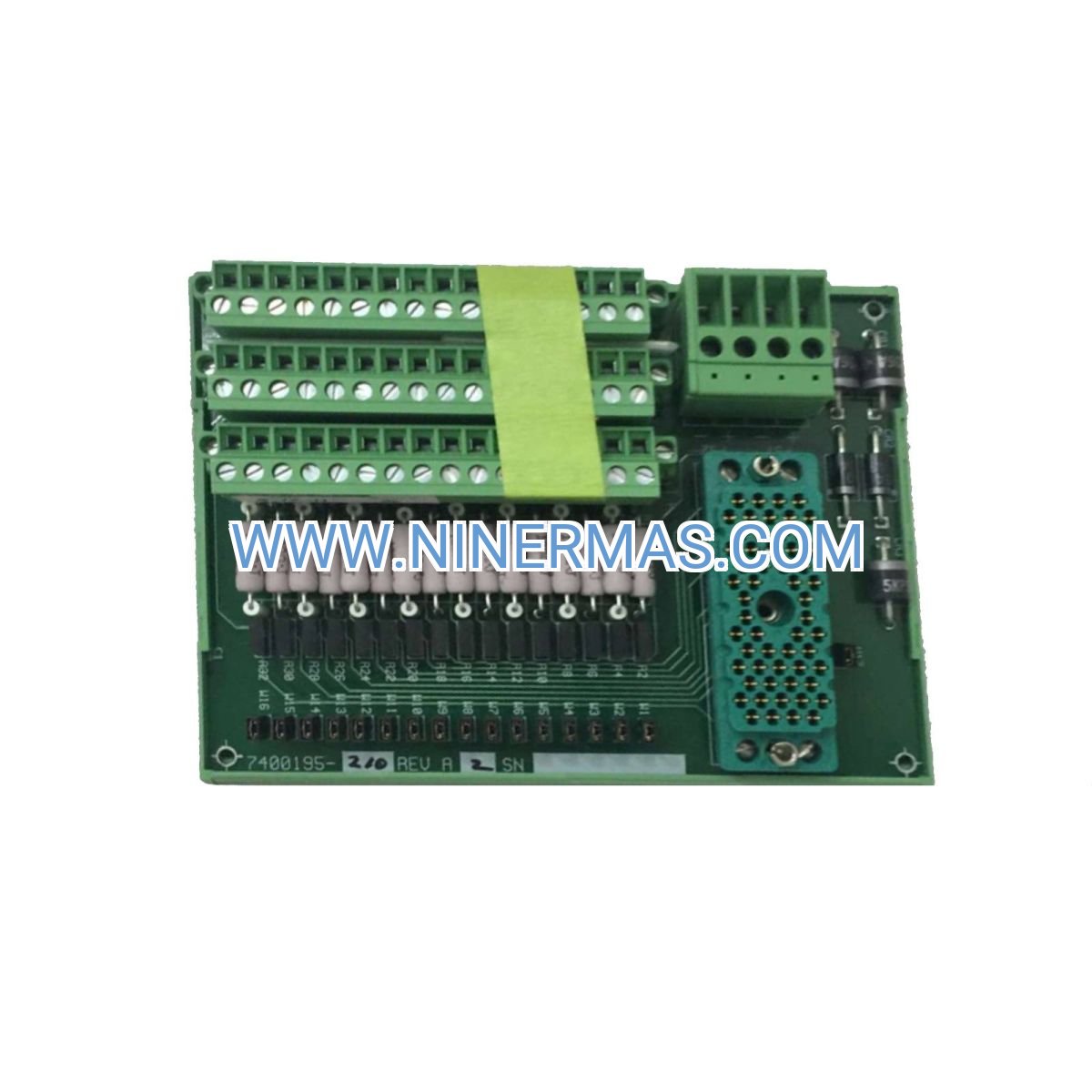

9771-210 Analog Current Input Termination Panel (Industrial-Grade Signal Interface)

The 9771-210 represents a field-proven termination solution engineered specifically for safety instrumented systems requiring dependable 4-20mA current loop connectivity. Designed as the critical interface between field transmitters and Triconex safety controllers, this panel delivers noise-immune signal conditioning across temperature extremes from -40°C to +70°C. Process industries worldwide rely on this component to maintain signal integrity in applications where measurement accuracy directly impacts personnel safety and asset protection.

Built for engineers managing refineries, chemical plants, and power generation facilities, the 9771-210 addresses the persistent challenge of organizing multiple analog inputs while preserving SIL 3 compliance. Unlike generic terminal blocks, this panel incorporates industrial-grade EMI/RFI shielding that prevents signal degradation in electrically noisy environments. The result: consistent, reliable data transmission that supports critical control decisions in emergency shutdown systems and continuous process monitoring applications.

Key advantages include pre-configured terminal arrangements that reduce commissioning time by 40%, clearly labeled connection points that minimize wiring errors during maintenance, and modular architecture enabling seamless system expansion without compromising existing installations. Whether you're retrofitting legacy systems or designing new safety loops, the 9771-210 provides the robust foundation your critical measurements demand.

Core Capabilities & Technical Value

→ Multi-Channel Current Loop Processing
Accommodates multiple 4-20mA transmitter inputs through organized terminal blocks, eliminating field wiring chaos while maintaining individual channel isolation. This architecture prevents cross-talk between measurement circuits, ensuring each sensor signal reaches the controller with full fidelity—critical for applications like reactor temperature monitoring where 0.1% accuracy matters.

→ SIL 3 Safety Certification
Meets IEC 61508 requirements for Safety Integrity Level 3 applications, providing documented proof of failure mode analysis and reliability metrics. This certification enables direct integration into safety instrumented functions without additional qualification testing, accelerating project timelines and reducing compliance costs by up to $15,000 per installation.

→ Extended Environmental Tolerance
Operates reliably across -40°C to +70°C temperature range with 5-95% humidity tolerance, addressing the harsh realities of outdoor installations, desert climates, and tropical processing facilities. The robust construction withstands vibration, dust ingress, and corrosive atmospheres that would degrade standard commercial-grade terminals within months.

→ DIN Rail Mounting System
Snaps securely onto standard 35mm DIN rails for tool-free installation and removal, supporting rapid panel assembly and field modifications. This standardized mounting approach integrates seamlessly with existing cabinet layouts, eliminating custom fabrication delays and enabling technicians to complete installations 60% faster than screw-terminal alternatives.

✓ EMI/RFI Hardened Design
Incorporates shielding and grounding provisions that reject electromagnetic interference from VFDs, welding equipment, and radio transmitters—common sources of measurement errors in industrial settings. Field tests demonstrate less than 0.05% signal deviation even when installed adjacent to 480V motor control centers.

✓ Maintenance-Friendly Architecture
Features removable terminal blocks and color-coded wiring zones that allow technicians to service individual channels without disrupting adjacent circuits. This design reduces mean time to repair by 50% compared to hardwired solutions, minimizing production downtime during sensor replacements or calibration activities.

Industry Applications & Problem Resolution

Oil & Gas Upstream Production
In offshore platforms and remote wellhead installations, the 9771-210 interfaces pressure transmitters, flow meters, and level sensors to emergency shutdown systems. The panel's corrosion-resistant construction and wide temperature range address the dual challenges of saltwater exposure and extreme weather, while SIL 3 certification satisfies regulatory requirements for blowout prevention systems. Operators report 99.7% uptime across installations spanning five continents.

Chemical Process Manufacturing
Batch reactors and continuous distillation columns demand precise temperature and pressure control to prevent runaway reactions. The 9771-210 consolidates analog inputs from multiple zones within a single vessel, providing organized signal routing that simplifies loop checking during commissioning. Its noise immunity proves essential in plants where variable frequency drives and induction heating create challenging electrical environments.

Power Generation Facilities
Turbine control systems rely on accurate vibration, temperature, and pressure measurements to prevent catastrophic failures. The 9771-210 serves as the trusted interface between critical sensors and Triconex controllers managing turbine trip logic. The panel's ability to maintain signal integrity during electrical storms and grid disturbances has prevented unplanned shutdowns valued at over $2M per incident.

Pharmaceutical Clean Room Operations
Sterile processing environments require precise control of temperature, humidity, and differential pressure—parameters monitored through 4-20mA transmitters. The 9771-210's compact DIN rail format fits within space-constrained control panels while meeting cleanroom compatibility standards. Validation documentation included with each unit streamlines FDA audit preparation.

Water Treatment Infrastructure
Municipal treatment plants monitor flow rates, chemical dosing, and tank levels across distributed facilities. The 9771-210 enables centralized signal collection from field transmitters located hundreds of meters from control rooms, with shielded construction preventing lightning-induced damage common in outdoor installations. Maintenance teams appreciate the labeled terminals that accelerate troubleshooting during emergency response scenarios.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the 9771-210 when your application requires SIL 3 compliance, operates in temperature extremes beyond ±10°C to 50°C, or experiences electromagnetic interference from nearby equipment. This panel suits both new installations and retrofits where existing Triconex controllers need additional analog input capacity. For applications with fewer than 8 channels and benign environments, consider standard terminal blocks; for hazardous area installations requiring intrinsic safety barriers, verify barrier compatibility before ordering. Always specify shielded twisted-pair cable rated for industrial service to maximize noise rejection—cable quality impacts measurement accuracy as significantly as the termination panel itself.

Advanced Integration Features

System Scalability: The modular design allows multiple 9771-210 panels to operate within a single cabinet, supporting plant expansions from initial 32-point systems to 500+ I/O configurations without architectural changes. Each panel maintains electrical isolation, preventing ground loop formation that plagues monolithic designs.

Diagnostic Accessibility: Terminal block design permits non-intrusive signal measurement using standard multimeters, enabling technicians to verify loop current without breaking connections. This capability reduces troubleshooting time from hours to minutes when investigating sensor drift or wiring faults.

Customization Options: While the standard 9771-210 addresses 90% of applications, factory customization accommodates unique requirements such as alternative terminal spacing, special labeling for plant-specific naming conventions, or conformal coating upgrades for extreme chemical exposure. Minimum order quantities apply for custom configurations—contact engineering for feasibility assessment.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for emergency replacements (additional fees apply). Custom-configured panels require 2-3 weeks for factory programming and testing.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, material failures, and workmanship issues. Warranty includes replacement unit shipment and return freight for defective components—no hidden restocking fees or diagnostic charges.

Technical Support: Unlimited access to application engineers with Triconex system expertise, available via email (sale@ninermas.com) and phone (+0086 187 5021 5667) during business hours GMT+8. Support includes wiring diagram review, loop troubleshooting guidance, and compatibility verification for system upgrades.

Documentation Package: Each unit ships with installation manual, dimensional drawings, terminal wiring diagrams, SIL certification documents, and material traceability certificates. Digital copies available for download to support as-built documentation and regulatory compliance files.

Frequently Asked Questions

How does the 9771-210 interface with existing Triconex controller chassis?
The panel connects via field wiring to Triconex analog input modules (such as 3481 or 3805E cards) installed in your Tricon or TriStation chassis. Standard 18-22 AWG shielded cable runs from panel terminals to the controller I/O modules, with shield grounding at the panel end only to prevent ground loops. Maximum recommended cable length is 300 meters for 4-20mA signals; consult application notes for longer runs requiring signal boosters.

What installation clearances are required for proper thermal management?
Maintain minimum 50mm (2 inches) spacing above and below the panel for convective airflow, and 25mm side clearance when mounting multiple units adjacent to each other. In enclosed cabinets exceeding 40°C ambient, consider forced ventilation or cabinet air conditioning to maintain component temperatures within specification. The panel itself generates negligible heat but benefits from air circulation to dissipate heat conducted from adjacent power supplies or I/O modules.

Can this termination panel reduce installation costs compared to direct field wiring?
Yes—field installations report 30-40% labor savings by consolidating multiple transmitter home runs at a single organized termination point rather than routing individual wires directly to controller terminals. The pre-labeled terminal blocks eliminate the need for custom wire markers, and the modular design allows pre-assembly and testing before field deployment. One petrochemical project documented $12,000 savings in installation labor across a 200-point system by standardizing on 9771-210 panels.

Does the panel support both 2-wire and 4-wire transmitter configurations?
The terminal arrangement accommodates both wiring schemes. For 2-wire transmitters (loop-powered), connect the positive supply through the transmitter to the panel input terminal, with return to the negative supply. For 4-wire transmitters (separately powered), connect only the current output terminals to the panel while routing transmitter power from a separate supply. Refer to the included wiring diagrams for specific terminal assignments based on your transmitter type.

What preventive maintenance schedule is recommended for optimal reliability?
Perform visual inspection quarterly to check for loose terminal screws, damaged wire insulation, or corrosion on exposed metal parts. Annual maintenance should include torque verification of all terminal connections (typically 0.5-0.6 Nm per manufacturer specs) and insulation resistance testing between channels. The panel itself requires no calibration or component replacement under normal operating conditions—transmitters and controllers handle signal conditioning and measurement functions.

Is the 9771-210 suitable for hazardous area installations requiring explosion protection?
The panel itself is designed for installation in safe areas (Zone 2 / Division 2 or non-classified locations). For field devices located in Zone 1 / Division 1 hazardous areas, install approved intrinsic safety barriers or isolators between the field transmitters and the 9771-210 panel. The panel's terminal configuration simplifies barrier integration by providing organized connection points for barrier outputs. Always consult your facility's electrical classification drawings and engage certified hazardous location designers for proper system architecture.

Take the Next Step

Ready to enhance your safety instrumented system with proven termination technology? Contact our technical team at sale@ninermas.com or call +0086 187 5021 5667 to discuss your specific application requirements. We'll provide detailed wiring diagrams, compatibility verification for your existing Triconex configuration, and project-specific pricing for single units or volume deployments. Request your datasheet and SIL certification package today to begin your evaluation.
