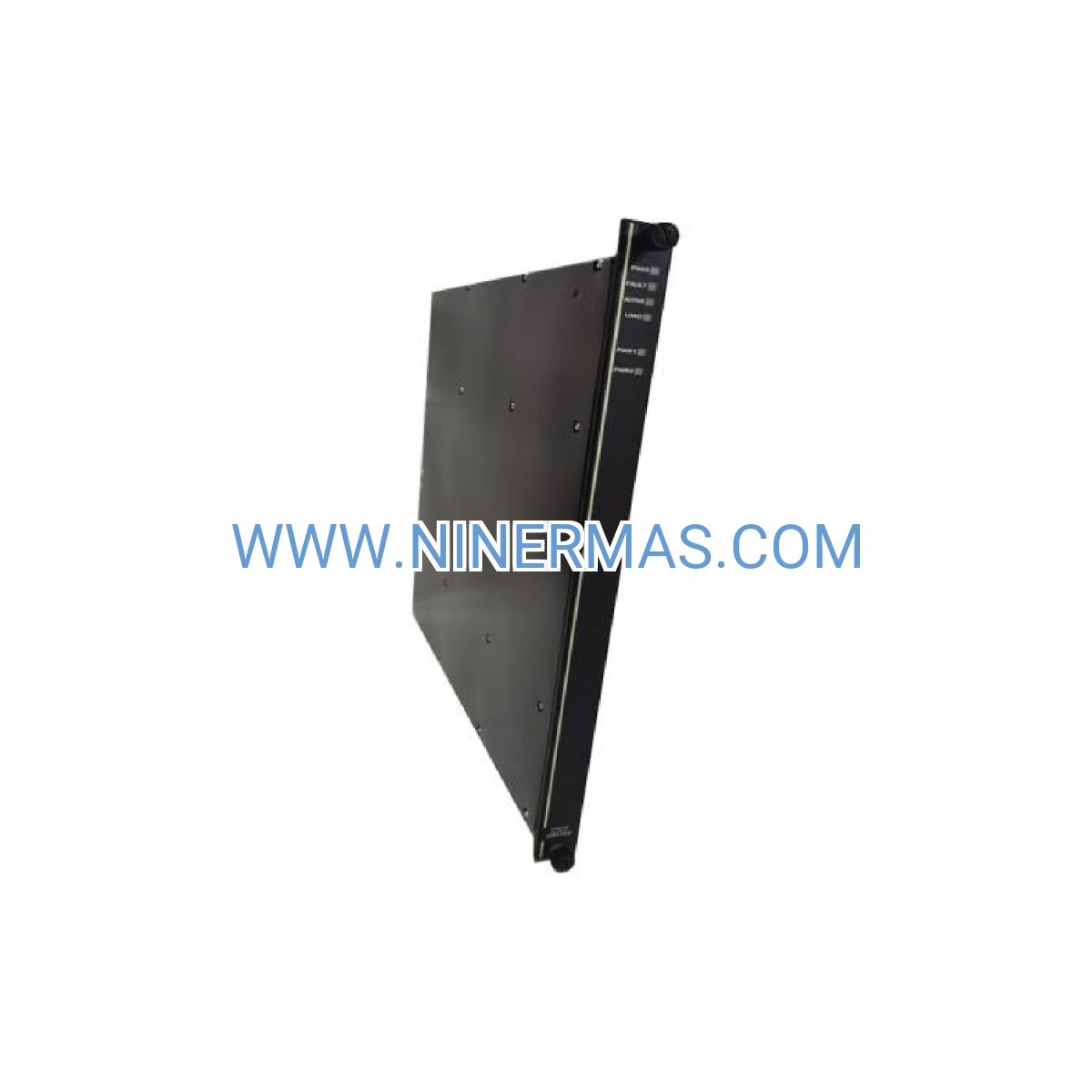

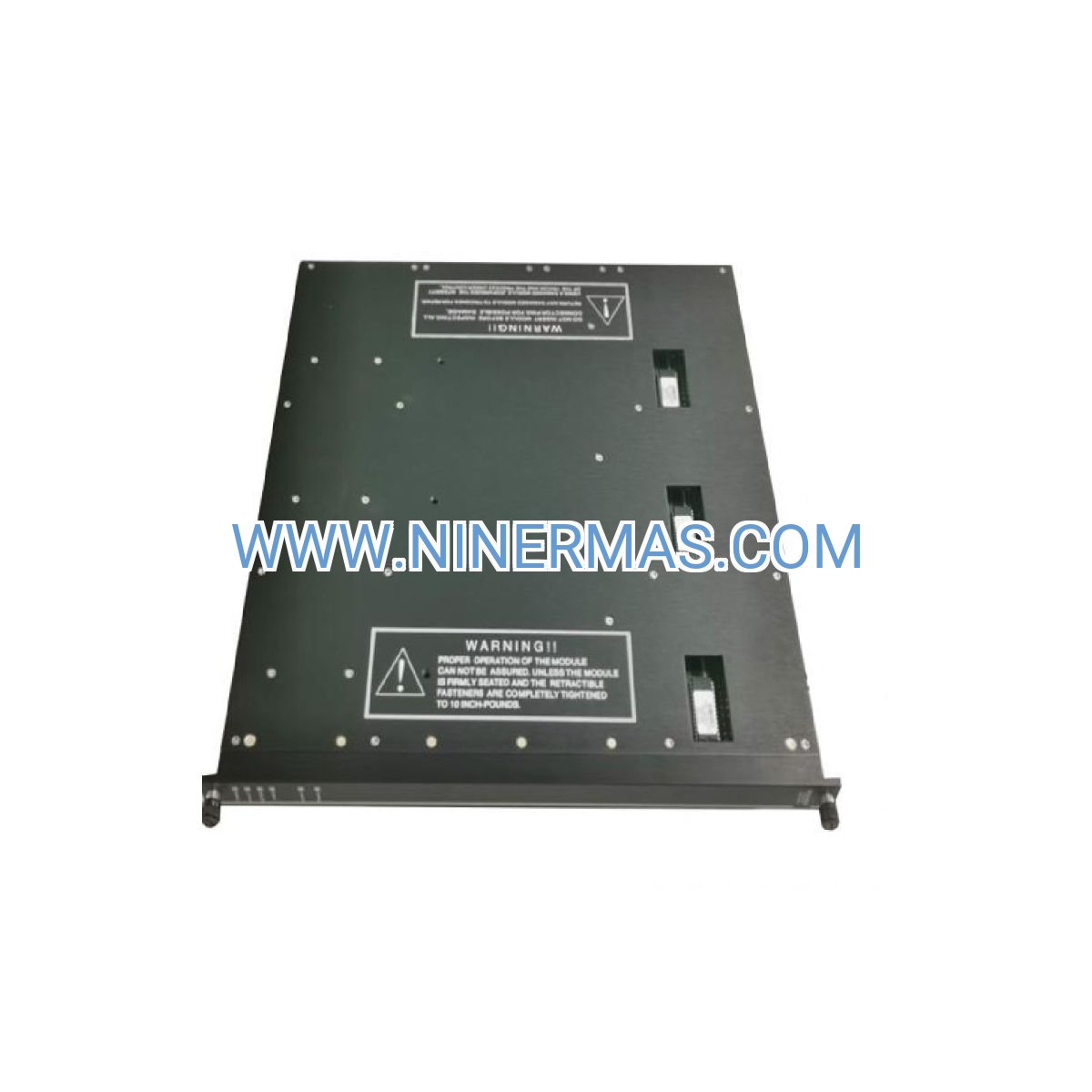

Triconex 9762-210 Analog Termination Panel (Industrial-Grade Signal Interface)

The Triconex 9762-210 represents a field-proven termination solution engineered for safety-critical analog signal conditioning in Triple Modular Redundant (TMR) control architectures. This 16-channel current input interface delivers galvanic isolation, surge suppression, and diagnostic transparency for process industries where uptime and safety integrity cannot be compromised.

Designed for integration with Triconex safety controllers across oil & gas, petrochemical, power generation, and pharmaceutical sectors, the 9762-210 addresses the challenge of reliably interfacing field transmitters—pressure sensors, temperature probes, flow meters—with high-availability control platforms. Its dual redundant power architecture and IEC 61508 SIL 3 certification ensure continuous operation even under single-point failure conditions.

Key differentiators include DIN rail mounting for rapid installation, LED-based diagnostics for accelerated troubleshooting, and backward compatibility with legacy Triconex v9/v10 systems while supporting modern Tricon CX platforms. Whether you're upgrading existing safety instrumented systems or deploying new installations, the 9762-210 delivers the reliability and compliance your operations demand.

Core Features & Benefits

✓ 16 Analog Current Inputs (4-20mA)
Accommodates high-density field device connectivity, reducing panel footprint and wiring complexity while maintaining signal integrity across 1000-meter cable runs.

✓ Dual Redundant 24VDC Power Supply
Eliminates single points of failure with automatic failover, ensuring uninterrupted signal acquisition during power supply maintenance or component degradation.

✓ IEC 61508 SIL 3 Certification
Meets the highest safety integrity requirements for process industry applications, enabling compliance with regulatory mandates and risk reduction frameworks.

✓ Extended Temperature Range (-40°C to +70°C)
Operates reliably in harsh industrial environments—from Arctic installations to desert refineries—without thermal derating or auxiliary cooling.

✓ Built-In Surge Protection & Galvanic Isolation
Shields sensitive controller electronics from field-induced transients, ground loops, and electromagnetic interference, extending system lifespan and reducing nuisance trips.

✓ LED Diagnostic Indicators
Provides at-a-glance status visibility for power, channel health, and fault conditions, cutting mean time to repair (MTTR) by up to 40% during troubleshooting.

Application Scenarios

→ Oil & Gas Refinery Emergency Shutdown Systems
Interfaces critical process variables (reactor pressure, separator levels, compressor temperatures) with Triconex safety logic solvers, ensuring rapid response to abnormal conditions while maintaining HART transparency for asset management systems.

→ Petrochemical Plant Fire & Gas Detection
Terminates analog signals from toxic gas detectors and flame sensors, providing the signal conditioning and isolation required for SIL 3-rated fire suppression and evacuation sequences.

→ Power Generation Turbine Protection
Processes vibration, bearing temperature, and lube oil pressure signals from rotating equipment, enabling predictive maintenance strategies while safeguarding against catastrophic failures.

→ Pharmaceutical Batch Reactor Control
Supports precise analog measurement of temperature, pH, and flow in GMP-regulated environments, where signal accuracy and audit trail integrity are paramount.

→ Offshore Platform Subsea Control Systems
Withstands corrosive atmospheres and extreme temperature swings in unmanned installations, reducing offshore maintenance visits and associated helicopter costs.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 9762-210 when your application requires current loop termination for Triconex TMR systems with SIL 3 integrity. For voltage input applications, consider the 9761-series panels. For digital I/O termination, evaluate the 9753-series. Ensure your field devices operate within the 4-20mA range and that cable runs do not exceed 1000 meters without signal repeaters.

Extended Functions

HART Protocol Transparency: The 9762-210 passes HART digital signals superimposed on 4-20mA analog currents without attenuation, enabling remote device configuration and diagnostics through compatible Triconex input modules and asset management software.

Hot-Swap Capability: When integrated with Triconex controllers supporting online module replacement, the termination panel allows field wiring to remain connected during maintenance, minimizing process disruption and reducing commissioning time.

Customization Options: Factory-configured channel labeling, custom cable assemblies, and pre-tested integration kits are available for large-scale deployments or retrofit projects requiring accelerated installation schedules.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; express shipping available for urgent requirements.
Custom Configuration Lead Time: 10-15 business days for factory-programmed or tested assemblies.

Warranty Coverage: 12-month comprehensive warranty covering defects in materials and workmanship from date of shipment. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to certified Triconex specialists for pre-sales application engineering, installation guidance, and post-deployment troubleshooting via phone, email, and remote diagnostics.

Documentation Package: Each unit ships with installation manual, wiring diagrams, dimensional drawings, safety certification documents, and compliance declarations in PDF format.

Frequently Asked Questions

Can the 9762-210 interface with non-Triconex control systems?
While mechanically compatible with standard DIN rail mounting, the 9762-210 is electrically optimized for Triconex TMR architectures. For third-party controller integration, consult factory application engineers to verify signal compatibility and certification implications.

What cable types ensure optimal signal integrity for long runs?
Use shielded twisted-pair cables rated 18-22 AWG with 100% shield coverage. Ground shields at the panel end only to prevent ground loops. For runs exceeding 500 meters in electrically noisy environments, consider individually shielded pairs or fiber-optic signal converters.

Does this termination panel support intrinsically safe (IS) field devices?
The 9762-210 itself is not IS-rated. For hazardous area applications requiring intrinsic safety, install approved IS barriers (such as MTL or Pepperl+Fuchs units) between field devices and the termination panel, ensuring barrier output matches the 4-20mA input specification.

How does redundant power operation work during supply failure?
Both power inputs are continuously monitored. If one supply drops below 19.2VDC or exceeds 28.8VDC, the panel automatically draws full current from the healthy supply while illuminating a fault LED. No signal interruption occurs, and no manual intervention is required.

What diagnostic capabilities are available for troubleshooting?
Front-panel LEDs indicate power status (green), channel activity (amber), and fault conditions (red). When paired with Triconex controllers featuring enhanced diagnostics, the system reports open-circuit, short-circuit, and out-of-range conditions with channel-level granularity.

Is firmware or software configuration required for operation?
No. The 9762-210 is a passive termination panel requiring zero configuration. Signal conditioning parameters are set within the Triconex input module configuration using TriStation software—the panel simply provides electrical interface and protection.

Ready to Enhance Your Safety System?

Contact our industrial automation specialists today for application-specific guidance, volume pricing, or technical documentation. Whether you're planning a greenfield installation or upgrading legacy infrastructure, we'll ensure the 9762-210 integrates seamlessly with your Triconex architecture.

Request a quote now or reach out to discuss your project requirements—our team responds within 4 business hours.
