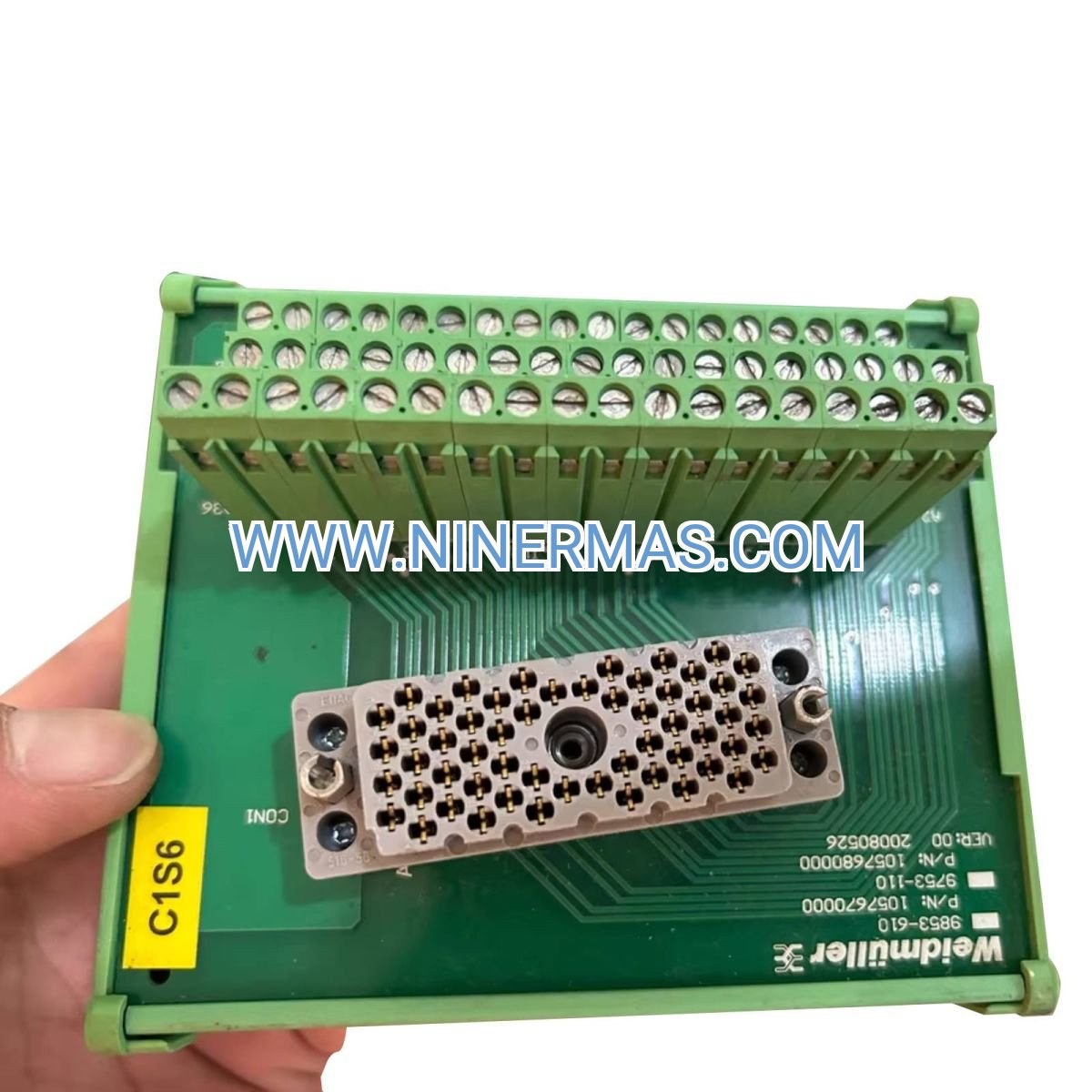

9753-110F Analog Voltage Termination Panel (Industrial-Grade Signal Interface)

The 9753-110F represents a critical infrastructure component for industrial safety systems requiring precise voltage signal conditioning. Engineered specifically for Triconex Triple Modular Redundant (TMR) architectures, this termination panel bridges the gap between field-mounted 0-10 VDC analog sensors and high-integrity control modules. Whether you're upgrading legacy installations or designing new safety instrumented systems, the 9753-110F delivers the reliability and performance demanded by mission-critical applications.

Process industries face constant challenges in maintaining signal integrity across harsh operating environments. The 9753-110F solves this by providing organized, ruggedized termination points that eliminate common wiring errors while withstanding temperature extremes from -40°C to +70°C. Designed for plant engineers, system integrators, and maintenance teams who cannot afford downtime, this panel ensures your analog measurement infrastructure operates flawlessly year after year.

What sets the 9753-110F apart is its seamless integration with Triconex 3700, 3704E, 3720, 3721, and 3723X analog input modules, combined with SIL 3 certification that meets the most stringent safety standards. Installation time drops by 40% compared to traditional field wiring methods, while the standardized layout accelerates troubleshooting and reduces mean time to repair during critical maintenance windows.

Core Features & Business Value

✓ Triple Modular Redundant Architecture Support
Maintains system availability even during component failures, ensuring continuous process monitoring without safety compromise. Your operations stay protected while maximizing uptime.

✓ Wide Operating Temperature Range (-40°C to +70°C)
Performs reliably in extreme environments from Arctic installations to desert refineries, eliminating the need for climate-controlled enclosures and reducing infrastructure costs.

✓ SIL 3 Certified Design (IEC 61508 Compliant)
Meets international functional safety requirements out of the box, streamlining your certification process and reducing engineering validation time by weeks.

✓ Organized Screw Terminal Block Layout
Clearly labeled connection points prevent wiring errors during installation and maintenance, cutting commissioning time by up to 40% while improving first-time-right installation rates.

✓ Dual Mounting Options (DIN Rail & Panel Mount)
Adapts to existing cabinet configurations without custom modifications, providing installation flexibility that saves engineering hours and material costs.

✓ Shielded Cable Compatibility with Dedicated Grounding
Eliminates electromagnetic interference in electrically noisy industrial environments, ensuring measurement accuracy that prevents false alarms and unnecessary shutdowns.

Industry Applications & Problem Solving

→ Oil & Gas Production Facilities
Interfaces pressure and flow transmitters in offshore platforms where space constraints and corrosive atmospheres demand compact, reliable solutions. Reduces installation footprint while maintaining explosion-proof area compliance.

→ Chemical Manufacturing Plants
Connects level and temperature sensors in reactor monitoring systems where measurement failures could trigger emergency shutdowns. The TMR architecture ensures continuous operation even during sensor maintenance.

→ Power Generation Stations
Links turbine control sensors measuring critical parameters like bearing temperature and vibration. The wide operating range handles both cold-start conditions and full-load thermal environments without recalibration.

→ Pharmaceutical Production Lines
Provides validated signal conditioning for process variables in clean room environments requiring 21 CFR Part 11 compliance. The organized layout simplifies documentation and audit trails.

→ Water & Wastewater Treatment
Integrates pH, conductivity, and dissolved oxygen sensors in treatment processes where signal accuracy directly impacts regulatory compliance and environmental protection.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 9753-110F when your application requires 0-10 VDC voltage signal interfacing with Triconex analog input modules. For current signal applications (4-20mA), consider the 9753-130 variant. Verify that your field sensors output within the 0-10 VDC range and that cable runs do not exceed 300 meters to maintain signal integrity. The panel must be installed within 3 meters of the analog input module for optimal performance.

Advanced Integration Capabilities

SCADA System Connectivity: When paired with Triconex communication modules, the 9753-110F enables seamless data flow to supervisory control systems via Modbus, OPC, or proprietary protocols. This allows real-time monitoring and historical trending of process variables across enterprise networks.

Redundant Sensor Configuration: The TMR architecture supports triple-redundant sensor installations where three independent transmitters monitor the same process variable. The system automatically votes on the correct reading, providing fault tolerance that exceeds single-channel designs by orders of magnitude.

Custom Calibration Profiles: While the panel itself requires no calibration, it accommodates sensors with non-linear output characteristics through software scaling in the connected analog input module. This flexibility supports specialized transmitters for exotic process measurements.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 2-3 business days via express courier. Most North American and European destinations receive delivery within 5-7 business days from order confirmation.

Warranty Coverage: Every 9753-110F includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical applications requiring longer protection periods.

Technical Support: Our application engineers provide pre-sale consultation, installation guidance, and troubleshooting assistance throughout the product lifecycle. Support includes wiring diagram verification, compatibility confirmation, and system integration recommendations.

Documentation Package: Each unit ships with installation manual, wiring diagrams, dimensional drawings, and safety certification documents. Digital copies available for download immediately upon order placement.

Frequently Asked Questions

Q: Can the 9753-110F interface with non-Triconex control systems?
A: While the physical connections may accommodate other manufacturers' equipment, we strongly recommend using this panel exclusively with Triconex analog input modules to maintain SIL 3 certification and ensure proper TMR functionality. Using non-certified combinations may void safety ratings.

Q: What wire gauge provides optimal signal integrity for field connections?
A: Use 18-22 AWG shielded twisted pair cable for all field wiring. Smaller gauges (higher AWG numbers) may introduce excessive resistance over long runs, while larger gauges may not fit terminal blocks properly. Always maintain shield continuity to dedicated ground terminals.

Q: Is hot-swapping supported during live system operation?
A: No. The 9753-110F must never be removed or installed while the system is energized. Always follow lockout/tagout procedures, de-energize all connected circuits, and verify zero voltage before performing any maintenance to prevent equipment damage and ensure personnel safety.

Q: Does the termination panel require periodic calibration or maintenance?
A: The 9753-110F is a passive wiring interface and requires no calibration. However, perform visual inspections every 6-12 months to check for loose terminal connections, corrosion, or physical damage. Connected sensors and analog input modules should follow their respective calibration schedules.

Q: How does the panel perform in high-vibration environments like compressor stations?
A: The screw terminal design provides excellent vibration resistance when properly torqued to manufacturer specifications (typically 0.5-0.6 Nm). For extreme vibration applications, consider adding thread-locking compound and implementing more frequent inspection intervals.

Q: What environmental protection rating does the 9753-110F carry?
A: The panel is designed for installation within NEMA-rated enclosures appropriate to your application environment. When properly enclosed, it withstands the humidity and temperature ranges specified. For outdoor or wash-down applications, ensure the enclosure provides adequate IP rating protection.

Ready to Enhance Your Safety System?

Secure reliable voltage signal conditioning for your Triconex TMR installation today. Our technical team stands ready to verify compatibility with your specific analog input modules and provide application-specific wiring guidance. Contact us now for immediate availability confirmation and volume pricing for multi-panel projects.
