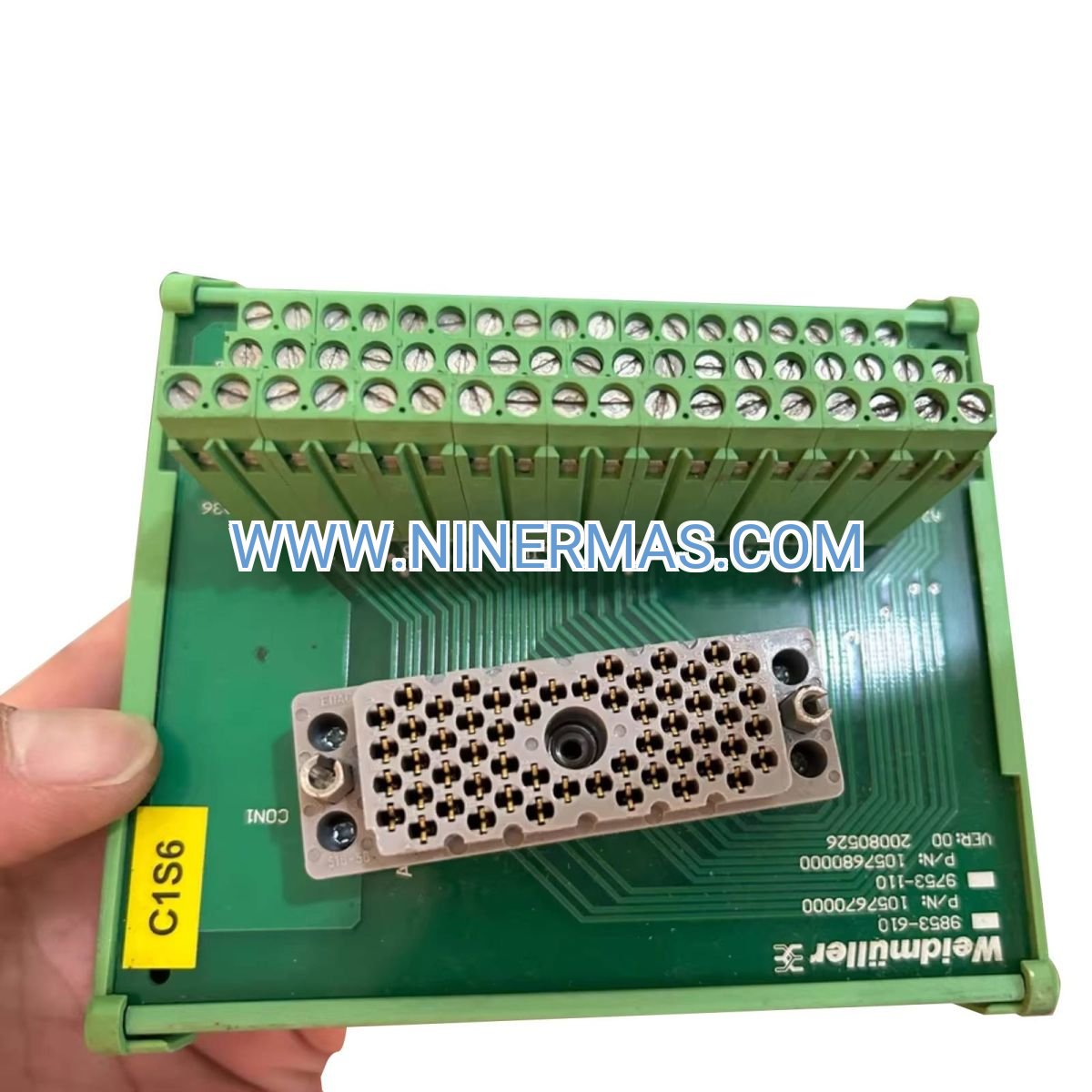

Triconex 9753-110 Termination Panel (Industrial-Grade Field Interface Solution)

The Triconex 9753-110 represents a critical infrastructure component for safety-instrumented systems requiring dependable pulse signal termination. This industrial-grade panel bridges field instrumentation to Tricon Pulse Input (PI) and Pulse Totalizer Input (PTI) modules, delivering certified SIL 3 performance across 8 to 16 discrete channels.

Designed for process industries where measurement accuracy directly impacts operational safety and regulatory compliance, the 9753-110 eliminates common field wiring vulnerabilities through pre-engineered terminal layouts and integrated signal conditioning. Whether you're retrofitting legacy control systems or commissioning greenfield installations, this termination panel accelerates deployment while maintaining the signal fidelity demanded by custody transfer, batch control, and turbine monitoring applications.

Built to withstand harsh industrial environments from petrochemical facilities to power generation plants, the 9753-110 combines robust mechanical construction with intelligent electrical design—ensuring your critical pulse measurements remain accurate and auditable throughout multi-decade service lifecycles.

Core Features & Technical Advantages

✓ Dual-Capacity Channel Architecture
Configurable for 8 or 16 channels to match your specific module requirements, providing deployment flexibility without inventory complexity. Supports mixed PI/PTI module combinations within a single chassis.

→ SIL 3 Safety Certification
Meets IEC 61508 functional safety standards for use in safety-critical applications. Certified design ensures compliance with industry regulations for emergency shutdown systems and protective instrumentation.

✓ Pre-Labeled Terminal Organization
Factory-marked connection points reduce commissioning time by 40% compared to generic terminal blocks. Color-coded zones minimize cross-wiring risks during multi-technician installations.

→ Integrated Noise Suppression
Built-in filtering protects pulse counting accuracy in electrically noisy environments. Maintains signal integrity adjacent to VFDs, welding equipment, and high-current switching devices.

✓ DIN Rail Mounting System
Tool-free installation on standard 35mm DIN rails enables rapid panel assembly and future reconfiguration. Compact footprint optimizes cabinet space utilization in dense I/O configurations.

→ Wide Operating Temperature Range
Proven performance from 0°C to 60°C (32°F to 140°F) accommodates non-climate-controlled enclosures and outdoor installations with environmental protection.

Application Scenarios & Industry Solutions

Oil & Gas Custody Transfer
Connects turbine flow meters and Coriolis meters to Tricon totalizer modules for fiscal measurement systems. Addresses the challenge of maintaining ±0.1% accuracy requirements under API MPMS standards while providing auditable pulse counts for revenue accounting.

Chemical Batch Processing
Interfaces with positive displacement meters for precise ingredient dosing in pharmaceutical and specialty chemical manufacturing. Solves the problem of batch-to-batch variability by ensuring repeatable totalizer performance across production campaigns.

Power Plant Turbine Monitoring
Terminates magnetic pickup sensors for steam and gas turbine overspeed protection systems. Delivers the sub-millisecond response times required for emergency trip functions while withstanding continuous vibration exposure.

Water & Wastewater Flow Totalization
Supports electromagnetic and ultrasonic flow meter integration for municipal treatment facilities. Provides the long-term stability needed for regulatory reporting and SCADA system integration in 24/7 operations.

Petrochemical Safety Instrumented Systems
Enables high-integrity pulse input for compressor anti-surge control and emergency depressurization sequences. Meets the reliability targets (PFDavg < 10⁻⁴) mandated by process hazard analyses.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 9753-110 when your application requires certified safety performance for pulse-based measurements. Ideal for systems where existing Tricon infrastructure needs expansion or where retrofit projects demand backward compatibility with legacy PI/PTI modules. Verify channel count requirements during design phase—8-channel configuration suits compact skid-mounted systems, while 16-channel capacity optimizes cabinet space in centralized control rooms.

Extended Functionality & System Integration

Tricon Ecosystem Compatibility: Seamlessly integrates with current-generation Tricon controllers and maintains backward compatibility with earlier system versions, protecting your automation investment during phased modernization projects.

Redundant Architecture Support: Designed for Triple Modular Redundant (TMR) configurations where three independent measurement channels vote on critical process variables, ensuring fail-safe operation even during component failures.

Remote Diagnostics Readiness: When paired with Tricon communication modules, enables remote monitoring of termination panel status through plant-wide SCADA or DCS networks, reducing unplanned maintenance visits.

Customization Options: Available with factory-configured terminal labeling for project-specific tag naming conventions. Consult with our engineering team for high-volume orders requiring custom documentation packages.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 2-3 business days via express courier. Typical delivery to major industrial centers: 5-7 days (Asia-Pacific), 7-10 days (Americas/Europe).

Custom Configuration: Factory-labeled panels require 3-4 weeks for production and quality verification. Expedited processing available for critical path projects.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for multi-year service agreements.

Technical Support: Lifetime access to application engineering assistance including wiring diagram review, installation troubleshooting, and system integration guidance. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each unit includes installation manual, dimensional drawings, terminal assignment diagrams, and compliance certificates (CE, UL, ATEX where applicable).

Frequently Asked Questions

What pulse frequency range does the 9753-110 termination panel support?
The panel itself is passive and supports the full frequency range of connected PI/PTI modules—typically 0.1 Hz to 20 kHz depending on module model. Consult your specific module datasheet for frequency specifications.

Can I mix 8-channel and 16-channel configurations in the same chassis?
Yes, the Tricon backplane accommodates mixed termination panel configurations. Each panel operates independently, allowing flexible I/O density optimization across different chassis slots.

How does the 9753-110 improve installation efficiency compared to standard terminal blocks?
Pre-labeled terminals eliminate field marking requirements, reducing commissioning labor by 35-45%. Integrated strain relief and wire management features further accelerate panel assembly during tight project schedules.

Is the termination panel suitable for hazardous area installations?
The 9753-110 carries appropriate certifications for Zone 2/Division 2 installations when mounted in certified enclosures. For Zone 1/Division 1 applications, consult factory for intrinsically safe barrier integration guidance.

What wire gauge provides optimal long-term reliability?
Use 16-18 AWG (1.0-1.5 mm²) stranded copper for signal connections under 100 meters. For longer cable runs or high-vibration environments, 14 AWG (2.5 mm²) ensures superior mechanical stability and lower contact resistance.

Does the panel require periodic calibration or maintenance?
No calibration needed—the 9753-110 is a passive termination device. Recommended maintenance includes annual visual inspection of terminal tightness and verification of strain relief integrity, particularly in high-vibration installations.

Start Your Integration Today

Ready to enhance your Tricon safety system with proven termination technology? Our application engineers are available to review your project requirements, confirm compatibility with existing infrastructure, and provide detailed quotations including volume pricing for multi-panel orders.

Contact our team: Email sale@ninermas.com or call +0086 187 5021 5667 for immediate technical consultation. Request a datasheet package or schedule a virtual design review to accelerate your procurement timeline.
