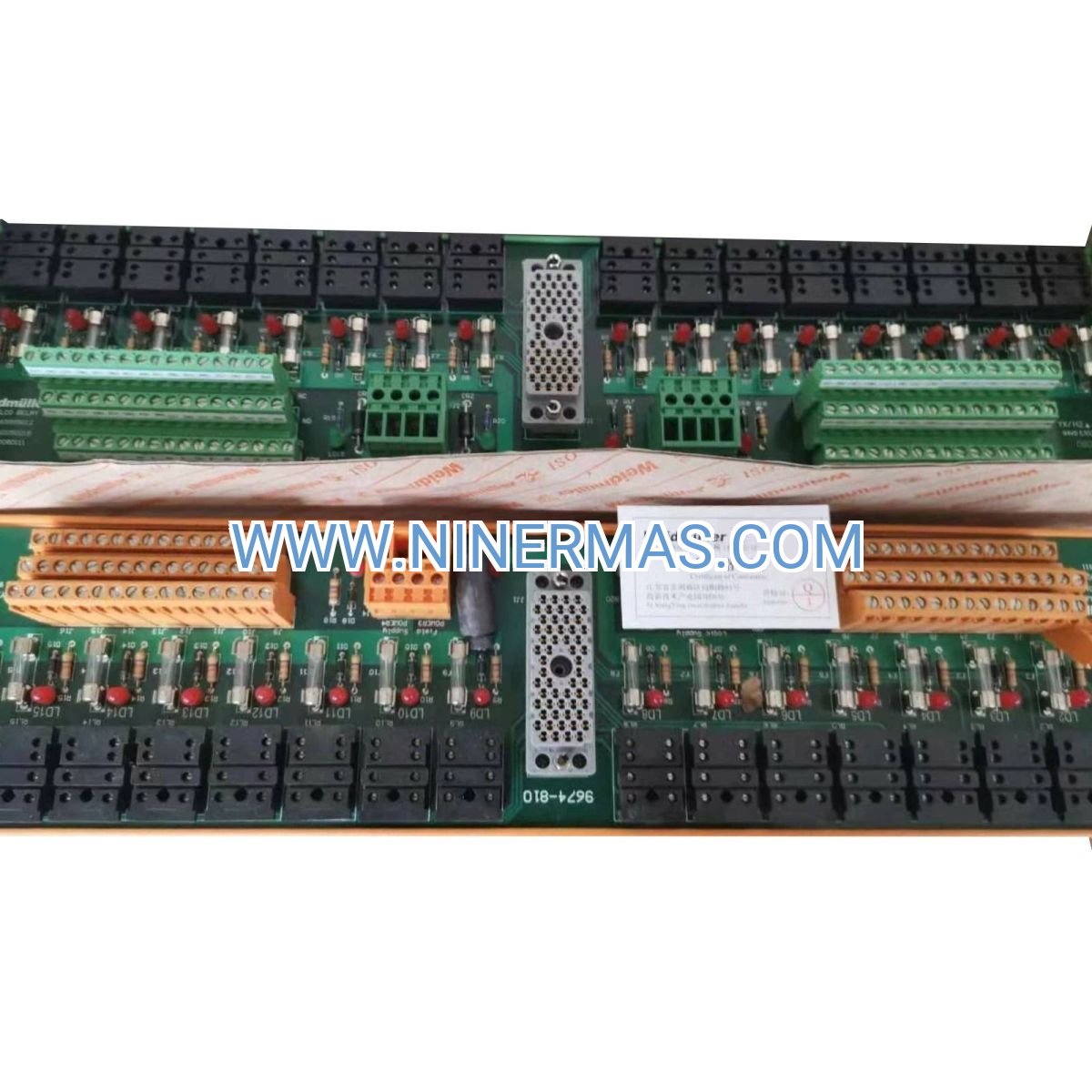

9674-810 Digital Output Terminal Panel (Industrial-Grade Safety Interface)

The 9674-810 represents a field-proven termination solution engineered specifically for Triconex digital output modules in safety instrumented systems. This industrial-grade interface panel streamlines field wiring connections while maintaining the signal integrity and fail-safe performance demanded by SIL 3 applications across oil & gas, chemical processing, and power generation facilities.

Designed for system integrators and plant engineers managing critical control infrastructure, the 9674-810 eliminates common wiring errors through clearly labeled terminal blocks and standardized connection protocols. Its robust mechanical design withstands the thermal cycling, vibration, and electromagnetic interference typical of industrial control rooms and field junction boxes.

Whether you're commissioning new emergency shutdown systems, upgrading legacy Triconex installations, or expanding existing safety logic solver capacity, this termination panel delivers the reliability and ease of installation that reduces project risk and accelerates time to operation.

Core Features & Benefits

→ SIL 3 Certified Safety Integrity: Meets IEC 61508 requirements for safety-critical applications, providing documented compliance for functional safety audits and regulatory inspections.

→ Universal Triconex Compatibility: Interfaces seamlessly with current and legacy digital output modules, protecting your investment in existing control architecture while enabling phased modernization strategies.

→ Flexible Mounting Options: DIN rail or panel-mount configurations adapt to diverse cabinet layouts, from compact marshalling panels to distributed I/O enclosures in hazardous area installations.

→ Wide Environmental Range: Operates reliably from 0°C to 60°C with 5-95% humidity tolerance, suitable for climate-controlled control rooms and semi-exposed field locations without additional environmental conditioning.

→ Maintenance-Friendly Design: Removable screw terminal blocks enable field wiring changes without module removal, reducing maintenance windows by 50% compared to fixed-terminal alternatives.

✓ Vibration-Resistant Terminals: Spring-loaded contact technology maintains connection integrity in high-vibration environments such as compressor stations, pump houses, and offshore platforms.

Application Scenarios

Emergency Shutdown Systems (ESD): In offshore production platforms, the 9674-810 provides the critical interface between Triconex logic solvers and final control elements including pneumatic valve actuators, motor starters, and alarm annunciators. Its fail-safe terminal design ensures that wiring faults trigger safe-state responses rather than dangerous failures, protecting personnel and assets during process upsets.

Fire & Gas Detection Networks: Chemical plants deploy the 9674-810 to connect fire suppression system outputs—deluge valve solenoids, alarm horns, and emergency lighting circuits—with certified safety integrity levels. The panel's clear labeling reduces commissioning errors that could compromise life safety systems during actual emergency events.

Burner Management Systems (BMS): Power generation facilities use the 9674-810 to route ignition transformer controls, fuel valve commands, and flame failure trip signals with the deterministic response times required by NFPA 85 and IEC 61511 standards. Its robust construction withstands the thermal stress of boiler house environments.

Turbomachinery Protection: In gas compression and power generation applications, the panel interfaces trip relay outputs to emergency shutdown valves and brake systems, providing the hardwired safety layer that protects multi-million dollar rotating equipment from overspeed, vibration, and temperature excursions.

Process Interlock Systems: Petrochemical facilities implement the 9674-810 in reactor protection and batch process control, where it connects permissive logic outputs to motor contactors, isolation valves, and process alarm systems with the reliability required for continuous operation in Class I Division 2 environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 9674-810 when your application requires certified safety integrity for digital output circuits in Triconex-based safety systems. For analog I/O termination, consider the 9771-series panels. When planning installations in hazardous areas, verify that your system design includes appropriate intrinsic safety barriers or explosion-proof enclosures per NEC Article 500 or IECEx requirements.

Extended Functions

Diagnostic Integration: The 9674-810 supports field wiring diagnostics when paired with Triconex modules featuring open-circuit and short-circuit detection, enabling predictive maintenance strategies that identify degraded connections before they cause process interruptions.

Hot-Swap Capability: Removable terminal blocks allow technicians to pre-wire replacement panels offline, then swap complete assemblies during scheduled maintenance windows without disturbing adjacent circuits or requiring full system shutdown.

Custom Labeling Options: Field-customizable label strips accommodate site-specific tag naming conventions, supporting ISA-5.1 instrument identification standards and facilitating faster troubleshooting during commissioning and operational phases.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days via express courier. Custom-configured panels with pre-installed barriers or special labeling require 10-15 business days for assembly and quality verification.

Warranty Coverage: 12-month manufacturer warranty protects against defects in materials and workmanship. Extended warranty programs available for critical spares inventory and long-term service agreements.

Technical Support: Our application engineering team provides pre-sales consultation for system design, installation guidance during commissioning, and troubleshooting assistance throughout the product lifecycle. Support includes wiring diagram review, grounding verification, and integration with third-party safety barriers.

Documentation Package: Each panel ships with installation manual, terminal assignment drawings, compliance certificates (IEC 61508, CE marking), and material traceability documentation required for nuclear and pharmaceutical applications.

Frequently Asked Questions

What digital output modules work with the 9674-810 termination panel?
The 9674-810 is compatible with all Triconex digital output modules including current production and legacy versions. This includes both 24VDC and 120VAC output modules, though you should verify voltage ratings match your field device requirements.

How many field wiring connections does this panel support?
Terminal capacity matches the associated Triconex DO module configuration, typically 16 or 32 output points per panel. Consult your module datasheet to confirm exact channel count and terminal arrangement.

Can I install the 9674-810 in Zone 2 hazardous locations?
The panel itself is rated for safe area installation. For hazardous area applications, mount the panel in a purged/pressurized enclosure or use intrinsically safe barriers between the panel and field devices located in classified zones.

What wire preparation is recommended for reliable connections?
Use stranded copper wire with ferrule terminations for optimal contact pressure and long-term reliability. Strip length should be 8-10mm. Torque terminal screws to 0.5-0.6 Nm per manufacturer specifications to prevent loosening from vibration.

Does the panel require separate grounding connections?
Yes, connect the panel's ground terminal to your system safety ground bus using 14 AWG minimum wire. Verify ground resistance below 1 ohm before energizing circuits. Proper grounding is essential for EMI immunity and personnel safety.

How do I verify proper installation before commissioning?
Perform continuity checks on all field wiring, verify terminal torque values, confirm module-to-panel seating, and conduct insulation resistance tests (minimum 10 megohms at 500VDC). Document all test results for your functional safety validation records.

Ready to Enhance Your Safety System Reliability?

Contact our technical sales team for application-specific guidance, volume pricing, or to request certified test reports for your project documentation. We support global shipping with expedited options for critical path projects and emergency replacement scenarios.
