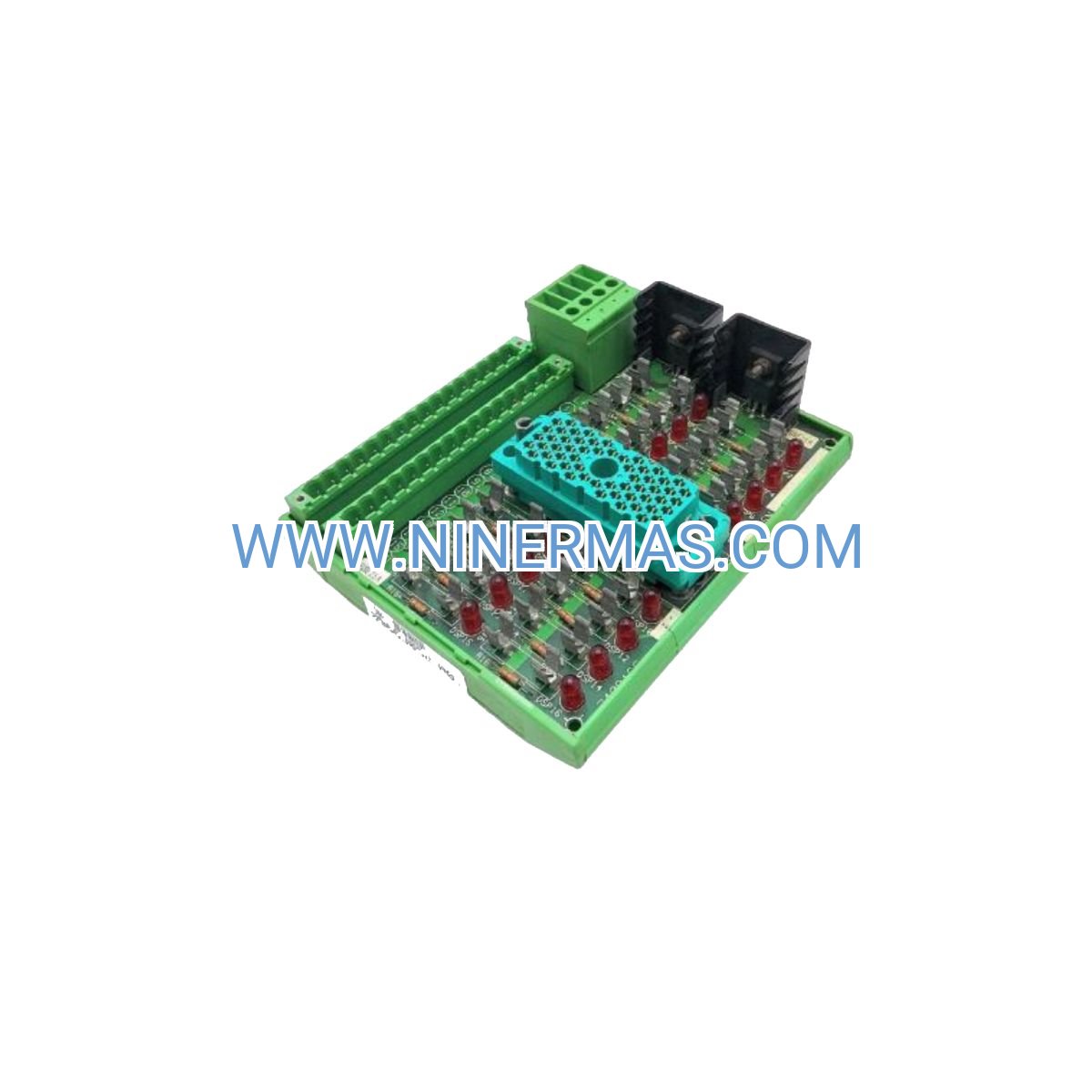

9662-820 Digital Output Termination Panel (Industrial-Grade TMR Interface)

The 9662-820 termination panel serves as the critical bridge between Triconex Triple Modular Redundant safety controllers and field-mounted actuators, valves, and alarm devices. Built to withstand extreme industrial conditions while maintaining SIL 3 integrity, this panel transforms complex TMR signal distribution into organized, maintainable wiring infrastructure for mission-critical safety applications.

Designed for process industries where downtime equals catastrophic risk, the 9662-820 addresses the fundamental challenge of connecting high-reliability safety logic to real-world output devices. Plant engineers and system integrators rely on this panel to eliminate wiring errors, accelerate commissioning timelines, and ensure long-term diagnostic accessibility in emergency shutdown systems, fire suppression networks, and turbomachinery protection schemes.

Whether you're retrofitting legacy Triconex installations or engineering greenfield safety instrumented systems, the 9662-820 delivers field-proven reliability with pre-labeled terminals, hot-swappable module support, and compliance-ready documentation that satisfies IEC 61508 audits and insurance underwriter requirements.

Core Features & Benefits

→ Triple Modular Redundancy Architecture
Native support for TMR voting logic ensures fault-tolerant signal paths from controller to field device, maintaining safety function integrity even during single-point failures or maintenance activities.

→ Vibration-Resistant Screw Terminals
Heavy-duty terminal blocks rated for 14-22 AWG conductors provide gas-tight connections that withstand continuous vibration in rotating equipment environments, eliminating nuisance faults from loose wiring.

→ Pre-Engineered Terminal Mapping
Factory-printed labels correspond directly to Triconex module channel assignments, reducing installation time by 40% and virtually eliminating cross-wiring errors during commissioning or troubleshooting.

✓ Extended Temperature Performance
Operates continuously from -40°C to +70°C without derating, making it suitable for unheated control buildings in Arctic installations or high-ambient environments near furnaces and reactors.

✓ Hot-Swap Maintenance Capability
Field wiring remains undisturbed during module replacement procedures, allowing technicians to swap failed I/O cards in under 5 minutes without process shutdown or re-termination work.

✓ Integrated Diagnostic Pathways
Supports Triconex TriStation monitoring for real-time loop health verification, enabling predictive maintenance strategies that identify degraded field wiring before safety function loss occurs.

Typical Application Scenarios

Emergency Shutdown Systems (ESD)
In offshore platforms and refinery units, the 9662-820 distributes final element commands to pneumatic valve actuators and motor-operated isolation valves. When process conditions exceed safe operating limits, the panel ensures simultaneous, redundant shutdown signals reach critical isolation points within mandated response times, preventing runaway reactions or hydrocarbon releases.

Fire & Gas Detection Networks
Chemical plants and LNG terminals use the 9662-820 to interface Triconex controllers with deluge valve solenoids, alarm horns, and suppression system actuators. The panel's SIL 3 rating maintains safety integrity from flame detector input through water curtain activation, meeting NFPA 72 and API RP 14C requirements.

Burner Management Systems
Power generation facilities and industrial boilers rely on the 9662-820 for fail-safe control of fuel gas valves, ignition transformers, and purge dampers. The panel's TMR architecture prevents single-point failures in combustion control loops, eliminating the risk of furnace explosions from stuck-open fuel valves or failed flame supervision.

Compressor Anti-Surge Protection
Centrifugal compressor trains in gas processing plants use the 9662-820 to drive anti-surge valve positioners and recycle valve actuators. Microsecond-level signal integrity prevents surge events that could destroy million-dollar rotating equipment, while hot-swap capability allows maintenance without production loss.

Reactor Interlock Systems
Pharmaceutical and specialty chemical batch reactors depend on the 9662-820 for interlocked control of agitator drives, cooling water valves, and emergency quench systems. The panel's diagnostic features enable 21 CFR Part 11 audit trails while maintaining process containment during abnormal operating conditions.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 9662-820 when your application requires SIL 3-rated output distribution for Triconex TMR controllers in environments with temperature extremes or vibration exposure. For applications needing intrinsic safety barriers, specify barrier-compatible terminal configurations during ordering. Consult factory documentation to verify compatibility with specific Triconex controller generations (Tricon v9, v10, v11, or Tricon CX platforms).

Extended Functions

IoT Integration Readiness: When paired with Triconex TriStation 1131 software and Schneider Electric EcoStruxure platforms, the 9662-820 enables cloud-based safety system monitoring, predictive analytics on output circuit health, and remote diagnostic access for multi-site operations.

Customization Options: Available with customer-specific terminal labeling, alternative wire gauge accommodations, and conformal coating for corrosive atmosphere protection. Consult engineering services for high-availability configurations requiring N+1 redundancy or seismic qualification.

Cybersecurity Compliance: Supports IEC 62443 security architectures when deployed within properly segmented control networks, maintaining safety function integrity against cyber threats in connected industrial environments.

Delivery & Service Assurance

Lead Time: Standard configuration units ship within 3-7 business days from regional distribution centers. Custom-labeled or certified configurations require 2-3 weeks for factory processing and quality verification.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, material failures, and workmanship issues. Extended warranty programs available for critical infrastructure applications requiring 5-year coverage.

Technical Support: Access to Triconex-certified application engineers for pre-sales system design review, installation guidance, and post-commissioning optimization. Support includes wiring diagram verification, loop testing procedures, and integration with existing DCS/SCADA systems.

Documentation Package: Each shipment includes installation manual, terminal assignment drawings, dimensional specifications, compliance certificates (CE, TÜV, IECEx where applicable), and material traceability records for asset management systems.

Frequently Asked Questions

How does the 9662-820 interface with older Triconex controller generations?
The panel maintains full backward compatibility with Tricon v9 through current Tricon CX platforms. Terminal assignments remain consistent across controller generations, allowing panel reuse during controller upgrade projects without field rewiring.

What wire preparation is recommended for optimal connection reliability?
Use stranded copper conductors with insulated ferrules crimped per manufacturer torque specifications (typically 0.5-0.6 Nm). Avoid solid wire in vibration-prone installations, and apply dielectric grease in corrosive environments to prevent terminal oxidation.

Can this termination panel be installed in Division 2 hazardous locations?
The 9662-820 is rated for safe area (non-hazardous) installation within control cabinets. For field devices in classified areas, install appropriate Zener barriers, galvanic isolators, or explosion-proof junction boxes between the panel and hazardous zone equipment.

What is the maximum cable run length from panel to field device?
Typical installations support 300-500 meters depending on cable capacitance and output module drive capability. For extended runs, consult voltage drop calculations and consider relay amplification or fiber optic converters for distances exceeding 1 kilometer.

Does the panel support online module replacement without safety system bypass?
Yes, TMR architecture allows hot-swapping of individual output modules while maintaining 2-out-of-3 voting integrity. Follow lockout/tagout procedures and verify module seating before returning channels to service.

Are replacement terminal blocks available for damaged connections?
Individual terminal blocks are field-replaceable using standard tools. Maintain spare terminal inventory for critical systems to minimize repair downtime. Contact technical support for part numbers and cross-reference guides.

Secure Your Safety System Infrastructure

Eliminate wiring complexity and enhance safety integrity with the proven 9662-820 termination panel. Our engineering team is ready to verify compatibility with your specific Triconex configuration, provide application-specific wiring diagrams, and expedite delivery to meet your project milestones.

Request a technical consultation today: Share your system architecture, I/O count requirements, and environmental conditions for personalized recommendations and volume pricing. We support global projects with localized inventory, certified documentation, and multilingual technical resources.
