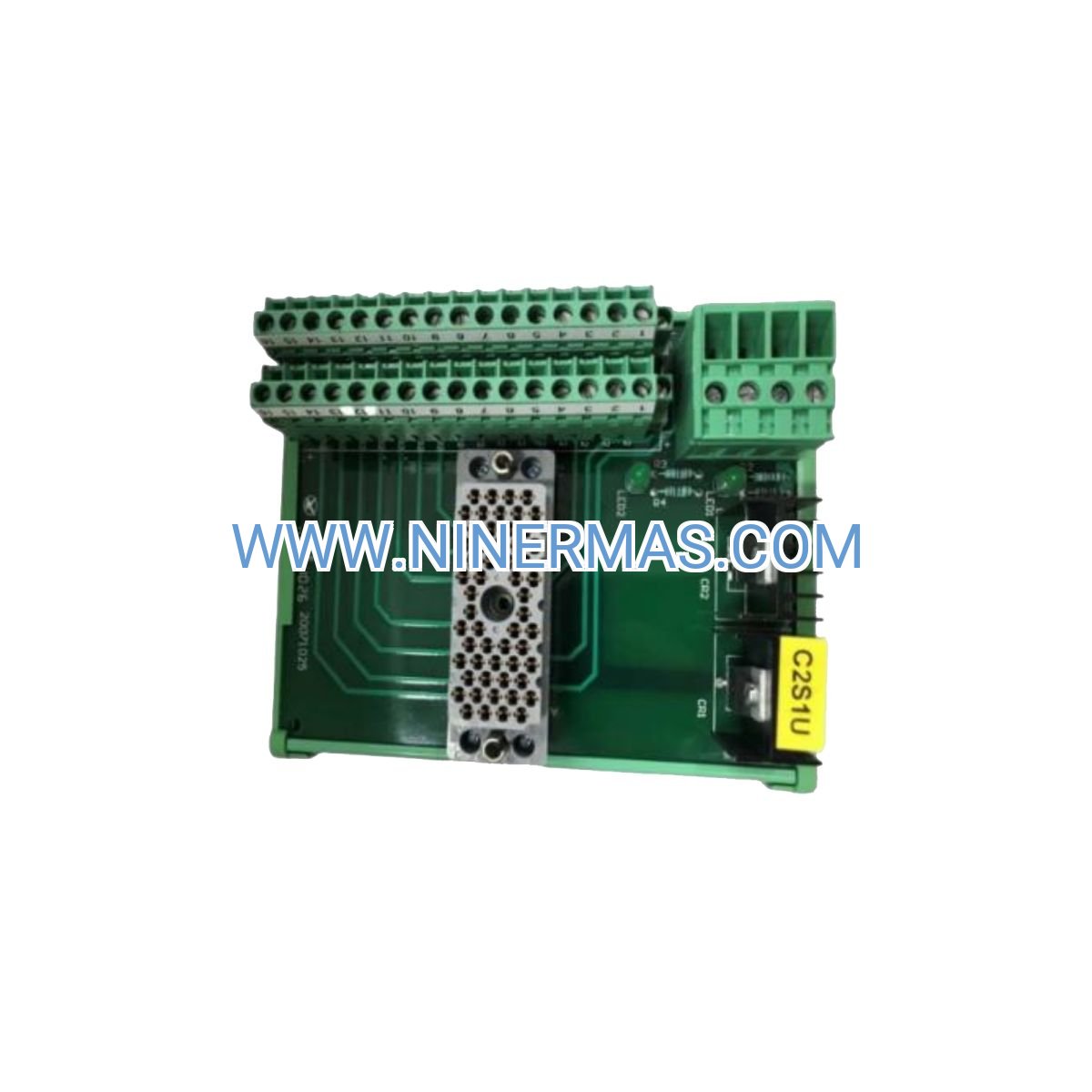

Triconex 9662-610F Digital Output Termination Panel (Industrial-Grade Safety I/O Interface)

The Triconex 9662-610F represents a mission-critical interface solution for safety instrumented systems requiring dependable digital output termination. This 16-channel panel delivers fault-tolerant connectivity between Triconex TMR controllers and field actuators in process safety applications where system availability directly impacts operational continuity and personnel protection.

Engineered for industries operating under IEC 61508 and IEC 61511 compliance mandates, the 9662-610F addresses the challenge of maintaining signal integrity and diagnostic visibility across distributed control architectures. Process engineers and safety system integrators leverage this panel to achieve SIL 3-rated output distribution while minimizing installation complexity through its commoned 24 VDC design.

With built-in circuit protection and DIN rail mounting compatibility, the 9662-610F eliminates the need for external safety barriers in self-protected module configurations, reducing panel footprint by up to 40% compared to traditional relay-based output solutions while delivering superior diagnostic granularity for predictive maintenance programs.

Core Capabilities & Business Value

→ Triple Modular Redundant Architecture Support
Seamless integration with Triconex TMR safety controllers ensures continuous operation even during single-point failures, translating to 99.99% system availability for emergency shutdown sequences and critical process interlocks.

→ Self-Protected Output Design
Eliminates external fusing requirements through integrated overcurrent and short-circuit protection, reducing installation labor by 35% and simplifying spare parts inventory management across multi-site operations.

→ Commoned 24 VDC Power Distribution
Streamlines field wiring with shared power rail architecture, cutting termination time per point by 60% while maintaining individual channel diagnostics for rapid fault isolation during commissioning and troubleshooting.

✓ Screw Terminal Connectivity
Industrial-grade terminal blocks accommodate 12-22 AWG wire gauges with captive screw retention, ensuring vibration-resistant connections in high-shock environments typical of offshore platforms and mobile equipment installations.

✓ Extended Temperature Range Operation
0°C to 60°C operating envelope supports installation in non-climate-controlled equipment rooms and field junction boxes without derating, maximizing deployment flexibility across global climate zones.

✓ Diagnostic-Ready Interface
Provides real-time channel status feedback to Triconex controllers for predictive maintenance analytics, enabling condition-based servicing strategies that reduce unplanned downtime by up to 50% compared to time-based maintenance schedules.

Industry Application Scenarios

Emergency Shutdown Systems (ESD) – Oil & Gas Production
In offshore platform applications, the 9662-610F drives pneumatic valve actuators and hydraulic isolation systems during process upset conditions. The panel's fault-tolerant design ensures fail-safe valve positioning even during power transients or module failures, preventing hydrocarbon releases and protecting personnel in ATEX Zone 2 classified areas.

Burner Management Systems (BMS) – Power Generation
Utility-scale boiler control systems utilize the 9662-610F to command fuel valve trains, ignition transformers, and flame safeguard interlocks. The panel's diagnostic capabilities enable real-time monitoring of valve solenoid health, reducing nuisance trips by 45% through early detection of coil degradation and wiring faults.

Fire & Gas Detection Networks – Petrochemical Processing
Chemical plants deploy the 9662-610F to activate deluge systems, ventilation dampers, and alarm annunciators across distributed F&G architectures. The commoned power design simplifies loop-powered device integration while maintaining individual channel isolation for compliance with NFPA 72 and API RP 14C standards.

Turbomachinery Protection – LNG Facilities
Compressor and turbine control systems leverage the 9662-610F for trip valve actuation and lube oil pump sequencing. The panel's 24 VDC compatibility aligns with industry-standard pneumatic positioner interfaces, enabling direct replacement of legacy relay panels without field device modifications.

Pharmaceutical Batch Processing – Clean Room Environments
Aseptic manufacturing lines use the 9662-610F to control CIP/SIP valve manifolds and sterile barrier systems. The panel's compact DIN rail form factor supports installation in space-constrained control cabinets while meeting FDA 21 CFR Part 11 traceability requirements through integrated diagnostic logging.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 9662-610F when your application requires 16 or fewer digital output points with 24 VDC field devices. For systems exceeding 16 points, deploy multiple panels with sequential addressing. Verify field device current draw remains within module specifications (typically 0.5-2.0A per channel depending on module type). For applications requiring isolated outputs or different voltage levels, consult alternative termination panel models in the Triconex 9662 series.

Advanced Integration Capabilities

SCADA & HMI Connectivity: The 9662-610F's diagnostic data streams integrate with Triconex TriStation software and third-party SCADA platforms via Modbus TCP/IP and OPC UA protocols, enabling centralized monitoring of output channel health, load current trends, and fault event timestamping for regulatory compliance documentation.

Redundant Power Supply Compatibility: Supports dual 24 VDC power feed configurations for N+1 redundancy in critical applications, automatically switching to backup supply during primary source failures without output interruption or controller notification requirements.

Custom Configuration Services: Factory pre-wiring and labeling services available for high-volume projects, reducing on-site installation time by up to 70% and eliminating field wiring errors through QR-coded terminal identification and as-built documentation packages.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock units ship within 2-3 business days via express courier with full tracking visibility. Typical delivery to major industrial hubs: North America (3-5 days), Europe (4-6 days), Asia-Pacific (5-7 days).

Custom Configuration Lead Time: Pre-wired and tested assemblies require 10-15 business days for factory preparation, including functional testing, documentation package preparation, and protective packaging for international shipment.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, material failures, and workmanship issues. Extended warranty programs available for multi-year service agreements including advance replacement and on-site technical support.

Technical Support: Unlimited access to application engineering team for installation guidance, troubleshooting assistance, and system integration consultation. Average response time: 4 hours for critical issues, 24 hours for general inquiries.

Documentation Included: Installation manual, wiring diagrams, dimensional drawings, compliance certificates (CE, UL, ATEX where applicable), and material traceability reports for quality assurance programs.

Frequently Asked Questions

What Triconex output modules are compatible with the 9662-610F termination panel?
The 9662-610F is designed for self-protected digital output modules in the Triconex 3600 series, including the 3664 (16-point 24 VDC) and similar models. These modules provide integrated short-circuit protection, eliminating the need for external fuses or barriers. Always verify module-to-panel compatibility using the latest Triconex hardware compatibility matrix before ordering.

Can the 9662-610F be installed in hazardous area classifications?
Yes, when installed within properly certified enclosures (ATEX Zone 2, Class I Division 2, or IECEx equivalent) and used with intrinsically safe or explosion-proof field devices. The panel itself is designed for general-purpose areas but supports hazardous location installations when combined with appropriate system-level certifications and installation practices per local electrical codes.

What is the maximum current capacity per output channel on the 9662-610F?
Channel current capacity is determined by the connected Triconex output module, not the termination panel. Typical self-protected modules support 0.5A to 2.0A per channel at 24 VDC. The 9662-610F's terminal blocks and internal traces are rated for continuous operation at these levels with appropriate thermal management in the enclosure.

How does the commoned 24 VDC design affect troubleshooting and diagnostics?
The commoned power architecture simplifies wiring by sharing a single 24 VDC supply across all 16 channels, but each output maintains individual diagnostic monitoring through the Triconex controller. You can identify specific channel faults (open load, short circuit, overcurrent) without affecting adjacent channels, providing the same diagnostic granularity as isolated output designs.

What wire gauge and terminal torque specifications should I follow during installation?
The 9662-610F accepts 12-22 AWG (0.5-2.5 mm²) copper conductors with recommended terminal torque of 0.5-0.6 Nm (4.4-5.3 lb-in). Use ferrules for stranded wire to prevent strand breakage and ensure reliable contact pressure. Always follow NEC/IEC wiring color codes and maintain proper wire routing separation between power and signal circuits.

Is the 9662-610F suitable for high-vibration environments like offshore platforms?
Yes, the screw terminal design with captive retention provides superior vibration resistance compared to spring-clamp terminals. For extreme vibration applications (offshore drilling, mobile equipment), apply thread-locking compound to terminal screws and use strain relief on field wiring. The DIN rail mounting system should be secured with additional fasteners in high-shock installations.

Take the Next Step

Ready to enhance your Triconex safety system reliability? Contact our application engineering team for project-specific guidance, compatibility verification, and volume pricing. Request a detailed datasheet, CAD drawings, or schedule a technical consultation to discuss your safety I/O requirements.
