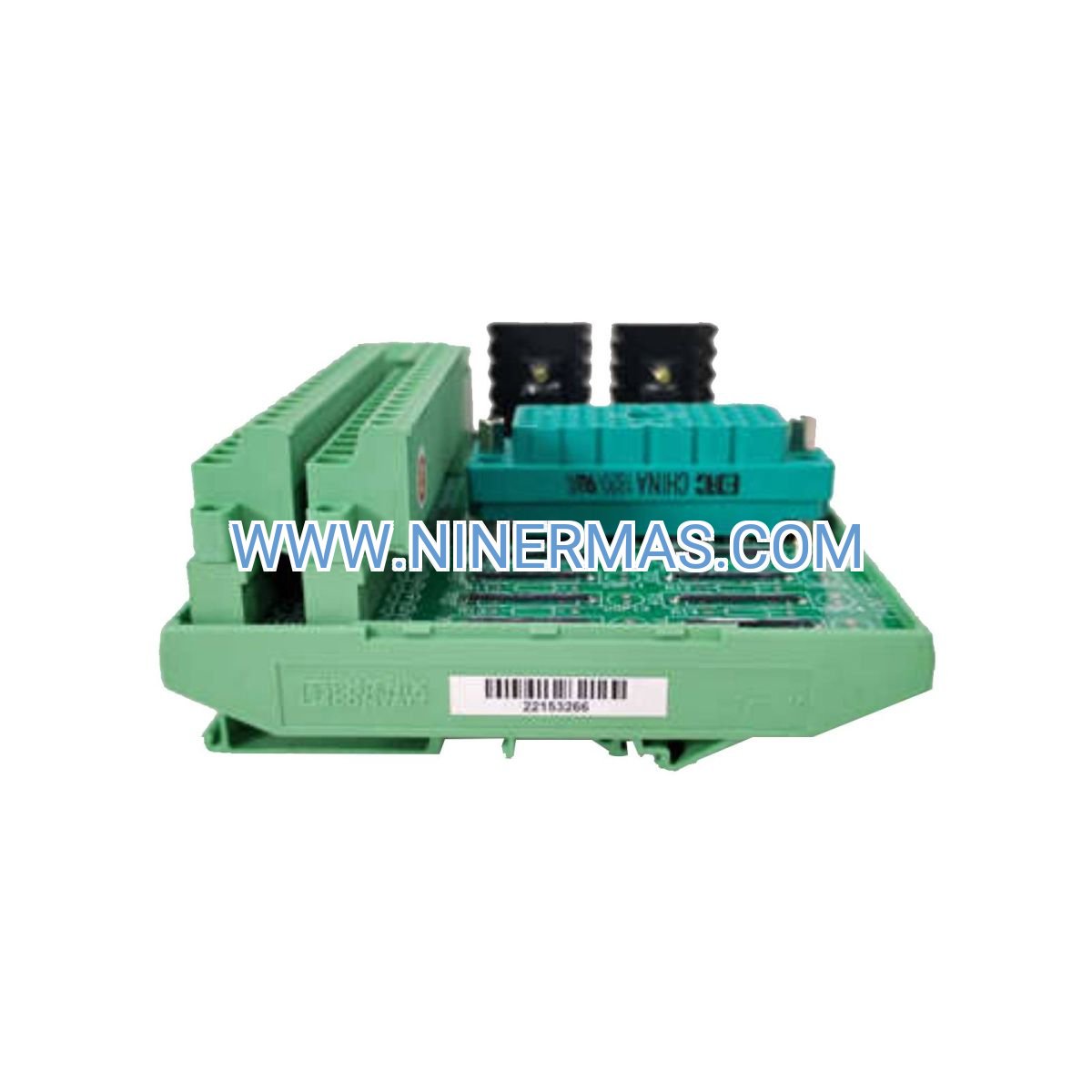

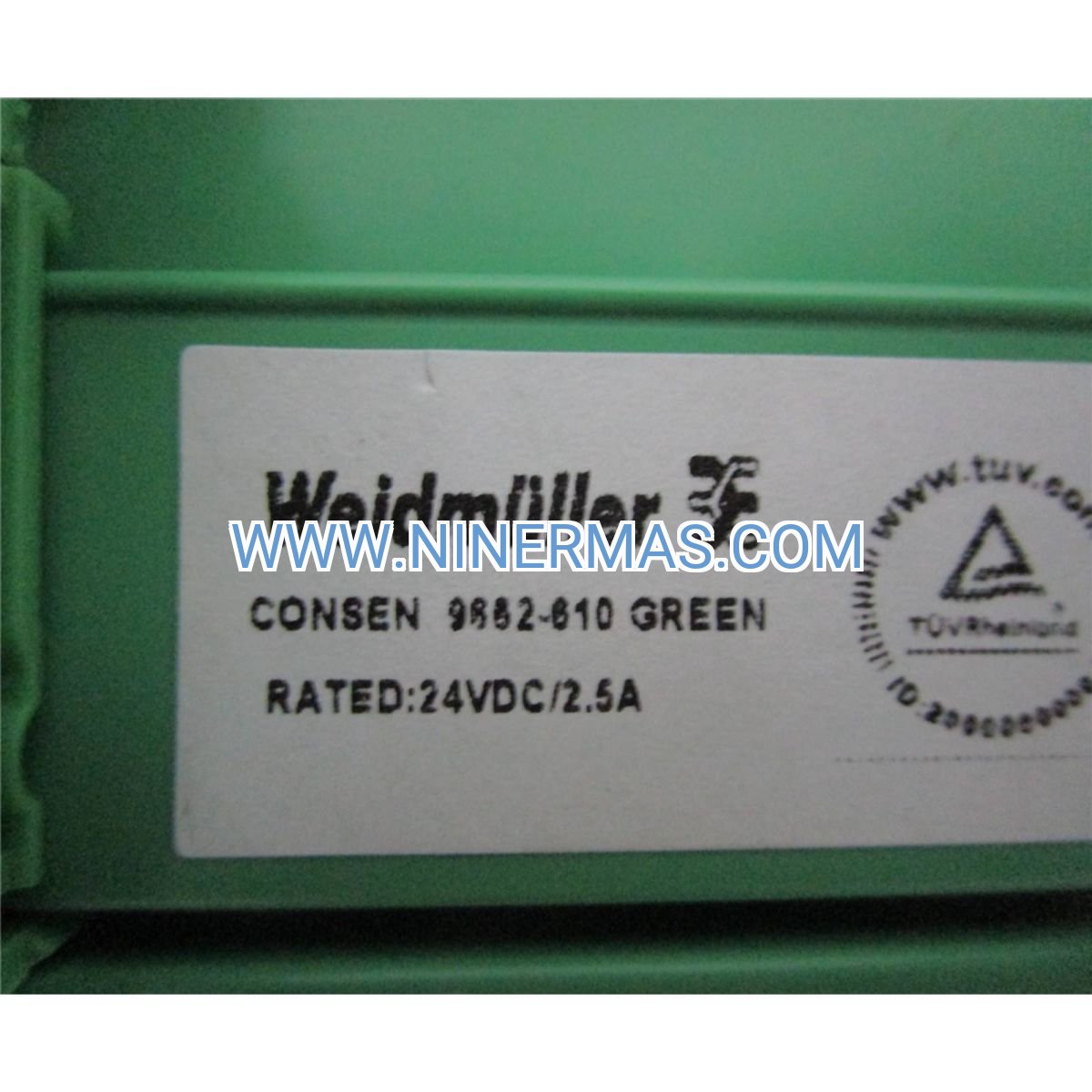

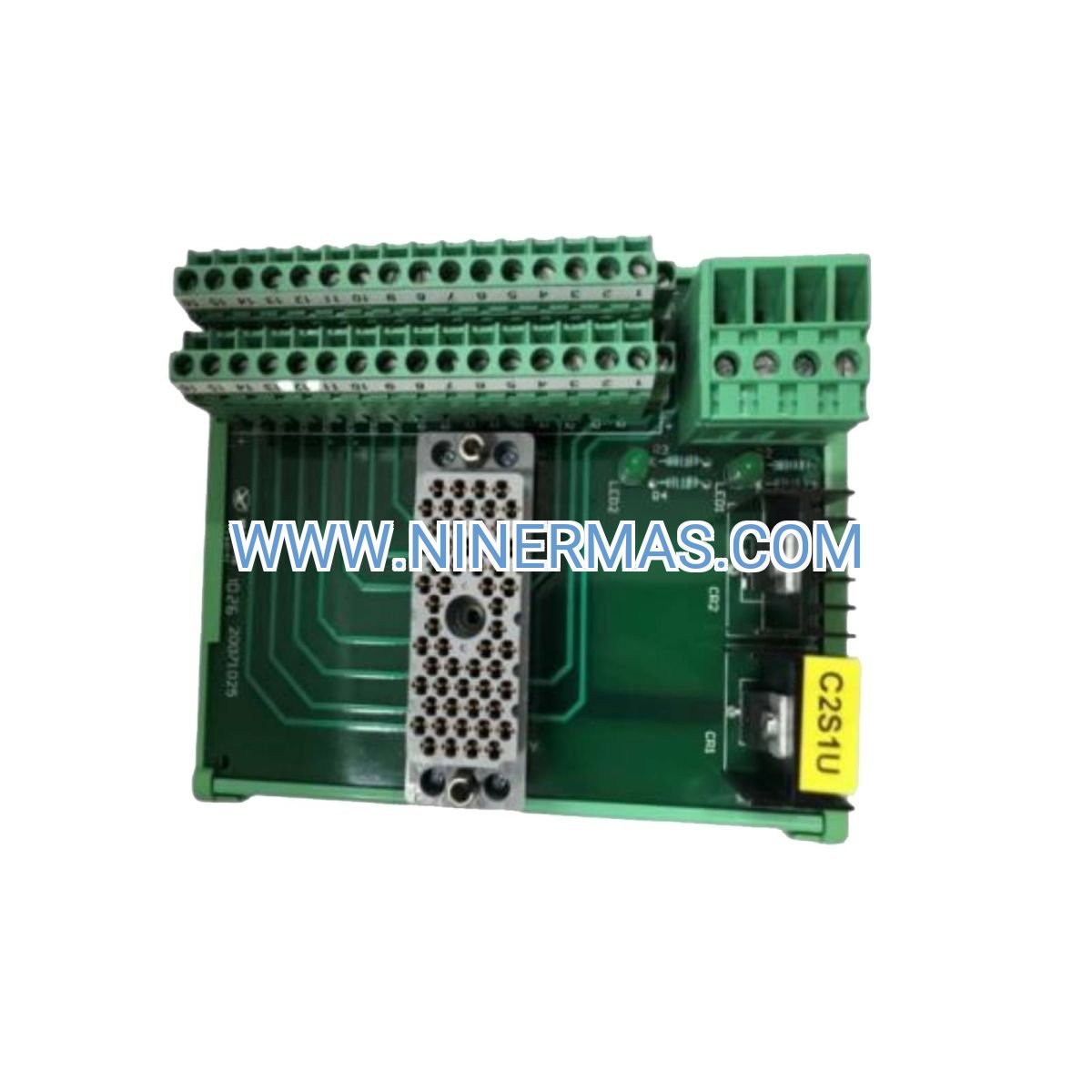

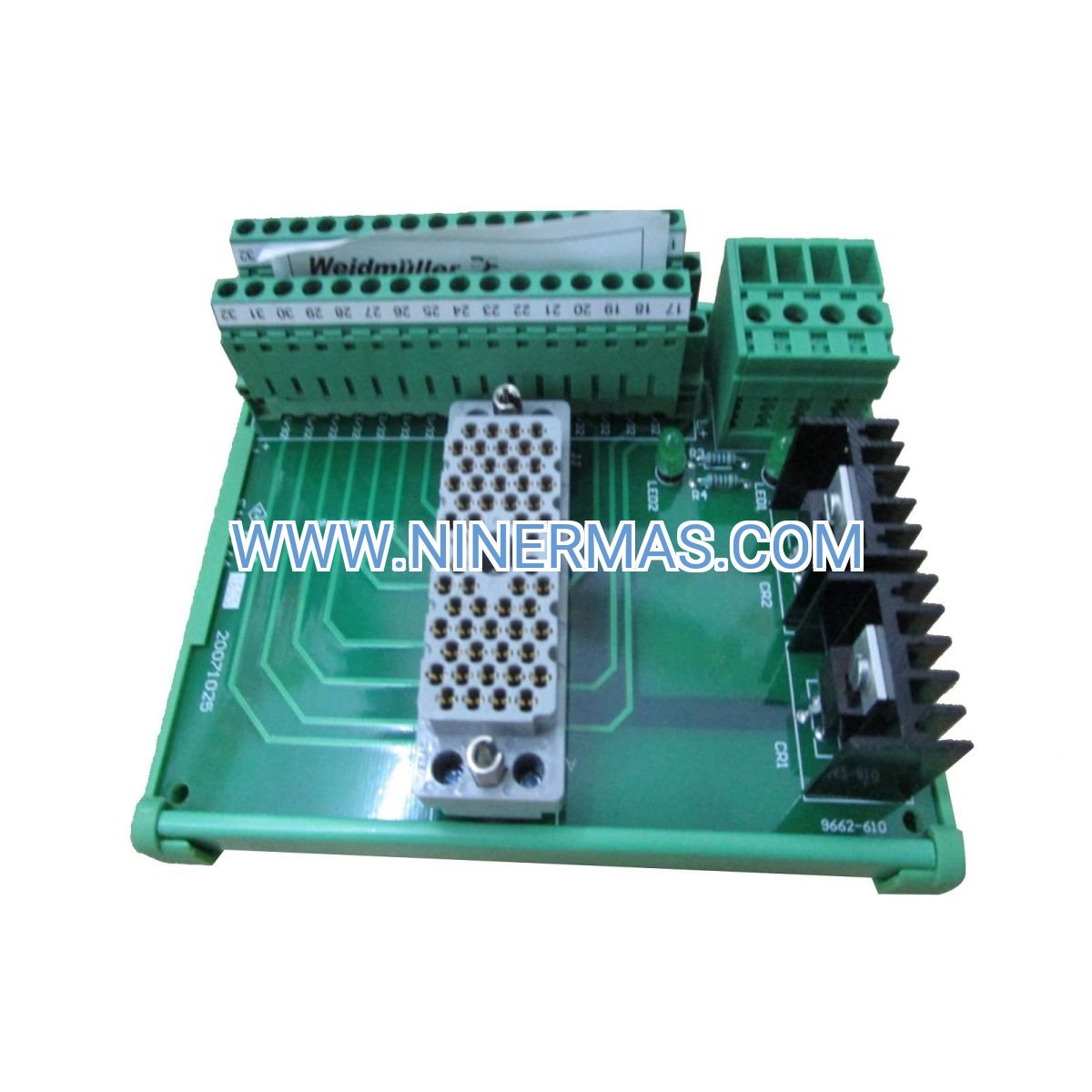

9662-610 Digital Output Termination Panel (Industrial-Grade TMR Interface)

The 9662-610 represents a mission-critical interface solution for Triple Modular Redundant safety instrumented systems, specifically engineered to bridge Triconex safety controllers with field actuators in high-consequence industrial environments. This termination panel delivers fault-tolerant 24VDC digital output distribution with continuous self-diagnostics, enabling safety integrity level 3 (SIL 3) applications across oil & gas, petrochemical, power generation, and process manufacturing sectors.

Designed for engineers and plant operators managing emergency shutdown systems, fire & gas detection networks, and burner management platforms, the 9662-610 eliminates single points of failure through its TMR architecture while simplifying installation with hot-swappable design and tool-free field wiring access. Whether you're upgrading legacy safety systems or commissioning new installations, this termination panel provides the reliability foundation your critical operations demand.

With IEC 61508 SIL 3 certification, opto-isolated channels, and self-protected outputs, the 9662-610 reduces engineering complexity while maximizing diagnostic coverage—delivering measurable improvements in system availability, mean time to repair, and total cost of ownership.

Core Features & Benefits

✓ Triple Modular Redundant Architecture
Three independent output channels operate in parallel with continuous voting logic, automatically detecting and isolating faults without process interruption. This design achieves >99.9% probability of safe operation while maintaining full diagnostic coverage for predictive maintenance.

✓ Opto-Isolated Signal Conditioning
Each output channel features galvanic isolation up to 1500VAC, eliminating ground loop interference and protecting controller electronics from field voltage transients. Reduces commissioning time by 30-40% compared to non-isolated designs.

✓ Self-Protected Output Circuits
Integrated short-circuit and overload protection prevents damage from field wiring errors or actuator faults. Automatic current limiting and thermal shutdown safeguard both the panel and connected devices, reducing spare parts inventory requirements.

✓ Hot-Swappable Maintenance
Replace failed termination panels during operation without safety system shutdown or process interruption. Reduces mean time to repair (MTTR) from hours to minutes, directly improving overall equipment effectiveness (OEE).

✓ Real-Time LED Diagnostics
Channel-level status indicators provide instant visibility into output state, fault conditions, and power supply health. Accelerates troubleshooting during commissioning and reduces diagnostic time by up to 60% during unplanned events.

✓ DIN Rail Mounting System
Standardized mounting footprint integrates seamlessly with existing panel layouts. Tool-free installation and removal streamline both new construction and retrofit projects.

Application Scenarios

→ Emergency Shutdown Systems (ESD)
Command pneumatic and hydraulic isolation valves, motor contactors, and safety interlocks during process upsets or equipment failures. The 9662-610's TMR voting ensures fail-safe actuation even with single-channel faults, meeting IEC 61511 requirements for high-demand safety functions.

→ Fire & Gas Detection Networks
Interface with alarm annunciators, HVAC damper actuators, deluge valve solenoids, and suppression system controls. Opto-isolation prevents false trips from electrical noise in high-EMI environments common to offshore platforms and chemical plants.

→ Burner Management Systems (BMS)
Control fuel valve actuators, ignition transformers, and flame monitoring relay circuits in boiler, furnace, and heater applications. Self-protected outputs withstand the harsh electrical environments typical of combustion control systems.

→ Turbomachinery Protection
Actuate trip solenoids, lube oil pump starters, and auxiliary system controls for compressor and turbine safeguarding. Hot-swap capability enables maintenance during planned outages without extending downtime windows.

→ Pipeline & Terminal Automation
Manage pump motor starters, block valve actuators, loading rack permissive circuits, and overfill prevention devices. Rugged construction withstands temperature extremes and vibration common to midstream and downstream facilities.

Technical Parameters & Selection Guide

Selection Criteria: Verify compatibility with your Triconex controller platform (Tricon CX, Tricon v10, Trident) and I/O chassis configuration. Confirm field power supply capacity supports total output load current plus 20% margin. For applications requiring >2A per channel, consider parallel output configurations or higher-capacity termination panels. Consult factory for custom configurations supporting non-standard voltage ranges or extended temperature operation.

Extended Functions

Advanced Diagnostic Integration: The 9662-610 supports comprehensive health monitoring through the TriStation engineering workstation, providing real-time visibility into channel status, fault history, and predictive maintenance indicators. Diagnostic data integrates with plant-wide asset management systems via OPC UA and Modbus TCP protocols.

Cybersecurity Hardening: When deployed with Triconex CX controllers, the termination panel benefits from embedded security features including secure boot, encrypted configuration files, and role-based access control—meeting IEC 62443 industrial cybersecurity standards.

Customization Options: Factory-configured variants support specialized requirements including conformal coating for corrosive atmospheres, extended temperature ratings for extreme climates, and custom labeling for plant-specific nomenclature. Contact our application engineering team for project-specific modifications.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-configured or customized panels
Warranty Coverage: 12-month comprehensive warranty covering materials, workmanship, and factory defects
Technical Support: Unlimited application engineering assistance including configuration review, integration guidance, and troubleshooting support via phone, email, and remote desktop
Documentation Package: Complete installation manual, wiring diagrams, dimensional drawings, safety certification documents, and TriStation configuration files included with every shipment

Advance Exchange Program: Minimize downtime with our 24-hour advance replacement service for critical applications. Failed units ship back using pre-paid logistics for root cause analysis and warranty processing.

Frequently Asked Questions

How does the 9662-610 termination panel integrate with existing Triconex safety controllers?
The 9662-610 connects directly to Triconex digital output modules (such as the 3664 or 4351B) via the I/O chassis backplane. No external wiring or interface cards required—simply install the termination panel in the designated chassis slot and configure channel assignments through TriStation software. Compatible with all Triconex TMR platforms including legacy Tricon v9/v10 and current Tricon CX systems.

What field power supply specifications are required for the 9662-610 output circuits?
A dedicated 24VDC field power supply rated for total output load current plus 25% margin is required. Recommend redundant power supplies with diode-OR configuration for critical applications. Controller backplane power is separate and supplied via the Triconex chassis power modules. Ensure field supply meets IEC 61131-2 requirements for industrial control equipment.

Can I perform online replacement of a 9662-610 panel without shutting down the safety system?
Yes, the TMR architecture enables hot-swap replacement while maintaining full safety functionality. Follow the documented hot-swap procedure: verify redundant channels are healthy, remove failed panel, install replacement, and allow automatic synchronization (typically <30 seconds). The safety system continues normal operation throughout the replacement process with no loss of protection.

What diagnostic capabilities does the 9662-610 provide for predictive maintenance?
Each channel features continuous self-diagnostics including output current monitoring, short-circuit detection, open-load detection, and power supply health checks. Diagnostic data logs to the Triconex controller for trending analysis, with configurable alarm thresholds for proactive maintenance scheduling. LED indicators provide local status visibility without requiring TriStation connection.

Does the 9662-610 support installation in hazardous area classifications?
The 9662-610 carries ATEX Zone 2, IECEx, and FM Class I Division 2 approvals for installation in hazardous locations when properly installed per certification requirements. For Zone 1 or Division 1 applications, the panel must be installed in a purged/pressurized enclosure meeting NFPA 496 or IEC 60079-2 standards. Consult certification documentation for specific installation restrictions.

What is the maximum cable length between the 9662-610 and field devices?
Maximum recommended cable length is 300 meters (1000 feet) using shielded twisted-pair cable with minimum 18 AWG conductors. For longer runs, consider using remote I/O concentrators or signal repeaters. Cable voltage drop should not exceed 2V at maximum load current to ensure reliable actuator operation. Follow Triconex installation guidelines for cable routing, grounding, and shield termination practices.

Ready to Enhance Your Safety System Reliability?

The 9662-610 termination panel delivers the fault-tolerant interface your critical operations demand. Contact our application engineering team today for configuration assistance, compatibility verification, or project-specific quotations. We provide rapid-response technical support to keep your safety systems operating at peak performance.

Request a quote now or speak with a safety system specialist at +0086 187 5021 5667.
