Triconex 9662-110 | SIL 3 Digital Output Termination Panel 24VDC

Triconex 9662-110 — Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

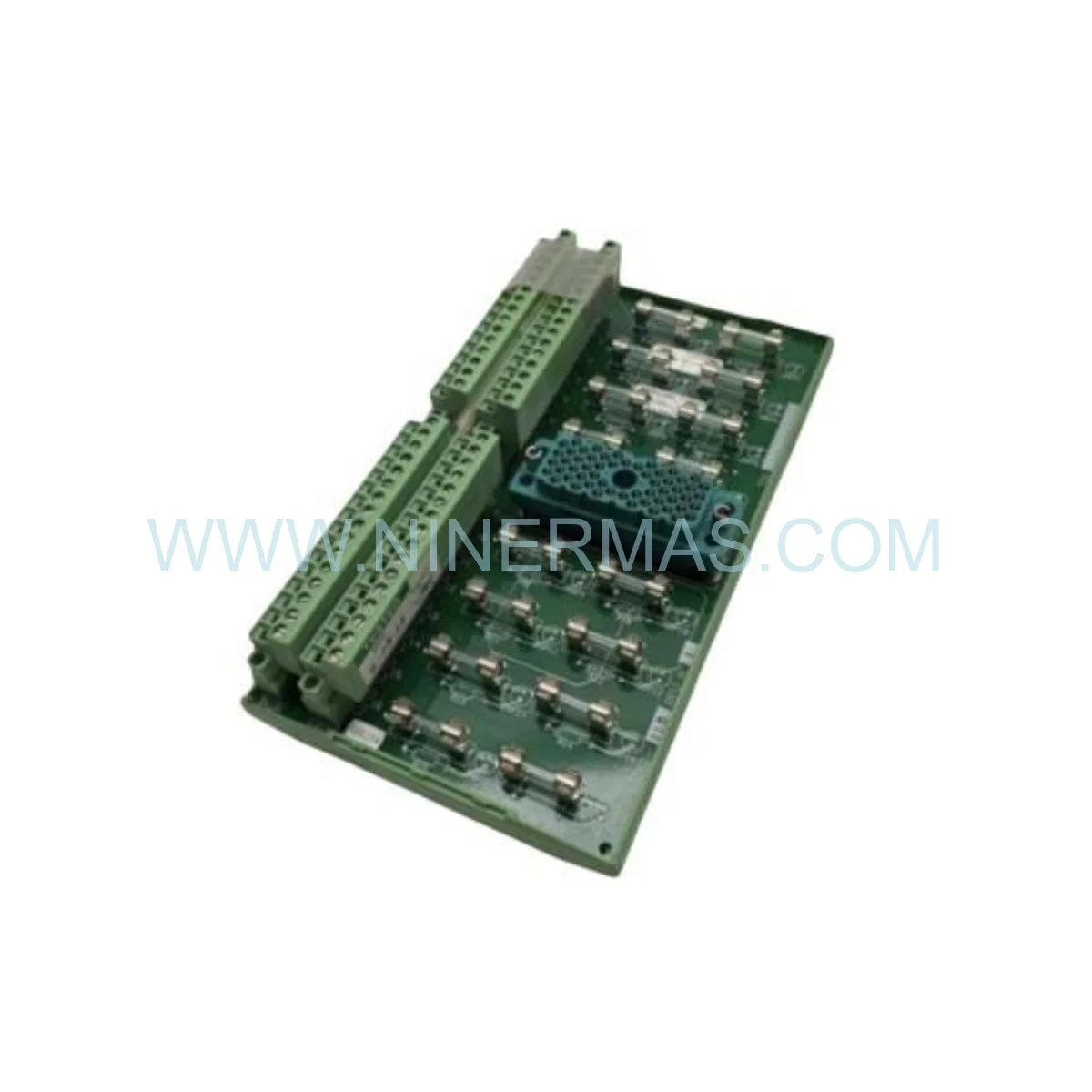

As a certified industrial compliance consultant, the Triconex 9662-110 represents a cornerstone component in maintaining the operational integrity of safety instrumented systems (SIS) deployed across high-consequence industrial environments. The Triconex 9662-110 Digital Output Termination Panel provides a structured, standards-aligned field wiring interface for 24 VDC digital output modules, delivering 16 independent, non-commoned output channels with integrated per-channel fuse protection — a configuration that directly supports IEC 61508 and IEC 61511 compliance mandates for functional safety architectures.

Within the framework of Industry 4.0 and evolving digital plant architectures, the long-term compatibility of this termination panel with Triconex TMR (Triple Modular Redundancy) controllers ensures sustained system performance across extended operational lifecycles. Its backward compatibility with legacy Tricon and Trident platforms, combined with forward integration capability into TriStation-managed environments, positions it as a strategically sound asset for organizations pursuing phased modernization without compromising safety integrity levels.

As a factory-certified original component, the 9662-110 undergoes rigorous quality control validation at the point of manufacture, ensuring that every unit delivered to the field meets the exacting tolerances required for SIL 3-rated safety loops. Substituting this component with non-OEM alternatives introduces unquantifiable risk into the safety lifecycle — a risk that no responsible asset manager should accept in critical process environments.

Compliance & Safety Benchmarks

✅ SIL 3 Rated Architecture: Fully compliant with IEC 61508 functional safety standards, supporting the highest safety integrity level requirements for emergency shutdown and process safety applications.

✅ Non-Commoned Output Design: Each of the 16 output channels operates independently, preventing fault propagation and preserving system-level safety integrity under single-point failure conditions.

Integrated Fuse Protection: Per-channel fusing adheres to standard adherence requirements for overcurrent protection in safety-critical field wiring, reducing the risk of cascading failures.

✅ LED Diagnostic Indicators: Real-time visual status confirmation per output channel supports rapid fault identification and minimizes mean time to repair (MTTR) in compliance with operational excellence benchmarks.

Certified Original Documentation: Each unit is supplied with original documentation, including factory test records and compliance certificates, supporting full traceability throughout the asset lifecycle.

✅ Environmental Durability: Rated for continuous operation from 0°C to 60°C (32°F to 140°F), ensuring reliable performance across diverse industrial installation environments.

Vertical Industry Integration & Optimization

The Triconex 9662-110 delivers measurable process optimization value across a spectrum of precision-critical industries where compliance standards and system performance are non-negotiable:

Oil & Gas: In upstream and downstream facilities, this termination panel serves as the field interface for emergency shutdown (ESD) valve actuators and fire and gas detection system outputs, where SIL 3 certification is a regulatory prerequisite. Its non-commoned architecture ensures that a single field wiring fault cannot compromise adjacent safety loops.

Pharmaceutical & Life Sciences: GMP-regulated manufacturing environments demand full component traceability and validated system configurations. The 9662-110’s original documentation package supports 21 CFR Part 11 and EU Annex 11 validation requirements, reducing qualification effort during system lifecycle reviews.

Chemical Processing: In exothermic reaction management and hazardous material handling systems, the panel’s per-channel fuse protection and LED diagnostics enable rapid isolation of field faults without requiring full system shutdown, supporting asset optimization and minimizing unplanned downtime.

Semiconductor Fabrication: Ultra-clean process environments require components with documented material compliance and stable long-term performance. The 9662-110’s robust construction and certified reliability make it a preferred choice for fab safety interlock systems.

Power Generation: Turbine protection and boiler management systems rely on deterministic output response times. The termination panel’s direct compatibility with Triconex TMR output modules ensures that protective relay actuation signals are delivered with the timing precision required for turbine trip and load shedding applications.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every Triconex 9662-110 unit is dispatched in its original factory-sealed packaging, preserving the integrity of all internal components and ensuring that the unit arrives in a condition identical to its state at the point of manufacture. This is a non-negotiable requirement for components deployed in SIL-rated safety loops.

Rapid Global Logistics: Our fulfillment infrastructure supports expedited international shipping to all major industrial regions, with full export documentation, customs compliance support, and real-time shipment tracking. Critical spare part requirements — including emergency plant shutdowns and scheduled turnaround maintenance — are accommodated through priority dispatch protocols.

12-Month Quality Guarantee for Legacy Systems: All units are covered by a comprehensive 12-month quality guarantee, addressing manufacturing defects and material non-conformances. This extended warranty support is specifically structured to accommodate the extended procurement and validation cycles characteristic of legacy safety system environments, providing asset managers with the confidence required for long-term operational planning.

Technical Support & Original Documentation: Our engineering support team provides application-specific guidance, including module compatibility verification, fuse selection consultation, and system integration advisory services. All units are supplied with original documentation to support installation qualification (IQ) and operational qualification (OQ) processes.

Expert Technical FAQ

Q: Does the Triconex 9662-110 maintain its SIL 3 certification when integrated into a mixed-generation Triconex system?
A: Yes. The 9662-110 is designed for backward compatibility with legacy Tricon and Trident architectures as well as current TriStation-managed configurations. Provided that the overall safety loop design adheres to IEC 61511 requirements and the system safety lifecycle documentation is maintained, SIL 3 integrity is preserved. A formal functional safety assessment (FSA) should be conducted whenever new components are introduced into an existing certified safety loop.

Q: What environmental conditions could compromise the compliance standards of the 9662-110 in field installations?
A: Operating the panel outside its rated temperature range (0°C to 60°C) or exposing it to humidity levels exceeding the manufacturer’s specifications can degrade insulation resistance and fuse element integrity, potentially affecting safety integrity. Installations in harsh environments should incorporate appropriate enclosure ratings (minimum IP54) and climate control measures to maintain compliance standards.

Q: How does the non-commoned architecture of the 9662-110 contribute to system performance in a multi-loop ESD application?
A: The non-commoned design ensures complete electrical isolation between individual output channels. In a multi-loop ESD application, this means that a ground fault or short circuit on one output channel cannot propagate to adjacent channels, preserving the independence of each safety function as required by IEC 61511 Clause 9. This architecture is fundamental to achieving the required probability of failure on demand (PFD) for SIL 3 safety functions.

Q: What firmware version and configuration tool are required for commissioning the 9662-110 within a TriStation environment?
A: The 9662-110 is a passive termination panel and does not contain firmware. Configuration is managed at the controller and output module level within TriStation 1131. Ensure that the connected digital output module (e.g., 3625A or 3625N) is running a firmware version validated for your specific TriStation release. Consult the Triconex System Planning Guide for module-to-termination panel compatibility matrices.

Q: How should the 9662-110 be handled and stored to preserve its asset optimization value as a critical spare?
A: Store in original factory packaging in a climate-controlled environment (15°C to 35°C, relative humidity below 60%, non-condensing). Avoid exposure to electrostatic discharge (ESD) by maintaining anti-static packaging until installation. Conduct periodic visual inspections of stored units as part of your spare parts lifecycle management program. Document storage conditions in your asset management system to support traceability requirements during future audits.

Q: Is it permissible to replace individual fuses in the 9662-110 with non-OEM alternatives during maintenance?
A: While physically possible, substituting non-OEM fuses introduces risk to the compliance standards of the safety loop. The original fuse specifications are selected to meet the overcurrent protection requirements validated during the component’s safety certification process. Use only manufacturer-specified replacement fuses and document all maintenance activities in the safety management system to maintain the integrity of the safety lifecycle record.
