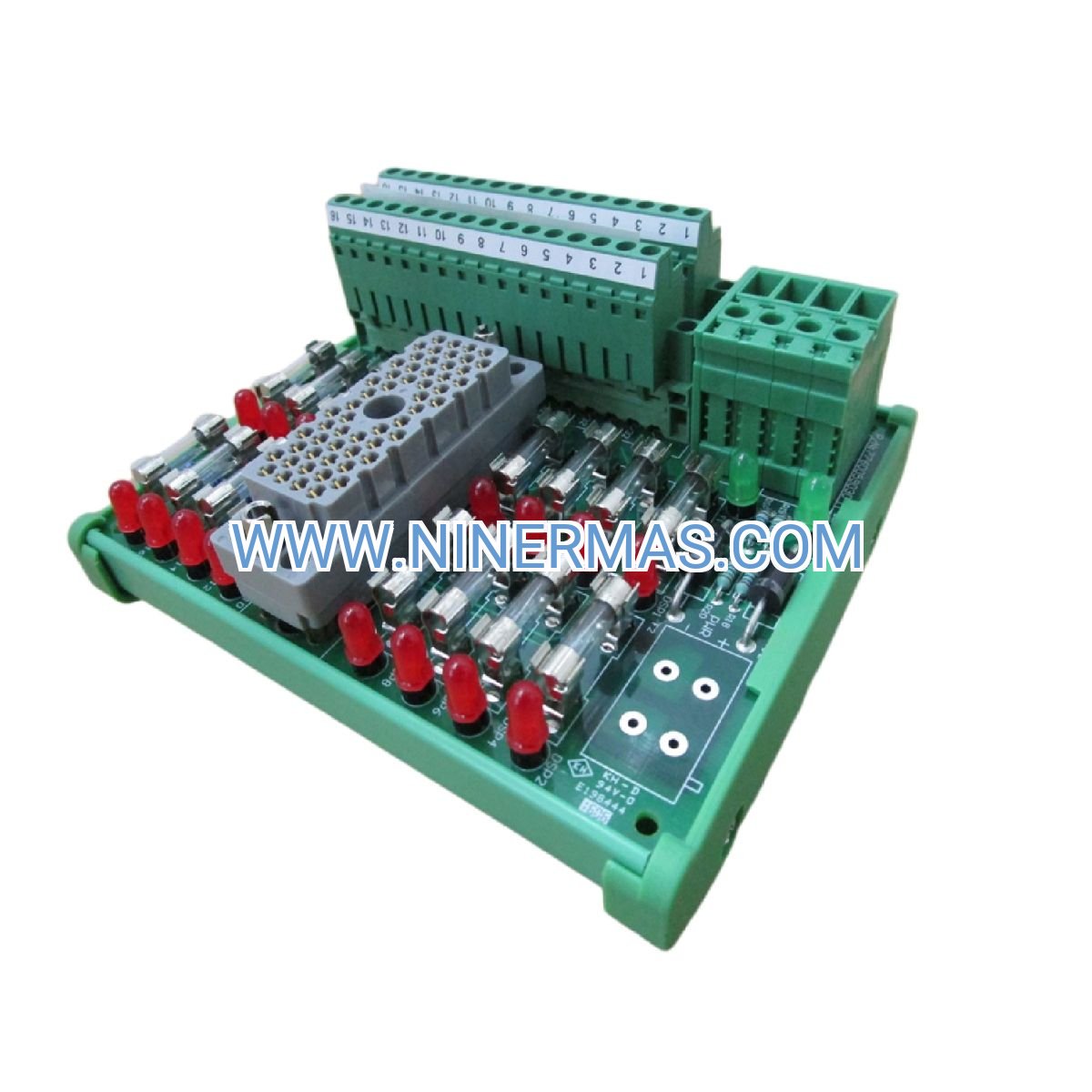

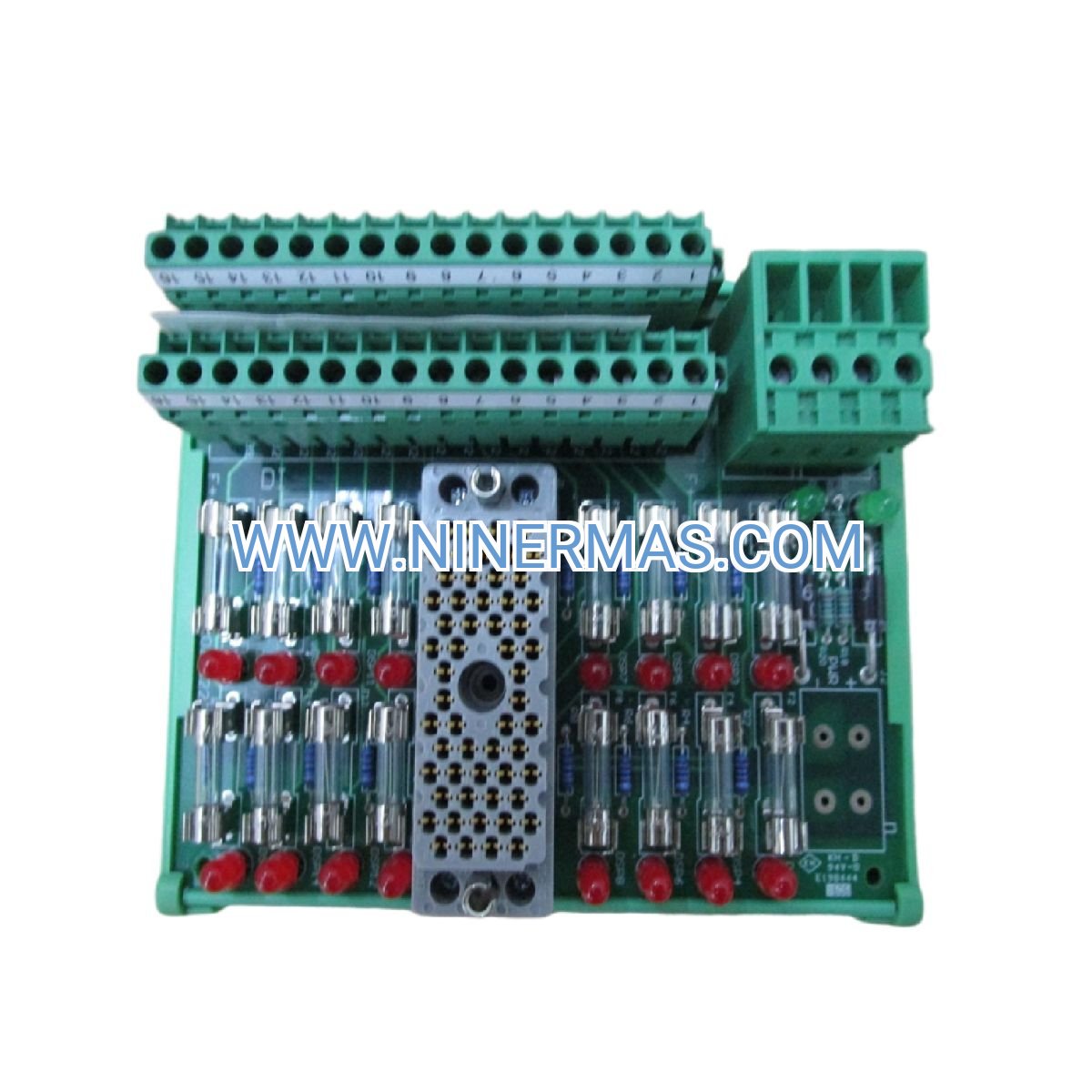

9563-8XX TMR Digital Input Panel (Industrial-Grade Safety Interface)

The 9563-8XX represents a field-proven termination solution for Triple Modular Redundant safety architectures in high-consequence industrial environments. This interface panel bridges critical field instrumentation—emergency stops, flame detectors, pressure switches, and process interlocks—to Triconex safety logic solvers with fault-tolerant signal integrity.

Designed for process industries where unplanned shutdowns cost millions and safety failures carry catastrophic risk, the 9563-8XX delivers deterministic signal routing with built-in diagnostics. Plant engineers rely on this panel to maintain SIL 3 integrity across oil refineries, chemical reactors, power stations, and offshore platforms where equipment uptime and personnel safety are non-negotiable.

Whether you're upgrading legacy DCS systems, expanding existing Triconex installations, or commissioning greenfield safety instrumented systems, the 9563-8XX provides standardized connectivity that reduces engineering hours, simplifies maintenance, and ensures regulatory compliance across IEC 61508 and IEC 61511 frameworks.

Core Features & Benefits

→ Triple Modular Redundancy (TMR) Signal Processing
Three independent input channels per point eliminate single-point failures. Voting logic in the Triconex controller compares all three signals, automatically masking faulty channels while maintaining full operational capability—critical for continuous process operations.

→ Hot-Swappable Architecture for Zero-Downtime Maintenance
Replace failed components during live operation without interrupting safety functions. Field technicians can swap termination assemblies in under 5 minutes, reducing mean time to repair (MTTR) by 70% compared to traditional hardwired systems.

→ Integrated Diagnostic LEDs & Status Monitoring
Channel-level indicators provide instant visual confirmation of signal health, power status, and fault conditions. Troubleshoot wiring issues 3x faster without multimeters or controller access—essential for remote sites and offshore installations.

✓ Universal 24V DC Input Compatibility
Accepts signals from proximity sensors, mechanical limit switches, push buttons, and relay contacts. Standardized voltage eliminates the need for multiple panel types, reducing spare parts inventory costs by 40-60%.

✓ Harsh Environment Protection (IP20 Enclosure Standard)
Operates reliably in -40°C to +70°C temperature extremes with built-in short-circuit and overvoltage protection. Conformal coating options available for corrosive atmospheres in chemical plants and marine environments.

✓ Simplified Cable Management & Installation
Color-coded terminal blocks with clear labeling reduce commissioning errors. Pre-wired harness compatibility cuts installation time by 50% versus point-to-point wiring, lowering project labor costs significantly.

Application Scenarios

Emergency Shutdown Systems (ESD) in Oil & Gas Facilities
In offshore platforms and refinery units, the 9563-8XX interfaces high-integrity pressure protection systems (HIPPS), fire and gas detectors, and manual ESD stations to Triconex controllers. When a gas leak is detected, the panel ensures all three redundant shutdown signals reach the logic solver within 100ms, triggering valve closures that prevent explosions.

Chemical Reactor Protection & Interlock Systems
Chemical manufacturers use the 9563-8XX to monitor reactor temperature, pressure, and level switches in exothermic processes. If any critical parameter exceeds safe limits, redundant input signals activate cooling systems or emergency venting—preventing runaway reactions that could release toxic materials.

Power Plant Turbine & Boiler Safety Circuits
Utility operators depend on the 9563-8XX for turbine overspeed detection, flame failure monitoring, and boiler drum level protection. The panel's TMR design ensures that a single sensor failure never causes false trips, avoiding costly unplanned outages while maintaining personnel safety.

Manufacturing Machine Safety & Production Line Interlocks
Automotive and pharmaceutical plants integrate the 9563-8XX with safety light curtains, two-hand control stations, and guard door switches. The panel provides the certified interface required for ISO 13849 compliance while enabling rapid changeovers between product runs.

Water Treatment & Municipal Infrastructure Control
Water utilities employ the 9563-8XX for pump protection, chemical feed interlocks, and overflow prevention systems. Redundant level switch inputs prevent sewage spills and equipment damage, ensuring continuous service to communities.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 9563-8XX variant based on your I/O point count requirements and cabinet space constraints. For new installations, select models with 20% spare capacity to accommodate future expansion. Verify compatibility with your specific Triconex controller chassis (Tricon, Trident, or Tri-GP) before ordering.

Extended Functions

Remote Diagnostics Integration: When paired with Triconex TriStation software, the 9563-8XX enables remote monitoring of input signal quality, wiring resistance, and fault history. Maintenance teams can diagnose issues from control rooms rather than traveling to field junction boxes.

Cybersecurity-Hardened Installations: For critical infrastructure applications, the 9563-8XX supports air-gapped architectures that isolate safety systems from enterprise networks, meeting NERC CIP and IEC 62443 requirements.

Custom Configuration Services: NINERMAS offers pre-configured panels with customer-specific terminal labeling, cable assemblies, and factory acceptance testing (FAT) documentation to accelerate project schedules.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 5-7 business days. Custom-configured panels require 2-3 weeks for assembly and testing.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures. Extended warranty programs available for critical applications.

Technical Support: Our certified Triconex specialists provide 24/7 phone and email support for installation questions, troubleshooting, and system integration guidance. On-site commissioning assistance available upon request.

Documentation Package: Each panel ships with installation manual, wiring diagrams, dimensional drawings, and material certificates. Loop drawings and FAT reports included with custom orders.

Frequently Asked Questions

How does the 9563-8XX termination panel integrate with existing Triconex safety controllers?
The panel connects via standard ribbon cables to Triconex digital input modules (such as the 3503E or 3505E). Each termination point corresponds to a specific channel in the controller's I/O configuration. Installation typically requires updating the TriStation configuration database to map field devices to controller addresses.

What is the maximum cable run distance from field sensors to the 9563-8XX panel?
For 24V DC signals, recommended maximum distance is 300 meters using 18 AWG shielded twisted-pair cable. Longer runs may require signal repeaters or barrier modules to maintain signal integrity and noise immunity in electrically noisy environments.

Can the 9563-8XX reduce energy consumption in my safety system?
While the panel itself draws minimal power (<5W typical), its efficient design reduces overall system power by eliminating redundant power supplies. The hot-swap capability also prevents energy waste from full system shutdowns during maintenance.

What are the physical installation requirements for mounting the 9563-8XX?
The panel mounts on standard 35mm DIN rail or can be panel-mounted using four M4 screws. Minimum clearance of 50mm on top and bottom is required for ventilation and cable routing. Panels should be installed in climate-controlled enclosures rated IP54 or higher.

Does the 9563-8XX support remote monitoring and predictive maintenance capabilities?
Yes, when integrated with Triconex TriStation 1131 software, the panel provides real-time diagnostics including input signal trends, fault logs, and wiring degradation alerts. This data enables condition-based maintenance strategies that reduce unplanned downtime by up to 35%.

How do I verify the 9563-8XX meets our facility's SIL 3 safety integrity requirements?
The panel is certified to IEC 61508 SIL 3 standards. Request the Safety Manual and Failure Modes, Effects, and Diagnostics Analysis (FMEDA) report from NINERMAS to support your safety instrumented function (SIF) calculations and regulatory compliance documentation.

Take the Next Step

Ready to enhance your safety instrumented system reliability? Contact our technical sales team for application-specific recommendations, pricing, and delivery schedules. We'll help you select the optimal 9563-8XX configuration for your process control requirements.
