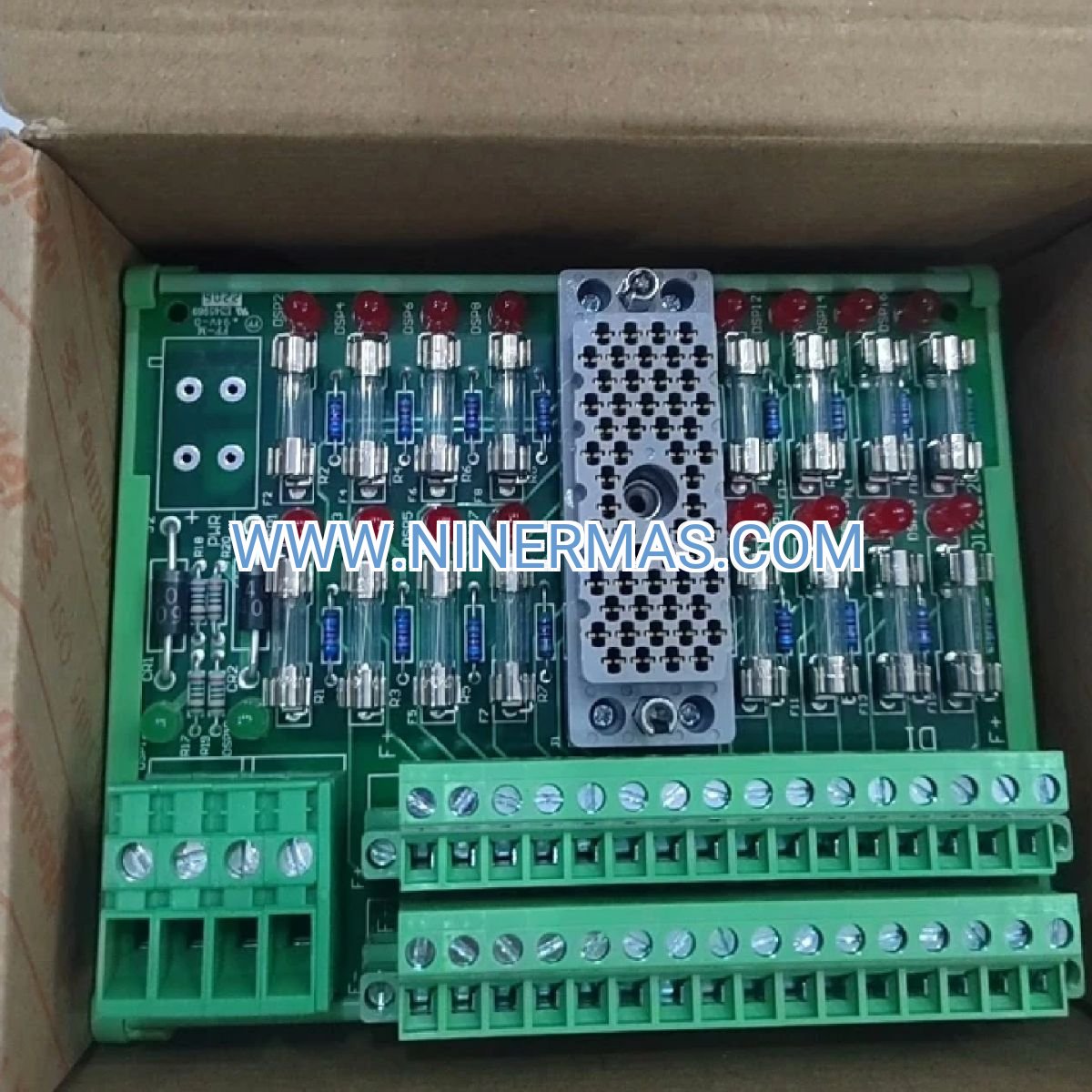

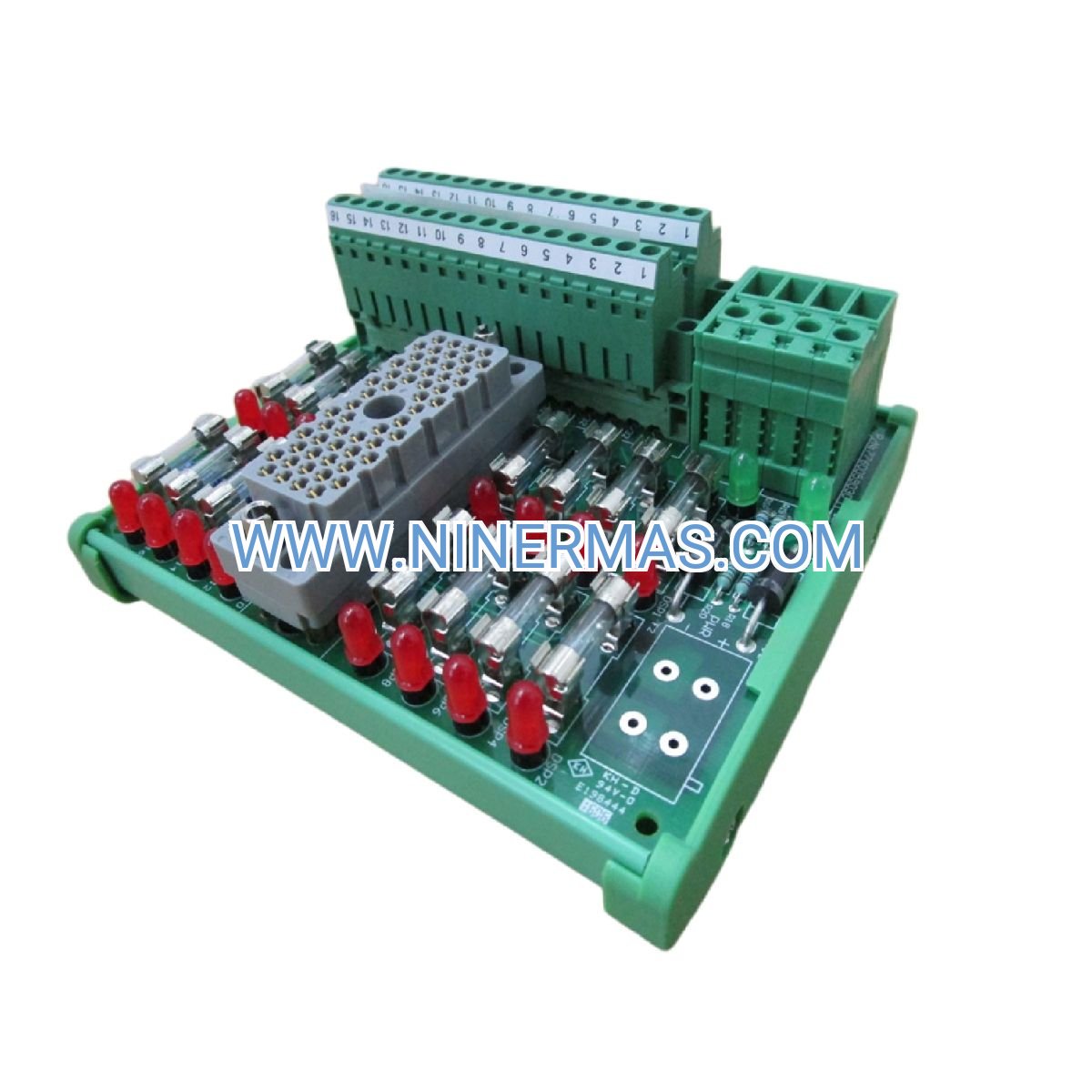

9563-810F Digital Input Termination Panel (Industrial-Grade Safety Interface)

The 9563-810F represents a field-proven termination solution for Triconex safety controllers, delivering 16 commoned digital input channels with SIL 3 certification for mission-critical process control environments. Designed for seamless integration with Tricon and TriStation platforms, this panel bridges field instrumentation to your safety logic solver with industrial-grade reliability and simplified wiring architecture.

Process industries demand zero-compromise safety infrastructure. This termination assembly addresses the challenge of reliable field signal acquisition in hazardous environments where sensor failures, wiring faults, or environmental stress can cascade into catastrophic events. Engineered for plant engineers, instrumentation technicians, and system integrators managing emergency shutdown (ESD), fire & gas detection, and turbomachinery protection systems.

Key differentiators include conformal-coated PCB protection against corrosive atmospheres, screw-clamp terminals rated for 10+ year service life, and commoned input topology that reduces installation labor by 35-45% versus isolated configurations. Factory-calibrated for 24V DC operation with 3.3mA maximum leakage current per channel, ensuring compatibility with industry-standard proximity switches, limit switches, and dry-contact devices.

Core Features & Benefits

✓ SIL 3 Certified Safety Integrity
IEC 61508 compliant design with documented failure rates (λ) and safe failure fraction (SFF) data. Supports systematic capability SC3 requirements for safety instrumented functions up to SIL 3 risk reduction.

✓ Commoned Input Architecture
Shared common terminal simplifies wiring for applications with unified ground reference. Reduces termination points by 50%, cutting installation time and potential connection errors in large I/O deployments.

✓ Harsh Environment Protection
Conformal coating shields circuitry from moisture ingress, chemical vapors, and particulate contamination. Operates reliably in -20°C to +70°C extended temperature range (storage), 0°C to 60°C continuous operation.

→ Visual Diagnostics
Integrated LED indicators provide per-channel status monitoring without requiring controller access. Accelerates troubleshooting during commissioning and maintenance activities.

→ DIN Rail Mounting
35mm DIN rail compatibility enables tool-free installation in standard control cabinets. Snap-lock mechanism withstands vibration per IEC 60068-2-6 specifications.

→ Backward Compatible Design
Works with legacy Tricon chassis (pre-2010) and current TriStation configurations. Protects capital investment during phased system upgrades or module replacements.

Application Scenarios

Emergency Shutdown Systems (ESD)
Oil & gas platforms and refineries deploy the 9563-810F to interface critical shutdown sensors—high-level switches in separators, low-pressure transmitters on compressor suction, flame detectors in fired heaters. The panel's SIL 3 rating satisfies IEC 61511 requirements for process safety time (PST) critical functions, while commoned inputs streamline wiring in congested offshore modules where cabinet space commands premium costs.

Fire & Gas Detection Networks
Petrochemical facilities integrate this panel with multi-point gas detector arrays and UV/IR flame sensors. The 3.3mA leakage specification prevents false trips from sensor bias currents, a common issue in long cable runs (>300m) typical of tank farm installations. LED diagnostics enable rapid fault isolation during mandatory quarterly functional tests.

Burner Management Systems (BMS)
Power generation and industrial boiler applications leverage the 9563-810F for flame scanner inputs, air/fuel valve limit switches, and purge confirmation contacts. The panel's 500,000+ hour MTBF reduces unplanned outages, directly impacting plant availability metrics in combined-cycle gas turbine (CCGT) facilities where every percentage point of uptime translates to millions in revenue.

Turbomachinery Protection
Compressor and turbine skids utilize this termination panel for vibration monitor trip contacts, bearing temperature switches, and lube oil pressure sensors. Conformal coating withstands the oil mist and thermal cycling inherent to rotating equipment environments, maintaining signal integrity over 15-20 year asset lifecycles.

Pharmaceutical Batch Control
Clean-room manufacturing systems employ the 9563-810F for reactor vessel level switches, sterile filter differential pressure alarms, and CIP (clean-in-place) valve position feedback. The panel's sealed construction prevents particulate generation, supporting FDA 21 CFR Part 11 validation requirements for automated process equipment.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 9563-810F when your application requires commoned digital inputs sharing a unified ground reference. For applications demanding channel-to-channel isolation (e.g., mixed voltage sources, ground loop prevention), consider the 9563-8XX isolated variant. Verify compatibility with your specific Triconex module—this panel pairs with DI3301, DI3302, and equivalent 24V DC input modules. Consult factory documentation for ribbon cable part numbers (typically 4000103-510 or equivalent) required to interface panel to module.

Extended Functions

IoT Integration Readiness: While the 9563-810F operates as a passive termination interface, it integrates seamlessly with Triconex TriStation 1131 software for remote diagnostics via Ethernet/IP or Modbus TCP gateways. Plant-wide SCADA systems can poll input status through the connected Triconex controller, enabling predictive maintenance analytics and alarm management integration.

Redundant Configuration Support: Deploy in triple-modular redundant (TMR) architectures where three independent 9563-810F panels terminate parallel sensor sets. The Triconex controller's voting logic masks single-point failures, achieving fault-tolerant operation critical for SIL 3 applications per IEC 61508 hardware fault tolerance (HFT) requirements.

Customization Options: Factory-custom labeling available for OEM panel builders and system integrators managing multi-site deployments. Consult our engineering team for pre-wired cable assemblies, extended temperature ratings (-40°C operation), or conformal coating upgrades for offshore/marine classifications (DNV, ABS).

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-5 business days via express courier (DHL, FedEx). Custom configurations or bulk orders (10+ units) require 3-4 weeks manufacturing lead time. Expedited production available for critical outage scenarios—contact our sales team for emergency support.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship from shipment date. Warranty includes free replacement parts and return shipping. Extended warranty plans (24/36 months) available for long-term service agreements.

Technical Support: Lifetime access to our instrumentation engineering team for configuration assistance, wiring diagrams, and troubleshooting guidance. Support channels include email (response within 4 hours), phone hotline (business hours GMT+8), and remote desktop sessions for complex integration issues.

Documentation Package: Every unit ships with installation manual, dimensional drawings (DXF/PDF), terminal wiring diagrams, SIL certification documents, and material traceability certificates. Digital downloads available via secure customer portal for revision-controlled documentation management.

Frequently Asked Questions

What cable assembly connects the 9563-810F panel to Triconex input modules?
Use Triconex part number 4000103-510 ribbon cable assembly (40-pin IDC connector). Cable length options include 0.5m, 1.0m, and 2.0m. Ensure cable routing avoids high-voltage AC power conductors to minimize electromagnetic interference (EMI) per IEC 61000-6-2 immunity standards.

Can this termination panel interface with non-Triconex safety controllers?
The 9563-810F is mechanically and electrically optimized for Triconex ecosystems. While the 24V DC input specification is industry-standard, the ribbon cable pinout and mounting footprint are proprietary. For third-party PLC integration, consider universal DIN-rail terminal blocks with equivalent SIL ratings.

How does commoned input configuration affect system grounding practices?
Commoned inputs require all field devices share a single ground reference point, typically the negative terminal of the 24V DC power supply. This topology works well in localized installations (<50m cable runs) but may introduce ground loop currents in distributed systems. For installations spanning multiple buildings or with mixed power sources, isolated input panels prevent circulating currents that degrade signal integrity.

What diagnostic capabilities does the panel provide during commissioning?
Each input channel features a dedicated LED indicator that illuminates when the input exceeds the logic-high threshold (typically >15V DC). During loop checks, technicians can visually confirm sensor operation without accessing the Triconex controller HMI. The panel does not provide analog signal strength indication—use a multimeter at screw terminals for precise voltage measurements.

Is the 9563-810F suitable for hazardous area (ATEX/IECSEx) installations?
This panel is designed for installation within safe-area control rooms or non-classified marshalling cabinets. Field devices in Zone 1/Division 1 hazardous areas connect via intrinsically safe (IS) barriers or galvanic isolators mounted separately. The panel itself does not carry ATEX/IECSEx certification for direct installation in explosive atmospheres.

How do I verify compatibility with my existing Triconex system vintage?
The 9563-810F supports Tricon systems manufactured from 1995 onward, including legacy chassis with firmware versions 9.x through current 11.x releases. Verify your digital input module part number (DI3301, DI3302, etc.) against the compatibility matrix in the installation manual. For systems predating 1995 or custom OEM variants, contact our technical support team with your controller serial number for verification.

Take the Next Step

Secure your process safety infrastructure with factory-certified Triconex termination solutions. Request a detailed quotation including volume pricing, technical drawings, and SIL certification documentation. Our instrumentation specialists are available to review your I/O architecture and recommend optimal panel configurations for your specific application.

Contact our team today: Email sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance. Mention reference code 9563-810F for priority handling.
