Triconex 9563-810F | 16-Point Digital Input Panel (Triconex) – New & Original in Stock

Triconex 9563-810F | Reliable Automation Component for Mission-Critical Safety Systems

Field Application & Operational Analysis

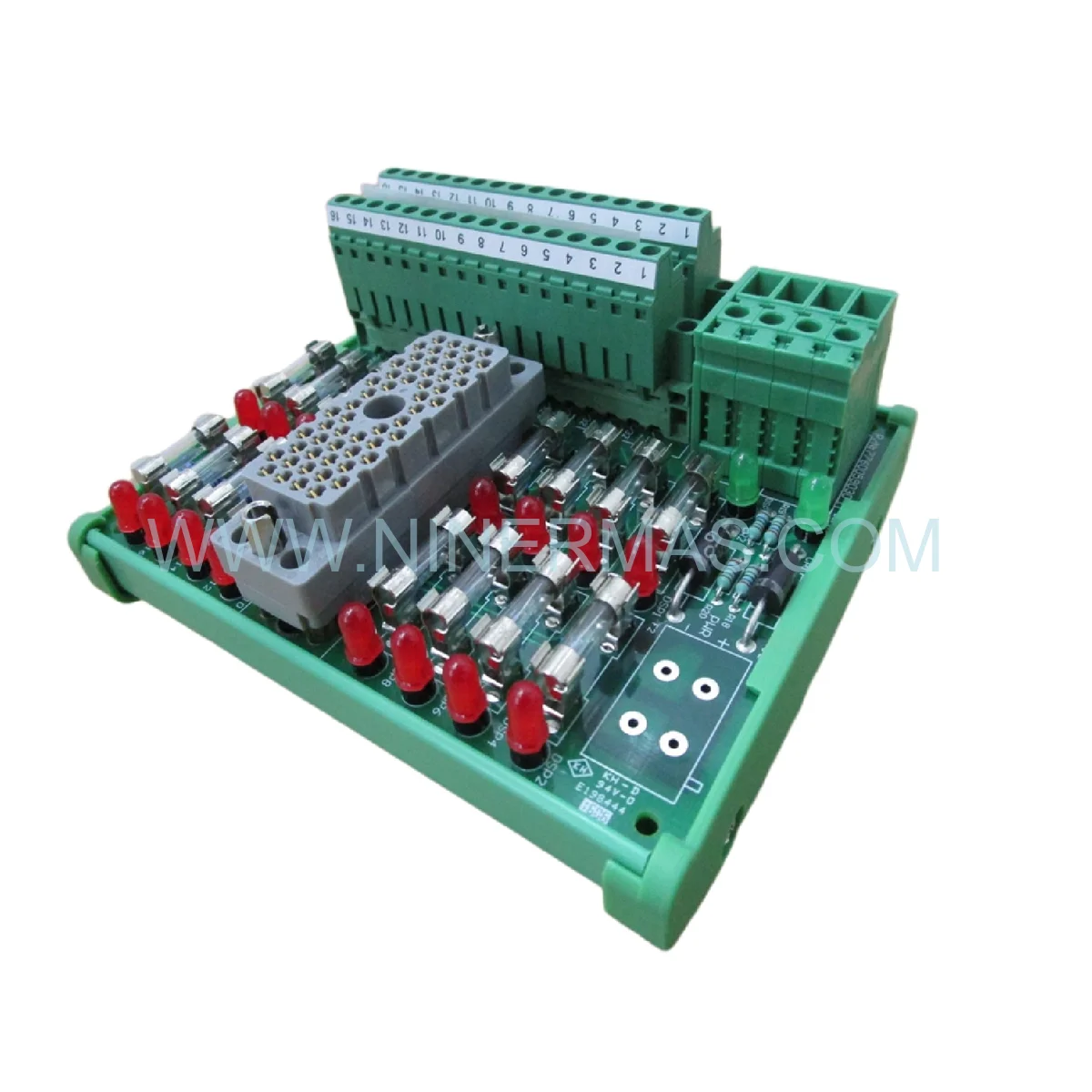

From the perspective of a Site Reliability Engineer managing high-availability process control infrastructure, the Triconex 9563-810F occupies a non-negotiable position in any SIL 3 ated safety instrumented system. This 16-point commoned digital input termination panel serves as the structured field-wiring interface between plant-floor sensors and the Triconex Tricon safety controller platform. Its role in sustaining system availability is direct: by providing a clean, labeled, and mechanically robust termination point, the Triconex 9563-810F eliminates the wiring ambiguity that accounts for a disproportionate share of unplanned shutdowns in process automation environments.

Durability under industrial stress is where this component earns its place in critical spare inventories. Rated for continuous operation from 0°C to 60°C, the panel’s conformal-coated PCB resists moisture ingress, airborne particulates, and corrosive chemical vapors — conditions routinely encountered in oil & gas separators, petrochemical reactors, and offshore platform control rooms. During installation, engineers should verify DIN rail torque specifications and confirm ribbon cable seating to the mating digital input module before energizing the loop. Improper cable alignment is the leading cause of intermittent channel faults on first commissioning.

As a strategic spare part, this termination panel represents low-cost insurance against high-consequence downtime. With legacy Tricon systems approaching end-of-manufacture status, maintaining a verified stock of original-factory 9563-810F units is a recognized best practice in Process Optimization and Operational Excellence programs across refining and power generation sectors.

Key Operational Features

SIL 3 Certified Architecture — Fully compliant with IEC 61508, supporting the highest functional safety integrity level for Emergency Shutdown and Fire & Gas applications.
16-Channel Commoned Input Configuration — Simplifies field wiring for shared-ground sensor networks, reducing loop installation time and termination errors.
24V DC Operation, 3.3mA Max Leakage — Optimized for standard industrial discrete sensor interfaces with predictable load characteristics.
Seamless System Integration — Direct ribbon-cable connection to Triconex digital input modules; no adapter or signal conditioning required.
High Availability by Design — Conformal coating, screw-clamp terminals with strain relief, and MTBF exceeding 500,000 hours under rated conditions.
Redundancy-Ready — Compatible with Tricon’s Triple Modular Redundancy (TMR) architecture, supporting fault-tolerant I/O Modules configurations without additional hardware.

Maintenance & Performance Benchmarks

The 9563-810F is engineered to integrate across a broad spectrum of industrial network architectures — from compact skid-mounted safety controllers in upstream oil & gas to large-scale distributed control rooms managing multi-train LNG facilities. Its standardized DIN rail footprint allows hot-swap replacement during scheduled maintenance windows without disturbing adjacent termination assemblies, a critical advantage in continuous-process environments where partial shutdowns carry significant economic penalties.

Performance benchmarking against alternative termination solutions consistently demonstrates that Triconex-native panels reduce diagnostic alarm latency by eliminating impedance mismatches introduced by third-party adapters. For facilities operating under ISA-84 or IEC 61511 lifecycle management programs, using OEM-matched components like this panel directly supports proof-test documentation and reduces the administrative burden of deviation justification during safety audits.

Preventive maintenance intervals for this panel are typically aligned with the host controller’s annual proof-test cycle. Recommended checks include terminal torque verification (0.5-0.6 Nm), visual inspection of ribbon cable connectors for pin deformation, and channel-by-channel continuity validation using the TriStation diagnostic interface. These steps, when documented, contribute directly to Operational Excellence KPIs and regulatory compliance records.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 9563-810F unit dispatched from our facility ships in Original Factory Packaging, preserving ESD protection, calibration integrity, and traceability documentation required for SIS lifecycle records. For in-stock orders, same-day dispatch is available on confirmed purchase orders received before the daily cut-off, supporting urgent maintenance scenarios where production continuity is at stake.

As a specialist supplier of Automation Components for mission-critical infrastructure, we maintain dedicated inventory of EOL and legacy Triconex modules — including the 9563-810F — to serve facilities operating beyond the OEM’s standard supply window. Our global logistics network covers express delivery to North America, Europe, the Middle East, Southeast Asia, and beyond, with full export documentation and customs compliance support included.

Each shipment is accompanied by a Certificate of Conformance and, where applicable, original factory test reports — documentation that directly supports your site’s IEC 61511 management-of-change and proof-test audit trails.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 9563-810F on a Tricon chassis?
A: Mount the panel on 35mm DIN rail adjacent to the digital input module slot. Connect the ribbon cable from the panel’s module-side connector to the DI module before inserting the module into the chassis backplane. Terminate field wiring at the screw-clamp terminals after module insertion. Verify channel continuity via TriStation I/O diagnostics before enabling the safety function.

Q2: Which firmware versions of TriStation are compatible with this termination panel?
A: The 9563-810F is a passive termination assembly with no embedded firmware. It is compatible with all TriStation software versions (v4.x through v10.x) and all Tricon chassis generations. Firmware compatibility is governed by the connected digital input module, not the termination panel.

Q3: Can this panel be used in SIL 2 applications, or is it exclusively SIL 3?
A: The panel is certified to IEC 61508 SIL 3, making it fully suitable for SIL 2 and SIL 1 applications as well. Using a higher-rated component in a lower-SIL loop is permissible and does not require additional justification in most safety lifecycle frameworks.

Q4: How do I initiate a warranty claim if a unit exhibits a channel fault after installation?
A: Contact our technical support team at sale@ninermas.com with your purchase order number, unit serial number, and a brief fault description. We will issue an RMA authorization within one business day. Confirmed defective units are replaced or refunded within the 12-month warranty period, with no restocking fee.

Q5: Is the 9563-810F compatible with third-party DIN rail enclosures and marshalling panels?
A: Yes. The standard 35mm DIN rail mounting is universally compatible with enclosures from Rittal, Hoffman, Phoenix Contact, and other major manufacturers. Ensure adequate clearance (minimum 50mm) above and below the panel for ribbon cable routing and thermal dissipation.

Q6: Do you provide original factory test documentation for traceability purposes?
A: Yes. All units are supplied with a Certificate of Conformance. Original factory test reports are available upon request for units with traceable batch documentation. This supports IEC 61511 management-of-change records and third-party safety audits.
