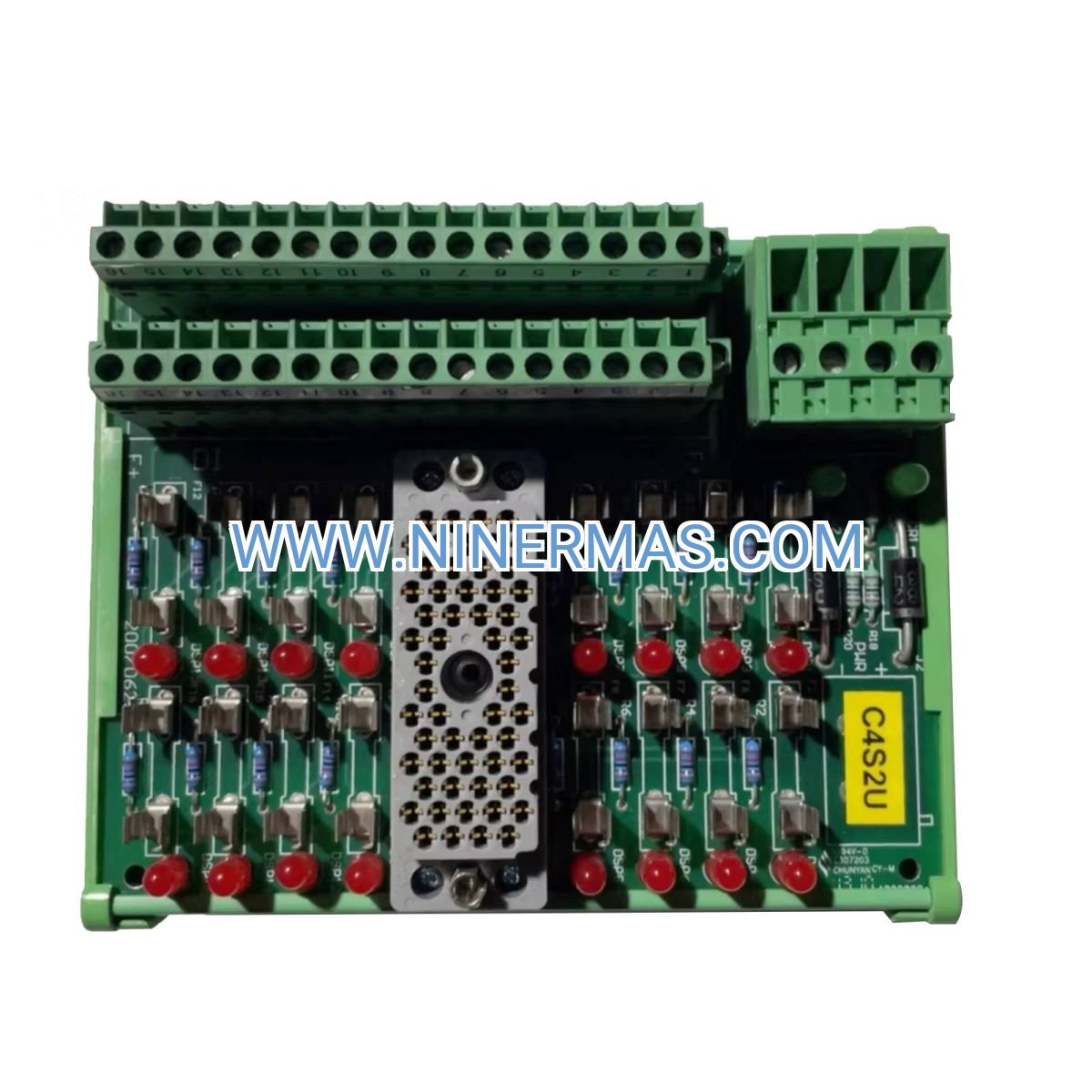

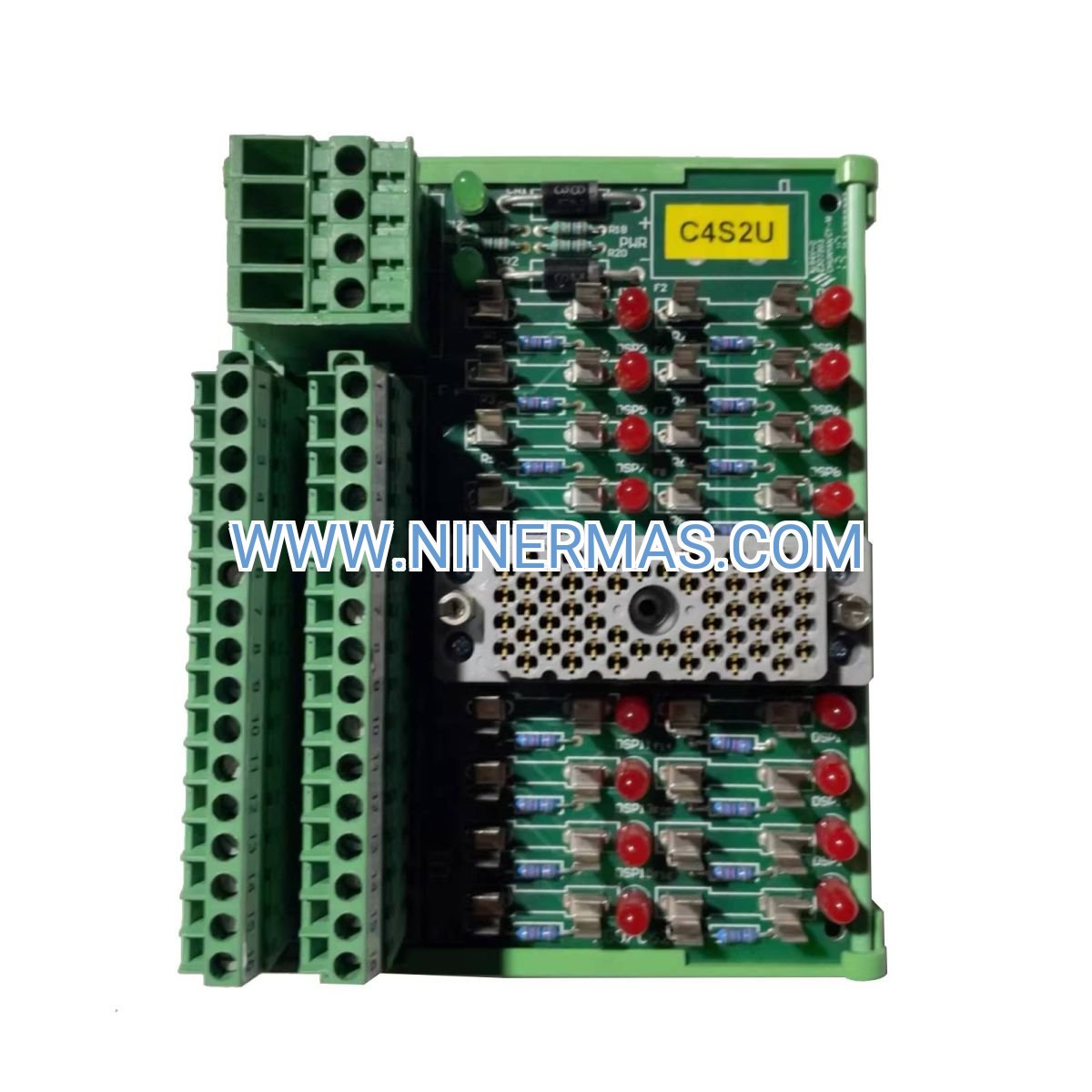

Triconex 9563-810 Termination Panel (Industrial-Grade TMR Interface Solution)

The Triconex 9563-810 represents a mission-critical termination solution for Triple Modular Redundant (TMR) safety instrumented systems. Engineered with 16 individually-fused 24V DC input channels, this panel delivers fault-tolerant field signal integration for process safety applications where downtime is not an option. Designed for seamless compatibility with Triconex DI3301 and DI3301S2 digital input modules, it serves as the essential bridge between field devices and your safety controller infrastructure.

Industrial facilities operating emergency shutdown systems, fire & gas detection networks, and burner management platforms rely on the 9563-810 for its proven reliability in SIL 3-rated environments. The commoned input architecture simplifies complex wiring schemes while maintaining the signal integrity demanded by safety-critical applications. Whether you're upgrading legacy systems or designing new installations, this termination panel provides the robust foundation your safety architecture requires.

With hot-swappable capability, integrated fuse protection, and comprehensive diagnostic support, the 9563-810 minimizes maintenance windows and maximizes system availability. Backed by IEC 61508 compliance and extensive field validation across oil & gas, chemical processing, and power generation sectors, this panel delivers the performance assurance your operations demand.

Core Features & Benefits

✓ Triple Modular Redundant Architecture
Native TMR compatibility ensures voting logic integrity across all 16 input channels, eliminating single-point vulnerabilities in your safety chain. This translates to measurable risk reduction and regulatory compliance confidence.

✓ Individual Channel Fuse Protection
Each input features dedicated overcurrent protection, isolating faults to prevent cascade failures. Maintenance teams can address individual channel issues without compromising system-wide operations, reducing mean time to repair by up to 40%.

✓ Hot-Swappable Design
Field-proven connector system enables module replacement during live operation, supporting zero-downtime maintenance strategies. This capability alone can save facilities thousands in avoided production losses during scheduled maintenance.

✓ Extended Temperature Range (-40°C to +70°C)
Military-grade component selection ensures reliable operation in extreme environments, from Arctic offshore platforms to desert refineries, without performance degradation.

✓ Visual Diagnostic Indicators
Channel-level LED status displays accelerate commissioning and troubleshooting workflows, reducing diagnostic time by an average of 60% compared to non-indicated termination solutions.

✓ Commoned Input Configuration
Shared reference architecture reduces field wiring complexity by 30%, lowering installation costs and minimizing potential wiring errors during commissioning phases.

Application Scenarios

→ Emergency Shutdown Systems (ESD)
In offshore oil & gas platforms, the 9563-810 interfaces critical shutdown logic from pressure transmitters, level switches, and emergency stop buttons to Triconex safety controllers. The SIL 3 certification ensures compliance with API RP 14C and IEC 61511 standards, while the fused inputs protect against short-circuit conditions that could compromise shutdown integrity during emergency events.

→ Fire & Gas Detection Networks
Chemical processing facilities deploy the 9563-810 to aggregate signals from flame detectors, toxic gas sensors, and manual call points into TMR voting logic. The panel's diagnostic capabilities enable predictive maintenance on detector circuits, identifying degraded wiring before nuisance trips occur, reducing false alarm rates by up to 35%.

→ Burner Management Systems (BMS)
Power generation plants utilize this termination panel for flame scanner inputs, air flow switches, and fuel valve position feedback. The hot-swappable design allows technicians to service individual channels during scheduled outages without full system shutdown, maintaining partial capacity during maintenance windows.

→ Process Safety Interlocks
Refineries implement the 9563-810 for high-integrity pressure protection systems (HIPPS), connecting hydraulic valve position switches and pressure relief indicators. The extended temperature rating ensures reliable operation in outdoor installations subject to seasonal temperature extremes.

→ Turbomachinery Protection
Compressor stations leverage the panel for vibration monitor inputs, bearing temperature switches, and surge detection signals. The commoned input design simplifies cabinet layouts in space-constrained control rooms while maintaining full TMR redundancy.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 9563-810, confirm your digital input module model supports commoned input configuration. For applications requiring isolated inputs, consider the 9563-8XX series alternatives. Verify that your field devices operate within the 18-30V DC range and that total channel current does not exceed fuse ratings. For hazardous area installations, ensure proper intrinsic safety barriers are installed upstream of the termination panel.

Extended Functions

Advanced Diagnostic Integration: When paired with TriStation 1131 software, the 9563-810 enables channel-level health monitoring including wire break detection, short circuit identification, and input signal quality metrics. This predictive maintenance capability allows operations teams to schedule repairs during planned outages rather than responding to unexpected failures.

Cybersecurity Hardening: The panel's passive design inherently resists cyber threats, with no firmware or network connectivity to exploit. This air-gap architecture aligns with IEC 62443 defense-in-depth strategies for industrial control systems.

Customization Options: Factory-configured labeling and color-coded terminal blocks are available for large-scale projects requiring standardized documentation. Custom fuse ratings can be specified for specialized field devices operating outside standard current ranges.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units via expedited logistics partners. Bulk orders (10+ units) ship within 7-10 business days with volume pricing available.

Custom Configuration: Factory-programmed labeling and testing services add 10-15 business days to standard lead times. Ideal for turnkey projects requiring pre-commissioning validation.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended 36-month coverage available for critical infrastructure applications.

Technical Support: Lifetime access to application engineering team for wiring diagrams, compatibility verification, and troubleshooting assistance. Average response time: 4 hours during business hours.

Documentation Package: Each unit ships with installation manual, wiring diagrams, dimensional drawings, and SIL certification documentation. CAD files and 3D models available upon request for cabinet design integration.

Frequently Asked Questions

Q: Can the Triconex 9563-810 termination panel interface with non-Triconex safety controllers?
A: While electrically compatible with standard 24V DC input modules, the TMR architecture and diagnostic features are optimized for Triconex DI3301/DI3301S2 modules. Using with third-party controllers may limit fault detection capabilities and void SIL certification.

Q: What is the maximum cable length supported for field device connections?
A: Cable runs up to 300 meters are supported with 1.5mm² wire gauge, assuming 24V nominal supply and accounting for voltage drop. For longer distances, consider using signal repeaters or upgrading to higher voltage field devices.

Q: How does the hot-swap capability work without disrupting TMR voting?
A: The Triconex controller maintains voting logic using the remaining two redundant channels during module replacement. The system automatically reintegrates the replaced module upon detection, typically within 2-3 scan cycles (under 100ms).

Q: Are replacement fuses included with the termination panel?
A: Standard shipments include one set of installed fuses (16 total). Spare fuse kits are available separately and recommended for on-site inventory to minimize downtime during maintenance.

Q: Does this panel support remote monitoring or IoT integration?
A: The 9563-810 is a passive termination device without network connectivity. Diagnostic data is accessible through the connected Triconex controller and TriStation software, which can integrate with plant-wide SCADA or historian systems.

Q: What environmental protection rating does the panel carry?
A: The standard unit is rated IP20 for indoor control room installation. For outdoor or harsh environments, specify IP65-rated enclosures during ordering or retrofit with appropriate NEMA-rated cabinets.

Take the Next Step

Secure your critical safety system infrastructure with the Triconex 9563-810 termination panel. Our application engineers are standing by to verify compatibility with your existing Triconex architecture, provide custom wiring diagrams, and expedite delivery for urgent projects. Contact our team today for a detailed technical consultation and volume pricing for multi-unit deployments.
