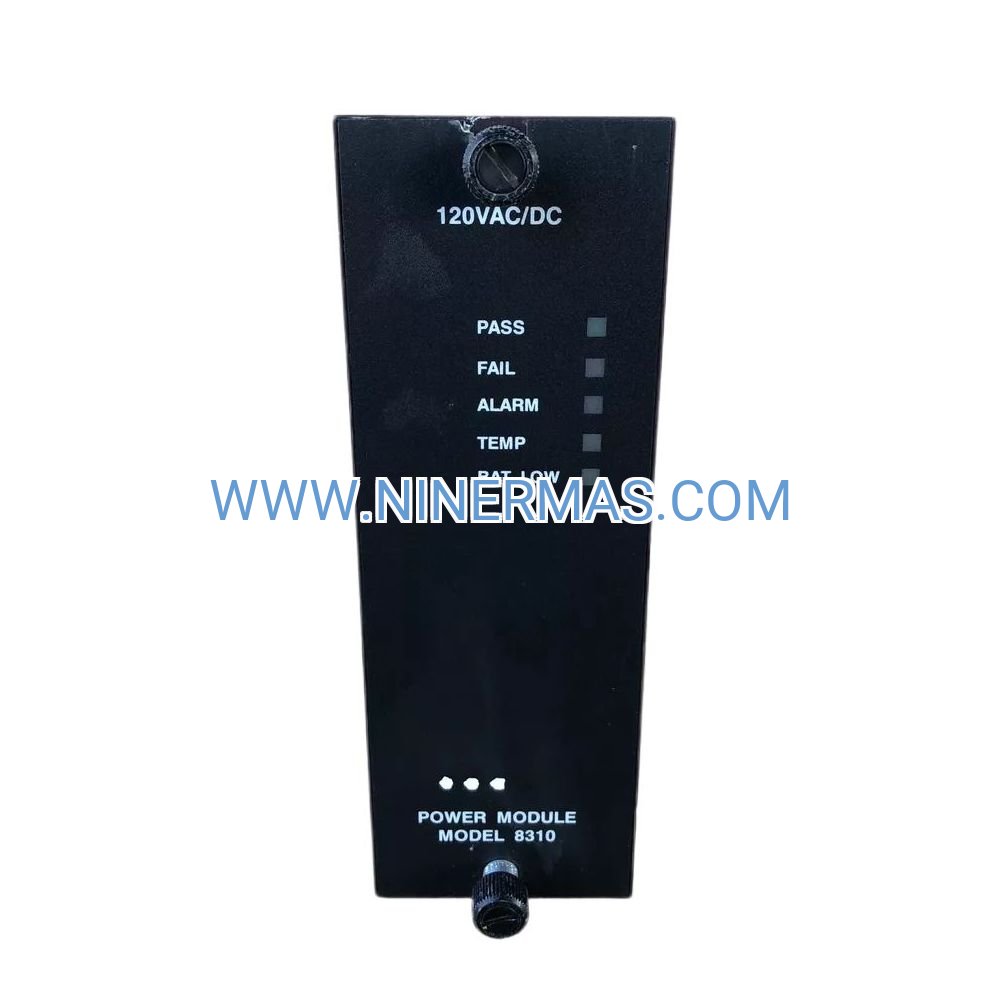

8310 Power Supply Module (Industrial-Grade TMR System Power)

The 8310 Power Supply Module represents a critical infrastructure component for Triconex triple-modular redundant safety controllers, delivering continuous 24VDC regulated power to mission-critical process safety applications. Engineered for zero-downtime environments, this industrial power module combines hot-swap capability with N+1 redundancy architecture to ensure uninterrupted protection in oil & gas, chemical processing, and power generation facilities.

Designed for safety instrumented systems (SIS) operating in hazardous locations, the 8310 addresses the fundamental challenge of maintaining stable power delivery during grid fluctuations, component aging, and emergency scenarios. Process engineers and plant operators rely on this module to eliminate single points of failure in their safety architecture while enabling predictive maintenance through integrated diagnostics.

With global voltage compatibility (100-240 VAC) and comprehensive hazardous area certifications (ATEX, IECEx, CSA), the 8310 streamlines international deployments and reduces spare parts inventory. Its proven MTBF exceeding 100,000 hours translates to decades of reliable service in continuous-duty applications, making it the preferred choice for facilities where safety system availability directly impacts operational continuity and regulatory compliance.

Core Features & Business Value

✓ Hot-Swappable Architecture: Replace failed modules during live operation without interrupting safety functions—eliminates costly planned shutdowns and maintains continuous protection during maintenance windows.

✓ N+1 Redundant Configuration Support: Deploy multiple modules in parallel for automatic failover capability—ensures 99.99% power availability even during component failures or scheduled replacements.

✓ Universal Input Voltage (100-240 VAC): Single part number serves global installations across different power grids—reduces procurement complexity and standardizes spare parts inventory for multinational operations.

✓ Integrated Health Monitoring: Real-time LED diagnostics and system status reporting enable predictive maintenance—identify degrading components before failure occurs, reducing unplanned downtime by up to 40%.

✓ Extended Temperature Range (-40°C to +70°C): Operates reliably in extreme climates from Arctic installations to desert facilities—eliminates need for climate-controlled enclosures in many applications, reducing installation costs.

✓ EMI/RFI Hardened Design: Shielded construction prevents electromagnetic interference from VFDs, welders, and radio equipment—maintains signal integrity in electrically noisy industrial environments where power quality is unpredictable.

Industrial Application Scenarios

→ Offshore Oil & Gas Platforms: Powers emergency shutdown (ESD) systems protecting against blowouts and process upsets in corrosive marine environments. The 8310's salt-fog resistance and vibration tolerance ensure reliable operation on floating production platforms where equipment replacement requires costly helicopter logistics.

→ Petrochemical Reactor Protection: Provides uninterrupted power to burner management systems (BMS) and high-integrity pressure protection systems (HIPPS) in refineries processing volatile hydrocarbons. Redundant configuration eliminates power-related safety system failures that could lead to catastrophic releases.

→ Power Generation Turbine Control: Supports fire & gas detection systems and turbine overspeed protection in combined-cycle plants. Hot-swap capability allows maintenance during peak demand periods without compromising grid stability or safety margins.

→ Pharmaceutical Clean Room Manufacturing: Delivers stable power to environmental monitoring and critical process control systems where contamination events can destroy entire production batches. Diagnostic features enable compliance documentation for FDA validation requirements.

→ LNG Liquefaction Facilities: Maintains safety system availability in cryogenic processing environments where temperature extremes challenge conventional power supplies. Wide operating range ensures consistent performance from ambient areas to equipment exposed to -160°C process streams.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total I/O module power consumption and add 20% margin. For critical applications, deploy N+1 redundancy (e.g., 3 modules for 2N capacity). Systems with >8 I/O modules typically require 2+ power modules. Consult Triconex system planning guides for chassis-specific requirements and load distribution recommendations.

Extended Functions & Integration

Remote Monitoring Integration: Status outputs interface with DCS and SCADA systems for centralized power system health monitoring. Alarm contacts provide early warning of degraded performance, enabling condition-based maintenance strategies that reduce spare parts inventory costs.

Parallel Operation: Multiple 8310 modules automatically load-share when installed in the same chassis, distributing current evenly to maximize component life. Current-sharing accuracy within 5% ensures balanced thermal stress across redundant units.

Customization Options: Available with extended temperature screening (-55°C to +85°C) for Arctic installations, enhanced conformal coating for offshore marine environments, and custom labeling for asset management systems. Consult factory for lead times on modified configurations.

Delivery Timeline & Service Assurance

Standard Delivery: 3-5 business days for in-stock units via express courier with full tracking and insurance. All modules ship in anti-static packaging with protective foam inserts to prevent transit damage.

Custom Configuration: 2-3 weeks for factory-modified units including extended testing, custom labeling, or special certifications. Expedited processing available for emergency replacements.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service—receive replacement unit before returning failed module to minimize downtime.

Technical Support: Lifetime access to application engineering team for installation guidance, troubleshooting assistance, and system integration questions. Phone and email support available during business hours with 4-hour response commitment.

Documentation Package: Each module includes installation manual, wiring diagrams, dimensional drawings, certification documents, and test reports. Digital documentation library provides access to firmware updates and technical bulletins.

Frequently Asked Questions

Q: How do I determine the correct number of 8310 power modules for my Triconex system configuration?
A: Count your total I/O modules and multiply by average module consumption (typically 8-10W). Divide by 100W (leaving 20W margin per 8310) to get minimum quantity. For redundancy, add one additional module (N+1 configuration). Example: 16 I/O modules × 9W = 144W ÷ 100W = 2 modules minimum, deploy 3 for N+1.

Q: Can the 8310 power module operate in hazardous area classifications without additional enclosures?
A: The 8310 carries ATEX and IECEx certifications for Class I Division 2 / Zone 2 hazardous locations when installed per manufacturer guidelines. For Division 1 / Zone 1 areas, the module must be housed in a purged or explosion-proof enclosure. Verify local electrical codes and consult your safety authority having jurisdiction.

Q: What energy efficiency improvements does the 8310 provide compared to legacy Triconex power supplies?
A: The 8310 achieves ≥85% efficiency versus 70-75% for older linear supplies, reducing heat generation by approximately 40%. In a typical 3-module redundant configuration, this translates to 150W less heat load, potentially eliminating one cooling fan and reducing annual energy costs by $200-300 in continuous operation.

Q: What installation requirements must be met for hot-swap functionality to work properly?
A: Hot-swap requires N+1 redundant configuration (minimum 2 modules for single-module capacity). Ensure chassis backplane supports hot-insertion (all Tricon v10+ chassis compatible). Modules must be inserted/removed with locking levers in proper sequence per installation manual to prevent backplane damage.

Q: Does the 8310 support remote diagnostics and predictive maintenance monitoring?
A: Yes—the module provides status outputs (healthy/fault) that connect to Triconex controller diagnostic inputs or external monitoring systems. LED indicators show real-time operational status. For advanced predictive analytics, integrate status signals with plant historian systems to track performance trends and schedule replacements before failure.

Q: Are firmware updates required for the 8310 power module during its service life?
A: No—the 8310 is a hardware-only device with no user-updateable firmware. This eliminates cybersecurity vulnerabilities and change management overhead associated with software-based components. All functionality is implemented in fixed circuitry for maximum reliability and regulatory compliance simplicity.

Get Your Quote Today

Ensure uninterrupted safety system operation with genuine Triconex 8310 power modules. Contact our technical sales team for application-specific recommendations, volume pricing, and fast-track delivery options. Email sale@ninermas.com or call +0086 187 5021 5667 to discuss your power system requirements.
