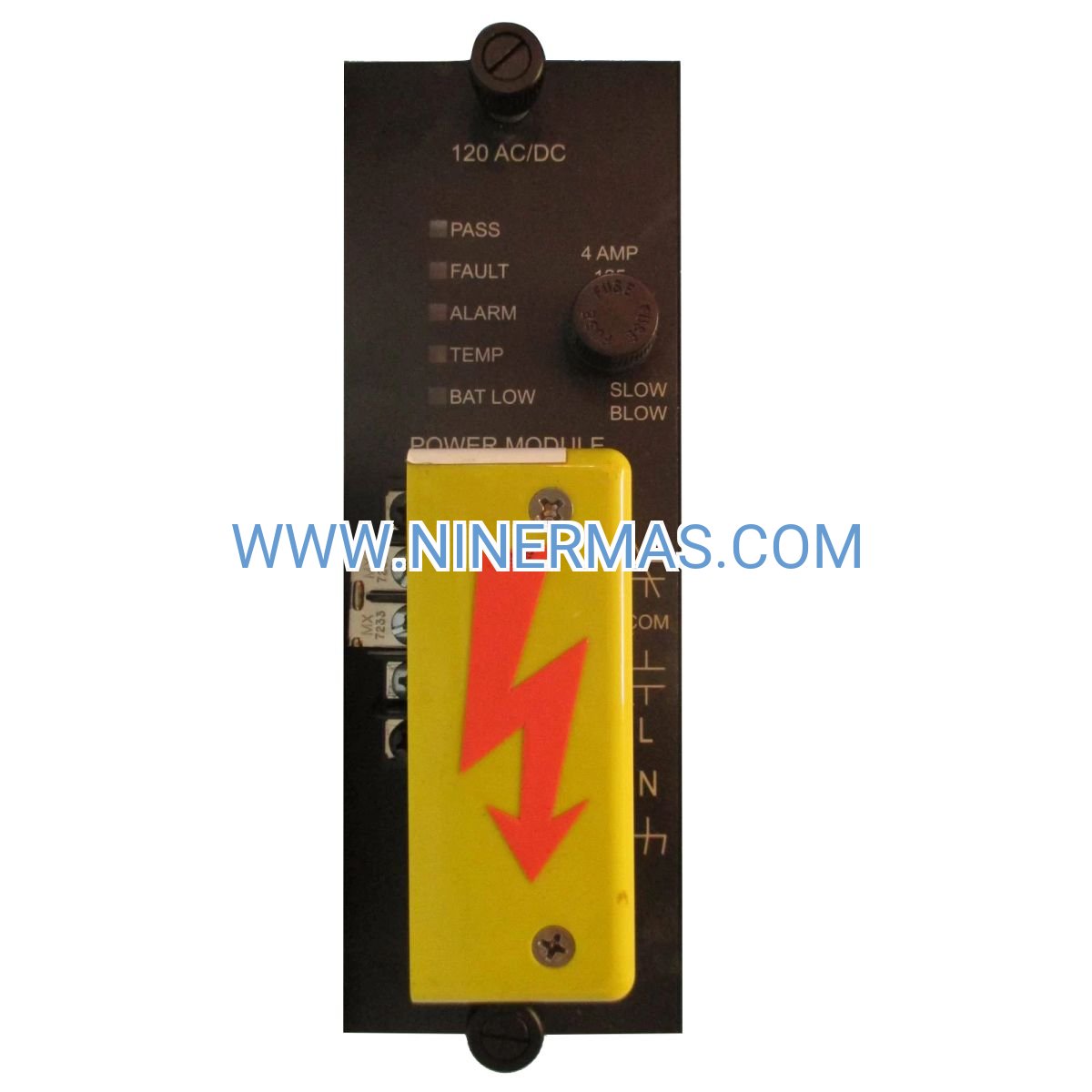

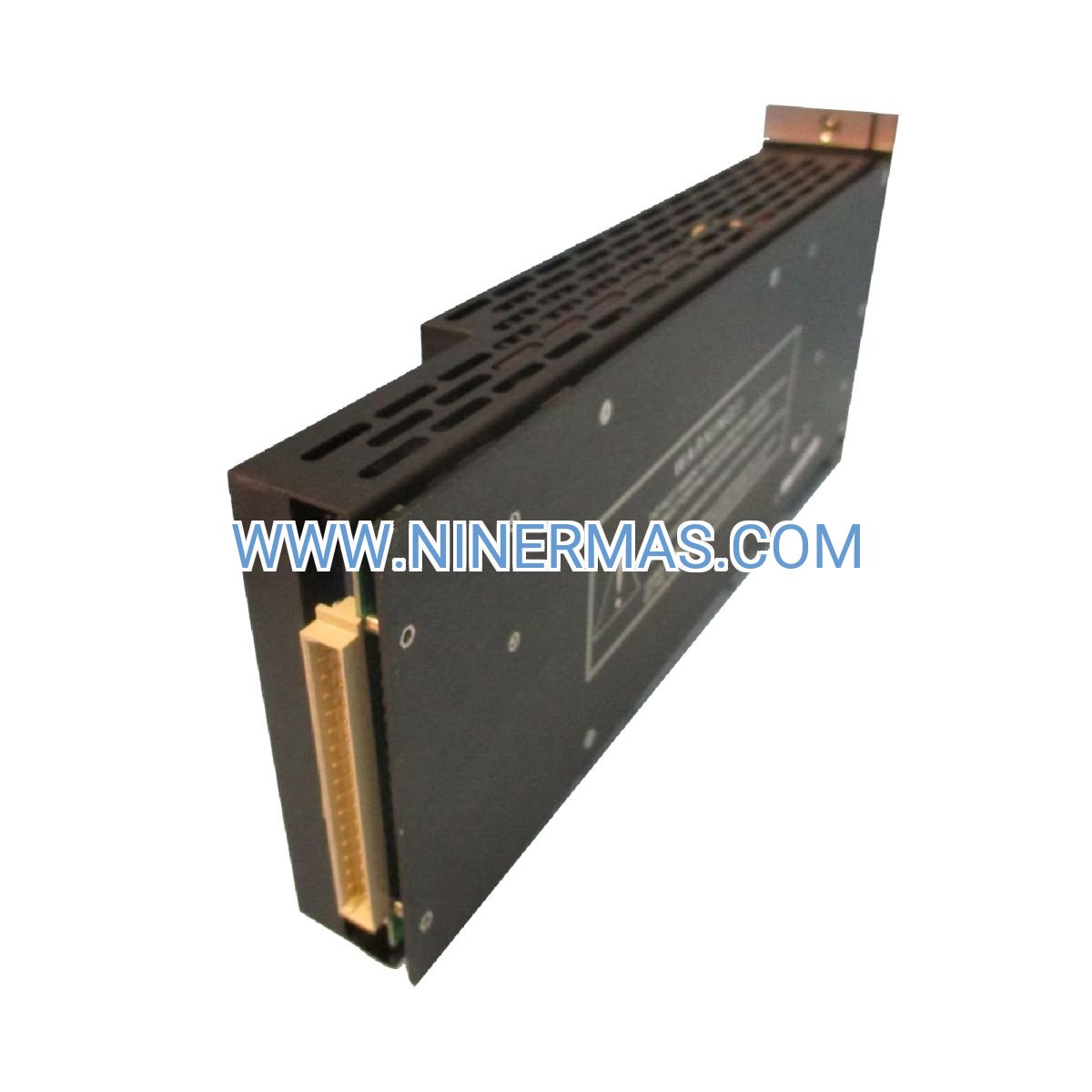

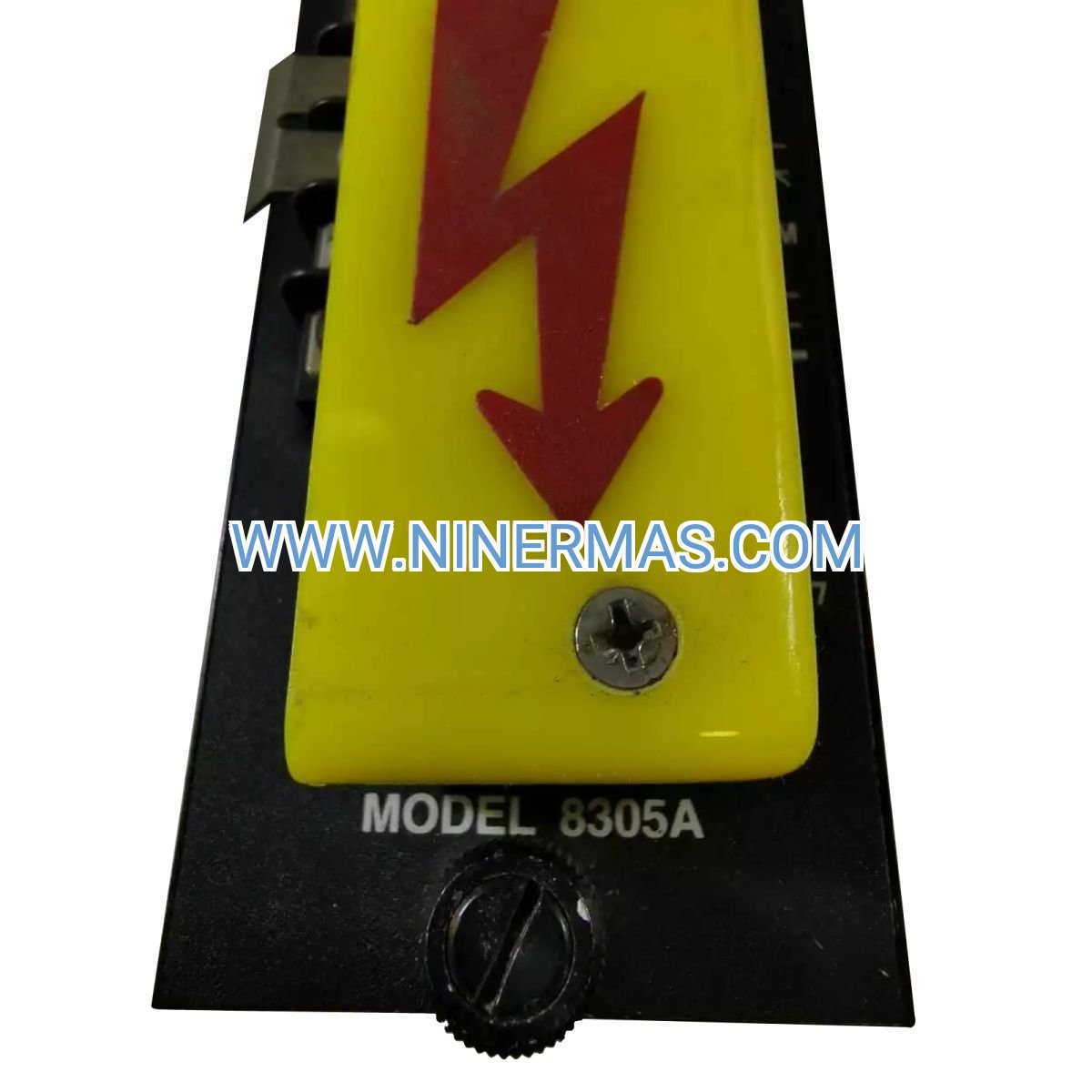

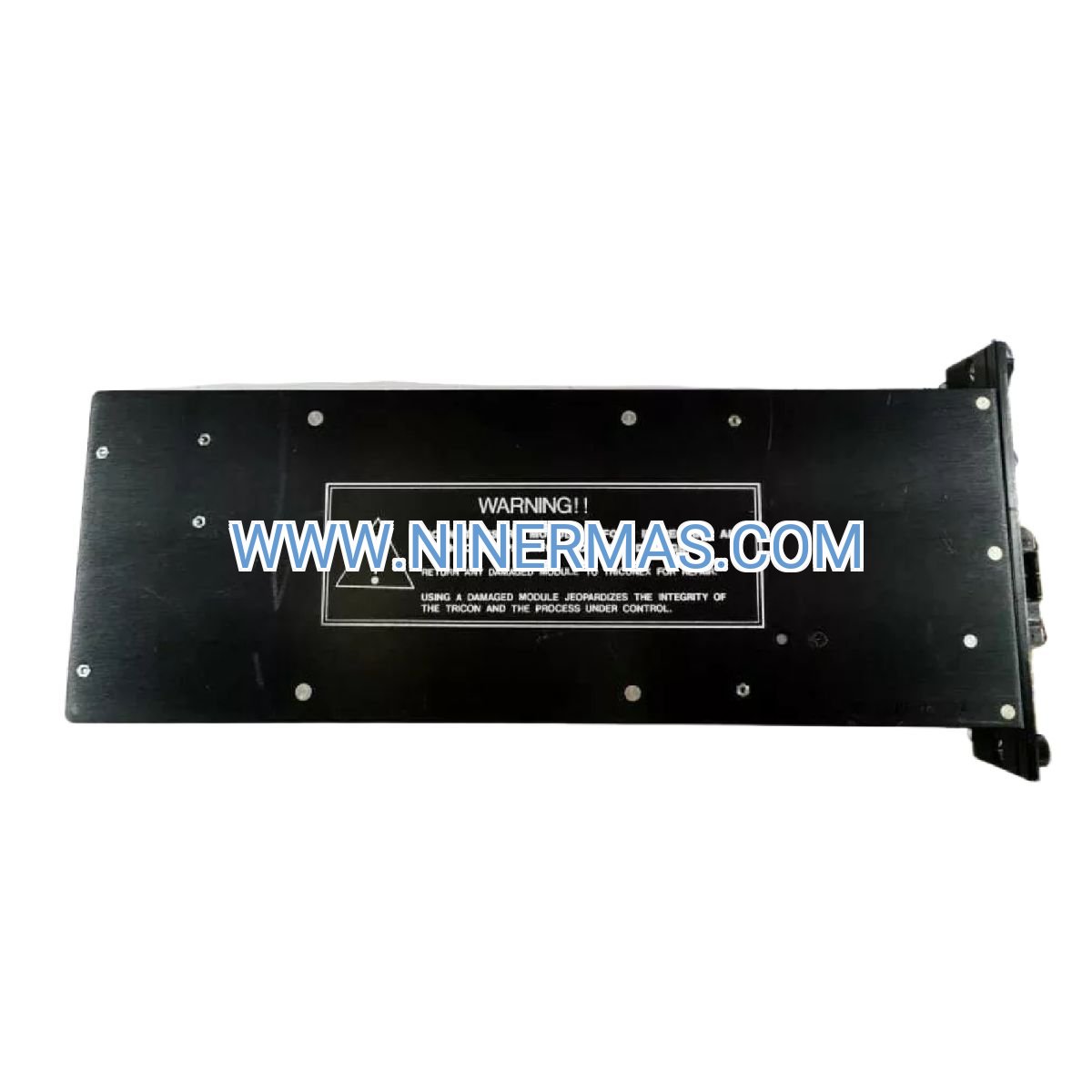

Triconex 8305A Power Module (Industrial-Grade TMR Solution)

The Triconex 8305A represents a critical power distribution component within Schneider Electric's Safety Instrumented Systems (SIS) portfolio. Built for environments where downtime translates to safety risks and revenue loss, this module delivers fault-tolerant power through triple modular redundant architecture. Whether you're managing emergency shutdown systems in offshore platforms or reactor protection in chemical plants, the 8305A ensures your safety logic never loses power—even during component-level failures.

Designed for process industries requiring IEC 61508 SIL 3 compliance, this module integrates seamlessly into Triconex Tricon and TriStation controllers. Its dual-input capability (120VAC/125VDC) accommodates diverse facility power grids, while hot-swap functionality enables maintenance without production interruption. For safety engineers and plant operators seeking proven reliability in mission-critical applications, the 8305A delivers field-tested performance backed by decades of Triconex engineering heritage.

Every unit ships with comprehensive technical documentation, installation guides, and access to our expert support team. Ready to deploy out of the box, the 8305A minimizes commissioning time while maximizing system uptime—critical factors in industries where safety and productivity cannot be compromised.

Core Features & Business Value

✓ Triple Modular Redundancy (TMR) Architecture
Eliminates single points of failure through 2oo3 voting logic. If one power channel fails, the system continues operating without interruption or manual intervention—reducing emergency callouts and unplanned downtime by up to 40%.

✓ Hot-Swappable Design
Replace failed modules during live operation without shutting down your safety system. This capability translates to zero production losses during maintenance, saving facilities an average of $15,000-$50,000 per avoided shutdown event.

✓ Dual Input Voltage Compatibility
Accepts both 120VAC and 125VDC inputs, providing installation flexibility across North American and international facilities. Simplifies spare parts inventory and reduces procurement complexity for multi-site operations.

✓ SIL 3 Certified Performance
TÜV-certified to IEC 61508 SIL 3 standards, meeting the highest safety integrity requirements for process industry applications. Ensures compliance with regulatory mandates in oil & gas, chemical, and pharmaceutical sectors.

✓ Wide Operating Temperature Range
Functions reliably from 0°C to 60°C (32°F to 140°F), suitable for harsh industrial environments including outdoor enclosures, high-temperature control rooms, and climate-variable facilities.

✓ Backward Compatibility
Works with legacy Triconex systems dating back 20+ years, protecting your existing infrastructure investment while enabling phased modernization strategies.

Application Scenarios & Industry Solutions

→ Oil & Gas: Emergency Shutdown Systems (ESD)
In offshore platforms and refinery units, the 8305A powers ESD logic that isolates hazardous processes within milliseconds. Its TMR design ensures shutdown capability remains available even during power module degradation, preventing catastrophic releases and protecting personnel.

→ Chemical Processing: Reactor Safety Interlocks
Chemical plants deploy the 8305A to maintain continuous power to reactor protection systems. During exothermic runaway conditions, reliable power ensures safety valves and cooling systems activate precisely when needed—preventing vessel overpressure and thermal incidents.

→ Power Generation: Turbine Overspeed Protection
Utility-scale turbines rely on the 8305A to power overspeed detection and trip systems. The module's fault tolerance guarantees protection remains active during grid disturbances, preventing turbine damage that can cost $2-5 million in repairs and lost generation capacity.

→ Pharmaceutical: Clean Room Environmental Controls
GMP-compliant facilities use the 8305A to power critical environmental monitoring systems. Continuous operation ensures temperature, humidity, and pressure differentials remain within specification—protecting product batches valued at hundreds of thousands of dollars.

→ Water Treatment: Chemical Dosing Safety
Municipal water plants depend on the 8305A to power chlorine and coagulant dosing safety systems. Reliable power prevents over-dosing incidents that could violate EPA regulations and endanger public health.

Technical Parameters & Selection Guide

Selection Criteria:

• System Voltage: Verify your facility's control power distribution (120VAC or 125VDC) before ordering
• Chassis Compatibility: Confirm compatibility with your Triconex controller model (Tricon, TriStation 1131, etc.)
• Redundancy Requirements: For SIL 3 applications, deploy in TMR configuration (minimum 3 modules per system)
• Environmental Conditions: Ensure ambient temperature remains within 0-60°C operating range
• Spare Parts Strategy: Maintain at least one spare module on-site for critical applications

Extended Capabilities

Diagnostic Integration: The 8305A provides real-time health status to the Triconex controller, enabling predictive maintenance strategies. Monitor voltage levels, current draw, and thermal conditions through TriStation software—schedule replacements before failures occur.

Alarm Notification: Integrate power module status into your plant DCS or SCADA system via Modbus or OPC interfaces. Receive immediate alerts when a module enters degraded mode, allowing proactive maintenance during planned outages.

Customization Options: For OEM integrators and large-scale projects, consult our engineering team about custom labeling, extended temperature variants, or pre-configured chassis assemblies to accelerate deployment timelines.

Delivery & Service Assurance

Lead Time:
→ Standard units: 3-5 business days (in-stock items)
→ Custom configurations: 2-3 weeks
→ Expedited shipping available for emergency replacements

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects and performance issues. Warranty includes free replacement and technical support during the coverage period.

Technical Support:
Our certified Triconex specialists provide installation guidance, configuration assistance, and troubleshooting support. Access includes phone, email, and remote diagnostic services during business hours (extended support packages available).

Documentation Package:
Every module ships with installation manual, wiring diagrams, safety certification documents, and quick-start guide. Digital copies available for download immediately upon order confirmation.

Frequently Asked Questions

Q: How does the 8305A integrate with existing Triconex safety systems?
A: The module is plug-and-play compatible with all Triconex Tricon and TriStation controllers. Simply insert into an available chassis slot—the system auto-detects and integrates the module into the power distribution network within seconds. No programming or configuration required.

Q: What happens if I mix different Triconex power module models in the same chassis?
A: While technically possible, best practice recommends using identical models within a redundant set (e.g., three 8305A modules for TMR). Mixing models can complicate diagnostics and spare parts management, though the system will function correctly.

Q: Can the 8305A support remote monitoring and predictive maintenance?
A: Yes. The module reports voltage, current, and temperature data to the Triconex controller, which can be accessed via TriStation software or exported to plant-level monitoring systems. Set up threshold alarms to predict failures 30-90 days in advance.

Q: Is special training required for installation and replacement?
A: Basic electrical safety training and familiarity with Triconex systems are recommended. The hot-swap design allows technicians to replace modules without specialized tools—typical replacement time is under 5 minutes. We provide installation videos and phone support for first-time users.

Q: What certifications does the 8305A hold for hazardous area installations?
A: The module carries IEC 61508 SIL 3 certification for functional safety. For installations in classified hazardous areas (Class I Div 2, ATEX Zone 2), the module must be installed within an appropriately rated enclosure. Consult our technical team for specific application guidance.

Q: How does the dual-input capability work—can I use both AC and DC simultaneously?
A: No, each module accepts either AC or DC input, not both concurrently. However, within a TMR configuration, you can mix input types across modules (e.g., two modules on AC, one on DC) for additional power source diversity—though this is rarely necessary.

Take the Next Step

Ensure your safety instrumented systems maintain uninterrupted power with the Triconex 8305A. Whether you're upgrading aging infrastructure, expanding existing systems, or building new safety installations, our team is ready to support your project from specification through commissioning.

Contact our industrial automation specialists today:
→ Request a technical datasheet and compatibility verification
→ Discuss volume pricing for multi-unit projects
→ Schedule a consultation for system integration support
