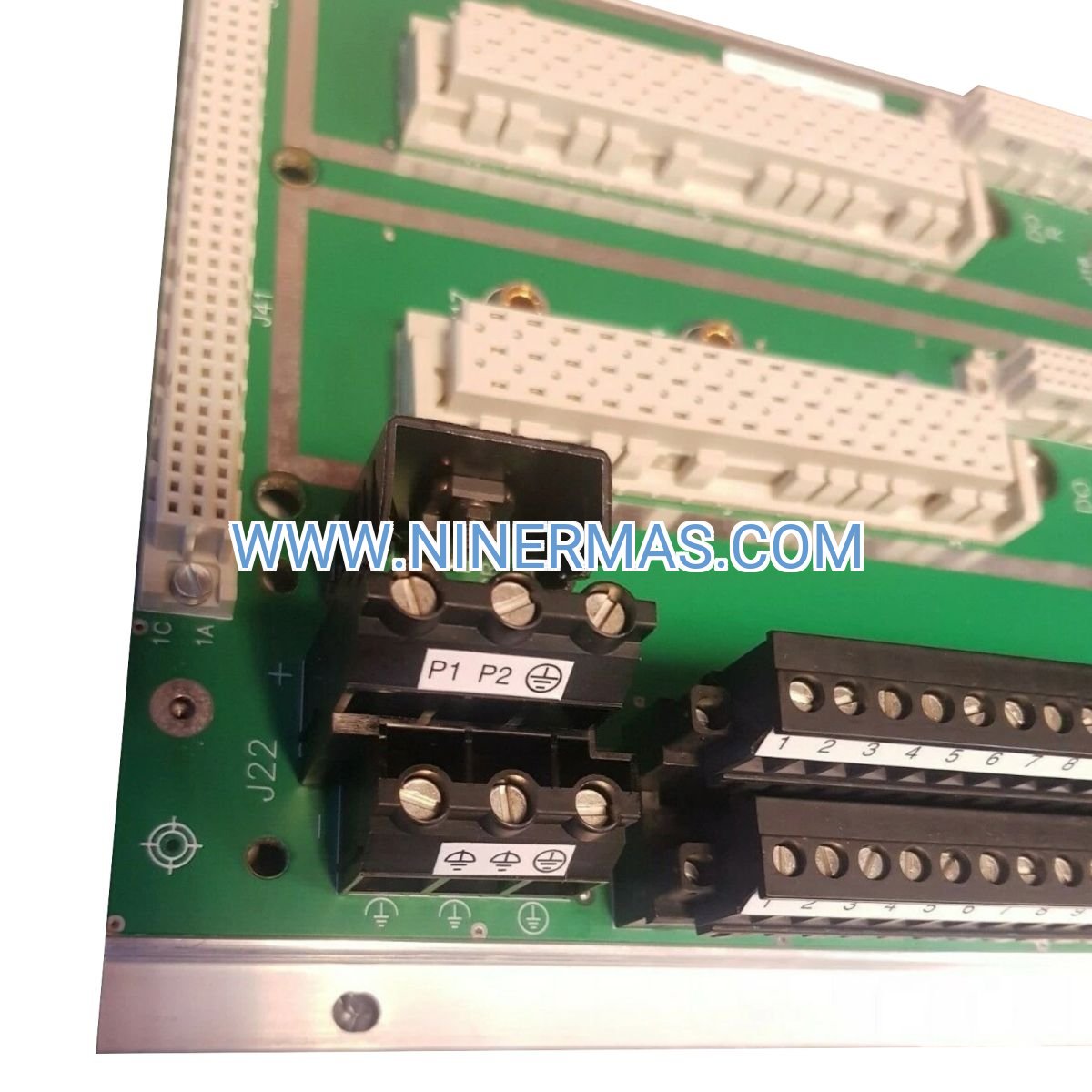

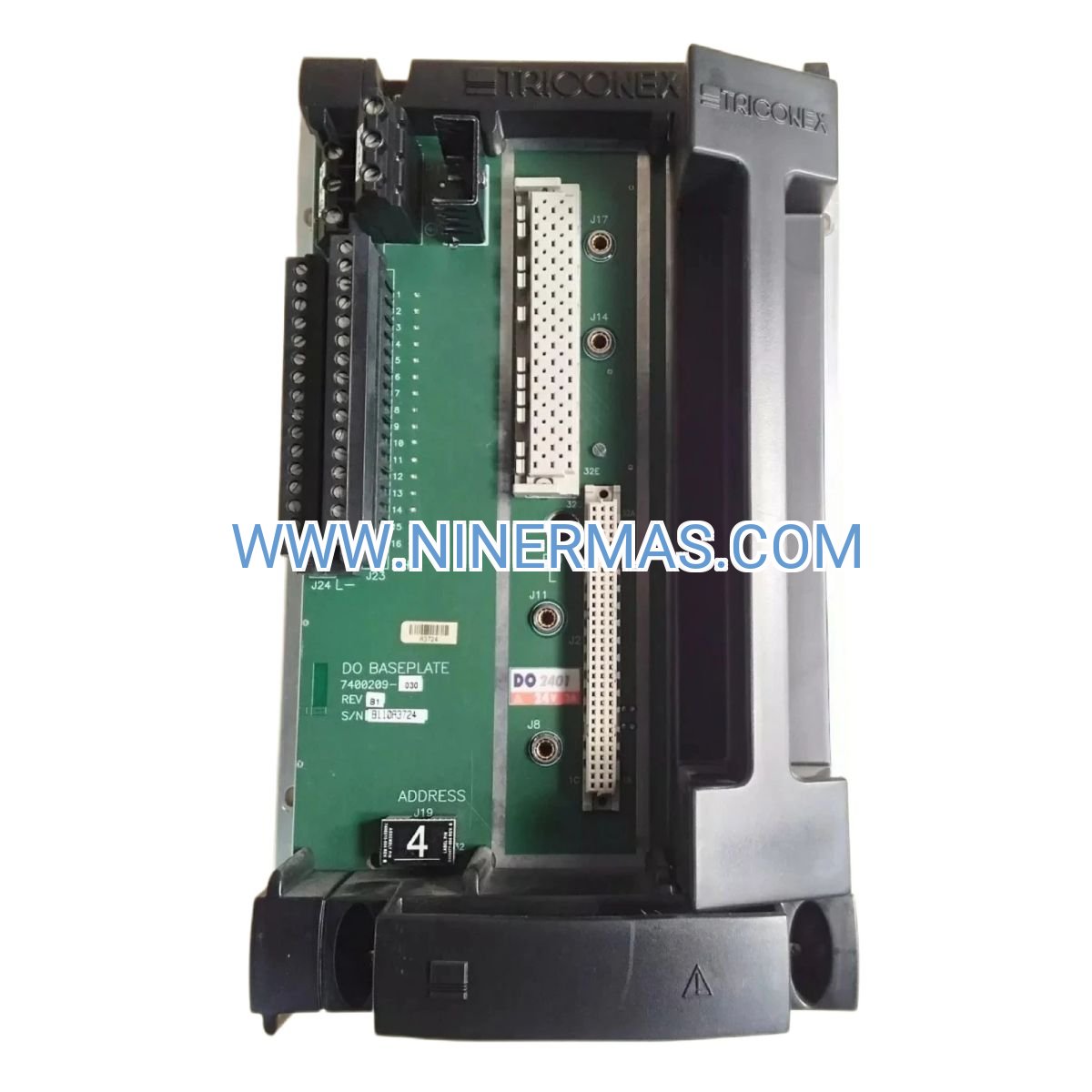

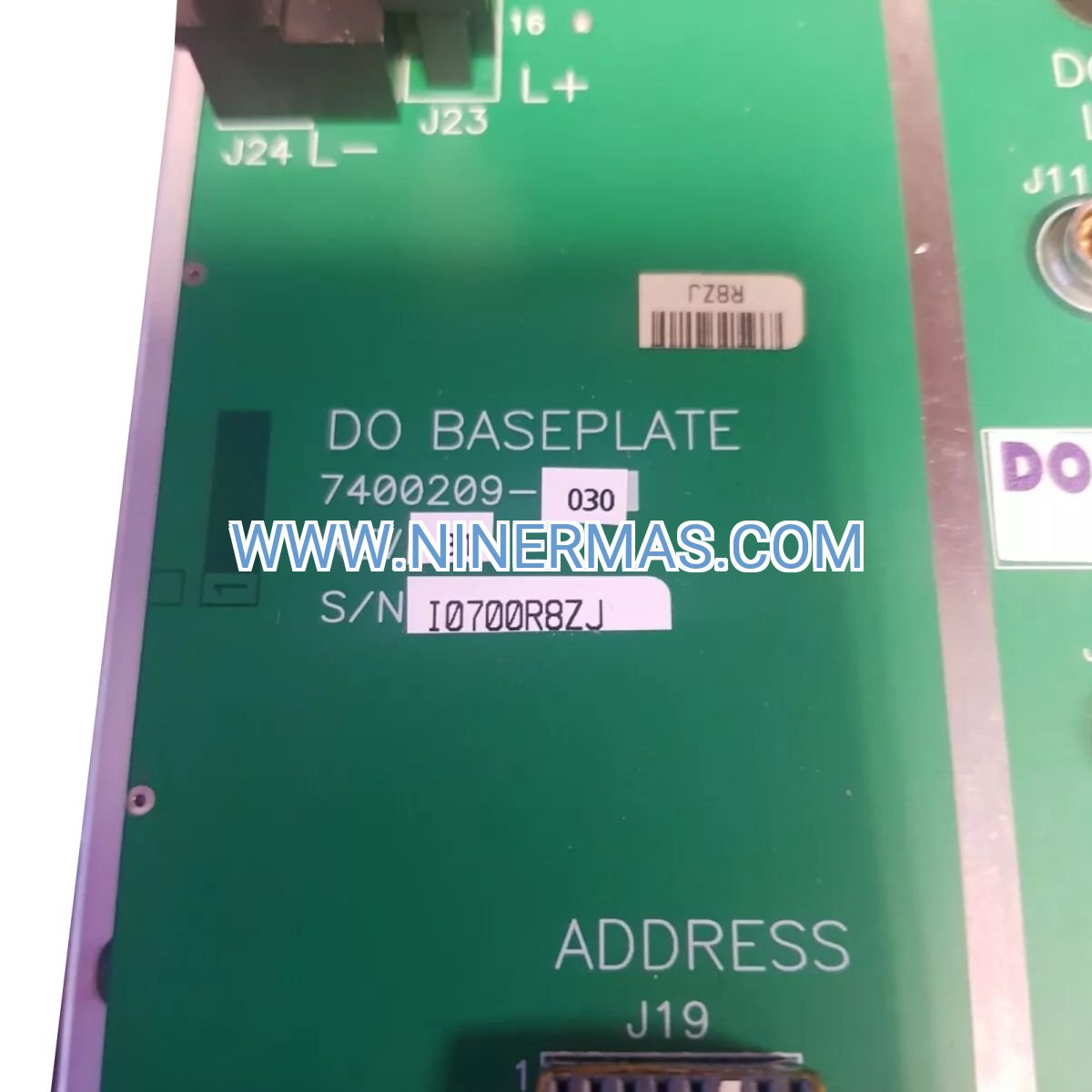

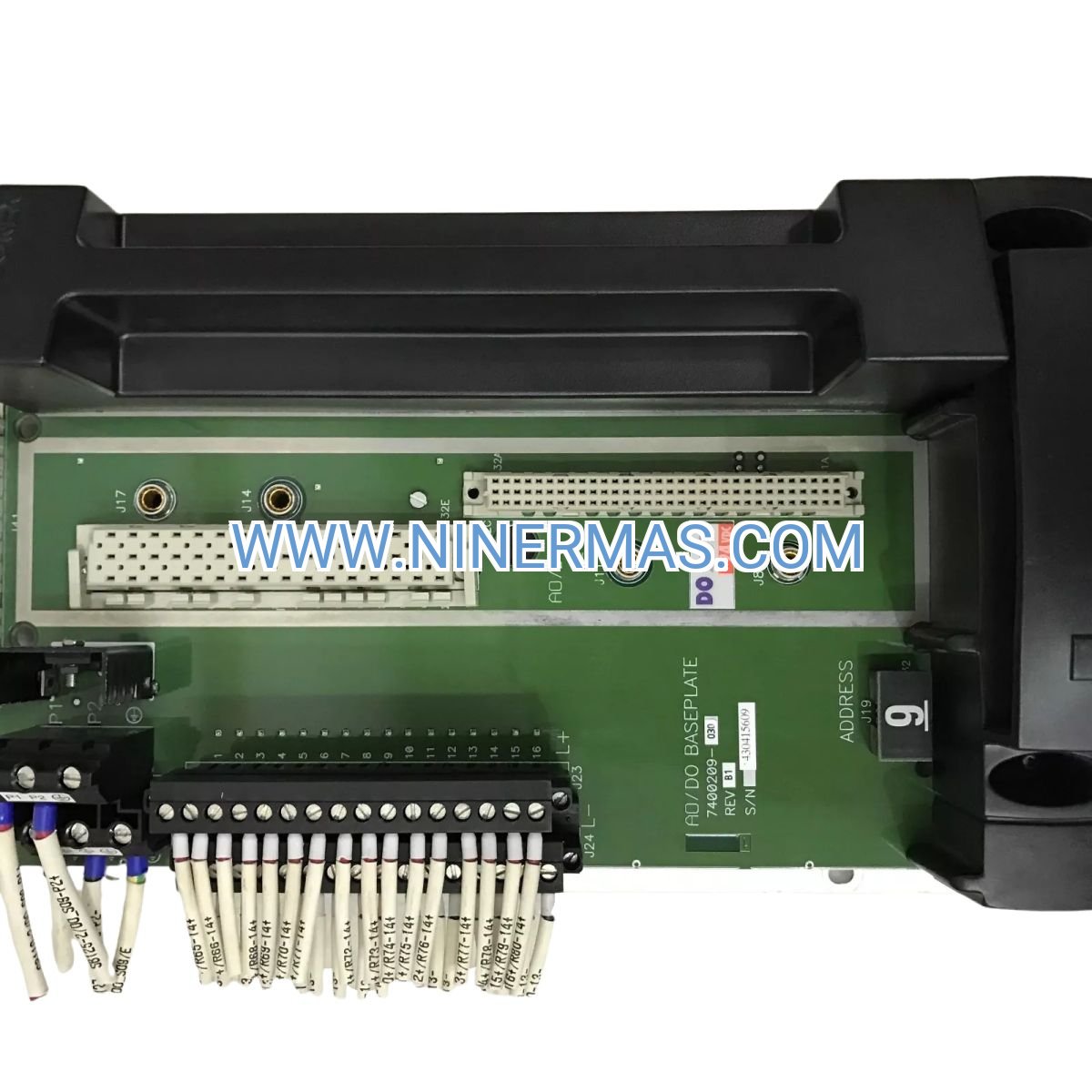

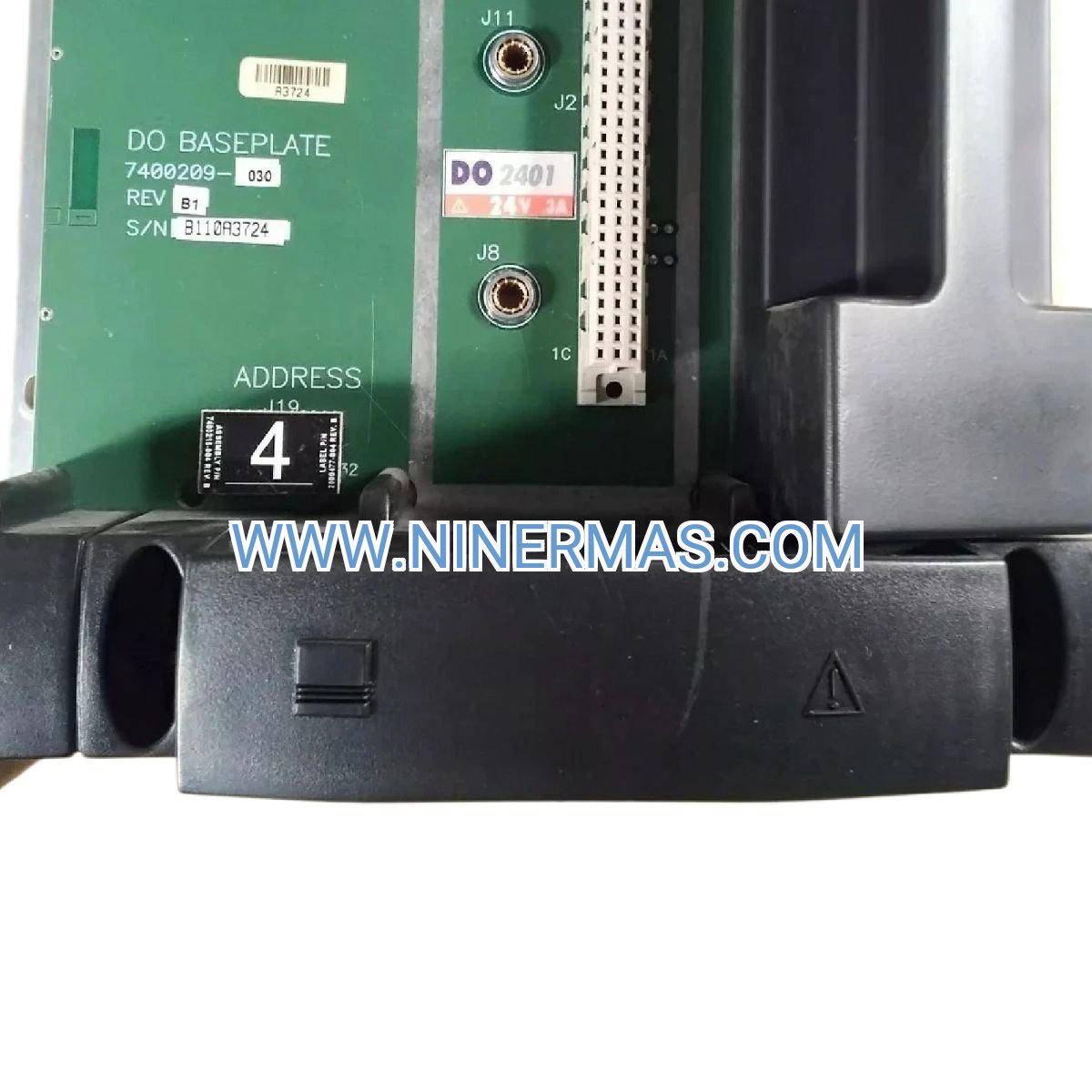

7400209-030 Analog Output Baseplate (Industrial-Grade TMR Platform)

The 7400209-030 Analog Output Baseplate establishes the structural and electrical foundation for Triconex Triple Modular Redundant (TMR) analog output modules in safety instrumented systems. This precision-engineered platform delivers fault-tolerant signal distribution, secure module mounting, and diagnostic-ready connectivity for process industries demanding SIL 3 safety integrity.

Designed for continuous operation in harsh industrial environments, the baseplate integrates seamlessly with Triconex Tricon and Trident controllers, supporting mission-critical applications where analog output reliability directly impacts personnel safety, environmental protection, and asset preservation. Its hot-swap architecture enables maintenance without process interruption, while triple-redundant signal paths eliminate single-point failures in control loops.

From emergency shutdown systems in offshore platforms to reactor control in chemical plants, the 7400209-030 provides the proven reliability that safety engineers specify for high-consequence applications. Every baseplate undergoes rigorous factory testing to IEC 61508 standards, ensuring consistent performance across temperature extremes, electromagnetic interference, and mechanical stress.

Core Features & Benefits

→ Triple Modular Redundancy (TMR) Architecture
Three independent signal paths with majority voting logic ensure continuous operation even when individual channels experience faults. This design achieves 99.99%+ availability in safety-critical loops, meeting the most stringent process safety requirements.

✓ Hot-Swap Module Replacement
Replace analog output modules during live operation without system shutdown or process disruption. Keyed connectors prevent incorrect insertion, while automatic diagnostics verify proper seating before module activation—reducing maintenance windows by up to 75%.

✓ SIL 3 Safety Certification
TÜV-certified to IEC 61508 SIL 3 standards with documented proof test intervals and failure rate data. Supports systematic capability requirements for safety instrumented functions (SIF) in LOPA studies and safety lifecycle management.

✓ Environmental Hardening
Conformal-coated circuitry withstands 0°C to 60°C operating temperatures, 5-95% humidity, and industrial vibration per IEC 60068-2-6. EMI/RFI shielding maintains signal integrity in electrically noisy environments with VFDs, welders, and high-power switching equipment.

✓ Diagnostic Transparency
Built-in health monitoring tracks connection integrity, module presence, and backplane communication status. Diagnostic data integrates with Triconex TriStation software for predictive maintenance and fault isolation—reducing mean time to repair (MTTR) by 40%.

✓ Rapid Installation Design
Pre-wired backplane connections and labeled terminal blocks accelerate commissioning. DIN rail or chassis mounting options adapt to existing cabinet layouts, while standardized footprints enable drop-in replacement of legacy baseplates.

Application Scenarios

Oil & Gas Production Facilities
In offshore platforms and onshore processing plants, the 7400209-030 supports emergency shutdown (ESD) systems controlling wellhead valves, separator pressure relief, and flare stack ignition. TMR analog outputs maintain precise control of pneumatic actuators during partial system failures, preventing uncontrolled releases and production losses exceeding $500K per incident.

Chemical Reactor Control
Batch and continuous chemical processes rely on the baseplate for exothermic reaction temperature control, feed ratio regulation, and pressure management. When reactor temperatures approach runaway conditions, redundant analog outputs ensure cooling valve positioning accuracy within ±0.1%, preventing thermal excursions that could trigger emergency venting or vessel rupture.

Power Generation Turbine Protection
Gas and steam turbine control systems use the 7400209-030 for fuel valve positioning, inlet guide vane control, and lubrication system pressure regulation. During grid disturbances or mechanical faults, the baseplate's fault-tolerant design maintains controlled shutdown sequences, protecting turbine components valued at $15M+ from catastrophic damage.

Pharmaceutical Clean Room Environmental Control
Sterile manufacturing environments depend on precise HVAC control for temperature, humidity, and differential pressure maintenance. The baseplate's SIL 3 certification supports FDA 21 CFR Part 11 compliance requirements, while its diagnostic capabilities provide audit trails for validation documentation and regulatory inspections.

Petrochemical Compressor Anti-Surge Systems
Centrifugal compressor protection systems utilize the 7400209-030 for anti-surge valve control, maintaining safe operating margins during load changes. Redundant analog outputs prevent compressor surge events that cause mechanical damage, unplanned shutdowns, and production losses exceeding $250K per day.

Technical Parameters & Selection Guide

Selection Criteria: Verify analog output module compatibility before ordering—the 7400209-030 supports Triconex 3481, 3482, and equivalent TMR analog output modules. For applications requiring more than 40 output channels, multiple baseplates can be installed in adjacent chassis slots. Consult factory documentation for specific module-to-baseplate pairing requirements and backplane loading calculations.

Extended Functions

IoT Integration Readiness
When paired with Triconex communication modules, the baseplate supports OPC UA and Modbus TCP connectivity for remote monitoring and predictive analytics. Diagnostic data streams to cloud-based asset management platforms, enabling condition-based maintenance strategies and digital twin modeling.

Cybersecurity Hardening
Physical keying and electronic authentication prevent unauthorized module insertion. When integrated with Triconex TriStation 1131 software, role-based access controls and audit logging meet IEC 62443 industrial cybersecurity standards for safety systems.

Customization Options
Factory-configured baseplates are available with pre-installed terminal blocks, custom labeling, and application-specific wiring harnesses. Contact engineering support for high-volume orders requiring tailored configurations or extended temperature ratings (-20°C to 70°C).

Delivery & Service Assurance

Lead Time: Standard configurations ship within 3-5 business days from regional distribution centers. Custom-configured baseplates require 2-3 weeks for factory preparation and testing.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty programs available for critical spares inventory and long-term service agreements.

Technical Support: Certified Triconex specialists provide installation guidance, compatibility verification, and troubleshooting assistance via phone, email, and remote desktop support. On-site commissioning services available for complex multi-chassis installations.

Documentation Package: Each baseplate includes installation manual, dimensional drawings, wiring diagrams, and SIL 3 certification documents. Digital copies available through secure customer portal for configuration management and regulatory compliance.

Frequently Asked Questions

What analog output modules are compatible with the 7400209-030 baseplate?
The baseplate supports Triconex-certified analog output modules including the 3481 (4-channel), 3482 (8-channel), and equivalent TMR variants. Third-party modules are not compatible due to proprietary connector pinouts and safety certification requirements.

Can I replace a baseplate without shutting down the entire safety system?
No—baseplate replacement requires controller shutdown and power removal. However, individual analog output modules mounted on the baseplate can be hot-swapped during operation without affecting other system functions.

How does the TMR architecture improve system availability compared to simplex designs?
TMR eliminates single-point failures by providing three independent signal paths with voting logic. If one channel fails, the system continues operating using the remaining two channels while alerting operators to the fault—achieving 99.99%+ availability versus 95-98% for simplex architectures.

What environmental conditions can cause baseplate failure?
Excessive humidity (>95% RH), corrosive atmospheres (chlorine, sulfur compounds), and temperatures outside the 0-60°C range can degrade connector contacts and circuit board traces. Install baseplates in climate-controlled enclosures with NEMA 4X or IP65 ratings for harsh environments.

Is firmware or software configuration required after baseplate installation?
No—the baseplate is a passive interconnect component requiring no firmware. All configuration resides in the Triconex controller and analog output modules. After physical installation, verify module recognition through TriStation diagnostic screens.

How do I verify proper baseplate installation before energizing the system?
Inspect connector seating using visual indicators and locking mechanisms. Measure backplane continuity with a multimeter (expect <1Ω resistance across power rails). After power-up, confirm diagnostic LEDs indicate normal status and TriStation software recognizes all installed modules.

Take the Next Step

Ensure your safety instrumented system meets SIL 3 integrity requirements with the proven reliability of the 7400209-030 baseplate. Our application engineers are ready to verify compatibility with your existing Triconex configuration, provide technical specifications for your safety lifecycle documentation, and expedite delivery to meet your project timeline.

Contact our team today: Request a compatibility assessment, obtain certified documentation for your SIL verification calculations, or place your order with confidence backed by 12-month warranty coverage and expert technical support.
