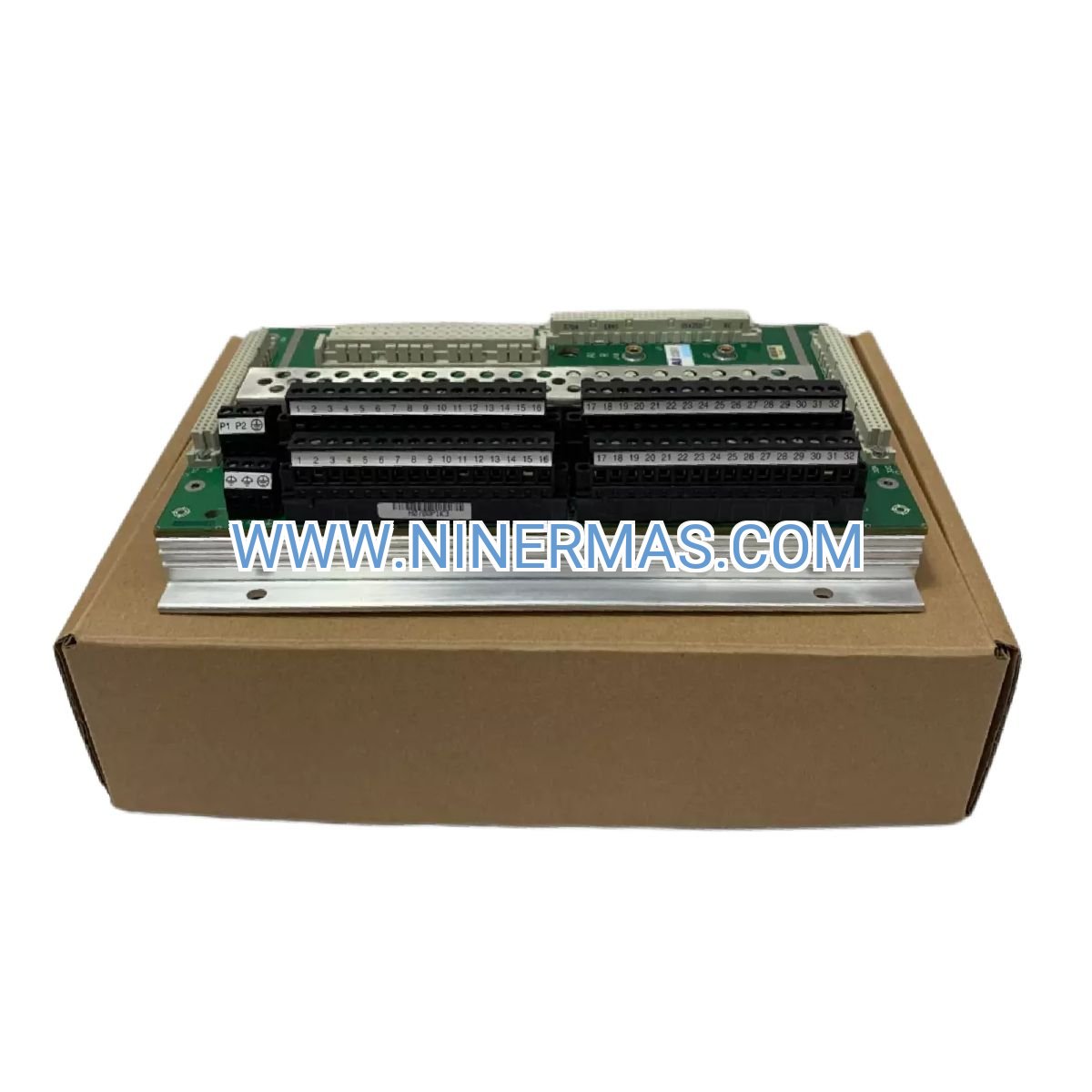

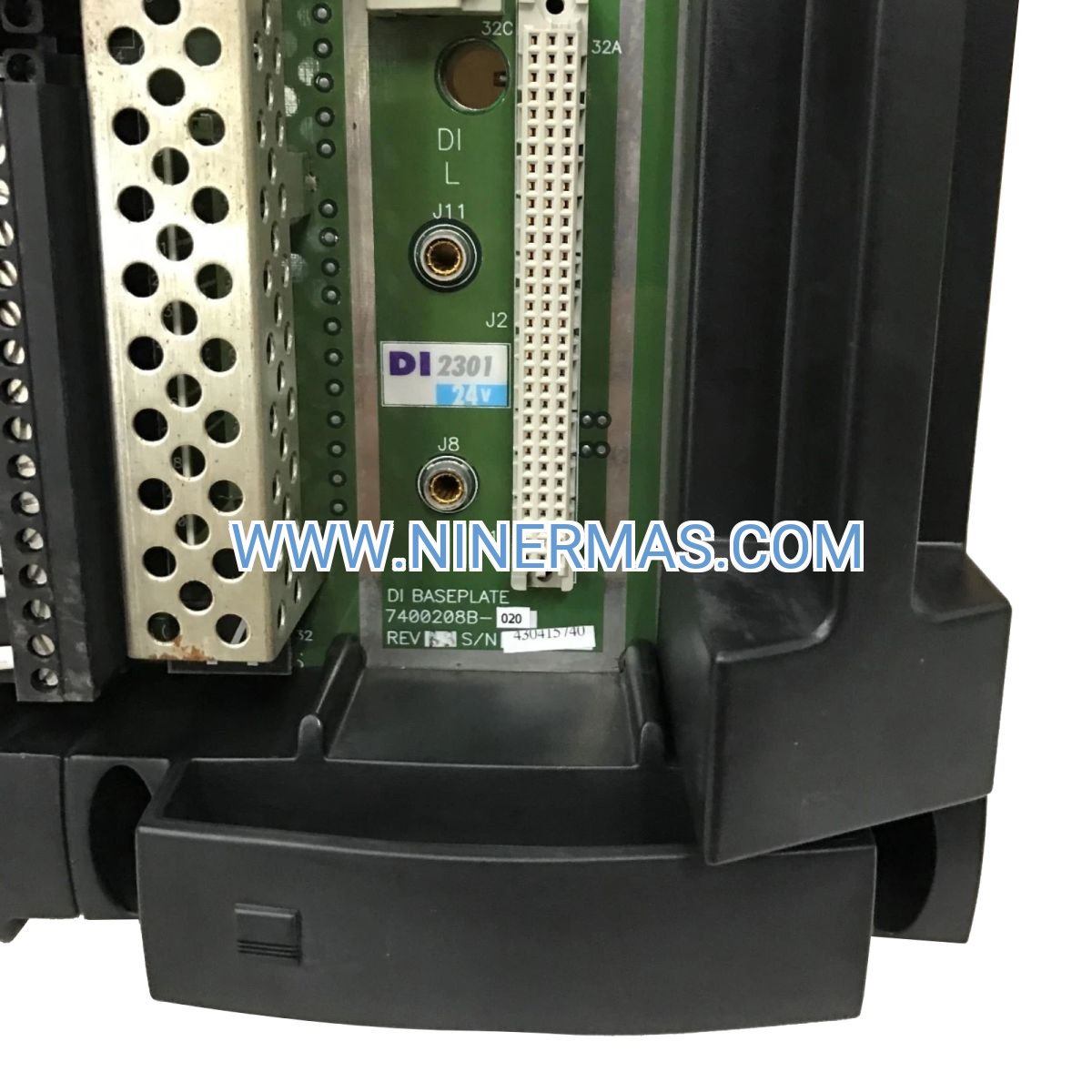

7400208B-020 DI2301 Digital Input Baseplate (Industrial-Grade TMR Platform)

The 7400208B-020 DI2301 represents a mission-critical foundation component for Triconex Triple Modular Redundancy safety systems. This precision-engineered baseplate establishes secure mechanical mounting and electrical pathways between field instrumentation and your Tricon controller, enabling fault-tolerant signal processing in environments where operational continuity is non-negotiable. Designed for SIL 3 applications, it transforms raw digital signals into actionable safety intelligence through redundant voting logic.

Process industries worldwide depend on this baseplate to maintain protective barriers against catastrophic events. Whether monitoring emergency shutdown valves in petrochemical facilities or tracking critical alarms in power generation plants, the DI2301 platform delivers deterministic performance under extreme conditions. Its TMR architecture ensures that single-point failures never compromise your safety posture, automatically isolating faults while maintaining full operational capability.

Built to Triconex's exacting standards, this baseplate integrates seamlessly with existing safety instrumented systems while providing a migration path for future expansions. Hot-swappable design minimizes maintenance windows, while diagnostic indicators accelerate troubleshooting—reducing mean time to repair and maximizing system availability across your facility.

Core Features & Benefits

✓ Triple Modular Redundancy Architecture
Three independent signal processing channels vote on every input state, automatically masking hardware failures without process interruption. This design eliminates spurious trips while maintaining SIL 3 integrity—critical for high-availability operations where unplanned shutdowns cost millions per hour.

✓ SIL 3 Certified Safety Integrity
Complies with IEC 61508 functional safety standards, providing documented proof of failure rates below 10⁻⁸ dangerous failures per hour. Regulatory audits become streamlined with pre-certified components that meet global safety mandates for process industries.

✓ Hot-Swappable Maintenance Protocol
Replace input modules during live operation without de-energizing the safety system or halting production. Maintenance teams can address component degradation proactively, scheduling interventions during optimal windows rather than emergency shutdowns.

→ Universal Triconex Platform Compatibility
Interfaces with Tricon, Trident, and TriStation controllers across multiple firmware generations. Protects your infrastructure investment by supporting legacy systems while accommodating next-generation upgrades—no forklift replacements required.

→ Integrated Diagnostic Intelligence
Onboard LED arrays provide real-time status feedback for power rails, communication buses, and module health. Technicians can diagnose issues at a glance, reducing troubleshooting time from hours to minutes during critical incidents.

→ Industrial Environmental Hardening
Operates reliably across 0°C to 60°C temperature ranges and 5-95% humidity without performance degradation. Conformal coating protects circuitry from corrosive atmospheres common in chemical processing and offshore installations.

Application Scenarios

Petrochemical Emergency Shutdown Systems
Monitor high-integrity pressure switches, flame detectors, and toxic gas sensors across refinery units. The baseplate's TMR voting prevents false alarms that could trigger unnecessary shutdowns, while guaranteed fault detection ensures genuine hazards activate protective sequences within milliseconds.

Power Plant Turbine Protection
Interface with vibration monitors, overspeed sensors, and bearing temperature detectors on critical rotating equipment. When a single sensor channel fails, the system continues protecting your turbine using the remaining two channels—maintaining safety without forcing outages during peak demand periods.

Offshore Platform Fire & Gas Detection
Process signals from hundreds of distributed sensors across production decks, living quarters, and subsea manifolds. The baseplate's fault-tolerant design ensures that corrosion-induced wiring faults or sensor degradation never create blind spots in your protective envelope.

Pharmaceutical Batch Process Safeguards
Track critical parameters like reactor pressure limits, temperature excursions, and contamination alarms during sterile production runs. Maintain FDA 21 CFR Part 11 compliance with auditable safety system performance that documents every input state change and fault condition.

Chemical Reactor Interlock Systems
Implement multi-layered protection schemes that prevent runaway reactions, overpressure events, and hazardous material releases. The baseplate's deterministic scan times ensure protective actions execute within defined safety response windows, even under maximum I/O loading.

Technical Parameters & Selection Guide

Selection Criteria: Verify your existing Triconex controller model and firmware revision before ordering. The 7400208B-020 supports DI2301 input modules exclusively—analog inputs, outputs, and communication modules require dedicated baseplates. For systems operating in hazardous areas, confirm that your input modules carry appropriate ATEX/IECEx certifications for Zone 2 or Division 2 installations. Contact our engineering team for assistance with I/O capacity planning and chassis slot allocation.

Extended Functions

Remote Diagnostics Integration: When paired with Triconex TriStation software, the baseplate streams real-time health metrics to your control room HMI. Monitor signal quality, detect intermittent wiring faults, and track module temperature trends—enabling predictive maintenance strategies that prevent unplanned failures.

Cybersecurity Hardening: The baseplate's isolated architecture prevents unauthorized access to safety logic, even if plant networks are compromised. No Ethernet connectivity or programmable logic resides on the baseplate itself, creating an air-gapped barrier between your safety system and potential cyber threats.

Scalable I/O Expansion: Deploy multiple baseplates within a single Triconex chassis to accommodate growing sensor networks. Each baseplate operates independently, allowing incremental capacity additions without re-engineering your entire safety system architecture.

Delivery & Service Assurance

Lead Time: In-stock units ship within 24-48 hours via expedited carriers. Custom configurations or bulk orders typically require 2-3 weeks for factory preparation and quality verification.

Warranty Coverage: 12-month manufacturer warranty protects against defects in materials and workmanship. Extended warranty programs available for critical applications requiring multi-year coverage.

Technical Support: Access to Triconex-certified engineers for installation guidance, configuration assistance, and troubleshooting. 24/7 emergency hotline ensures rapid response during unplanned outages.

Documentation Package: Every shipment includes installation manuals, wiring diagrams, safety certification documents, and firmware compatibility matrices. Digital copies available for download immediately upon order confirmation.

Frequently Asked Questions

How does the TMR voting mechanism handle sensor failures in real-time operations?
The baseplate continuously compares all three input channels at microsecond intervals. When one channel deviates from the other two, the system flags a fault and uses the majority vote for control decisions. Operators receive immediate notification of the discrepancy, allowing scheduled replacement without compromising safety integrity or forcing emergency shutdowns.

What field voltage ranges are compatible with DI2301 input modules on this baseplate?
The baseplate accommodates input modules rated for 24V DC, 48V DC, and 120V AC field signals. Each module type has specific voltage thresholds and current draw requirements—consult the input module datasheet to ensure compatibility with your field instrumentation. Mixing voltage types on a single baseplate is not supported.

Can I retrofit this baseplate into legacy Triconex systems installed in the 1990s?
Yes, the 7400208B-020 maintains backward compatibility with earlier Tricon controller generations, provided your system firmware meets minimum revision requirements. Our technical team can verify compatibility using your controller serial number and current firmware version. Some legacy systems may require firmware updates before accepting newer baseplate revisions.

What installation clearances are required for proper thermal management?
Maintain a minimum 50mm (2 inches) clearance above and below the baseplate for adequate convection cooling. Chassis-mounted installations should ensure unrestricted airflow through ventilation slots. Avoid installing baseplates directly above heat-generating components like power supplies or high-current output modules.

Does the baseplate support remote I/O configurations for distributed control architectures?
The 7400208B-020 is designed for local I/O installation within the main Triconex chassis. For remote I/O applications, consider Triconex's RXM or EICM communication modules, which extend TMR capabilities to field-mounted junction boxes up to 10 kilometers from the main controller.

How do I verify baseplate functionality after installation or module replacement?
Use TriStation diagnostic tools to execute built-in self-tests that verify backplane communication, power rail integrity, and module recognition. LED indicators on the baseplate provide immediate visual confirmation of operational status. Detailed diagnostic logs capture fault histories for root cause analysis during commissioning or troubleshooting.

Ready to Enhance Your Safety System?

Secure your facility's protective infrastructure with proven Triconex technology. Our team is standing by to assist with technical specifications, compatibility verification, and expedited delivery options. Contact us today to discuss your safety system requirements and receive a detailed quotation within 24 hours.
