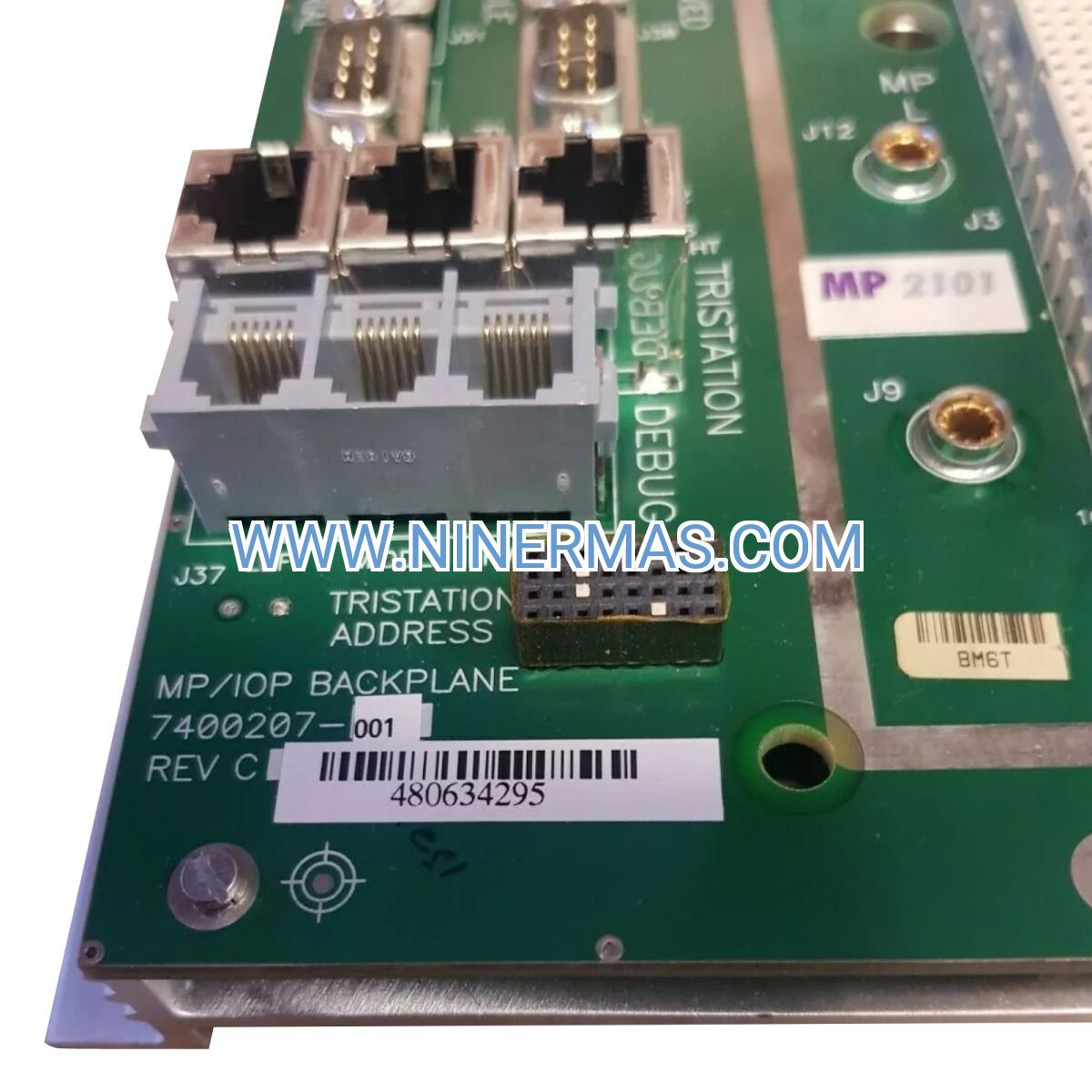

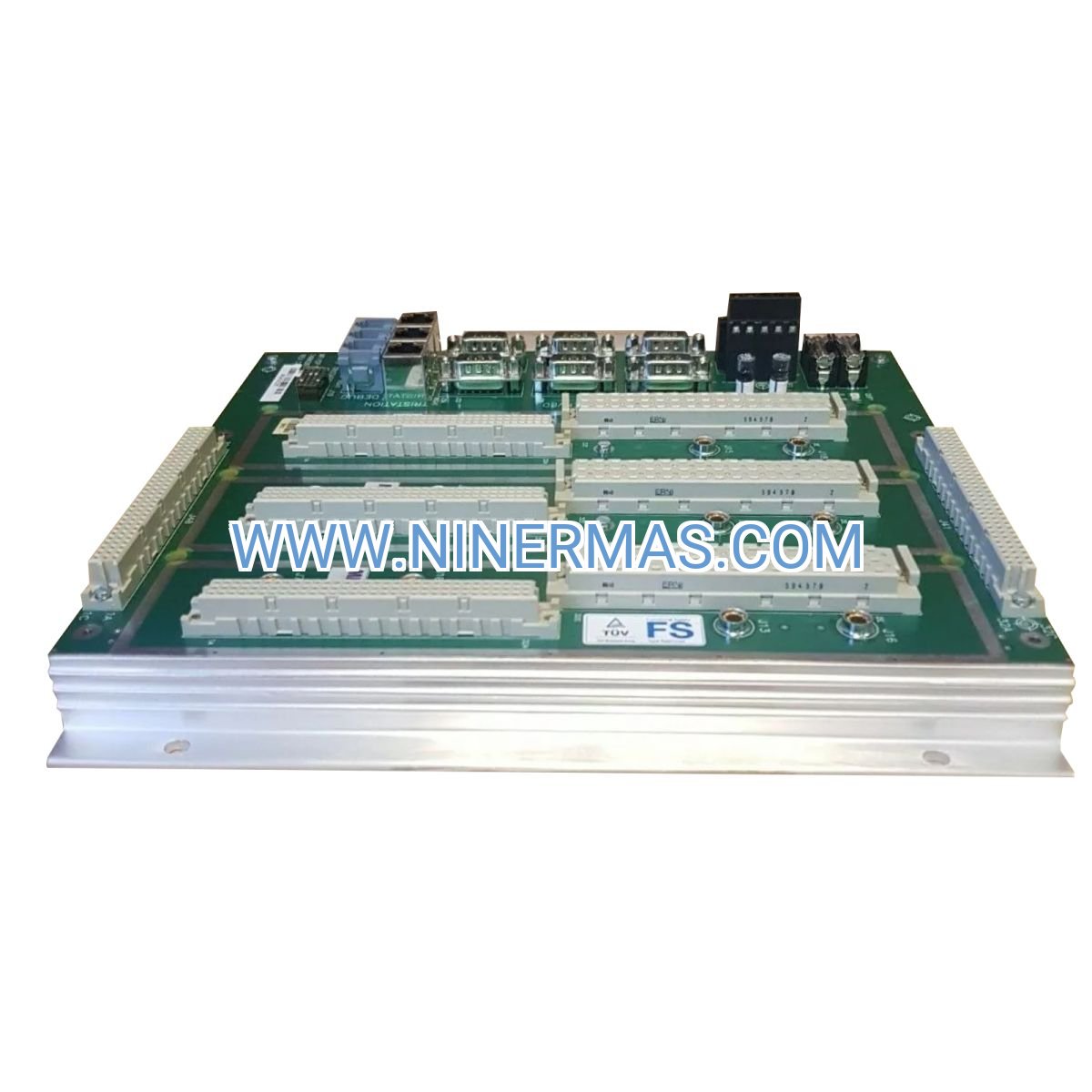

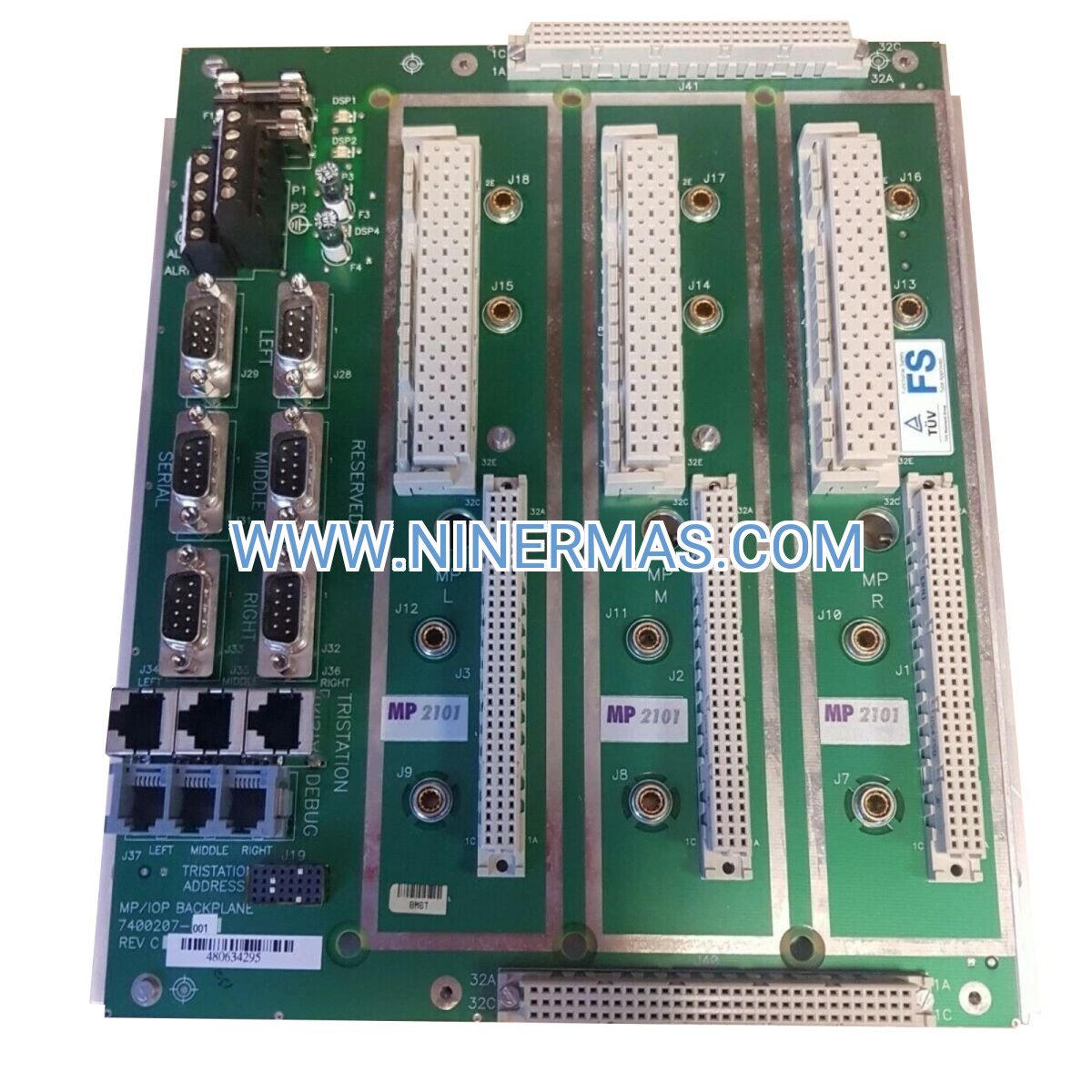

MP2101 Main Processor Baseplate – Industrial-Grade TMR Mounting Platform

The 7400207-001 represents a critical infrastructure component in Triple Modular Redundant safety architectures, delivering robust mechanical support and electrical backplane connectivity for MP2101 main processor modules. Designed for mission-critical environments where system availability and fault tolerance are non-negotiable, this baseplate enables continuous safety function execution across oil & gas, chemical processing, and power generation facilities.

Built to withstand harsh industrial conditions, the baseplate accommodates extreme temperature swings (-40°C to 85°C storage range), high humidity environments (up to 95% non-condensing), and mechanical vibration common in offshore platforms and refinery installations. Its DIN rail-compatible mounting system simplifies installation while maintaining compliance with IEC 61508 SIL 3 and IEC 61511 safety standards.

Whether you're upgrading legacy safety systems or deploying new emergency shutdown infrastructure, the 7400207-001 provides the foundation for reliable, long-term operation with minimal maintenance requirements and proven 15+ year service life.

Core Capabilities & Technical Advantages

✓ Triple Modular Redundancy Support
Houses three independent processor channels that continuously cross-verify operations, automatically isolating faults while maintaining safety function integrity – critical for achieving SIL 3 certification in high-consequence applications.

✓ Hot-Swappable Module Architecture
Enables online module replacement without full system shutdown, reducing planned maintenance windows by up to 70% and minimizing production interruptions during component upgrades or repairs.

✓ Ruggedized Environmental Tolerance
Operates reliably across 0°C to 60°C ambient temperatures with 5-95% humidity resistance, eliminating the need for costly climate-controlled enclosures in most industrial settings.

✓ Universal DIN Rail Integration
Standard 35mm DIN rail compatibility accelerates installation time by 40% compared to custom mounting solutions, while ensuring secure mechanical retention under vibration and shock conditions.

✓ Certified Safety Compliance
Factory-tested to IEC 61508 SIL 3 requirements with full documentation package, streamlining regulatory approval processes and third-party safety audits.

→ Electrical Backplane Integrity
Gold-plated connector contacts maintain low-resistance signal paths over 100,000+ insertion cycles, preventing intermittent faults that compromise safety system reliability.

Industry Applications & Use Cases

Emergency Shutdown Systems (ESD) – Oil & Gas Production
In offshore platforms and onshore processing facilities, the baseplate anchors main processors that monitor critical parameters like pressure, temperature, and flow rates. When hazardous conditions are detected, the TMR architecture ensures fail-safe shutdown execution even if individual processor channels experience hardware failures, preventing catastrophic releases and protecting personnel.

Fire & Gas Detection Networks – Petrochemical Complexes
Chemical plants deploy these baseplates in distributed safety systems that coordinate hundreds of flame detectors, toxic gas sensors, and suppression actuators. The redundant design eliminates single points of failure in life-safety systems, maintaining protective functions during sensor malfunctions or communication disruptions.

Burner Management Systems – Power Generation
Combined-cycle power plants rely on MP2101 baseplates to support combustion control processors that manage fuel-air ratios, ignition sequences, and flame monitoring. The hot-swappable capability allows scheduled maintenance during low-demand periods without taking generating units offline.

Reactor Protection Systems – Chemical Manufacturing
Batch and continuous process reactors use these baseplates in safety interlocks that prevent runaway reactions, overpressure events, and thermal excursions. The wide operating temperature range accommodates installation near high-temperature process equipment without additional cooling infrastructure.

Pipeline Monitoring & Compressor Stations – Midstream Operations
Long-distance pipeline operators install these baseplates in remote compressor stations and valve manifolds where environmental extremes and limited maintenance access demand maximum component reliability and extended service intervals.

Technical Specifications & Selection Criteria

Selection Guidelines: Verify compatibility with your specific MP2101 main processor module revision. For systems requiring SIL 2 certification, this baseplate exceeds minimum requirements. Installations in corrosive atmospheres may require additional conformal coating – consult factory for marine-grade options. When planning redundant configurations, order matching baseplates from the same production lot to ensure consistent electrical characteristics.

Advanced Integration Features

Diagnostic LED Indicators: Built-in status LEDs provide at-a-glance verification of backplane power distribution and module seating, reducing troubleshooting time during commissioning and maintenance activities.

Modular Expansion Capability: Supports side-by-side installation with additional I/O baseplates and communication modules, enabling scalable safety system architectures that grow with facility expansion projects.

EMI/RFI Shielding: Integrated electromagnetic interference protection maintains signal integrity in electrically noisy environments with variable frequency drives, high-power switching equipment, and radio transmitters.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units with expedited shipping options available for emergency replacements and unplanned outages.

Custom Configuration: 10-15 business days for factory-customized baseplates with special coatings, extended temperature ratings, or application-specific modifications.

Warranty Coverage: Comprehensive 12-month warranty against manufacturing defects and material failures, with optional extended service agreements available for critical infrastructure applications.

Technical Support: Unlimited access to application engineers for installation planning, system integration guidance, and troubleshooting assistance via phone, email, and remote diagnostics.

Documentation Package: Complete technical manuals, dimensional drawings, safety certification documents, and compliance declarations included with every shipment.

Frequently Asked Questions

Which Triconex main processor modules are compatible with this baseplate?
The 7400207-001 is engineered specifically for MP2101 series main processors. Always cross-reference module part numbers with baseplate specifications before ordering to ensure proper mechanical fit and electrical connectivity. Mixing incompatible components may void safety certifications.

How does the TMR architecture improve safety system reliability?
Triple Modular Redundancy employs three independent processor channels that execute identical logic and continuously compare results. If one channel produces divergent outputs due to hardware failure, the remaining two channels outvote the faulty unit and maintain correct safety function execution – achieving fault tolerance impossible with simplex or dual-redundant designs.

Can I perform baseplate replacement during normal plant operations?
Baseplate replacement typically requires controlled system shutdown and isolation. However, facilities with fully redundant TMR configurations can schedule maintenance during planned outages while maintaining partial safety coverage on remaining channels. Consult your safety analysis documentation for specific procedures.

What environmental conditions exceed this baseplate's operating limits?
Continuous exposure above 60°C ambient temperature, condensing humidity, corrosive gas concentrations (H2S, Cl2, SO2), and vibration exceeding 2G at 10-500Hz may degrade performance or reduce service life. Contact our engineering team for harsh-environment solutions including conformal coating and vibration isolation accessories.

Does the baseplate require periodic calibration or testing?
The baseplate itself contains no active electronics requiring calibration. However, safety system standards (IEC 61511) mandate periodic proof testing of complete safety instrumented functions, which includes visual inspection of baseplate mounting security, connector integrity, and LED functionality – typically performed during scheduled plant turnarounds.

Are replacement parts available for long-term support?
Triconex maintains extensive spare parts inventory for legacy safety systems, with guaranteed availability for active product lines and 10+ year support commitments for discontinued models. Register your installation for proactive obsolescence notifications and migration planning assistance.

Get Expert Guidance for Your Safety System Project

Our application engineers are ready to help you select the right baseplate configuration, plan system architecture, and ensure compliance with industry safety standards. Contact us today for technical consultation, volume pricing, or expedited delivery for critical projects.
