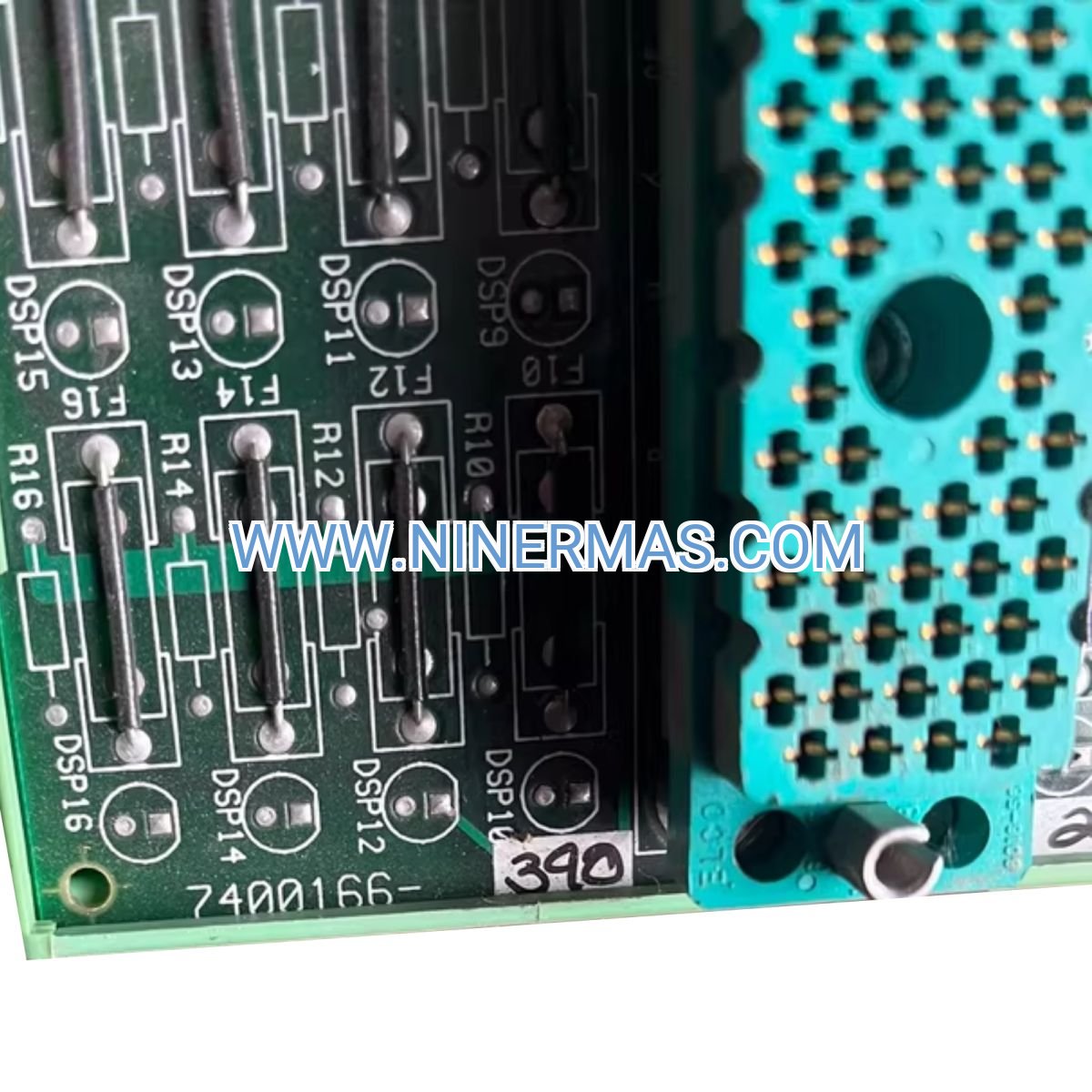

Triconex 7400166 External Termination Panel (Industrial-Grade Field Interface)

The Triconex 7400166 External Termination Panel represents a mission-critical field wiring interface engineered for Schneider Electric's Tricon Safety Instrumented System architecture. This industrial-grade termination solution bridges digital output modules with field instrumentation, delivering organized, secure connectivity in environments where safety integrity cannot be compromised. Designed for process industries demanding SIL 3 compliance, the 7400166 ETP eliminates wiring chaos while maintaining the triple modular redundancy that defines Triconex reliability.

Process engineers and instrumentation specialists rely on this termination panel to streamline commissioning workflows, reduce installation errors, and accelerate troubleshooting in emergency shutdown systems, burner management applications, and critical process control networks. Whether you're upgrading legacy safety systems or designing new installations, the 7400166 delivers the structured connectivity foundation your safety architecture requires.

With certification to IEC 61508 standards and proven performance across oil & gas, chemical processing, and power generation sectors, this termination panel transforms complex field wiring into a manageable, maintainable system component. Discover how the 7400166 ETP can elevate your safety system integrity while simplifying operational workflows.

Core Capabilities & Business Value

✓ Triple Modular Redundancy Integration
Seamlessly interfaces with TMR-configured digital output modules, preserving the fault-tolerant architecture that enables continuous operation during component failures. This redundancy translates to reduced unplanned downtime and enhanced process availability.

✓ SIL 3 Compliance Assurance
Certified to IEC 61508 safety integrity level 3 requirements, providing documented proof of safety performance for regulatory audits and insurance compliance. Eliminates costly re-engineering when safety authorities demand certification evidence.

✓ Extreme Environment Resilience
Operates reliably across -40°C to +70°C temperature ranges while withstanding vibration, electromagnetic interference, and corrosive atmospheres typical of heavy industrial settings. Reduces replacement frequency and maintenance callouts in harsh conditions.

✓ Accelerated Commissioning Workflows
Clearly labeled terminal blocks with logical numbering schemes cut installation time by 30-40% compared to generic termination solutions. Color-coded documentation reduces wiring errors that trigger expensive startup delays.

✓ Maintenance-Friendly Architecture
Accessible terminal layout enables technicians to perform continuity checks, signal tracing, and connection verification without removing adjacent components. Minimizes mean time to repair during critical troubleshooting scenarios.

✓ Flexible Mounting Options
Supports both DIN rail and panel mount configurations, adapting to space-constrained control cabinets or traditional marshalling panel layouts without requiring custom fabrication.

Industry Applications & Problem Resolution

→ Oil & Gas Processing Facilities
In offshore platforms and refinery units, the 7400166 ETP manages emergency shutdown valve control, compressor trip circuits, and flare system interlocks. Solves the challenge of maintaining signal integrity in high-vibration environments while meeting API and IEC safety standards. Delivers rapid fault isolation during emergency response scenarios.

→ Chemical Manufacturing Plants
Chemical reactors and batch processing systems utilize this termination panel for exothermic reaction control, pressure relief valve actuation, and toxic gas isolation sequences. Addresses the critical need for fail-safe operation in processes where control system failures could trigger catastrophic releases. Enables compliance with OSHA PSM and EPA RMP regulations.

→ Power Generation Stations
Boiler management systems, turbine protection circuits, and generator excitation controls depend on the 7400166 for reliable field termination. Resolves the complexity of coordinating hundreds of discrete output signals while maintaining the deterministic response times required for grid stability. Supports both fossil fuel and renewable energy applications.

→ Pharmaceutical Production Lines
Clean room environments and sterile processing equipment leverage this panel for automated valve sequencing, sterilization cycle control, and environmental monitoring system interfaces. Solves the dual challenge of maintaining electrical safety while meeting FDA 21 CFR Part 11 documentation requirements for validated systems.

→ Water Treatment Infrastructure
Municipal water plants and industrial wastewater facilities employ the 7400166 for chemical dosing pump control, clarifier automation, and disinfection system management. Addresses the need for corrosion-resistant termination in high-humidity environments while ensuring public health protection through reliable safety system operation.

Technical Parameters & Selection Criteria

Selection Guidelines: Verify your digital output module model numbers against Triconex compatibility matrices before ordering. For applications requiring analog signal termination, consider alternative ETP models designed for analog I/O interfaces. Installations in explosive atmospheres may require additional intrinsic safety barriers—consult your safety instrumented system design documentation. When planning cabinet layouts, allocate 15-20% additional space beyond panel dimensions to accommodate wire bending radius requirements and maintenance access clearances.

Advanced Integration Capabilities

Diagnostic Signal Access
Integrated test points enable online verification of output signal status without breaking field wiring connections, supporting predictive maintenance strategies and reducing diagnostic time during troubleshooting.

Documentation Integration
Laser-etched terminal labels correspond directly to Triconex TriStation configuration software tag names, creating seamless traceability between control logic and physical wiring that accelerates commissioning and modification activities.

Modular Expansion Architecture
Multiple 7400166 panels can be ganged together in marshalling cabinet configurations, supporting scalable system growth without redesigning termination infrastructure as process automation requirements evolve.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; expedited shipping available for emergency replacement scenarios requiring next-day delivery to critical facilities.

Warranty Coverage: Comprehensive 12-month manufacturer warranty protecting against material defects and workmanship issues, with hassle-free replacement processing for qualified claims.

Technical Support: Direct access to application engineers with Triconex system expertise, providing installation guidance, configuration assistance, and troubleshooting support via phone, email, and remote diagnostic sessions.

Documentation Package: Each unit ships with installation manual, wiring diagrams, terminal block layout drawings, and certification documents required for safety system validation and regulatory compliance audits.

Frequently Asked Questions

How does the 7400166 termination panel integrate with existing Triconex safety systems?
The 7400166 ETP connects directly to Triconex digital output modules via ribbon cables or discrete wiring, depending on your module configuration. It maintains full compatibility with TMR architectures and requires no special programming—simply map your TriStation output tags to the corresponding terminal numbers documented in the panel labeling.

What wire preparation methods ensure reliable long-term connections?
Use ferrules on stranded conductors to prevent strand breakage and ensure consistent contact pressure. Strip wire insulation to expose 8-10mm of conductor, insert fully into terminal blocks, and torque screws to 0.5-0.6 Nm as specified in installation documentation. Avoid tinning wire ends, as solder can cold-flow under screw pressure over time.

Can this termination panel support remote monitoring and diagnostics?
While the 7400166 itself is a passive termination interface, it integrates seamlessly with Triconex systems that include remote monitoring capabilities through TriStation software and communication modules. The panel's test points facilitate local diagnostic measurements that can be correlated with remote system data.

What environmental protection does the panel provide in corrosive atmospheres?
The 7400166 features conformal coating on circuit boards and corrosion-resistant terminal hardware suitable for industrial environments. For highly corrosive applications (chemical processing, offshore marine), consider installing panels in NEMA 4X or IP66-rated enclosures with appropriate environmental sealing.

How do I verify proper installation before energizing field devices?
Perform continuity checks between module output terminals and field device connection points using a digital multimeter. Verify correct polarity on DC circuits, confirm shield grounding follows Triconex installation standards, and validate that all terminal screws meet specified torque values. Consult loop drawings to ensure tag number correspondence.

What training resources help technicians maintain these termination panels?
Schneider Electric offers Triconex system training courses covering installation, commissioning, and maintenance procedures. The 7400166 installation manual includes troubleshooting flowcharts, and our technical support team provides application-specific guidance for complex wiring scenarios or system integration challenges.

Take the Next Step

Ready to enhance your Triconex safety system with reliable field termination? Contact our industrial automation specialists at sale@ninermas.com or call +0086 187 5021 5667 to discuss your specific application requirements, verify compatibility with your existing modules, and receive expert guidance on optimal panel configuration for your facility. Request a detailed quotation today and discover how the 7400166 ETP can streamline your next safety system project.
