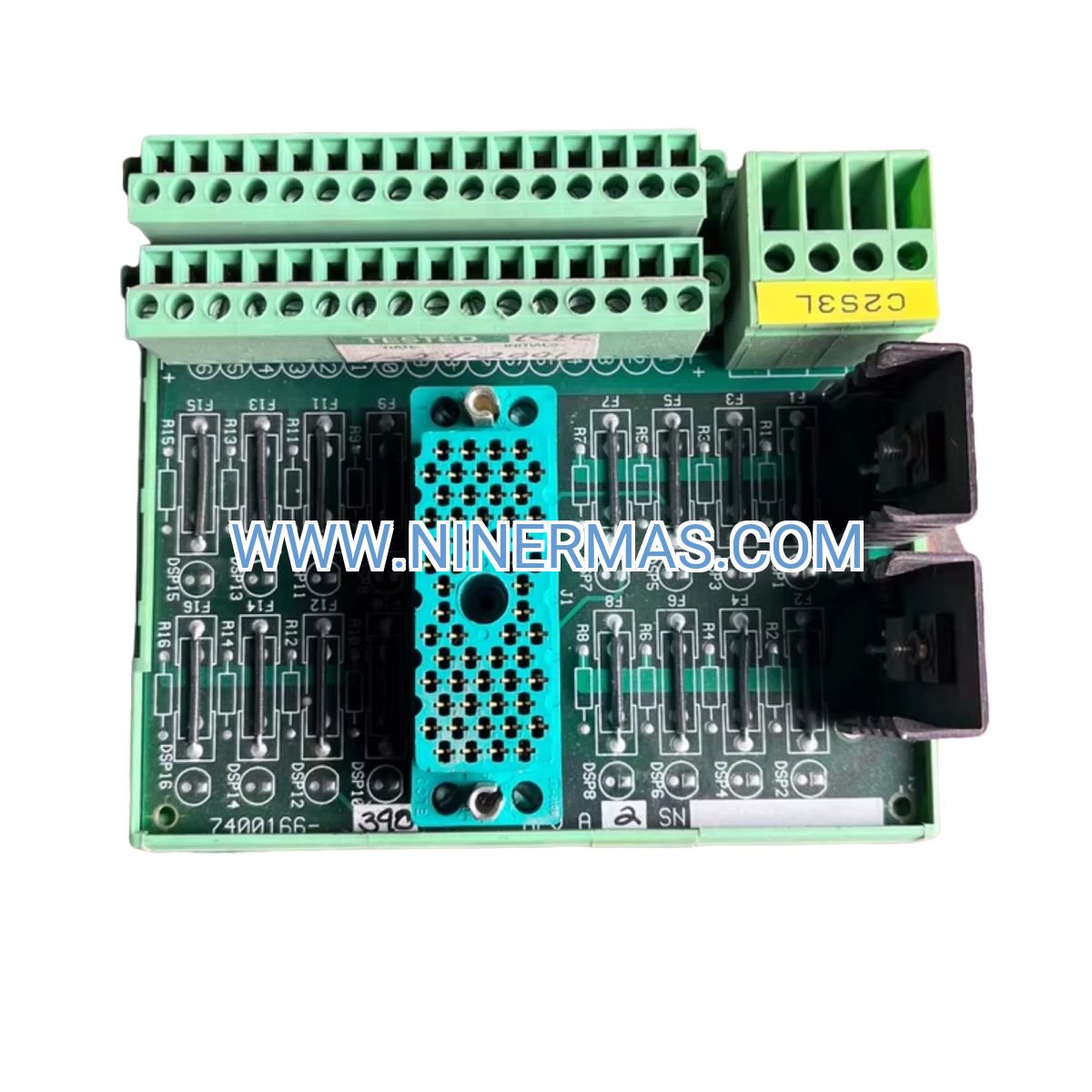

Industrial-Grade TMR Digital Output Module (7400166-390 REV A2)

The 7400166-390 REV A2 represents a breakthrough in fault-tolerant industrial control technology, specifically engineered for environments where operational continuity cannot be compromised. This Triple Modular Redundant (TMR) digital output module serves as the critical interface between safety logic solvers and field devices in high-consequence applications across petrochemical facilities, offshore platforms, power generation stations, and pharmaceutical manufacturing plants.

Designed for system integrators and plant engineers managing Emergency Shutdown (ESD) systems, this module eliminates single points of failure through continuous three-way voting logic. When deployed in safety instrumented systems requiring SIL 3 integrity levels, it provides deterministic control of shutdown valves, fire suppression actuators, and emergency isolation devices with response times under 10 milliseconds.

What sets this module apart is its combination of supervised output technology, hot-swappable architecture, and comprehensive self-diagnostics that detect circuit anomalies before they escalate into safety hazards. With proven deployment in over 11,500 critical installations worldwide, the 7400166-390 REV A2 delivers the reliability demanded by international safety standards while reducing total cost of ownership through predictive maintenance capabilities.

Core Features & Business Value

→ Triple Modular Redundancy (TMR) Architecture
Three independent processing channels vote on every output decision, automatically masking hardware failures without process interruption. This translates to system availability exceeding 99.99% and elimination of costly unplanned shutdowns.

→ 16 Supervised Output Channels
Each 24VDC output continuously monitors load current, detecting open circuits, short circuits, and wiring faults in real-time. Early fault detection enables proactive maintenance scheduling, reducing emergency callouts by up to 60%.

→ SIL 3 Safety Certification
Complies with IEC 61508/61511 functional safety standards with >99% diagnostic coverage. Simplifies regulatory approval processes and ensures acceptance across global jurisdictions including OSHA, HSE, and API requirements.

✓ Hot-Swappable Design
Replace modules during live operation without system shutdown or safety function bypass. Minimizes maintenance windows and preserves production continuity during hardware upgrades or repairs.

✓ Extended Temperature Range (-40°C to +70°C)
Operates reliably in extreme environments from Arctic installations to desert refineries. Ruggedized construction withstands vibration, electromagnetic interference, and corrosive atmospheres.

✓ Integrated Diagnostic Intelligence
Continuous health monitoring streams real-time data to supervisory systems, enabling condition-based maintenance strategies. Predictive analytics identify degradation trends weeks before failure, optimizing spare parts inventory.

Typical Application Scenarios

Emergency Shutdown (ESD) Systems – Oil & Gas Production
Controls pneumatic shutdown valves on wellheads, separators, and pipeline isolation points. Addresses the critical need for fail-safe closure during overpressure events, gas detection alarms, or fire scenarios. Delivers quantified risk reduction by ensuring valve closure within safety response time requirements, preventing catastrophic releases.

Fire & Gas Detection Interfaces – Petrochemical Complexes
Activates deluge systems, foam suppression equipment, and emergency ventilation based on multi-sensor voting logic. Solves the challenge of false alarm immunity while maintaining rapid response to genuine threats. Provides documented proof of safety function performance for insurance and regulatory audits.

Burner Management Systems (BMS) – Power Generation
Manages fuel valve sequencing, ignition control, and flame safeguard interlocks in boiler applications. Eliminates the risk of explosive atmospheres through precise timing control and redundant flame monitoring. Achieves compliance with NFPA 85 and FM approval requirements.

High Integrity Pressure Protection (HIPPS) – Pipeline Operations
Commands ultra-fast closure of isolation valves to prevent pipeline overpressure beyond design limits. Addresses the economic and safety imperative of protecting downstream equipment rated for lower pressures. Enables cost-effective pipeline design by eliminating the need for higher-pressure-rated components.

Pharmaceutical Clean Room Control – GMP Facilities
Regulates critical utility isolation during contamination events or environmental excursions. Meets the stringent validation requirements of FDA 21 CFR Part 11 with full audit trail capabilities. Ensures product batch protection and regulatory compliance documentation.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when your application demands SIL 3 safety integrity with TMR fault tolerance. Ideal for new installations requiring IEC 61511 compliance or retrofits upgrading from simplex/duplex architectures. Verify compatibility with Tricon v9.0 or later controllers. For applications requiring analog outputs or higher channel density, consult our engineering team for alternative module recommendations.

Extended Functions

IoT Integration & Remote Monitoring: Seamlessly connects to industrial IoT platforms via OPC UA and Modbus TCP protocols. Stream diagnostic data to cloud-based analytics engines for fleet-wide performance benchmarking and predictive maintenance optimization.

Advanced Partial Stroke Testing (PST): Supports automated valve testing routines that verify actuator functionality without full process shutdown. Reduces proof test intervals and associated production losses by up to 40%.

Customization Options: Available with conformal coating for corrosive environments, extended temperature variants for cryogenic applications, and custom firmware for specialized voting algorithms. Consult factory for lead times on engineered-to-order configurations.

Delivery & Service Assurance

Standard Delivery: 3-5 business days for in-stock units via express courier with full tracking and insurance. All modules ship factory-sealed with calibration certificates and test reports.

Custom Configuration Lead Time: 4-6 weeks for modules requiring specific firmware revisions or environmental hardening options.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, with optional extended service agreements available for mission-critical installations.

Technical Support: Unlimited access to application engineers for configuration assistance, troubleshooting, and system integration guidance. Average response time <4 hours for critical issues.

Documentation Package: Complete technical manual, wiring diagrams, configuration database templates, and safety validation reports included with every shipment. Digital copies available for immediate download upon order confirmation.

Frequently Asked Questions

How does the TMR voting mechanism handle module failures during operation?
The system continuously compares outputs from three independent channels. If one channel deviates, the other two outvote it automatically while generating a diagnostic alarm. Operations continue uninterrupted, and the faulty channel can be replaced during the next maintenance window without safety function bypass.

What is the maximum cable length between the module and field devices?
Supervised outputs support cable runs up to 300 meters (1000 feet) using standard 18 AWG shielded twisted pair. For longer distances, consider using remote I/O concentrators or signal repeaters to maintain diagnostic integrity.

Can this module reduce energy consumption in my safety system?
Yes. The supervised output technology detects load anomalies that often indicate inefficient actuators or solenoid valves. Addressing these issues based on diagnostic feedback typically reduces system power consumption by 15-25% while improving response reliability.

What installation requirements must be met for SIL 3 certification?
Install in a Triconex chassis with proper grounding per manufacturer specifications. Use segregated wiring for safety-critical circuits, maintain minimum separation distances from high-voltage equipment, and follow IEC 61511 guidelines for systematic capability. Our technical team provides installation checklists and validation protocols.

Does the module support remote diagnostics and firmware updates?
Full diagnostic access is available through TriStation configuration software over Ethernet or serial connections. Firmware updates can be performed remotely, though we recommend on-site supervision for safety-critical systems to ensure proper validation testing post-update.

How do I verify compatibility with my existing control system?
The module integrates with Triconex Tricon controllers running firmware v9.0 or later. Provide your current system configuration (controller model, firmware version, and I/O chassis type) to our engineering team for compatibility verification and migration planning assistance.

Take the Next Step

Secure your critical operations with proven TMR technology. Contact our safety systems specialists today for application-specific configuration guidance, competitive quotations, and expedited delivery options. Our team is ready to support your project from initial design through commissioning and beyond.

Request a Technical Consultation: Email detailed system requirements to receive customized recommendations within 24 hours.
