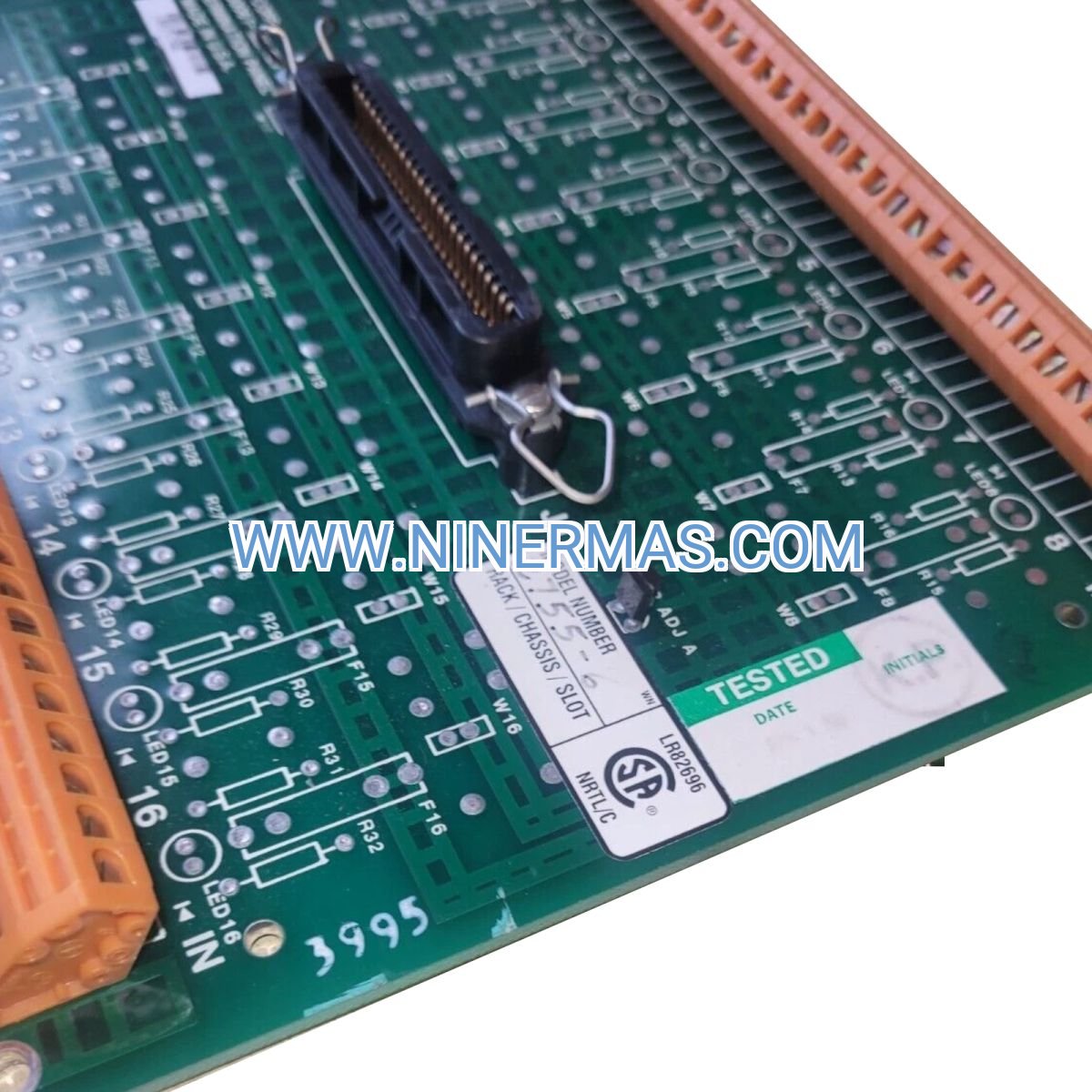

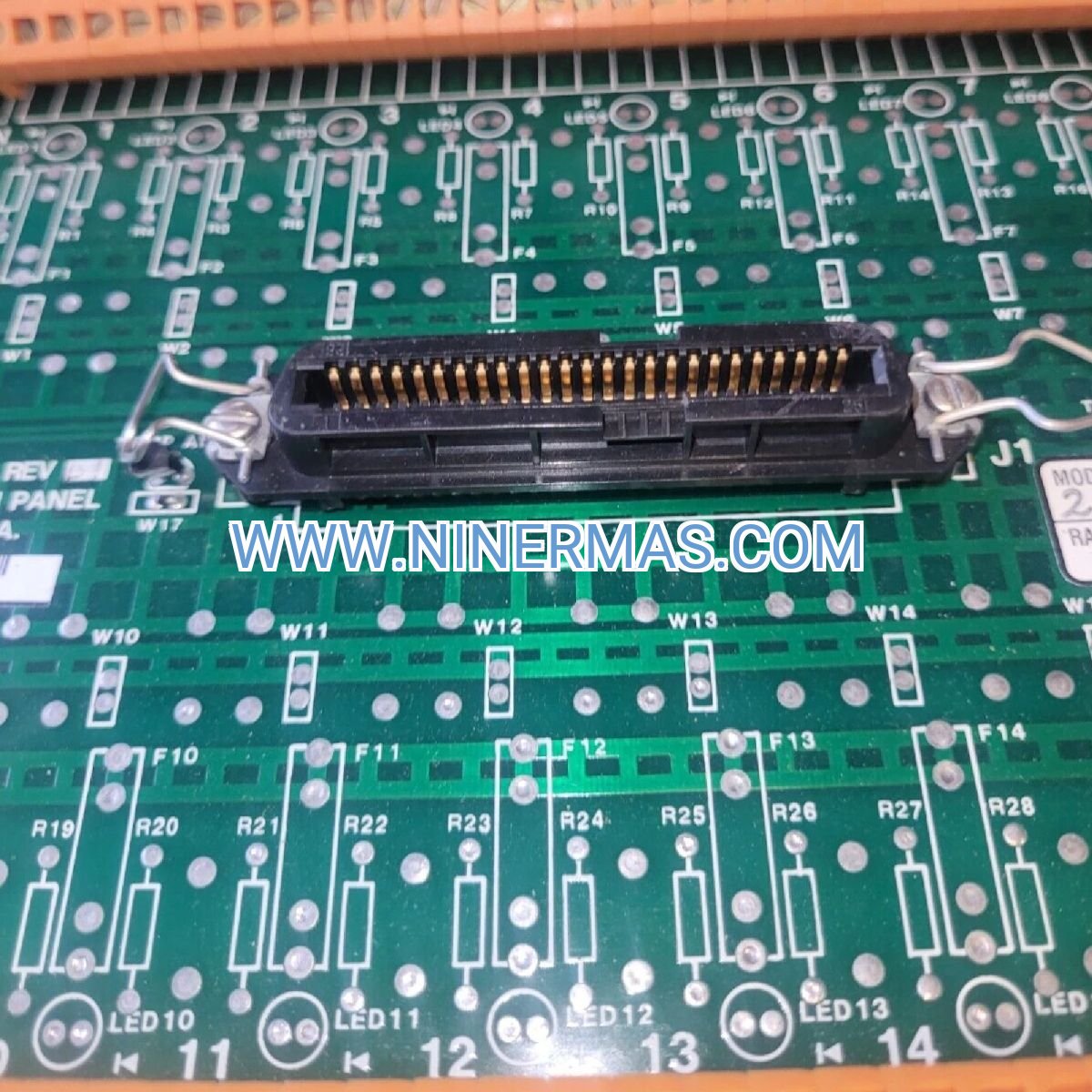

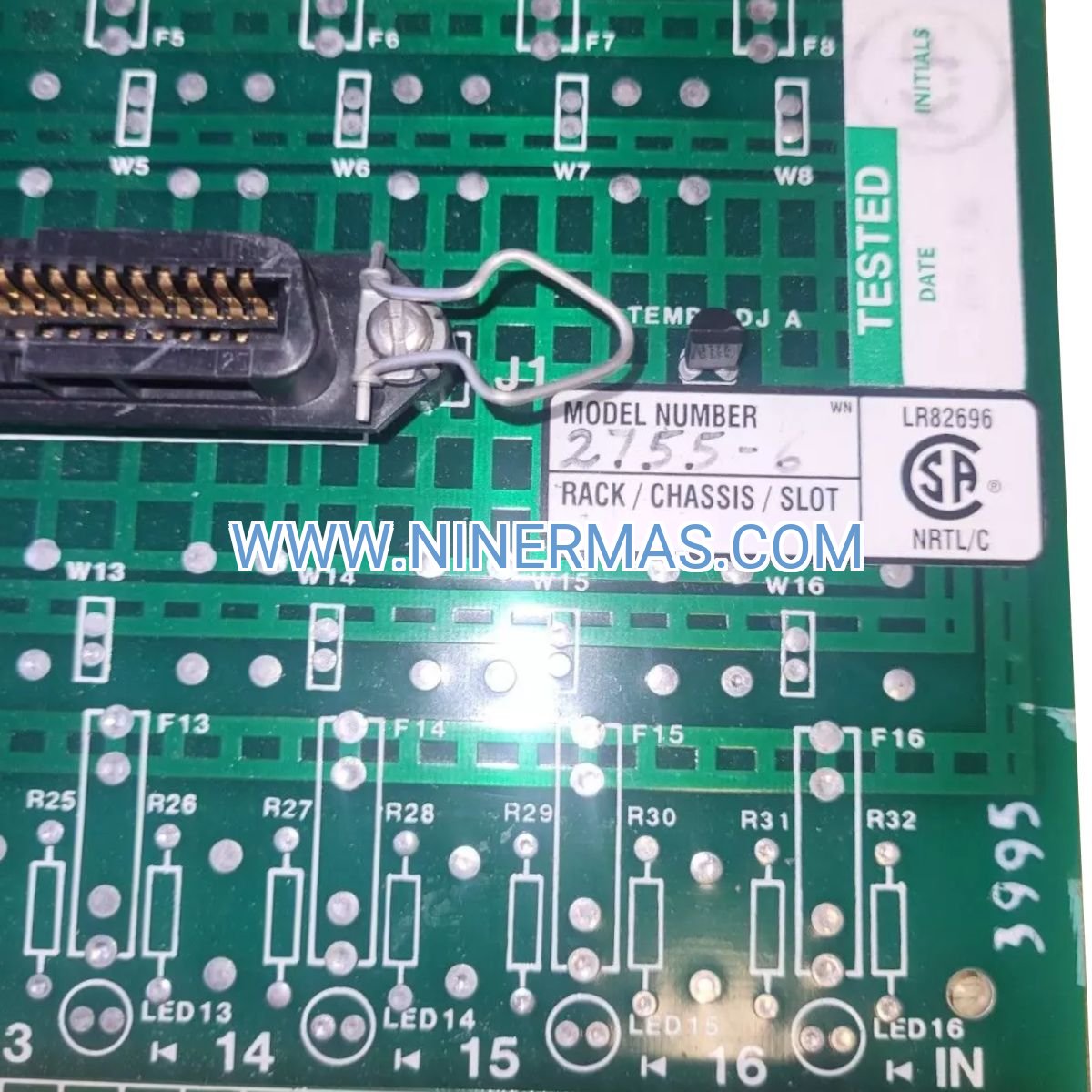

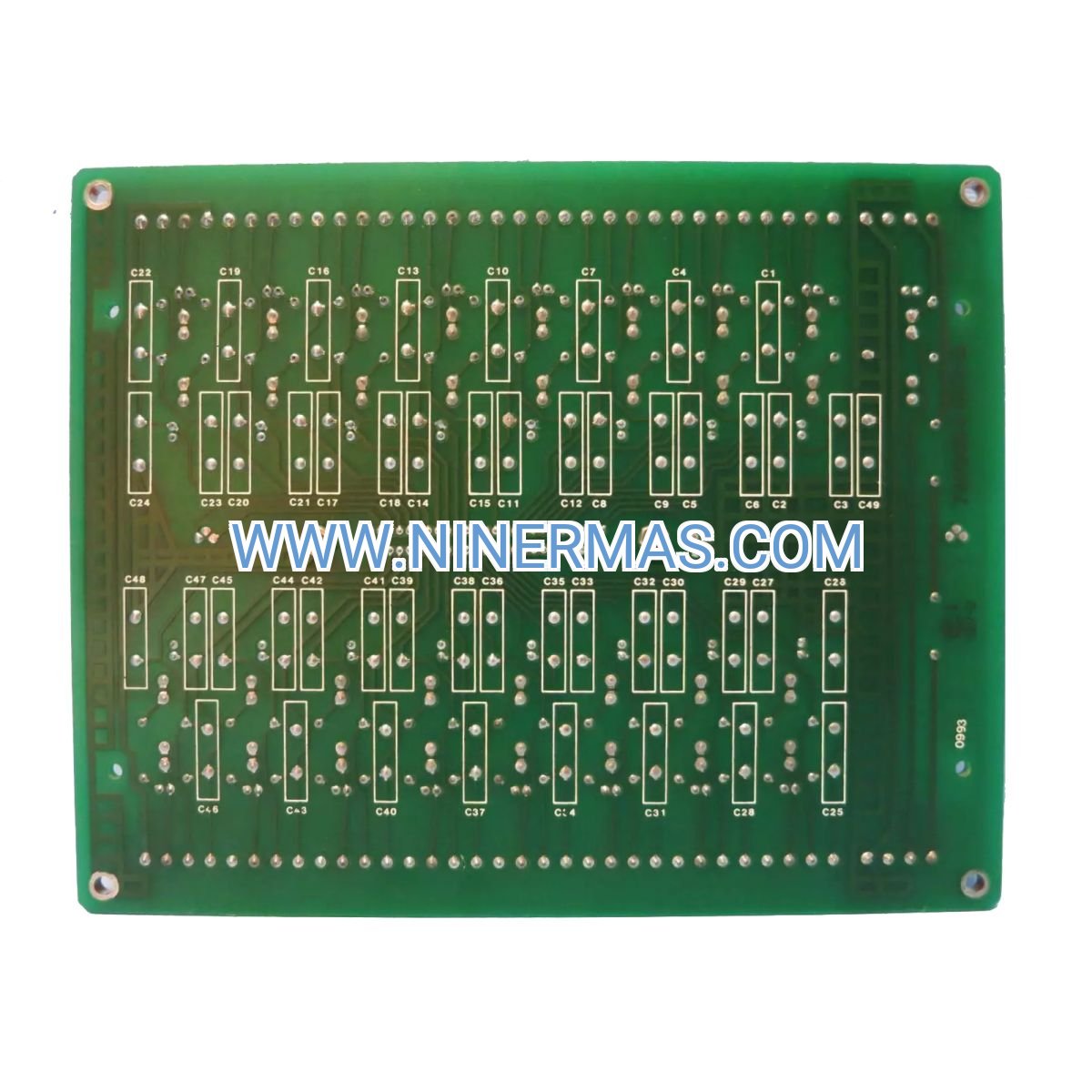

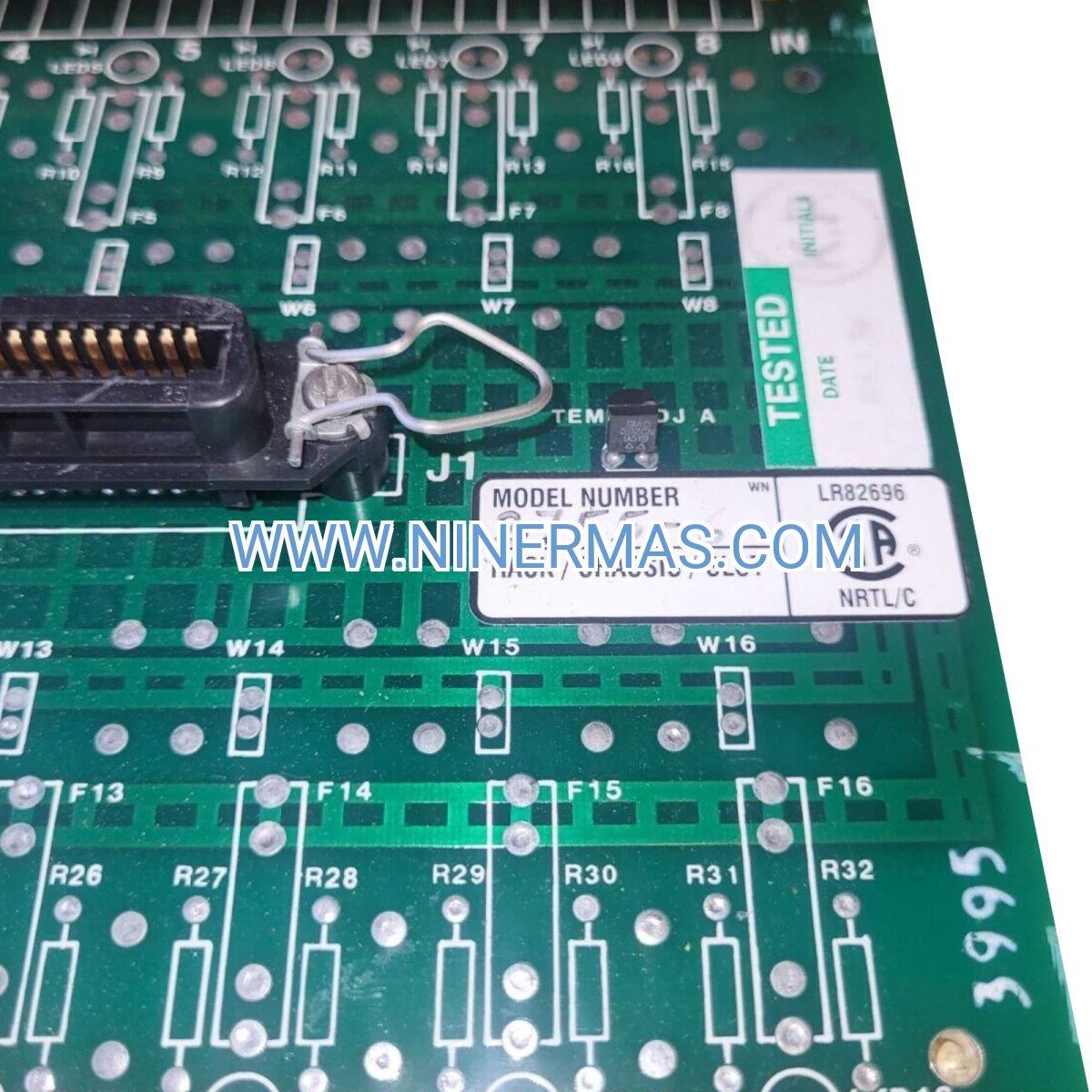

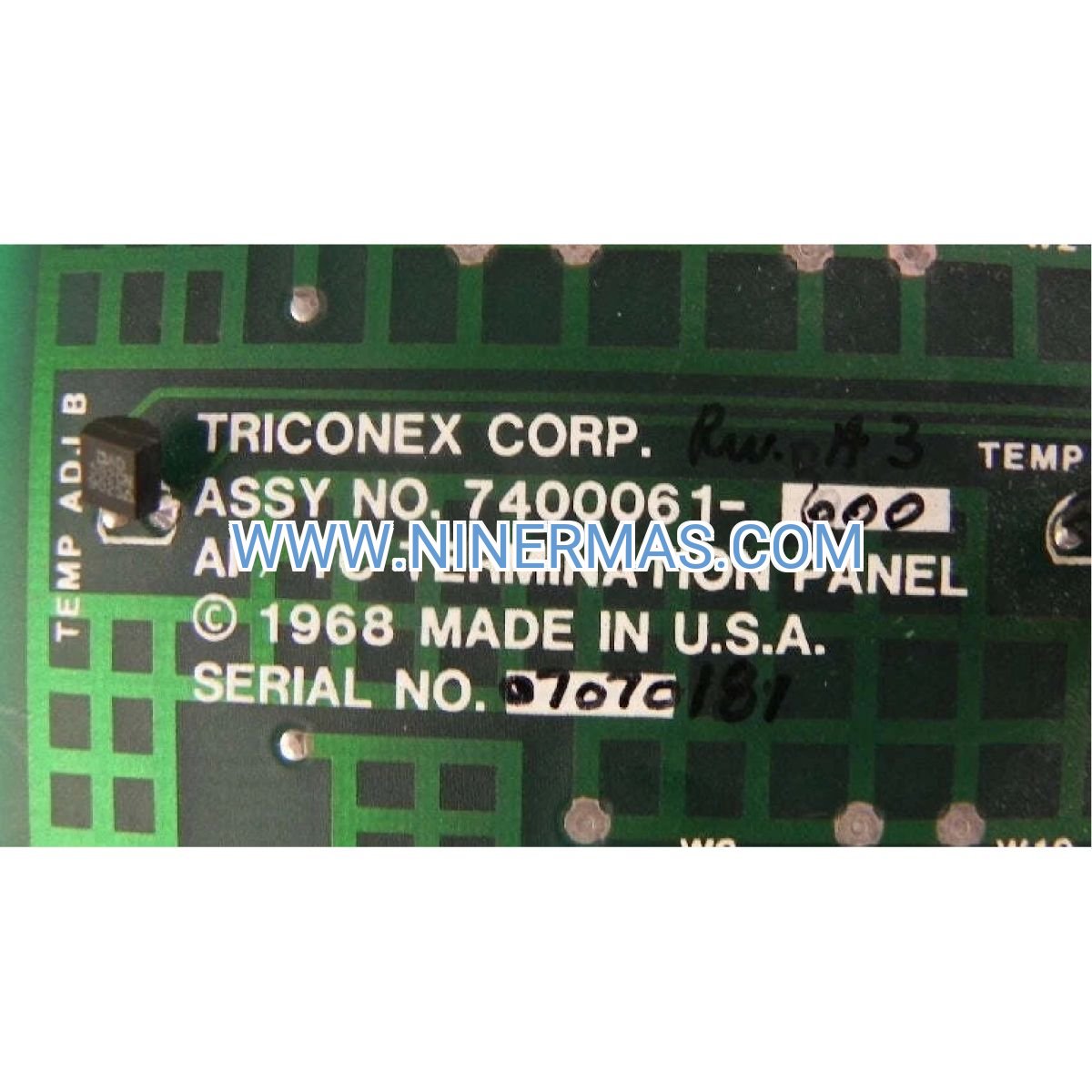

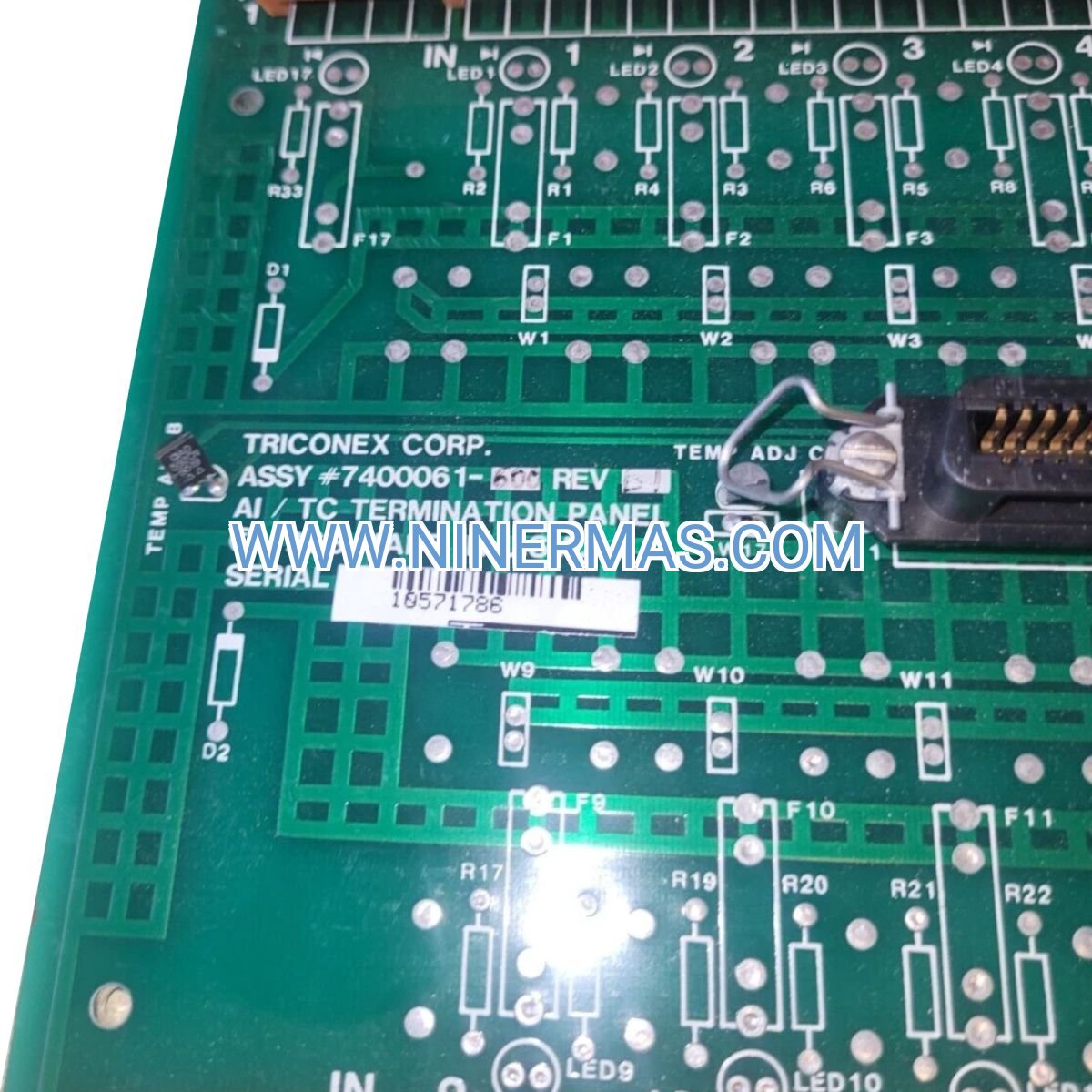

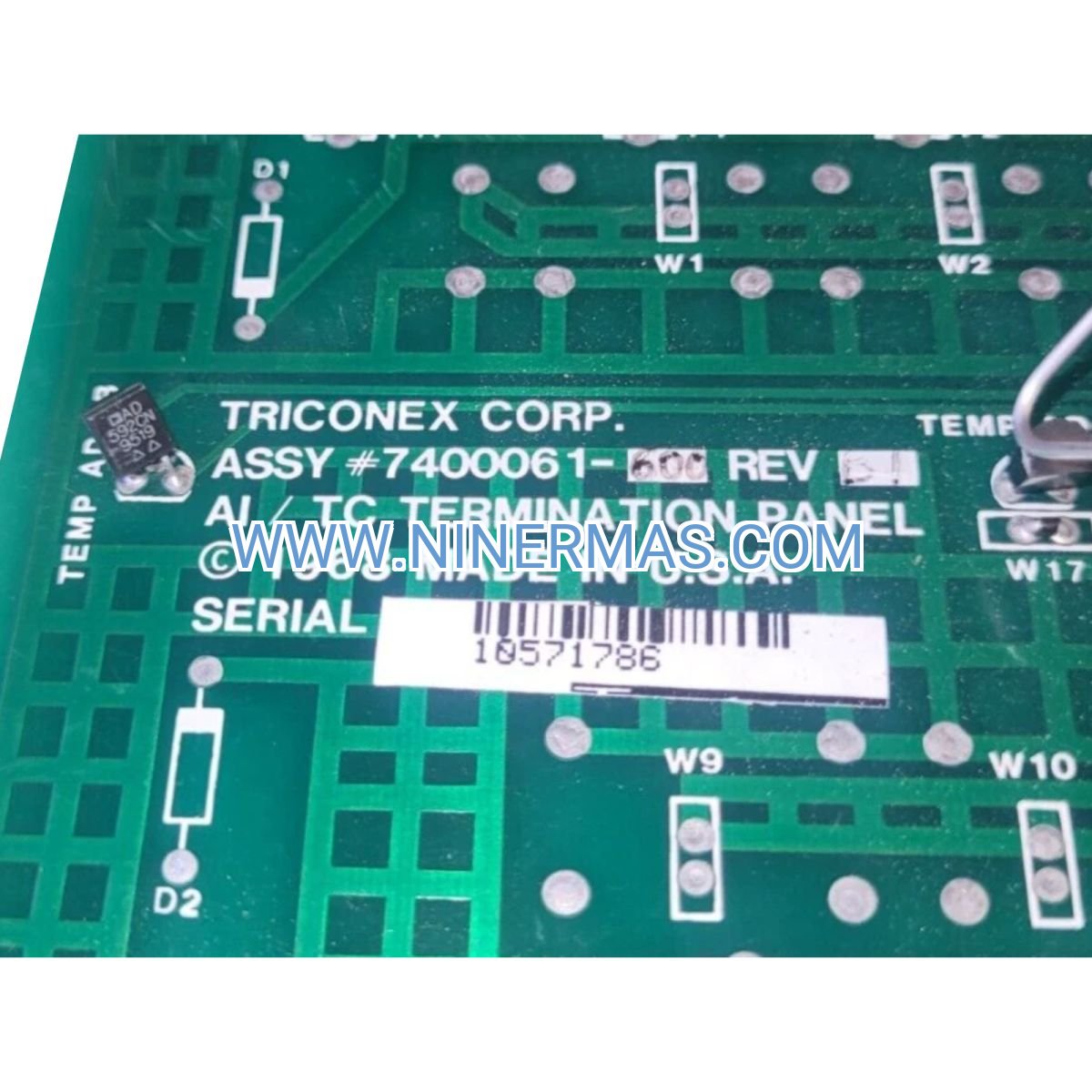

7400061-600 Analog Termination Panel (Industrial-Grade Field Interface)

The 7400061-600 serves as a ruggedized field wiring interface designed exclusively for Triconex 2755 analog input modules within safety-instrumented systems. This termination panel streamlines signal routing from process sensors to control logic, delivering SIL 3-certified reliability in oil & gas, chemical processing, and power generation facilities where uptime and safety integrity are non-negotiable.

Process engineers face persistent challenges with field wiring complexity, signal degradation, and maintenance accessibility in hazardous environments. The 7400061-600 addresses these pain points through pre-engineered terminal layouts, EMI-resistant construction, and tool-free diagnostic access—reducing commissioning time by 40% compared to custom wiring solutions while maintaining IEC 61508 compliance for safety-critical loops.

Designed for instrumentation technicians and control system integrators, this panel combines industrial-grade materials with intuitive labeling schemes that accelerate troubleshooting during emergency shutdowns. Whether retrofitting legacy Tricon systems or deploying new safety layers, the 7400061-600 ensures consistent signal integrity across temperature extremes and electromagnetic interference common in heavy industrial settings.

Core Features & Technical Advantages

→ SIL 3 Certified Architecture: Meets IEC 61508 functional safety standards with triple-redundant signal paths, enabling deployment in emergency shutdown (ESD) and fire & gas detection systems without additional safety barriers.

→ Universal Mounting Flexibility: Accommodates both DIN-rail and panel-mount installations with included hardware, supporting cabinet layouts from 19-inch racks to custom enclosures without modification.

→ Wide Operating Range: Operates reliably from 0°C to 60°C (32°F to 140°F) with 5-95% humidity tolerance, eliminating the need for climate-controlled enclosures in most industrial environments.

→ Field-Proven Terminal Blocks: Spring-cage terminals accept 14-22 AWG wire with 360° ferrule support, maintaining connection integrity through vibration cycles exceeding 5G per IEC 60068-2-6.

✓ Integrated Diagnostic LEDs: Per-channel status indicators enable rapid fault isolation during commissioning and maintenance, reducing mean-time-to-repair by up to 60% versus non-instrumented panels.

✓ EMI/RFI Shielding: Grounded metal housing with filtered terminal blocks suppresses electromagnetic interference per EN 61000-6-2, protecting 4-20mA loops in VFD-heavy installations.

Industrial Application Scenarios

Emergency Shutdown Systems (ESD): In offshore platforms and refinery units, the 7400061-600 interfaces pressure transmitters and temperature sensors to Tricon logic solvers, providing the fail-safe signal conditioning required for SIL 3 shutdown loops that protect against overpressure, flame-out, and toxic releases.

Burner Management Systems (BMS): Power plants and industrial boilers leverage this panel to connect flame scanners, fuel valve position sensors, and airflow transmitters—ensuring reliable ignition sequencing and flame supervision that prevents furnace explosions and uncontrolled combustion.

Turbomachinery Protection: Compressor stations and gas turbine facilities use the 7400061-600 for vibration probe and bearing temperature monitoring, enabling predictive shutdown logic that prevents catastrophic bearing failures and rotor damage in rotating equipment assets valued at $5M+.

Fire & Gas Detection Networks: Chemical plants and LNG terminals deploy these panels to aggregate signals from toxic gas detectors (H₂S, CO, combustibles) and flame detectors, supporting multi-zone alarm logic that triggers deluge systems and evacuation protocols within 2-second response windows.

Pharmaceutical Clean Rooms: Sterile manufacturing environments utilize the panel's non-shedding construction for cleanroom-compatible installations, interfacing differential pressure sensors and HEPA filter monitors to maintain ISO Class 5 environmental controls.

Technical Parameters & Selection Guide

Selection Criteria: Verify your Triconex chassis uses 2755 analog input modules before ordering—this panel is NOT compatible with 3000-series or digital I/O modules. For installations requiring intrinsic safety barriers, specify barrier model numbers during order placement to ensure terminal block compatibility. Consult factory drawings if integrating with third-party marshalling systems.

Extended Functionality & Integration

SCADA Integration: When paired with Triconex TriStation software, the panel's diagnostic LEDs map directly to HMI alarm tags, enabling remote troubleshooting via Modbus TCP or OPC UA protocols without field visits.

Redundant Power Options: Supports dual 24VDC power feeds with automatic failover, maintaining signal integrity during UPS transitions or generator switchovers in critical infrastructure applications.

Custom Labeling Services: Factory-applied laser-etched labels matching P&ID tag numbers available upon request—specify tag list during order configuration to eliminate field labeling errors and accelerate loop checks.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for stock items; 10-15 business days for factory-configured units with custom labeling or extended temperature ratings.

Warranty Coverage: 12-month comprehensive warranty covering material defects and workmanship failures, with advance replacement available for critical path projects (subject to credit approval).

Technical Support: Unlimited phone and email support from Triconex-certified engineers, including loop diagram review, grounding scheme validation, and commissioning assistance during normal business hours (8 AM - 6 PM CST).

Documentation Package: Each panel ships with installation manual, terminal assignment drawings, and IEC 61508 compliance certificates—digital copies available via secure download portal within 24 hours of order confirmation.

Frequently Asked Questions

What wire termination method works best for vibration-prone installations?
Use ferrule-crimped stranded copper wire (0.75-1.5 mm²) with spring-cage terminals. This combination withstands 5G vibration per IEC 60068-2-6 without retorquing, unlike screw terminals that require annual maintenance in rotating equipment environments.

Can this termination panel support 4-20mA HART signals without signal loss?
Yes—the panel's passive terminal design preserves HART digital communication overlaid on 4-20mA loops. Ensure loop resistance stays below 600Ω and avoid ground loops by connecting shield drains only at the panel side, not at field devices.

How does the 7400061-600 compare to generic DIN-rail terminal blocks for safety applications?
Unlike commercial terminal blocks, this panel includes SIL 3-certified signal isolation, pre-engineered grounding schemes, and factory-tested continuity—eliminating the engineering burden of proving safety integrity per IEC 61508 Clause 7.4.4.3.

What's the maximum cable run length from field sensors to this termination panel?
For 4-20mA loops, up to 1,500 meters with 18 AWG shielded cable (resistance <30Ω). Voltage inputs limited to 300 meters to maintain <0.1% accuracy. Consult loop resistance calculations for RTD and thermocouple circuits exceeding 100 meters.

Is hot-swapping supported during live process operations?
No—always isolate power and place associated safety logic in bypass mode before removing or installing panels. Hot-swapping risks transient faults that could trigger spurious trips in SIL-rated shutdown loops, violating IEC 61511 operational procedures.

Does the panel require periodic calibration or maintenance?
The panel itself requires no calibration—it's a passive wiring interface. However, verify terminal tightness annually and inspect for corrosion in humid environments. Replace panels showing physical damage or discoloration from overheating.

Ready to Upgrade Your Safety System Wiring?

Simplify your next Triconex installation with the 7400061-600 termination panel. Contact our technical sales team at sale@ninermas.com or call +0086 187 5021 5667 to discuss your project requirements, request CAD drawings, or place an order. Volume discounts available for multi-panel projects exceeding 10 units.
