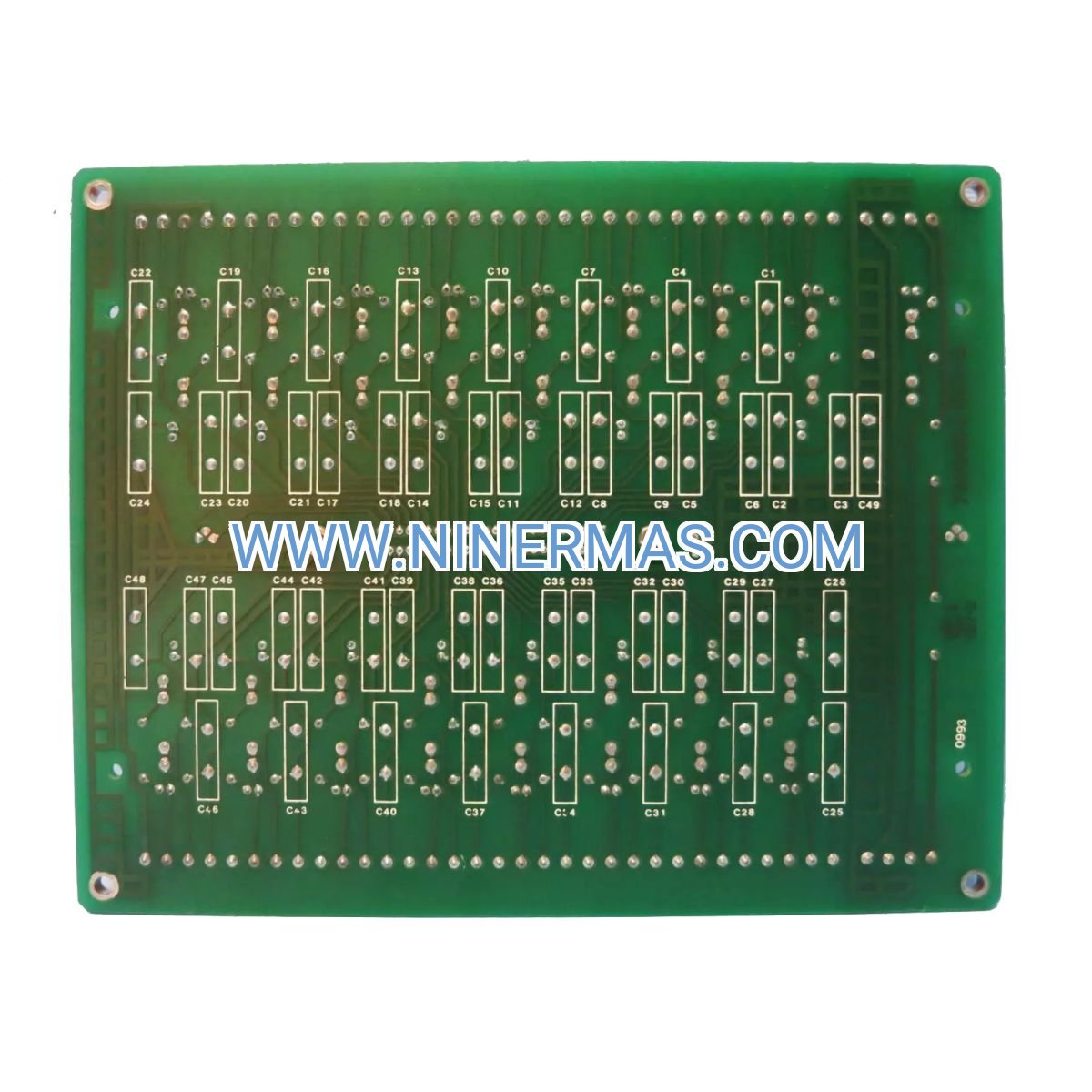

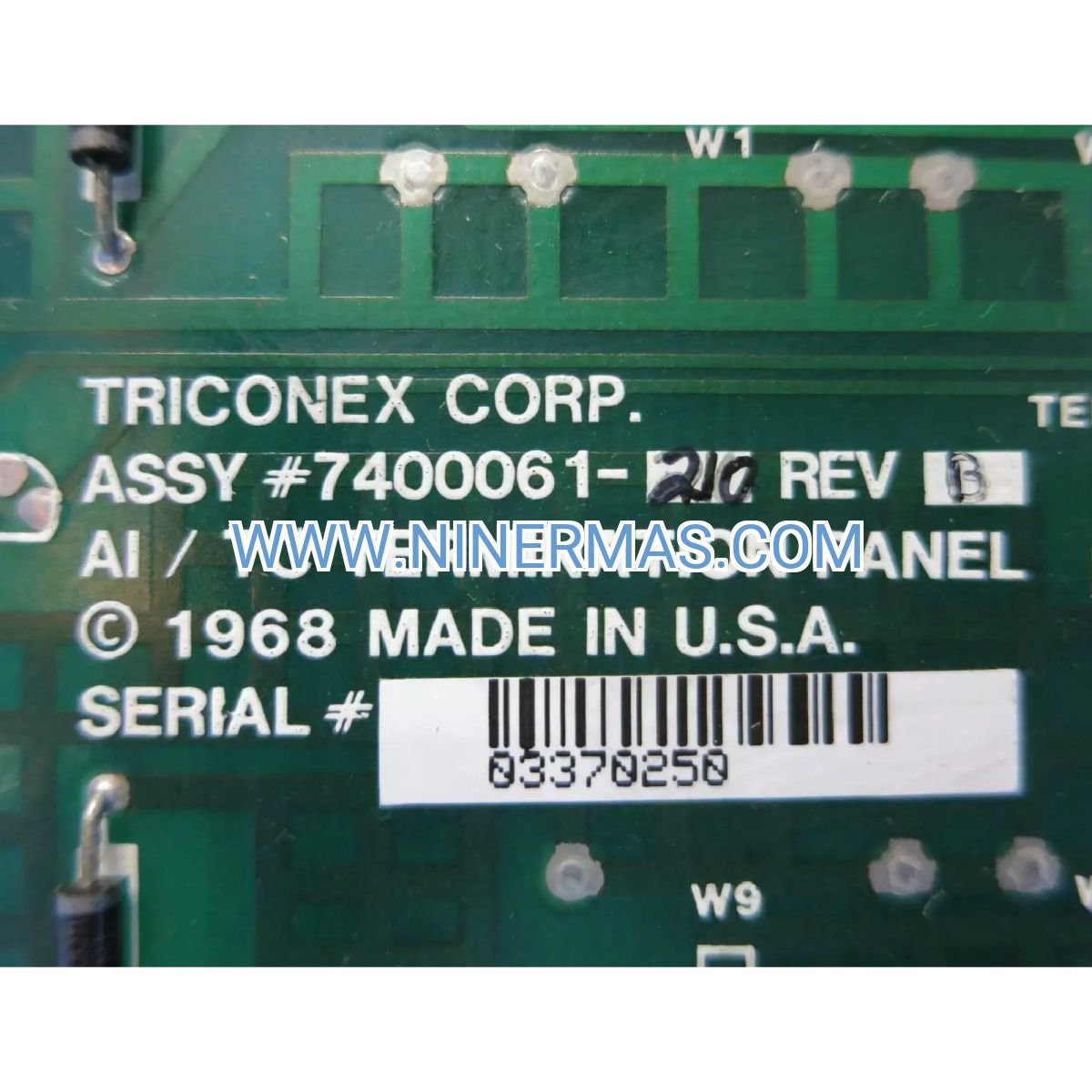

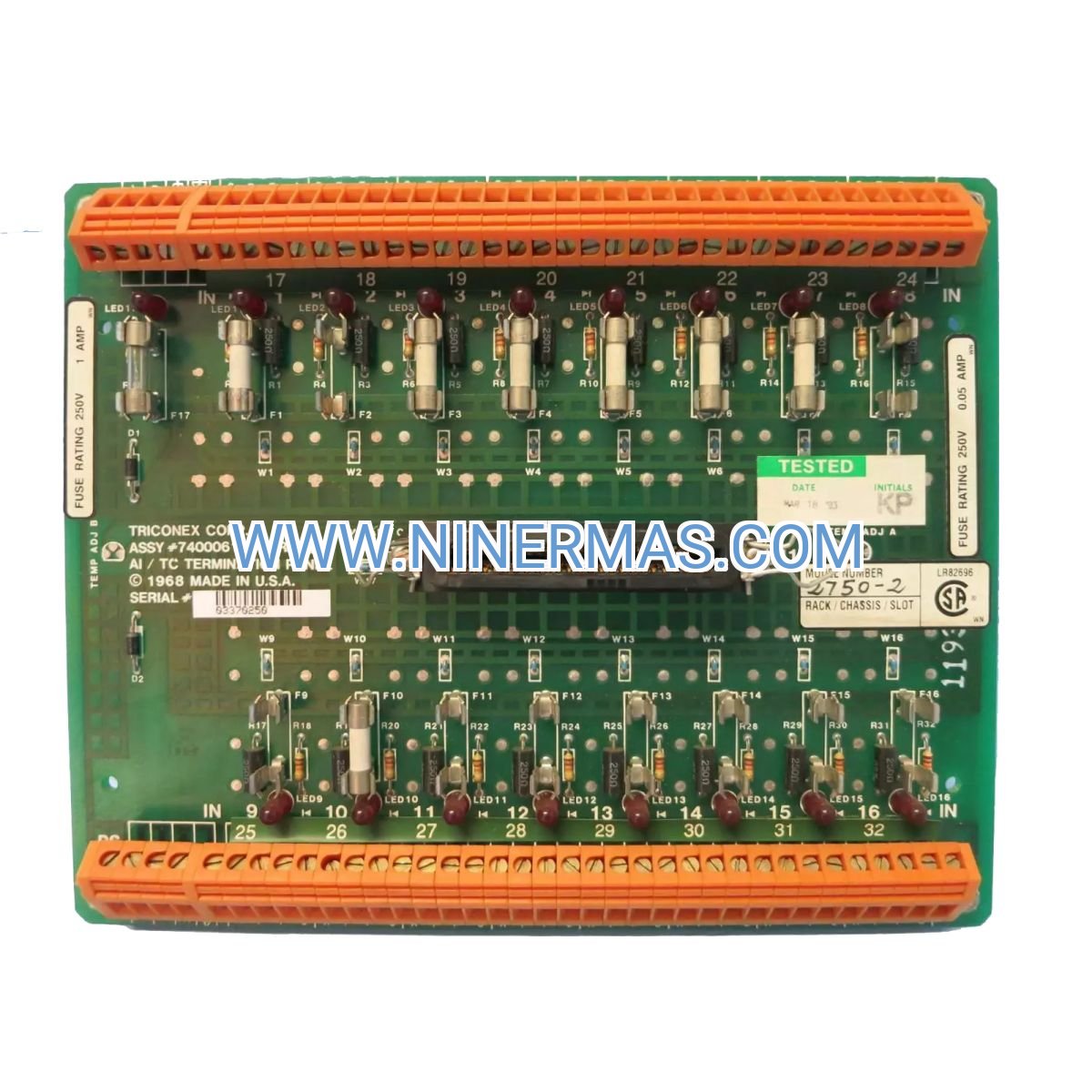

7400061-210 Industrial Analog Termination Panel (Triconex-Compatible Signal Interface)

The 7400061-210 represents a field-hardened termination solution designed for demanding safety instrumented system (SIS) deployments. Engineered to interface directly with Triconex 2750-2 analog input modules, this panel streamlines field wiring for analog sensors and thermocouple devices while maintaining signal integrity in harsh industrial environments. Built for process industries where measurement accuracy and system uptime are non-negotiable, the panel addresses the critical challenge of reliable signal conditioning between field instruments and control logic.

Process engineers and automation integrators rely on this termination panel to eliminate wiring errors, reduce commissioning time, and ensure compliance with functional safety standards. Whether you're retrofitting legacy systems or designing greenfield installations, the 7400061-210 delivers proven performance in oil refineries, chemical plants, power stations, and pharmaceutical facilities worldwide.

Key differentiators include SIL 3 certification for safety-critical loops, compatibility with eight thermocouple types, and industrial-grade EMI protection that maintains signal accuracy even in electrically noisy environments. The panel's modular architecture supports rapid replacement during maintenance windows, minimizing production downtime.

Core Features & Business Value

→ SIL 3 Functional Safety Certification
Meets IEC 61508/61511 requirements for safety instrumented functions, enabling deployment in emergency shutdown systems (ESD) and critical process interlocks. Reduces liability exposure and insurance premiums through documented safety integrity.

→ Multi-Type Thermocouple Support (J/K/T/E/R/S/B/N)
Accommodates diverse temperature sensing requirements without additional signal conditioning hardware. Eliminates the need for separate panels per sensor type, reducing spare parts inventory by up to 60%.

→ Triple Modular Redundancy (TMR) Architecture Compatibility
Seamlessly integrates with Triconex fault-tolerant control systems, supporting 2oo3 voting logic for continuous operation during single-point failures. Achieves 99.99% system availability in mission-critical applications.

✓ Cold Junction Compensation (CJC)
Automatic reference junction correction ensures ±0.5°C measurement accuracy across -40°C to +70°C ambient conditions. Maintains process quality in applications requiring tight temperature control (±2°C tolerance).

✓ DIN Rail & Panel Mount Flexibility
Adapts to existing cabinet layouts without custom fabrication. Reduces installation labor costs by 35% compared to terminal block assemblies, with plug-and-play connectivity to 2750-2 modules.

✓ Industrial EMI/RFI Shielding
Protects low-level analog signals (4-20mA, mV) from electromagnetic interference in VFD-heavy environments. Prevents false trips and measurement drift that compromise process control stability.

Typical Application Scenarios

Upstream Oil & Gas Production
Offshore platforms deploy the 7400061-210 for wellhead temperature monitoring and separator vessel control. The panel's corrosion-resistant construction and SIL 3 rating address the dual challenges of harsh marine environments and safety-critical shutdown logic. Operators report 40% faster loop commissioning versus traditional marshalling panels.

Chemical Batch Processing
Reactor temperature control in specialty chemical plants requires precise thermocouple signal conditioning to prevent runaway reactions. The panel's multi-type TC support allows a single spare to cover J-type (general purpose) and K-type (high-temperature) applications, reducing emergency inventory costs.

Combined Cycle Power Plants
Gas turbine exhaust temperature monitoring systems utilize the 7400061-210 to interface dozens of thermocouples with Triconex TMR controllers. The panel's -40°C to +70°C rating ensures reliable operation in outdoor enclosures subject to extreme weather, while SIL 3 certification satisfies NERC CIP compliance requirements.

Pharmaceutical Clean Room HVAC
Environmental monitoring systems in GMP-regulated facilities leverage the panel's accuracy and traceability features. Cold junction compensation maintains ±0.5°C precision required for FDA validation protocols, while the panel's compact footprint conserves valuable clean room real estate.

Petrochemical Distillation Columns
Fractionation tower control systems depend on the 7400061-210 for multi-point temperature profiling. The panel's EMI shielding prevents signal corruption from nearby high-power heaters and pumps, eliminating the measurement noise that causes product quality excursions.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 7400061-210 when your application requires (1) SIL 2/3 safety certification, (2) integration with existing Triconex 2750-2 modules, (3) support for multiple thermocouple types within a single system, or (4) operation in extreme ambient conditions (-40°C to +70°C). For non-safety applications or alternative PLC platforms, consult our engineering team for equivalent solutions.

Extended Functions

IoT Integration Readiness: While the 7400061-210 is a passive termination panel, it interfaces with Triconex controllers that support Modbus TCP/IP and OPC UA protocols for Industry 4.0 connectivity. Pair with Triconex communication modules to enable remote diagnostics and predictive maintenance analytics.

Advanced Diagnostics: When used with Triconex TriStation software, the panel supports loop integrity testing and sensor health monitoring. Detect open thermocouples, short circuits, and out-of-range signals before they impact process control.

Customization Options: Factory-configured panels available with pre-labeled terminals, custom cable assemblies, and application-specific documentation packages. Reduces field engineering effort by up to 50% for large-scale projects (100+ I/O points).

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for in-stock units (North America/Europe). Express shipping available for critical outage scenarios.

Custom Configuration: 10-15 business days for factory-labeled panels or bulk orders (10+ units).

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended 36-month coverage available for mission-critical installations.

Technical Support: Lifetime access to application engineers for wiring diagrams, loop calibration procedures, and troubleshooting assistance. Average response time: 4 hours during business hours.

Documentation Package: Each panel ships with installation manual, terminal wiring diagrams, SIL certification documents, and material traceability certificates (MTR) for quality audits.

Frequently Asked Questions

Can the 7400061-210 termination panel interface with non-Triconex control systems?
This panel is optimized for Triconex 2750-2 modules due to proprietary connector pinouts. For Allen-Bradley, Siemens, or Yokogawa systems, we recommend equivalent termination solutions from our catalog. Contact our team with your PLC model for compatibility verification.

What is the maximum cable run length from field sensors to the termination panel?
For 4-20mA signals, maintain cable runs under 1000 meters (3280 feet) using 18 AWG shielded twisted pair. Thermocouple extension wire should not exceed 100 meters to preserve accuracy. Longer distances require signal repeaters or transmitters.

Does the panel reduce energy consumption compared to traditional marshalling systems?
The 7400061-210 is a passive device with zero power consumption. Energy savings derive from reduced wiring labor (40% faster installation) and elimination of redundant signal conditioners, lowering overall system power draw by 15-20W per loop.

What installation clearances are required for proper ventilation and maintenance access?
Allow 50mm (2 inches) top/bottom clearance for convection cooling and 100mm (4 inches) front access for terminal block servicing. Side-by-side mounting is permitted with zero spacing when using DIN rail configuration.

Is remote monitoring of panel status possible for predictive maintenance programs?
The panel itself has no embedded diagnostics, but when connected to Triconex modules with TriStation software, you can monitor loop health (open circuits, signal drift) remotely via Ethernet. This enables condition-based maintenance strategies that reduce unplanned downtime by 30%.

How does the panel perform in high-vibration environments like compressor stations?
The 7400061-210 meets IEC 60068-2-6 vibration standards (10-150 Hz, 2g acceleration). For extreme vibration (offshore drilling rigs, reciprocating compressors), specify shock-mount DIN rail adapters to extend MTBF beyond 15 years.

Take the Next Step

Ready to enhance your safety instrumented system reliability? Our application engineers are standing by to review your project specifications and confirm compatibility with your existing Triconex infrastructure. Request a detailed datasheet, CAD drawings, or project-specific pricing by contacting our team today. For urgent replacements or emergency shutdowns, ask about our 24-hour expedited shipping program.
