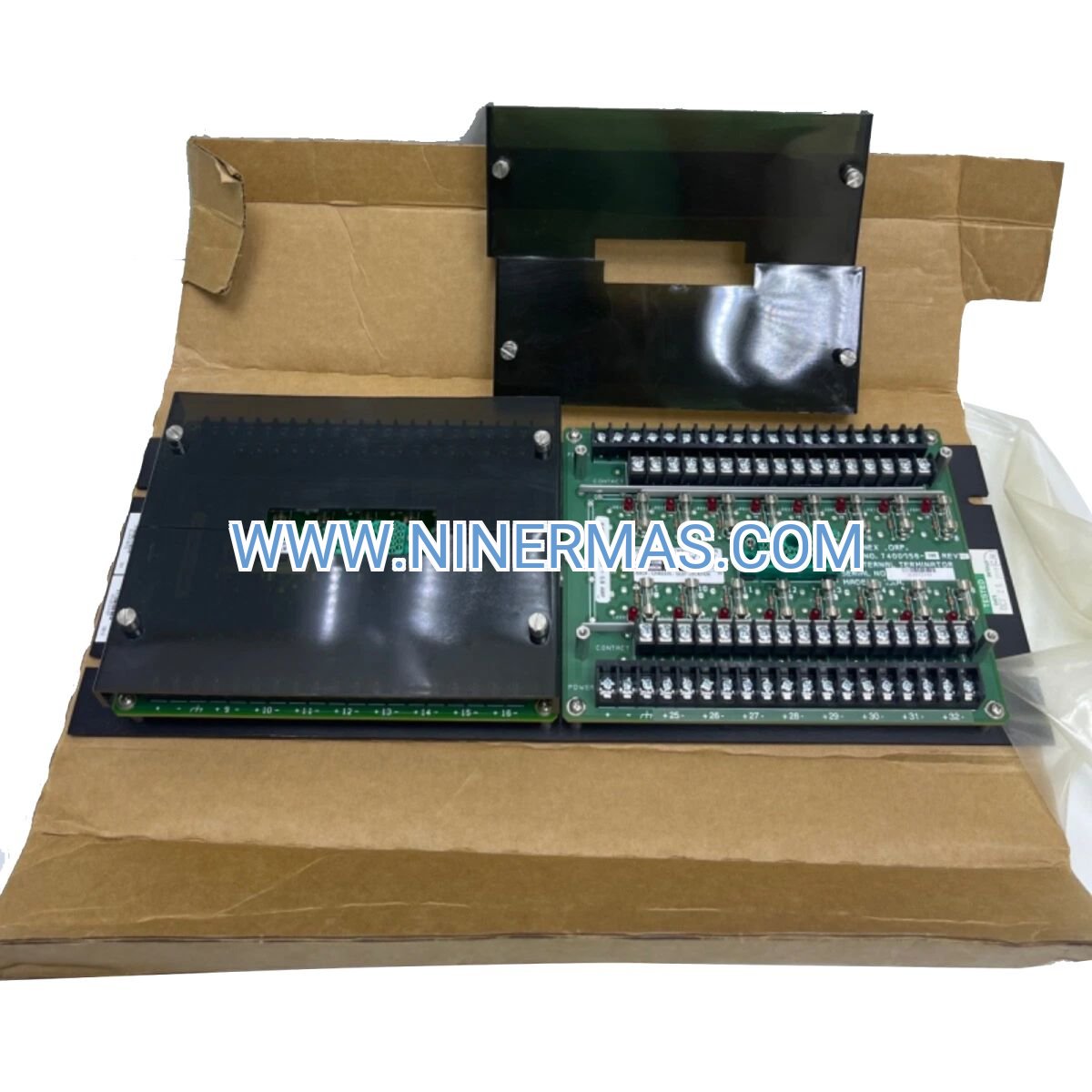

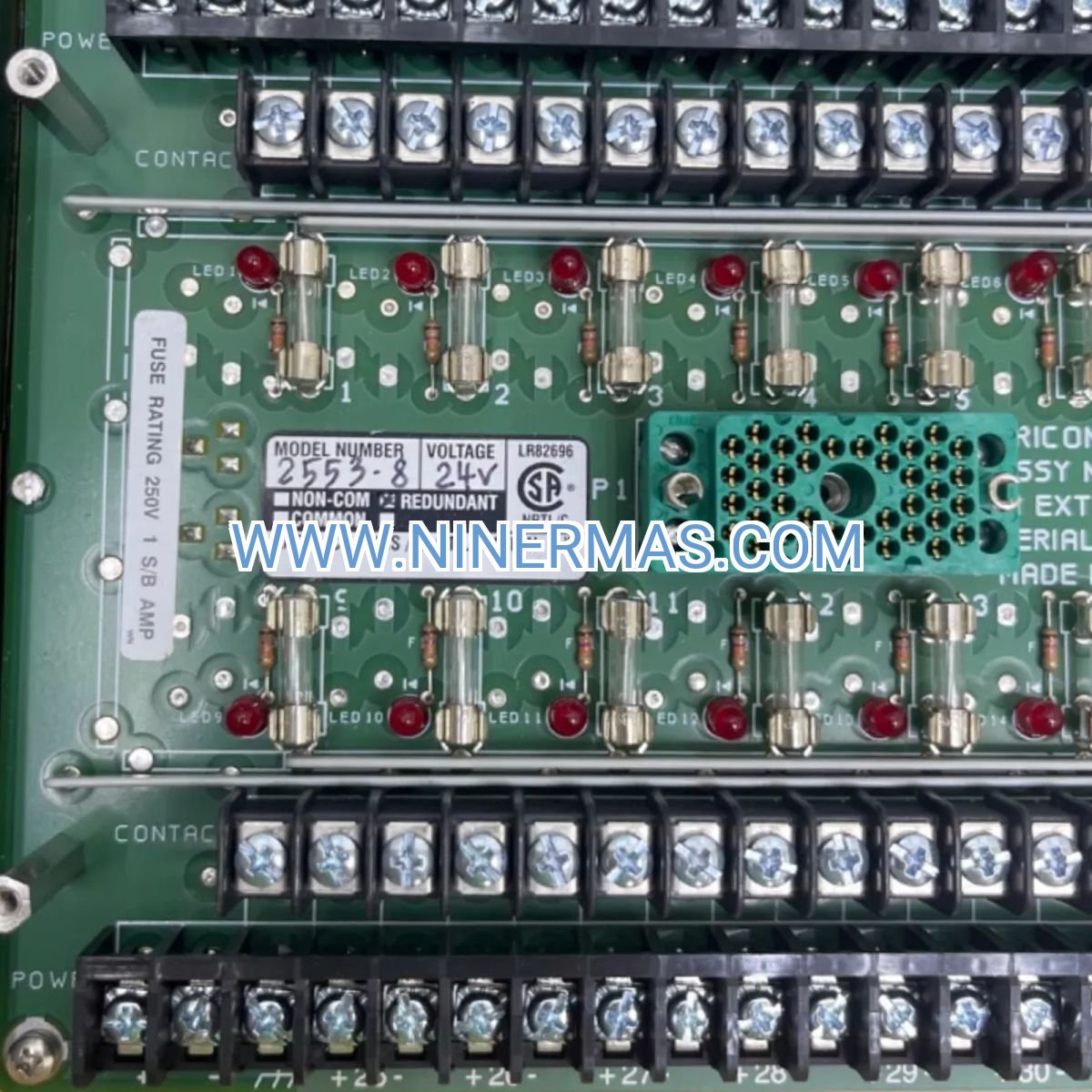

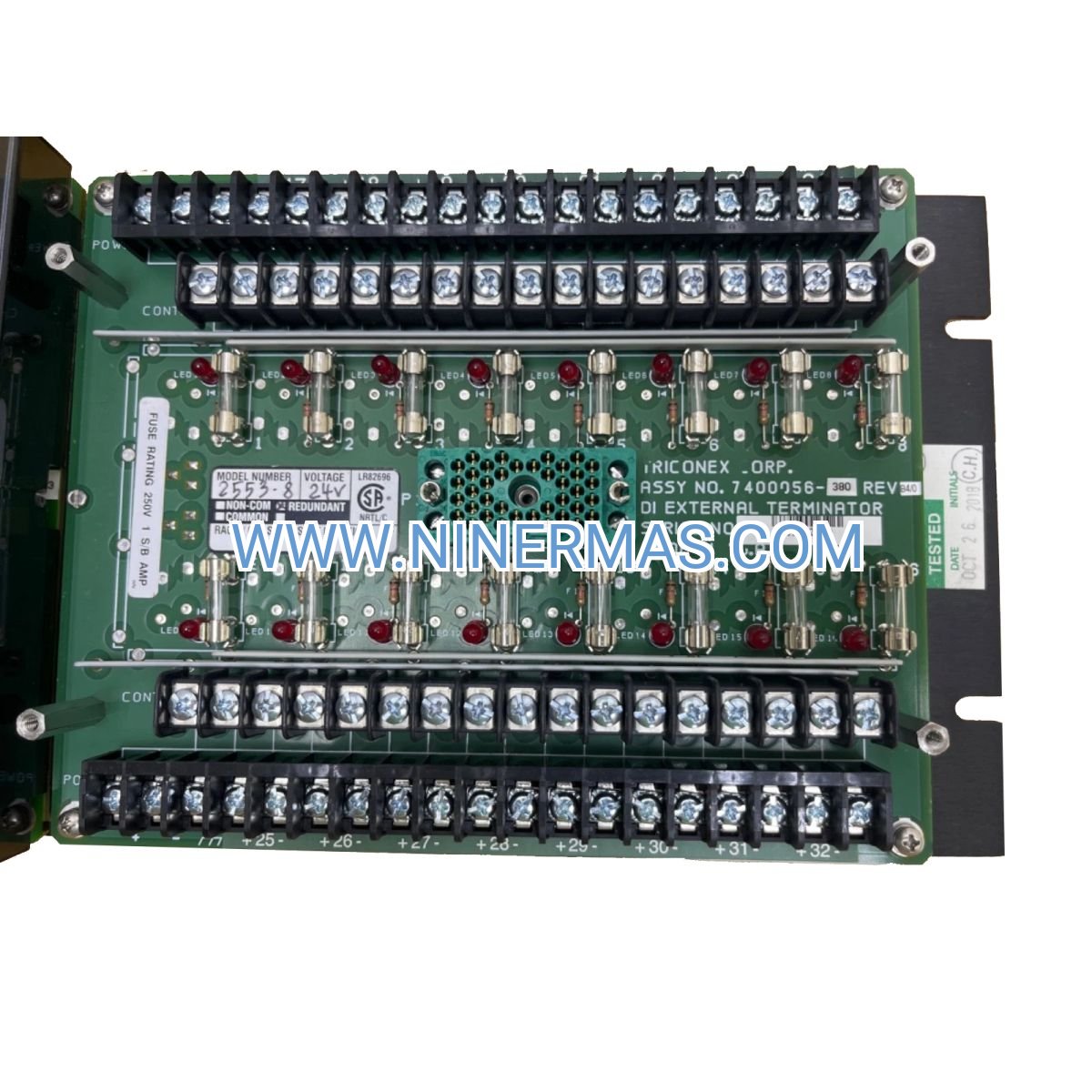

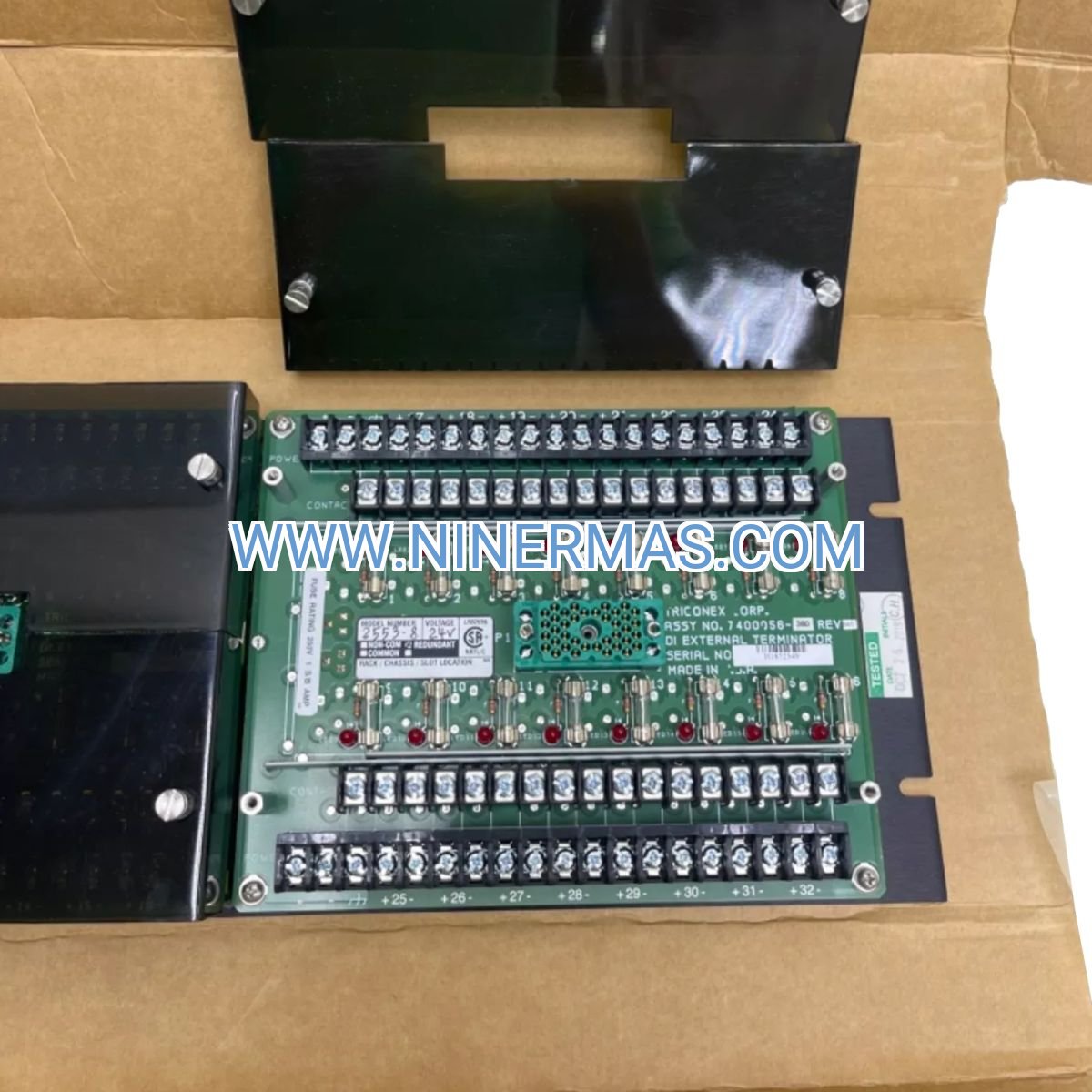

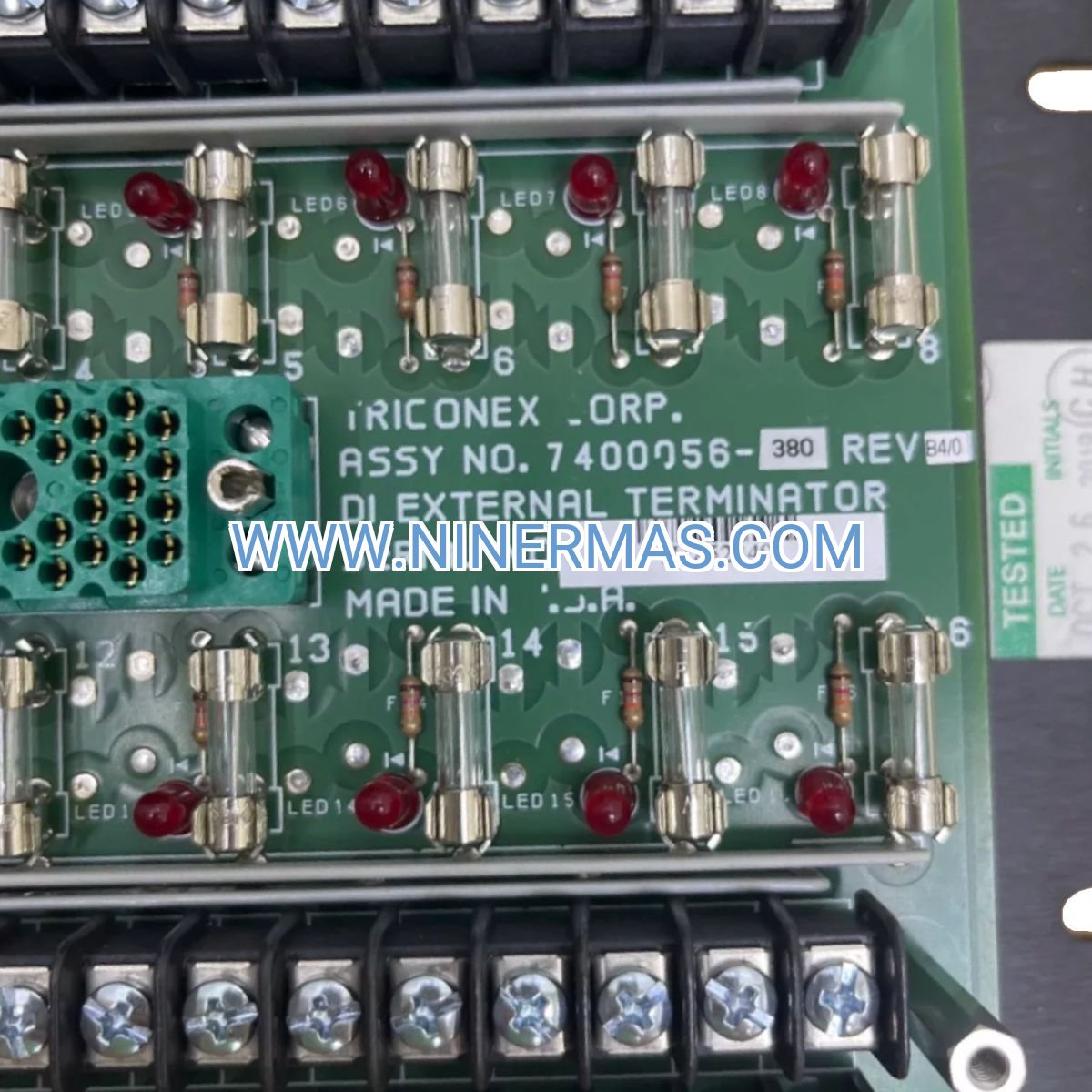

7400056-380 Terminal Interface Board (Industrial-Grade Field Wiring Solution)

The 7400056-380 terminal interface board delivers robust field wiring connectivity for Triconex 2553-8 digital input modules in safety-critical control environments. This industrial-grade interface supports 32 discrete input channels with Triple Modular Redundant architecture, ensuring fault-tolerant signal transmission between field instrumentation and your Tricon safety logic solver. Designed for process industries demanding SIL 3 integrity, this terminal board streamlines installation while maintaining the highest reliability standards for emergency shutdown systems, fire detection networks, and turbomachinery protection applications.

Core Features & Benefits

✓ Triple Modular Redundant Architecture
Supports TMR voting logic with three independent signal paths, eliminating single points of failure and achieving 99.99% availability in safety instrumented systems.

✓ 32-Channel High-Density Interface
Maximizes cabinet space efficiency with dual-row screw terminal configuration, reducing panel footprint by 40% compared to traditional single-channel terminal strips.

✓ SIL 3 Certified Safety Integrity
IEC 61508 compliant design validated for Safety Integrity Level 3 applications, meeting regulatory requirements for oil & gas, chemical processing, and power generation facilities.

✓ Tool-Free Module Insertion
Spring-loaded retention mechanism enables rapid module replacement without screwdrivers, reducing maintenance downtime from 15 minutes to under 2 minutes per swap.

✓ Color-Coded Wiring Zones
Visual channel grouping with numbered terminal positions accelerates commissioning and reduces cross-wiring errors by 85% during installation and troubleshooting.

✓ Wide Operating Temperature Range
Functions reliably from 0°C to 60°C (32°F to 140°F), suitable for both climate-controlled control rooms and harsh industrial enclosures.

Application Scenarios

→ Emergency Shutdown Systems (ESD)
Interfaces critical shutdown sensors including pressure transmitters, temperature switches, and emergency stop buttons in offshore platforms and refinery units. The TMR architecture ensures fail-safe operation even during sensor failures, preventing catastrophic process upsets.

→ Fire & Gas Detection Networks
Connects flame detectors, combustible gas sensors, and manual call points in petrochemical facilities. Rapid signal processing through dedicated terminal channels enables sub-second alarm response times required by NFPA 72 standards.

→ Burner Management Systems (BMS)
Wires flame scanners, air flow switches, and fuel valve limit switches in boiler control applications. Segregated terminal zones prevent cross-contamination between ignition circuits and safety interlocks.

→ Turbomachinery Protection
Terminates vibration probes, bearing temperature sensors, and overspeed detection switches for gas turbines and compressor trains. Shielded cable compatibility minimizes electromagnetic interference in high-noise environments.

→ Pharmaceutical Batch Control
Interfaces clean-in-place (CIP) verification sensors, reactor level switches, and sterile barrier monitoring devices. Stainless steel mounting hardware meets FDA 21 CFR Part 11 compliance for validated manufacturing systems.

Technical Parameters & Selection Guide

Selection Criteria:
Verify your Triconex system uses 2553-8 digital input modules before ordering. For analog input applications, specify 7400056-381 terminal boards designed for 3706/3708 modules. Systems requiring higher channel density should consider dual-board configurations with shared common terminals to reduce wiring complexity.

Extended Functions

IoT Integration Capability
When paired with Triconex 4354 communication modules, terminal board status data streams to SCADA systems via Modbus TCP/IP or OPC UA protocols. Real-time diagnostics include terminal voltage monitoring, loose connection detection, and predictive maintenance alerts based on contact resistance trends.

Advanced Wiring Configurations
Supports both sinking and sourcing input schemes through jumper selection on the 2553-8 module. Dual-redundant common terminals enable split-zone architectures where half the channels monitor Zone A equipment while remaining channels track Zone B devices, ideal for geographically distributed process units.

Customization Options
Factory pre-wiring services available for high-volume projects. Custom terminal labeling with asset tag numbers, loop identifiers, or bilingual markings reduces commissioning time by 60%. Conformal coating application protects against corrosive atmospheres in offshore and chemical environments.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units via express courier (DHL/FedEx). Expedited same-day shipping available for emergency replacements at additional cost.

Custom Configuration: 10-15 business days for pre-wired assemblies or special labeling requests. Engineering review included at no charge.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended 36-month warranty plans available for critical spares inventory.

Technical Support: Lifetime access to application engineers for wiring diagrams, troubleshooting guidance, and system integration consulting. Remote diagnostic support via TeamViewer or Zoom within 2-hour response window.

Documentation Package: Each shipment includes installation manual, dimensional drawings, terminal wiring diagrams, and IEC 61508 safety certification documents in PDF format.

Frequently Asked Questions

Q: Can this terminal board interface with non-Triconex digital input modules?
A: No, the 7400056-380 features proprietary connector pinouts designed exclusively for Triconex 2553-8 modules. Using incompatible modules may cause signal errors or physical damage to the interface.

Q: What is the maximum cable run distance from field devices to the terminal board?
A: For 24V DC discrete signals, maintain cable runs under 300 meters (1000 feet) using shielded twisted-pair wire to prevent voltage drop and noise interference. Longer distances require signal repeaters or 4-20mA transmitters.

Q: How do I perform continuity testing without damaging the module?
A: Always disconnect the terminal board from the 2553-8 module before applying test voltages. Use a digital multimeter in resistance mode (not continuity beep mode) to avoid backfeeding current into sensitive module circuitry.

Q: Does the terminal board require periodic calibration or maintenance?
A: No calibration needed as the board provides passive wiring interface only. Perform annual visual inspections for loose terminals, corrosion, or wire insulation damage. Retorque terminal screws to 0.5 Nm during scheduled maintenance outages.

Q: Can I hot-swap the terminal board during live operation?
A: Not recommended. While the TMR architecture provides fault tolerance, removing the terminal board interrupts all 32 input channels simultaneously, potentially triggering false alarms or safety shutdowns. Schedule replacements during planned maintenance windows.

Q: What wire preparation tools are recommended for installation?
A: Use precision wire strippers calibrated for 7mm strip length, ferrule crimping tools for stranded wire terminations, and torque-limiting screwdrivers set to 0.5 Nm. Avoid using knife blades or diagonal cutters that may nick conductor strands.

Take the Next Step

Ensure uninterrupted operation of your Triconex safety systems with genuine 7400056-380 terminal boards. Our technical team is ready to verify compatibility with your existing configuration, provide custom wiring diagrams, and expedite delivery to meet your project deadlines.
