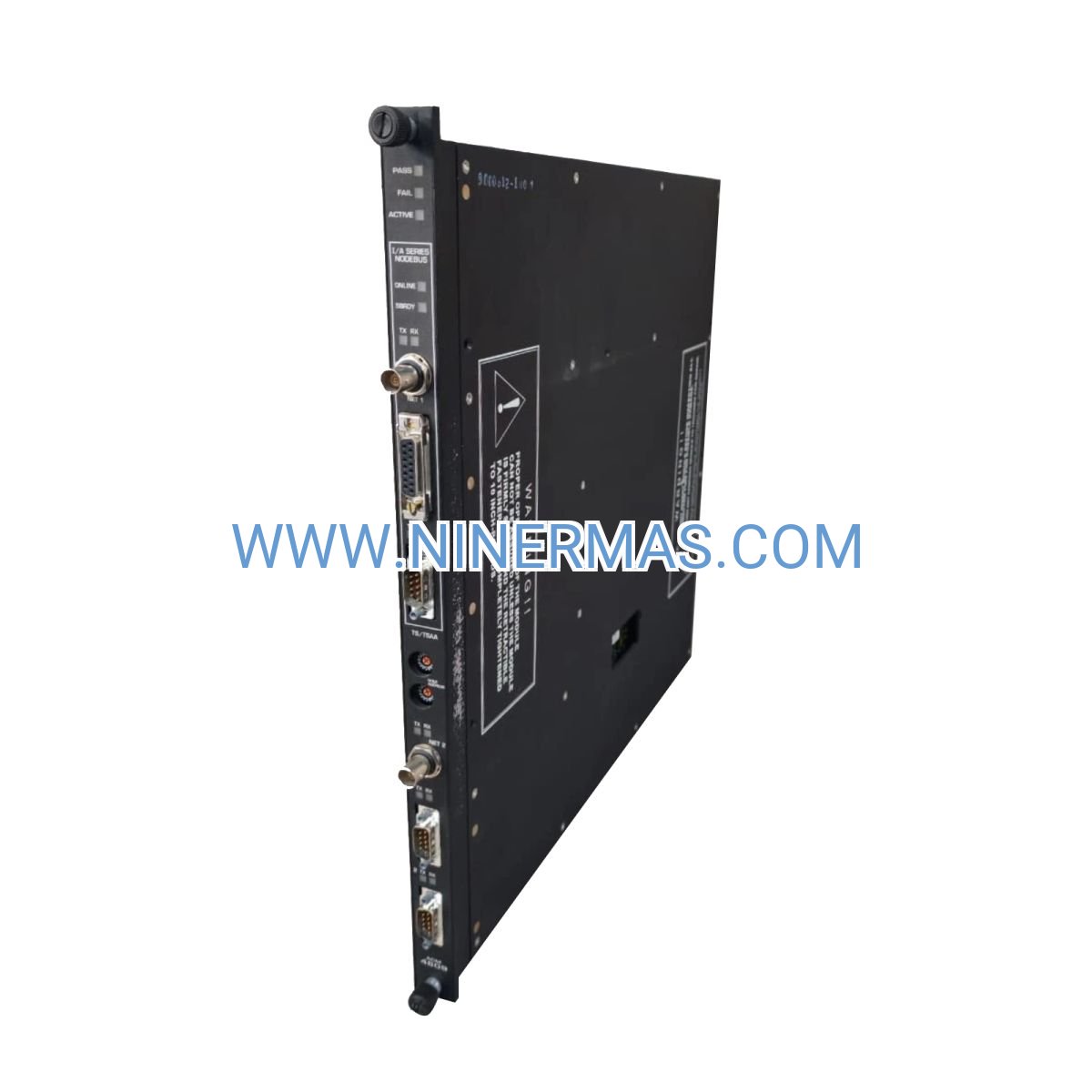

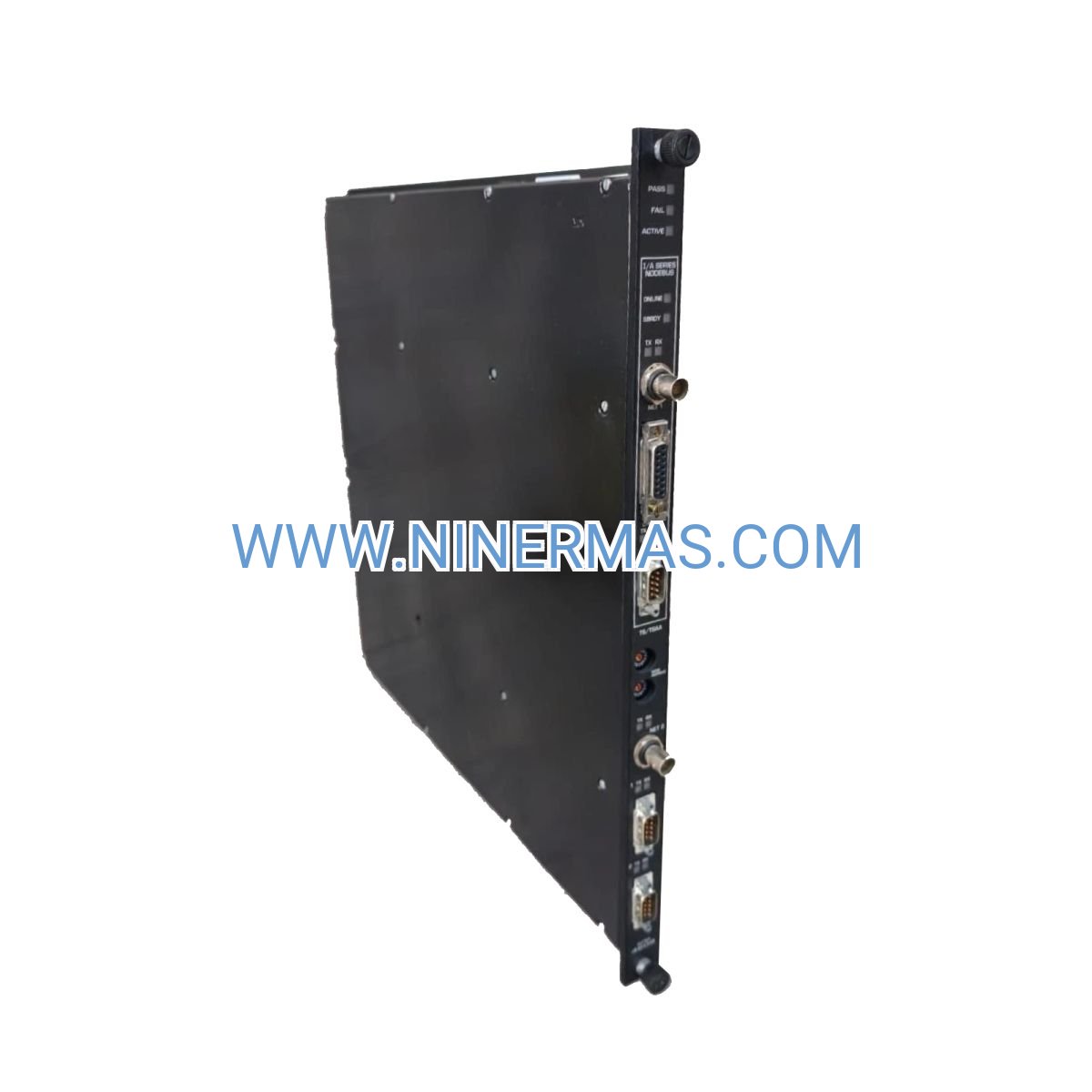

Triconex 4609 ACM (Industrial-Grade Foxboro I/A Series Communication Gateway)

The Triconex 4609 Advanced Communication Module represents a mission-critical bridge between Schneider Electric's Tricon Triple Modular Redundant (TMR) safety systems and Foxboro Intelligent Automation Series distributed control networks. Operating as a certified safety node on the I/A Series Nodebus, this module delivers deterministic, low-latency data exchange for process industries where safety integrity level 3 (SIL 3) compliance is non-negotiable.

Designed for continuous operation in harsh industrial environments ranging from offshore oil platforms to pharmaceutical clean rooms, the 4609 ACM eliminates protocol conversion bottlenecks while maintaining full compliance with IEC 61508 functional safety standards. Its hot-swappable architecture and redundant communication paths ensure zero-downtime maintenance in safety-critical applications where every millisecond of system availability translates to operational continuity and regulatory compliance.

Whether you're integrating legacy Foxboro DCS infrastructure with modern Tricon safety controllers or building greenfield installations requiring certified safety communication, the 4609 module provides the proven reliability and performance demanded by Fortune 500 process manufacturers worldwide.

Core Features & Business Value

✓ Native Foxboro I/A Series Nodebus Integration
Appears as a first-class safety node on the Nodebus network, eliminating third-party gateways and reducing communication latency by up to 40% compared to protocol converter solutions. Direct integration means fewer points of failure and simplified troubleshooting during commissioning and operation.

✓ TÜV-Certified SIL 3 Safety Integrity
Full compliance with IEC 61508 SIL 3, IEC 61511, and ANSI/ISA 84.00.01 standards ensures your safety instrumented systems meet the most stringent regulatory requirements for emergency shutdown (ESD), fire and gas (F&G), and burner management systems (BMS). Certification documentation included for audit trails.

✓ Multi-Protocol Communication Stack
Simultaneous support for TriStation 1131 programming, TSAA (Tricon System Access Application), and TCP/UDP/IP protocols enables seamless connectivity with SCADA systems, plant historians, and third-party HMI platforms without additional middleware or licensing costs.

✓ Hot-Swappable Redundant Architecture
Field-replaceable design allows module replacement during live operation when deployed in redundant pairs, eliminating costly planned shutdowns. Automatic failover occurs within 100 milliseconds, maintaining continuous safety system availability during maintenance windows.

✓ Industrial-Hardened Environmental Tolerance
Operates reliably across -40°C to +70°C temperature range with 5-95% humidity tolerance, meeting the demands of outdoor installations, high-temperature process areas, and marine environments. Conformal coating and vibration-resistant construction extend MTBF beyond 200,000 hours.

✓ Comprehensive Diagnostic Monitoring
Built-in self-diagnostics continuously monitor communication health, power supply status, and network integrity with real-time alarm generation. Diagnostic data accessible via TriStation software and Foxboro I/A Series workstations for predictive maintenance and rapid fault isolation.

Typical Application Scenarios

→ Offshore Oil & Gas Production Platforms
Challenge: Coordinating emergency shutdown systems (ESD) with distributed process control across multiple wellhead platforms and FPSO vessels in corrosive marine environments.
Solution: The 4609 ACM provides SIL 3-rated communication between Tricon safety controllers and Foxboro I/A Series DCS, enabling real-time safety interlock coordination while withstanding salt spray, vibration, and extreme temperature fluctuations. Marine certification ensures compliance with DNV-GL and ABS requirements.

→ Petrochemical Refinery Process Units
Challenge: Integrating new Tricon-based safety systems with existing Foxboro I/A Series infrastructure during brownfield expansions without disrupting production.
Solution: Hot-swappable 4609 modules enable phased migration strategies, allowing gradual replacement of legacy safety PLCs while maintaining full operational continuity. Multi-protocol support ensures compatibility with both current and future control system architectures.

→ Combined Cycle Power Generation
Challenge: Achieving sub-second response times for turbine overspeed protection and boiler flame monitoring across distributed control networks spanning multiple generation units.
Solution: The 4609's deterministic Nodebus communication delivers guaranteed latency performance for time-critical safety functions, while redundant module pairs provide 99.99% availability required for baseload power generation facilities.

→ Pharmaceutical Batch Manufacturing
Challenge: Maintaining FDA 21 CFR Part 11 audit trails while coordinating safety interlocks between batch reactors, clean-in-place (CIP) systems, and environmental monitoring networks.
Solution: TSAA protocol support enables secure, time-stamped data logging of all safety system communications, while the module's diagnostic capabilities provide the traceability required for regulatory compliance and batch record validation.

→ Pulp & Paper Continuous Digesters
Challenge: Coordinating emergency pressure relief systems with continuous process control in high-temperature, high-humidity environments prone to electrical interference.
Solution: Industrial-hardened construction and conformal coating protect against chemical exposure and condensation, while shielded communication paths maintain signal integrity in electrically noisy mill environments with variable frequency drives and high-power motor controls.

Technical Parameters & Selection Guide

Selection Recommendations:

• For new installations, order redundant pairs (2× 4609 modules) to enable hot-swap maintenance and automatic failover
• Verify TriStation software version compatibility (1131 Developer v4.9 or later recommended for full diagnostic support)
• Confirm Foxboro I/A Series firmware is R14.x or later for optimal performance and security patch support
• Consider network topology: star configurations require additional Nodebus hubs; daisy-chain topologies may need termination resistors
• For marine or offshore applications, specify marine-certified units and request DNV-GL/ABS certification documentation

Extended Functions

Industrial IoT Integration Capabilities
The 4609's TCP/UDP/IP protocol stack enables direct connectivity to cloud-based condition monitoring platforms and predictive maintenance systems. OPC UA server functionality (via TriStation gateway) allows seamless data flow to enterprise MES and ERP systems without compromising safety system integrity or introducing cybersecurity vulnerabilities.

Advanced Diagnostic & Predictive Maintenance
Continuous monitoring of communication error rates, signal quality metrics, and power supply fluctuations provides early warning of degrading network infrastructure. Trend analysis tools in TriStation software identify intermittent faults before they cause system trips, reducing unplanned downtime by up to 30% compared to reactive maintenance strategies.

Cybersecurity Hardening Options
Supports role-based access control (RBAC), encrypted communication channels, and audit logging compliant with IEC 62443 industrial cybersecurity standards. Firmware signature verification prevents unauthorized code execution, while network segmentation capabilities isolate safety systems from enterprise IT networks.

Custom Configuration Services
Factory pre-configuration services available for large-scale deployments, including custom I/O mapping, alarm setpoint programming, and network parameter optimization. Reduces commissioning time by 40-60% and ensures consistent configuration across multiple installations.

Delivery & Service Assurance

Standard Delivery Timeline: 3-5 business days for in-stock units via express courier (DHL/FedEx). Expedited same-day shipping available for emergency replacements at additional cost.

Custom Configuration Lead Time: 7-10 business days for factory-programmed modules with customer-specific parameters and firmware versions.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and functional performance under normal operating conditions. Warranty includes free replacement, two-way shipping, and technical support during the coverage period.

Technical Support Included:

• Pre-sales application engineering consultation to verify compatibility and sizing
• Installation guidance including wiring diagrams, termination specifications, and network topology recommendations
• Commissioning support via phone and email during initial startup and testing phases
• Firmware update notifications and compatibility verification for TriStation software upgrades
• Access to product manuals, datasheets, certification documents, and configuration templates

Extended Service Options: Multi-year service agreements available with guaranteed 4-hour response times, on-site commissioning support, annual preventive maintenance inspections, and priority access to spare parts inventory. Contact our technical sales team for customized service packages tailored to your facility's uptime requirements.

Frequently Asked Questions

How does the 4609 ACM integrate with existing Foxboro I/A Series networks?

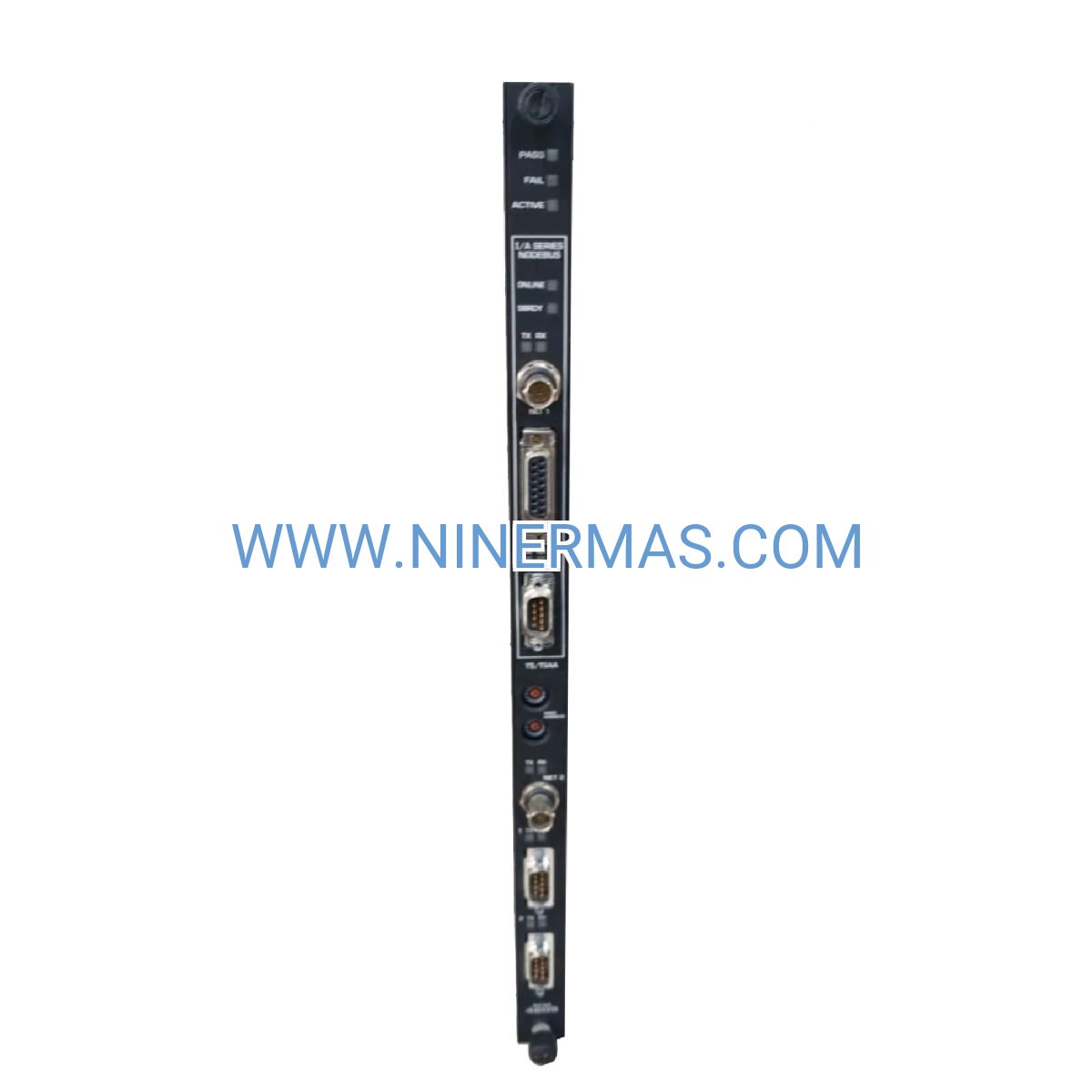

The module connects directly to the I/A Series Nodebus using standard RG58 coaxial cable (BNC connector) or AUI-to-DNBI transceiver cable (15-pin D-sub). It appears as a native safety node on the network, requiring no additional gateways or protocol converters. Configuration is performed through TriStation 1131 software, with automatic node discovery simplifying commissioning.

What is the maximum communication distance between the 4609 module and Foxboro I/A Series equipment?
Standard Nodebus topology supports up to 500 meters (1,640 feet) between nodes using RG58 coaxial cable. For longer distances, Nodebus repeaters or fiber optic media converters can extend range to several kilometers while maintaining deterministic performance and SIL 3 integrity.

Can the 4609 operate in redundant configurations for high-availability applications?
Yes, the module fully supports hot-standby redundancy when two 4609 units are installed in the same Tricon chassis. Automatic failover occurs within 100 milliseconds if the primary module fails, ensuring continuous communication with zero data loss. Redundant configurations are recommended for all SIL 3 applications per IEC 61511 guidelines.

Does the module require external power supply or special cooling?
No external power is required—the 4609 draws 5-8W directly from the Tricon chassis backplane (24 VDC). Passive convection cooling is sufficient for normal operation; no forced air or liquid cooling needed. Verify your chassis power budget can accommodate multiple modules if installing redundant pairs or high-density configurations.

Is the 4609 compatible with all Tricon main processor versions?
The module works with all Tricon main processors including 3008, 3008N, and newer variants. However, firmware compatibility with TriStation software is critical—version 4.9 or later is recommended for full diagnostic capabilities and cybersecurity features. Contact our technical team for compatibility verification with your specific system configuration.

What cybersecurity features protect against unauthorized access?
The 4609 supports role-based access control (RBAC), encrypted TSAA/TCP communication, and firmware signature verification. Network segmentation capabilities allow isolation of safety systems from enterprise IT networks, while audit logging tracks all configuration changes and access attempts for compliance with IEC 62443 and NERC CIP standards.
