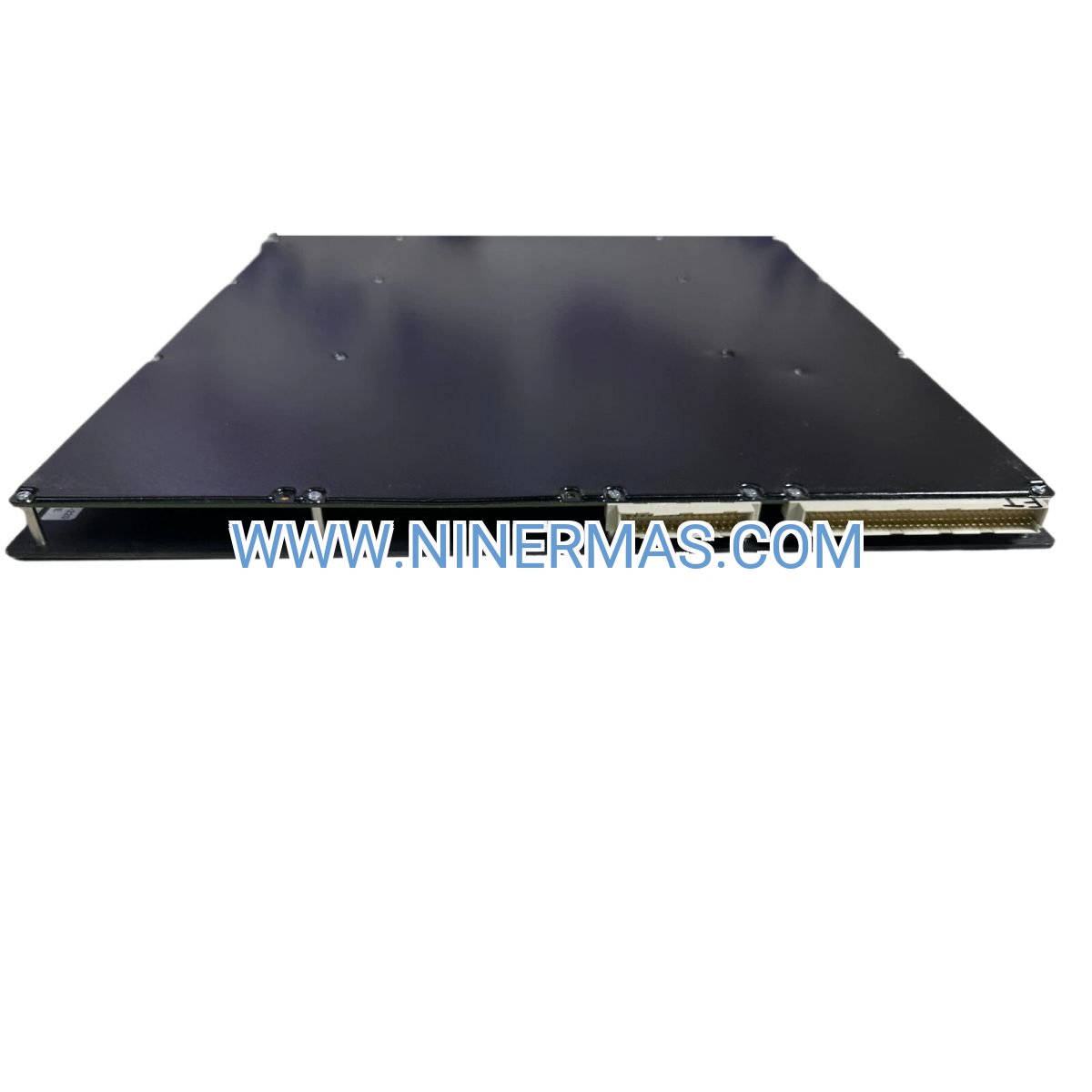

Triconex 4409 System Management Module (Industrial-Grade Safety Network Coordinator)

Engineered for mission-critical safety instrumented systems, the Triconex 4409 SMM delivers deterministic network orchestration across distributed control environments where failure is not an option. This triple-redundant module acts as the intelligent backbone for emergency shutdown systems, coordinating real-time data exchange between controllers, I/O racks, and supervisory workstations with microsecond-level precision.

Designed for process industries demanding SIL 3 certification—including oil & gas refineries, chemical plants, and power generation facilities—the 4409 eliminates single points of failure through its dual Universal Control Network (UCN) architecture. Plant engineers rely on this module to maintain continuous operation even during component failures, scheduled maintenance, or adverse environmental conditions ranging from Arctic installations to desert processing units.

What sets the 4409 apart is its self-diagnostic intelligence: continuous health monitoring, automatic fault isolation, and predictive battery management ensure your safety system remains audit-ready while minimizing unplanned downtime. With proven deployment in over 12,000 installations worldwide, this module represents the gold standard for safety network management.

Core Capabilities & Business Value

✓ Dual UCN Network Redundancy
Two independent communication channels eliminate network vulnerability. If one path fails, the secondary UCN maintains full system operation while alerting maintenance teams—preventing costly emergency shutdowns and production losses averaging $250K per incident.

✓ Triple Modular Redundant (TMR) Architecture
Three parallel processing paths vote on every decision, automatically masking hardware faults without process interruption. This design achieves 99.99% availability in safety-critical loops, meeting IEC 61508 SIL 3 requirements for risk reduction factors exceeding 1000:1.

✓ Extended Temperature Operation (-40°C to +70°C)
Military-grade components withstand extreme climates without derating. Deploy confidently in offshore platforms, desert compressor stations, or cryogenic facilities where commercial-grade electronics fail within months.

✓ Real-Time Diagnostic Visibility
Four-LED status array (PASS/FAULT/ACTIVE/LOW BATT) provides instant system health assessment during commissioning, troubleshooting, or regulatory inspections. Reduces mean time to repair (MTTR) by 40% compared to modules requiring software interrogation.

✓ Low Power Consumption (5W Typical)
Minimizes heat generation in densely packed control cabinets while reducing UPS sizing requirements. In 24-module chassis configurations, this efficiency translates to $1,200 annual energy savings per system.

→ Scalable Network Architecture
Supports up to 118 I/O modules per network segment with deterministic scan times under 20ms. Easily expand from single-chassis systems to multi-building installations spanning 4.8km without performance degradation.

Industry Applications & Problem-Solving

Emergency Shutdown Systems (ESD)
In offshore oil platforms, the 4409 coordinates 200+ safety loops monitoring pressure vessels, flare systems, and subsea isolation valves. When abnormal conditions arise, the module executes pre-programmed shutdown sequences in under 100ms—preventing catastrophic releases while maintaining partial production capability through selective isolation.

Fire & Gas Detection Networks
Chemical plants deploy the 4409 to integrate 500+ flame detectors, toxic gas sensors, and suppression actuators across multi-acre facilities. The dual UCN design ensures alarm signals reach control rooms even if cable trenches flood or construction crews accidentally sever conduits.

Turbomachinery Protection
Power generation facilities use this module to monitor vibration, temperature, and thrust position on 50MW+ gas turbines. By maintaining synchronization between redundant speed sensors and emergency trip valves, the 4409 prevents $15M rotor damage during overspeed events.

Burner Management Systems (BMS)
Refineries rely on the 4409 to sequence ignition, monitor flame stability, and execute fuel shutoffs across 12-burner process heaters. The module's deterministic communication ensures all burners receive coordinated commands within the same 10ms scan cycle—critical for preventing furnace explosions.

Pipeline Compressor Stations
Natural gas transmission operators network multiple 4409 modules to create geographically distributed safety systems spanning 50km pipeline segments. This architecture enables centralized monitoring while maintaining local autonomy if SCADA links fail.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 4409 SMM when your application requires peer-to-peer controller communication, distributed I/O networking beyond 50 meters, or integration with legacy Triconex systems using UCN protocol. For new installations requiring Ethernet connectivity, consider pairing with 4354 TCM modules for hybrid network topologies. Verify your main processor (3008, 4119A series) firmware supports the 4409 revision level—consult factory documentation for compatibility matrices spanning 1995-present installations.

Advanced Integration Features

Multi-Chassis Synchronization
The 4409 maintains clock alignment across up to 8 networked chassis within ±1ms tolerance, essential for coordinated sequential control in batch processes or multi-train LNG facilities. This precision eliminates race conditions that plague asynchronous safety systems.

Hot-Standby Controller Support
When configured with redundant main processors, the module arbitrates active/standby roles and executes bumpless transfers during processor swaps. Switchover completes in under 50ms—imperceptible to connected field devices.

Firmware Update Capability
Field-upgradable firmware allows security patching and feature enhancements without hardware replacement. Updates install via UCN network during scheduled maintenance windows, preserving your capital investment over 20+ year lifecycles.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units (verified surplus inventory)
Custom Configuration: 10-15 business days for factory-sealed units with specific firmware revisions
Warranty Coverage: 12 months against manufacturing defects and functional failures
Technical Support: Lifetime access to configuration guides, wiring diagrams, and troubleshooting assistance
Documentation Package: Installation manual, UCN network planning worksheet, and SIL 3 certification documents included with every shipment

Frequently Asked Questions

What is the maximum UCN network topology supported by the 4409 module?
The module supports both daisy-chain and star topologies with up to 32 nodes per segment. Maximum cable run is 1200 meters using Belden 9842 shielded twisted pair; extend to 4800 meters by inserting UCN repeaters every 1200m. For complex layouts, our engineering team provides free network design validation.

Can I replace a failed 4409 without shutting down the entire safety system?
No—the 4409 requires controlled shutdown to preserve network integrity and prevent data corruption. However, the dual UCN design allows you to schedule replacement during planned maintenance windows rather than forcing emergency outages. Typical swap procedure takes 15 minutes including power-down/power-up cycles.

How does the LOW BATT indicator help prevent data loss?
The module continuously monitors chassis backup battery voltage (typically 3.6V lithium). When voltage drops below 3.2V, the LOW BATT LED illuminates, providing 6-12 months warning before battery depletion. This early alert prevents configuration memory loss during power failures—a common cause of extended startup delays.

Is the 4409 compatible with modern Ethernet-based SCADA systems?
Indirectly—the 4409 uses proprietary UCN protocol for safety-critical communication. To interface with Ethernet networks, add a Triconex 4354 TCM (Tricon Communication Module) which bridges UCN to Modbus TCP/IP. This architecture maintains UCN's deterministic performance for safety functions while enabling IT network integration for HMI and historian systems.

What environmental qualifications does the 4409 carry for hazardous areas?
The module is designed for installation in control rooms (non-hazardous areas) rather than field-mounted enclosures. It carries CE marking and UL508 listing for industrial control equipment. For Zone 2/Division 2 installations, mount in purged enclosures meeting NFPA 496 standards.

How do I verify the 4409 is functioning correctly during commissioning?
Perform these checks: (1) PASS LED solid green indicates self-test completion, (2) ACTIVE LED confirms network communication, (3) FAULT LED off verifies no internal errors, (4) LOW BATT LED off confirms battery health. Use Triconex TriStation software to view detailed diagnostics including UCN traffic statistics, processor handshake status, and battery voltage readings.

Ready to Upgrade Your Safety Network?

Contact our industrial automation specialists for application-specific guidance, compatibility verification with your existing Triconex infrastructure, or volume pricing for multi-system projects. We provide same-day quotations and can expedite shipping for critical outage situations.
