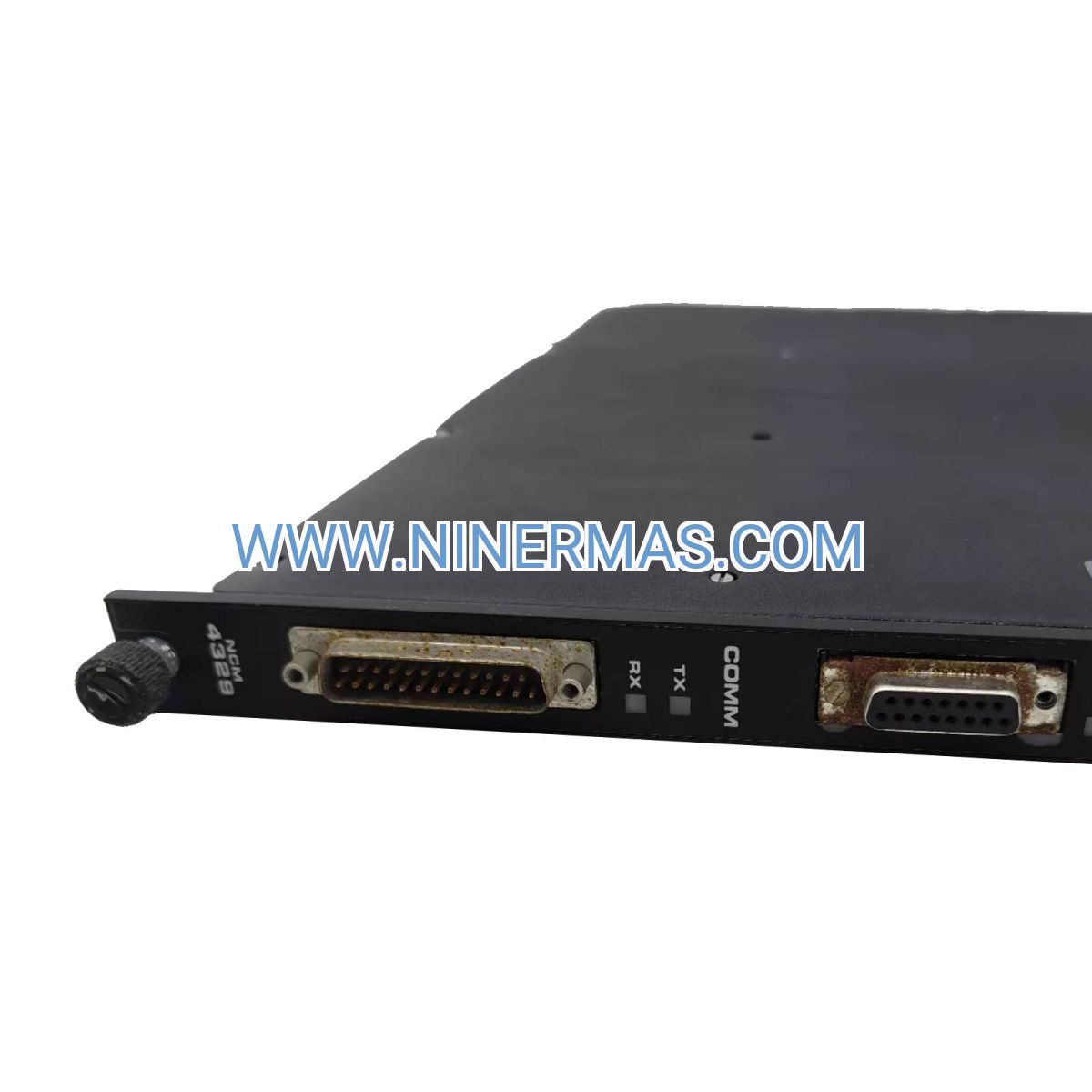

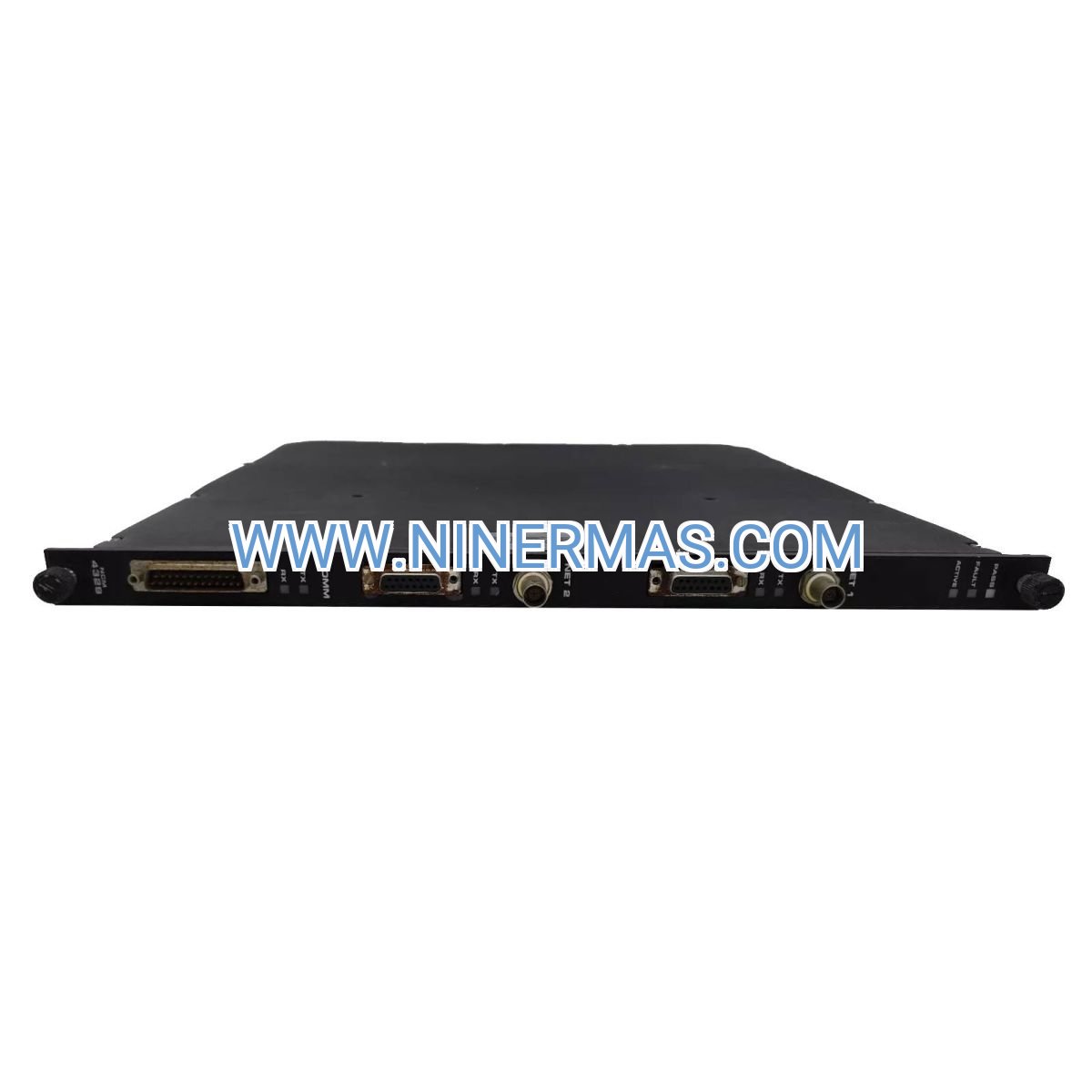

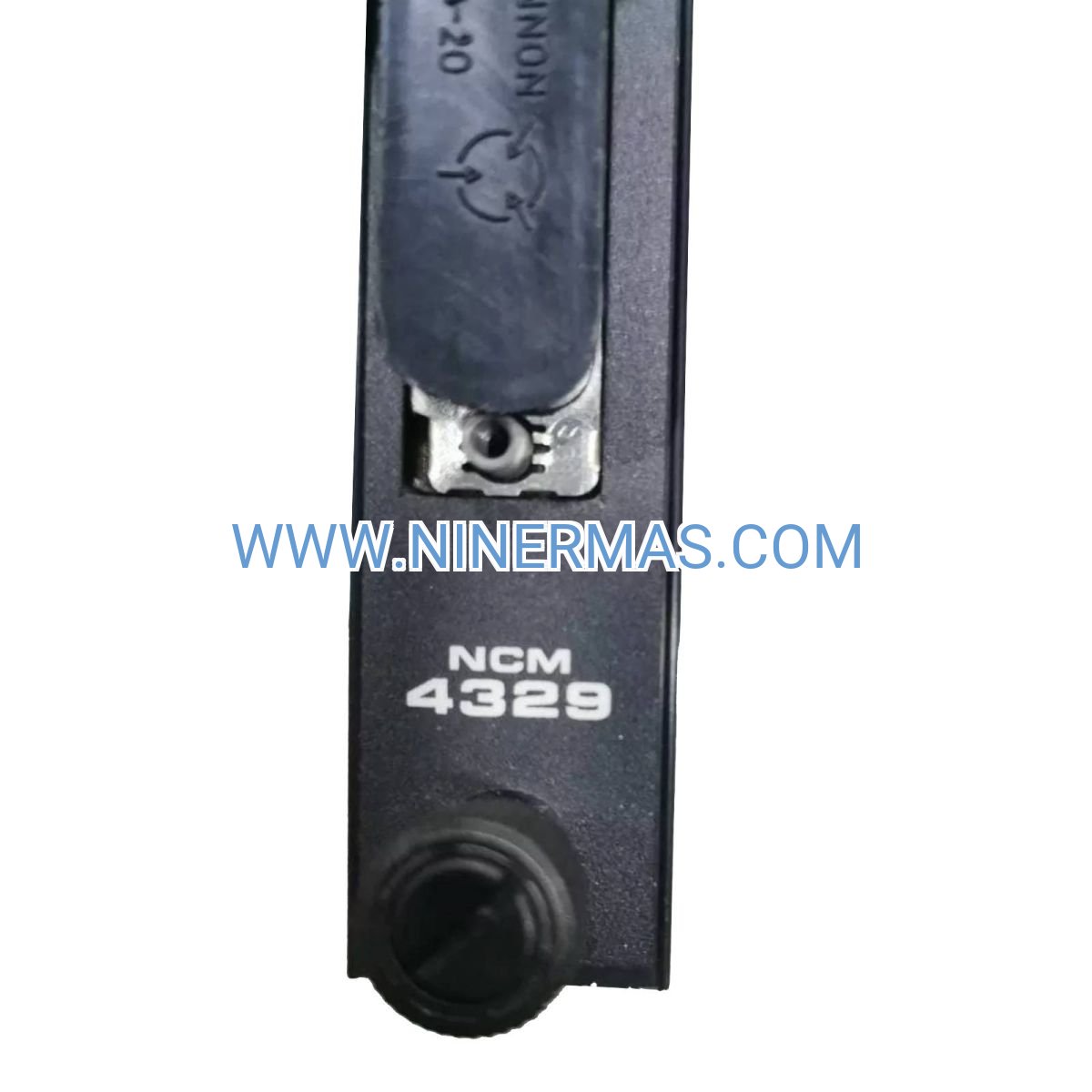

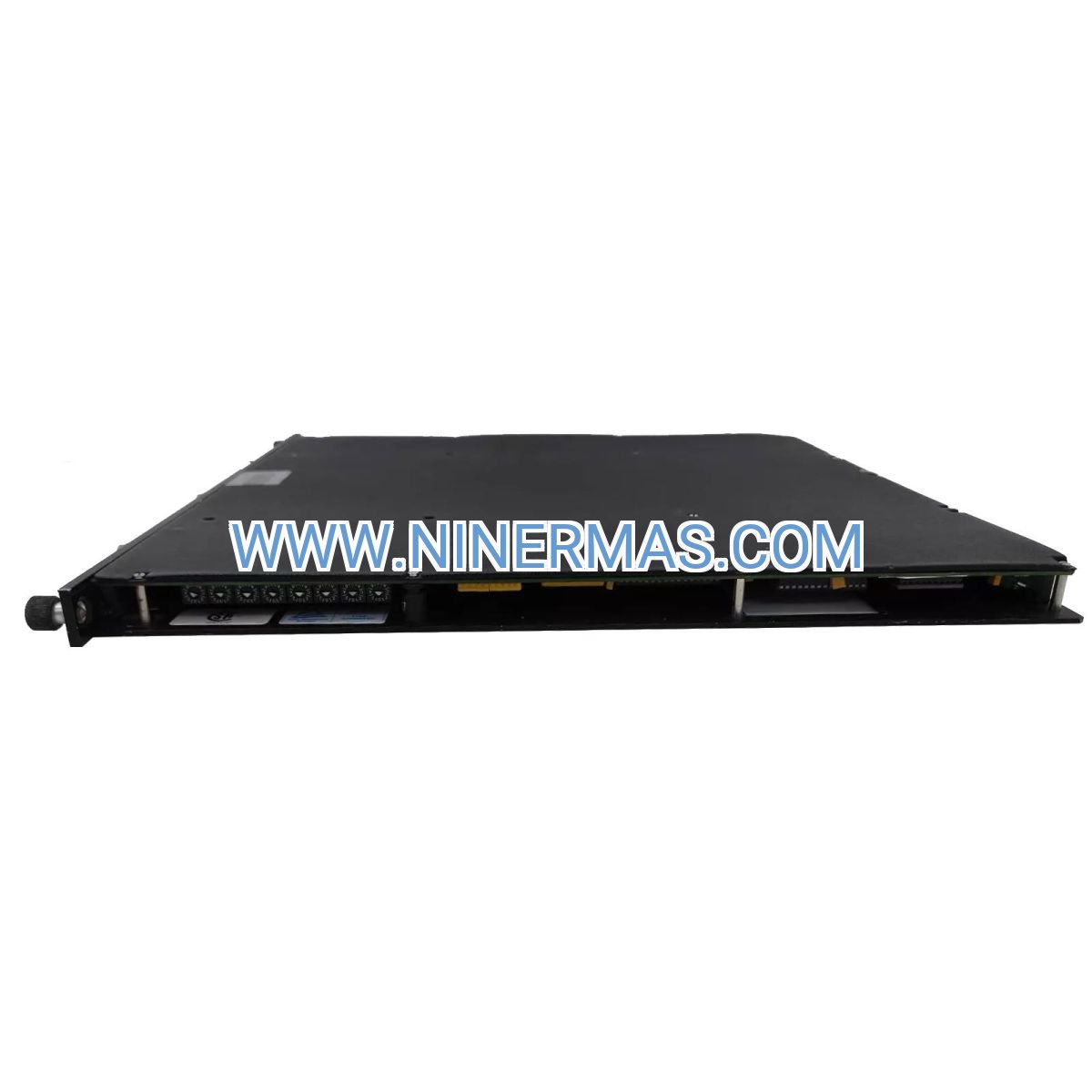

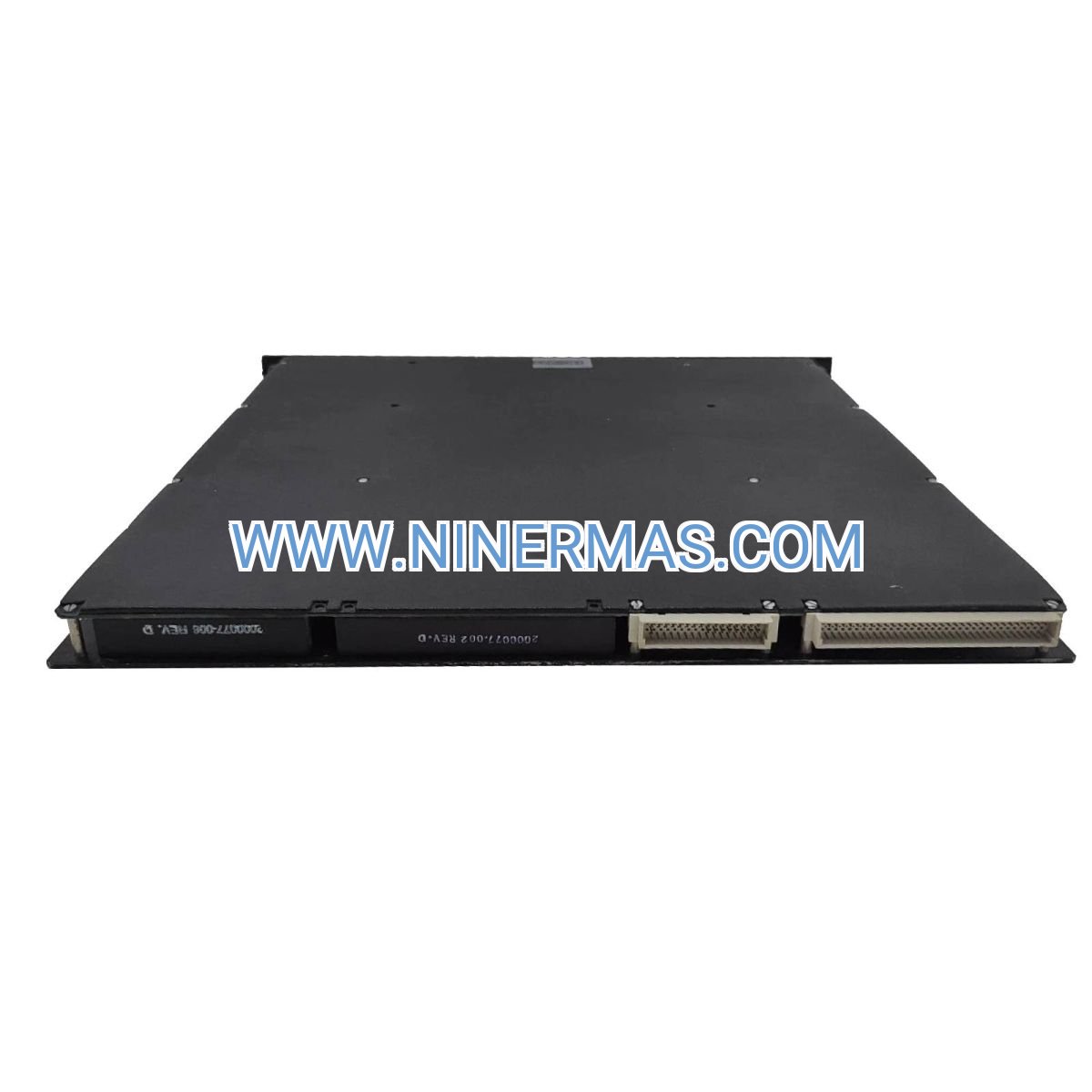

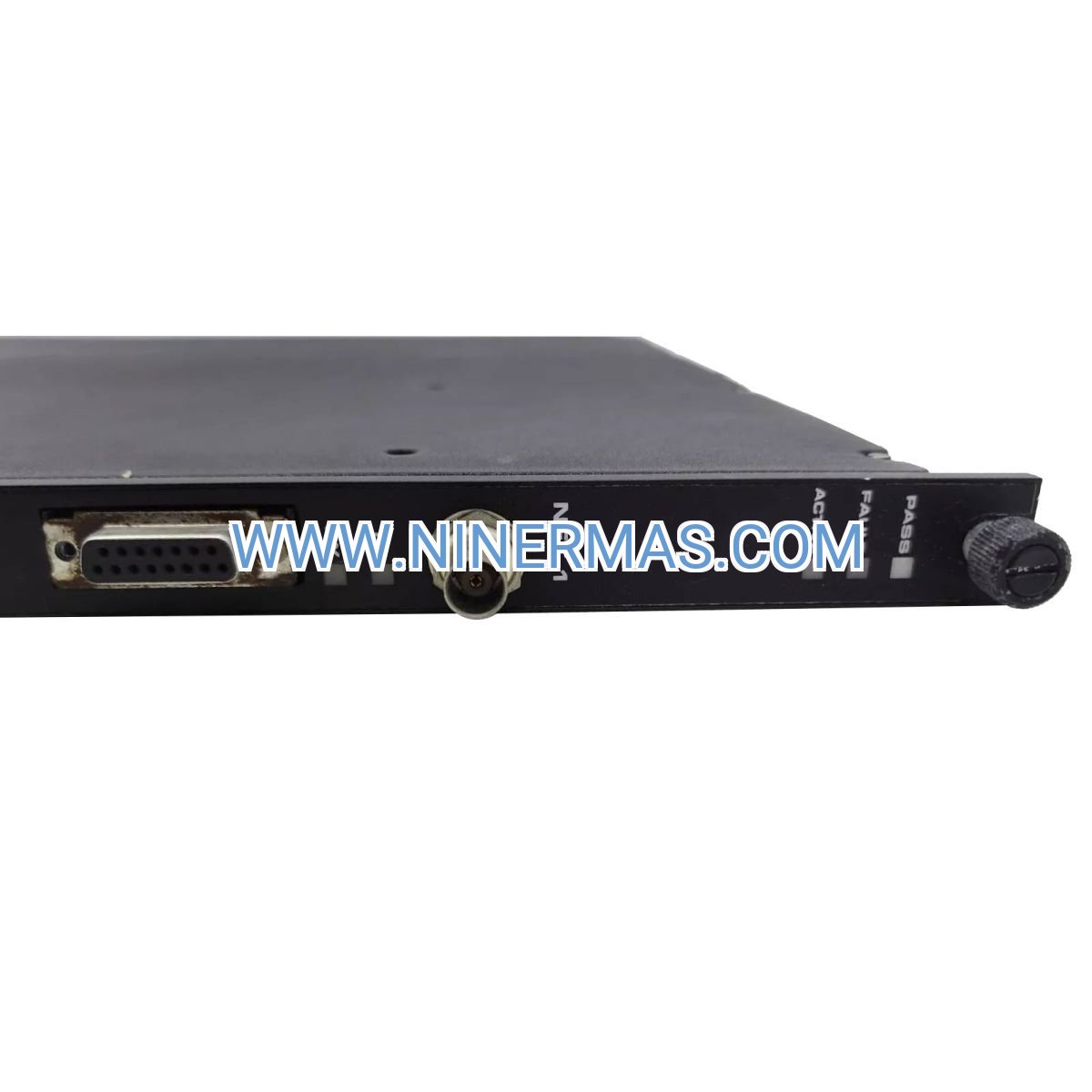

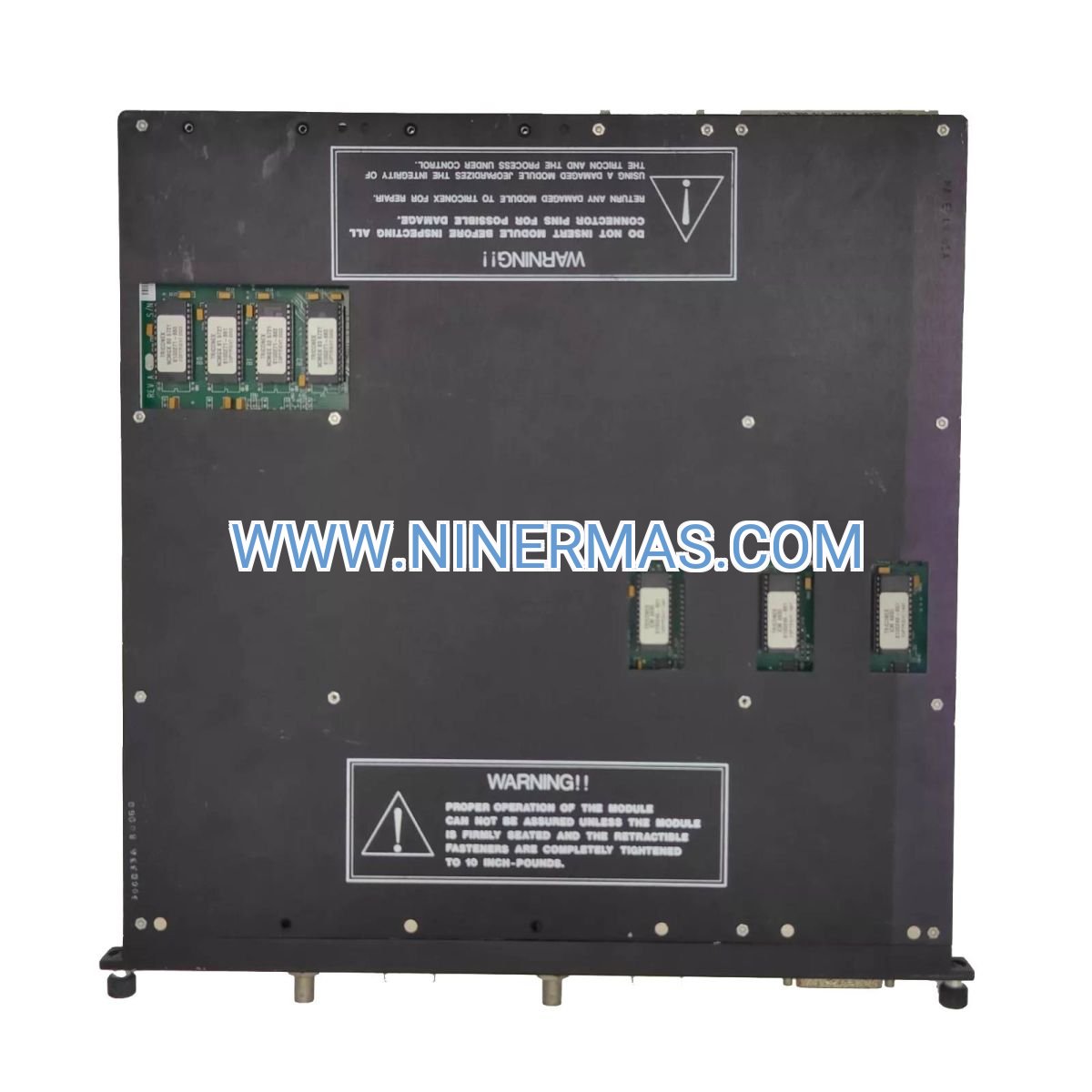

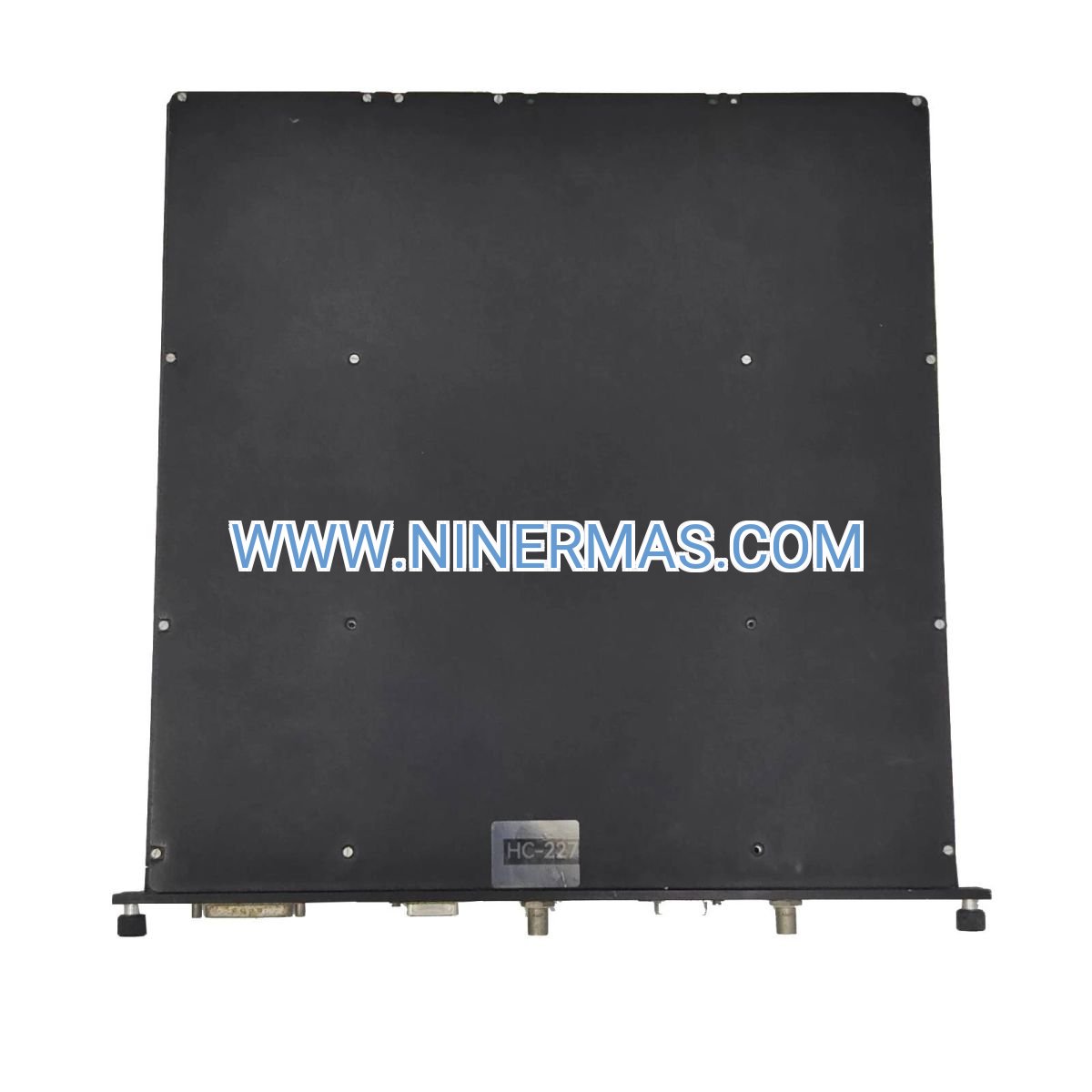

Triconex 4329 NCM – Safety-Certified Ethernet Communication for Critical Control

The Triconex 4329 Network Communications Module is an industrial-grade Ethernet interface engineered for Triple Modular Redundant (TMR) safety instrumented systems. Designed by Schneider Electric, this module bridges the gap between safety controllers and plant-wide networks, enabling real-time data exchange in environments where failure is not an option.

Built for process industries demanding IEC 61508 SIL 3 compliance, the 4329 NCM integrates seamlessly with SCADA platforms, distributed control systems, and supervisory networks. Its fault-tolerant architecture and deterministic communication protocols make it the backbone of emergency shutdown systems, fire and gas detection networks, and burner management applications across oil refineries, chemical plants, and power generation facilities.

Whether you're upgrading legacy Tricon systems or deploying new safety networks, the 4329 delivers proven reliability with dual Ethernet ports, hot-swappable design, and comprehensive diagnostic capabilities that minimize downtime and maximize operational safety.

Core Features & Technical Advantages

→ Dual 10/100 Mbps Ethernet Ports
Redundant network interfaces with auto-negotiation ensure continuous connectivity even during cable failures or switch maintenance. Supports network segregation for isolated safety zones.

→ Multi-Protocol Support
Native compatibility with Ethernet TCP/IP, Modbus TCP, and serial RS-232/RS-485 protocols eliminates the need for external gateways, reducing system complexity and potential failure points.

→ SIL 3 Certified Architecture

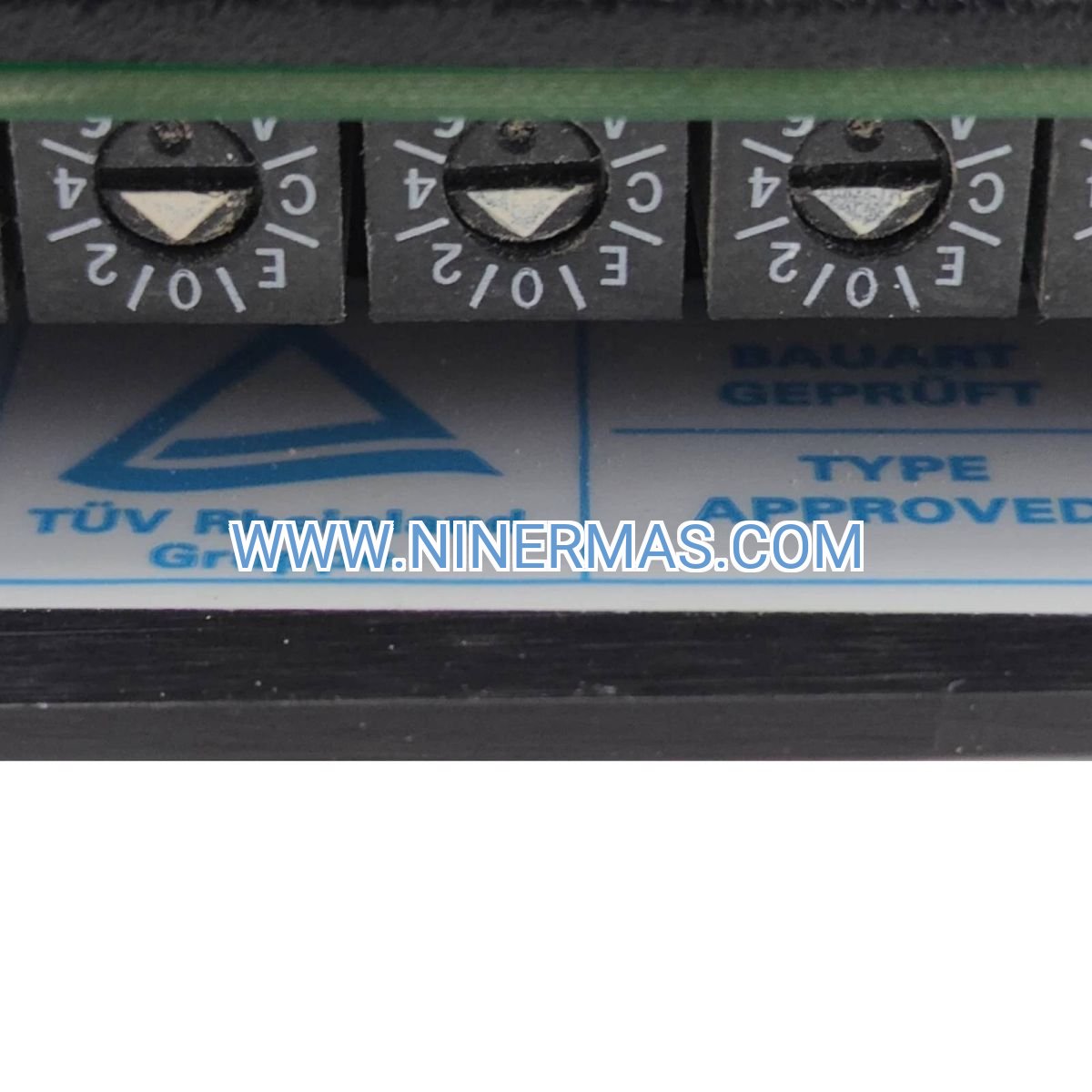

TÜV-approved design meets IEC 61508 functional safety standards, providing documented proof of compliance for safety lifecycle management and regulatory audits.

→ Hot-Swappable Operation
Field-replaceable module allows technicians to perform maintenance without shutting down critical safety functions, supporting 24/7 operational requirements in continuous process industries.

→ Embedded Cybersecurity
Integrated firewall capabilities and encrypted communication channels protect against unauthorized network access, addressing IEC 62443 industrial cybersecurity requirements.

→ Comprehensive Diagnostics
Real-time LED status indicators and TriStation software integration provide instant visibility into communication health, network traffic patterns, and fault conditions for proactive maintenance.

Industrial Application Scenarios

✓ Offshore Oil & Gas Platforms
In subsea production systems, the 4329 NCM connects wellhead safety controllers to topside SCADA networks, enabling remote monitoring of pressure safety valves and emergency shutdown sequences. Its redundant Ethernet ports ensure continuous communication even during harsh marine conditions with high electromagnetic interference.

✓ Chemical Process Safety Systems
Chemical reactors require instantaneous response to over-pressure or temperature excursions. The 4329 integrates Triconex safety PLCs with DCS historian databases, providing operators with real-time visibility while maintaining deterministic shutdown logic independent of the control network.

✓ Power Plant Turbine Control
Gas and steam turbine protection systems demand microsecond-level precision. The module's deterministic communication ensures flame detection signals and vibration monitoring data reach safety logic solvers within guaranteed time windows, preventing catastrophic equipment damage.

✓ Pharmaceutical Clean Room Monitoring
In FDA-regulated environments, the 4329 provides validated data integrity for critical process parameters. Its audit trail capabilities and time-stamped communication logs support 21 CFR Part 11 compliance for electronic records.

✓ Refinery Fire & Gas Detection Networks
Multi-unit refineries deploy the 4329 to coordinate fire suppression systems across processing units. The module's ability to support multiple NCMs in a single chassis enables segregated network zones for different hazard areas while maintaining centralized safety management.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 4329 NCM when your application requires Ethernet connectivity for Triconex TMR systems with SIL 3 certification. For applications needing higher bandwidth or advanced protocol support, consider the Triconex 4352B or AP3101 modules. Verify compatibility with your existing Tricon controller firmware version before ordering.

Extended Capabilities & Integration Options

SCADA Integration: Pre-configured drivers for major SCADA platforms including Wonderware, Siemens WinCC, and Rockwell FactoryTalk enable plug-and-play connectivity with minimal engineering effort.

Historian Connectivity: Direct integration with OSIsoft PI, Honeywell PHD, and AspenTech IP.21 historians supports long-term trend analysis and regulatory compliance reporting.

Remote Access: Secure VPN tunneling capabilities allow authorized personnel to perform diagnostics and configuration changes from remote operations centers, reducing site visit requirements.

Redundancy Configurations: Supports active-standby and load-balanced network topologies for maximum availability in mission-critical applications.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 2-3 business days via express courier with full tracking visibility. International shipments include all necessary export documentation.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty options available for long-term projects.

Technical Support: Lifetime access to certified automation engineers for configuration assistance, troubleshooting, and firmware update guidance. Response within 4 business hours for critical issues.

Documentation Package: Each module includes installation manual, configuration guide, protocol reference, and sample TriStation configuration files for accelerated commissioning.

Frequently Asked Questions

Q: Can the Triconex 4329 NCM interface with non-Schneider control systems?
A: Yes, the module's open Modbus TCP and Ethernet TCP/IP protocols enable communication with third-party PLCs, DCS platforms, and HMI systems from any manufacturer supporting standard industrial protocols.

Q: What network cable specifications are recommended for optimal performance?
A: Use Cat5e or Cat6 shielded twisted pair (STP) cables for installations in high-EMI environments. Maximum cable run is 100 meters per Ethernet standard; use industrial-grade switches for longer distances.

Q: How does the module maintain communication during firmware updates?
A: The TMR architecture allows one module to undergo maintenance while the other two maintain system operation. Firmware updates follow a sequential process ensuring continuous communication throughout the upgrade cycle.

Q: Is the 4329 compatible with legacy Tricon v9 controllers?
A: The module supports Tricon controllers from v9 onwards, though some advanced features require v10 or later firmware. Contact our technical team for specific compatibility verification based on your installed base.

Q: What cybersecurity certifications does the module hold?
A: While primarily designed for air-gapped safety networks, the 4329 incorporates security features aligned with IEC 62443-3-3 requirements. For connected environments, implement additional network segmentation and firewall protection.

Q: Can multiple 4329 modules operate in a single Triconex chassis?
A: Absolutely. The modular architecture supports multiple NCMs for segregated network zones, increased bandwidth, or protocol-specific communication channels in complex distributed safety systems.

Take the Next Step

Ready to enhance your safety system connectivity? Our automation specialists are standing by to discuss your specific application requirements, verify compatibility with your existing infrastructure, and provide detailed technical specifications.

Contact us today: Email sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance. Request a formal quotation, technical datasheet, or schedule a consultation with our certified Triconex engineers.
