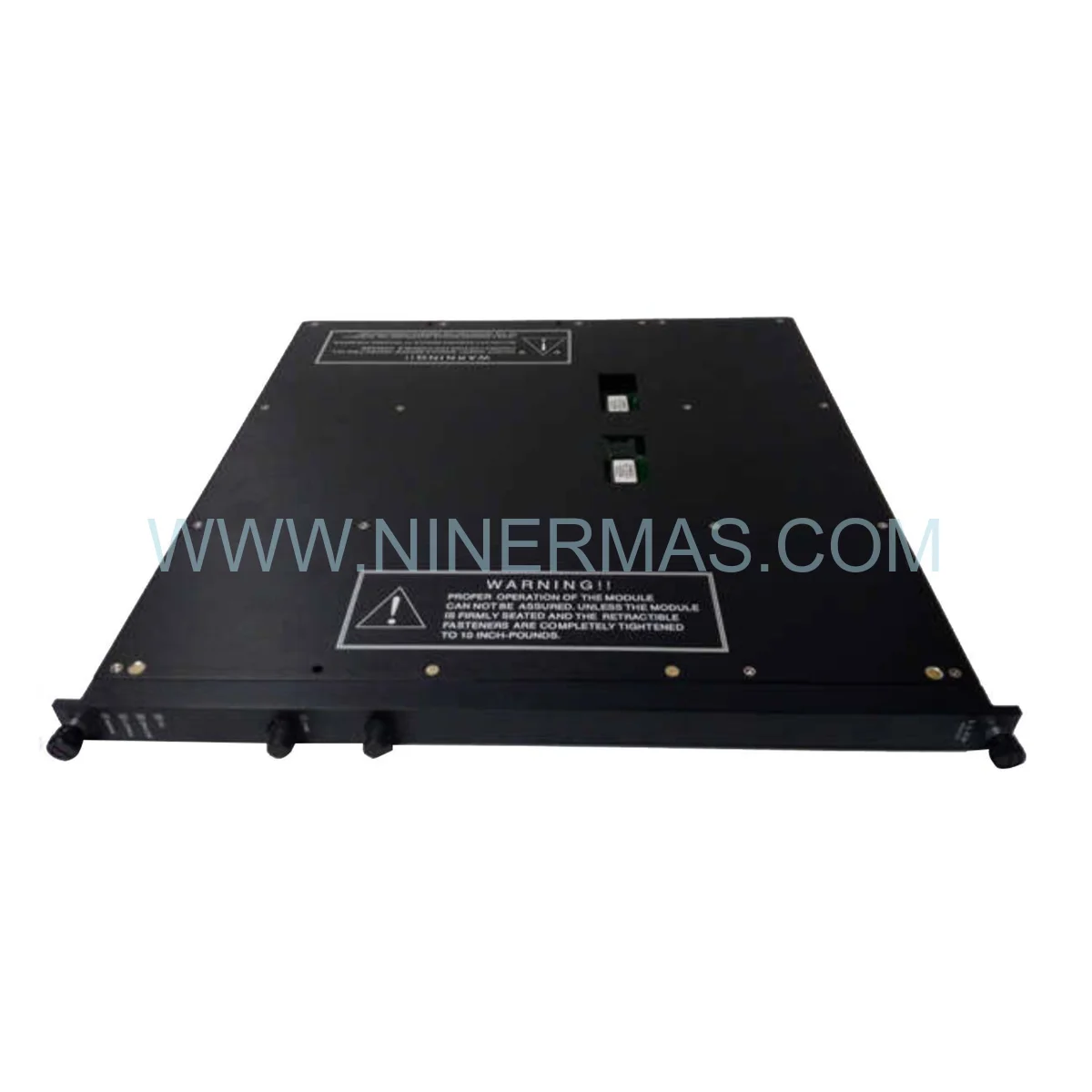

Triconex 4211/3/1 Fiber Optic Remote Extender (Industrial-Grade TMR Communication)

The Triconex 4211/3/1 represents a mission-critical communication bridge engineered for Safety Instrumented Systems (SIS) requiring fault-tolerant, long-distance data transmission. Utilizing single-mode fiber optic technology, this remote extender module eliminates electromagnetic vulnerability while extending Triple Modular Redundant (TMR) network reach up to 2 kilometers—ideal for distributed process control architectures in oil & gas, chemical processing, and power generation facilities.

Designed for environments where electrical isolation and signal integrity are non-negotiable, the 4211/3/1 integrates seamlessly into existing Triconex safety platforms. Its hot-swappable design supports continuous operation during maintenance cycles, while SIL 3 certification ensures compliance with IEC 61508 functional safety standards. Whether you're upgrading legacy copper infrastructure or designing greenfield installations, this module delivers the reliability your critical processes demand.

From offshore platforms battling harsh marine conditions to sprawling petrochemical complexes with high EMI exposure, the 4211/3/1 provides the communication backbone that keeps safety systems responsive and available. Backed by comprehensive diagnostics and proven TMR redundancy, it's the solution engineers trust when downtime isn't an option.

Core Features & Business Value

✓ Extended 2km Fiber Optic Range
Overcome distance barriers inherent to copper cabling while maintaining synchronous, high-speed data transfer across large industrial sites—reducing infrastructure costs and installation complexity.

✓ Complete Electrical Isolation
Eliminate ground loop failures and voltage transients between control zones, protecting sensitive safety logic solvers from electrical faults that could compromise system integrity.

✓ EMI/RFI Immunity
Fiber optic transmission is inherently immune to electromagnetic and radio frequency interference, ensuring consistent performance near VFDs, motors, welding equipment, and high-voltage switchgear.

✓ Hot-Swappable TMR Architecture
Replace or service modules without system shutdown—maintaining continuous safety coverage and maximizing plant availability during planned maintenance windows.

✓ SIL 3 Certified Reliability
Meets IEC 61508 Safety Integrity Level 3 requirements, providing documented proof of failure rate performance for regulatory compliance and risk reduction.

✓ Built-In Diagnostic Intelligence
Real-time LED indicators and TriStation-accessible diagnostics enable rapid fault identification, reducing mean time to repair (MTTR) and minimizing unplanned downtime.

Application Scenarios & Industry Solutions

→ Offshore Oil & Gas Platforms
Challenge: Remote wellhead controllers located hundreds of meters from central control rooms require reliable safety system integration despite saltwater corrosion and electrical storms.
Solution: The 4211/3/1's fiber optic design resists environmental degradation while providing galvanic isolation between hazardous and safe zones, ensuring Emergency Shutdown (ESD) system responsiveness.

→ Chemical Processing & Refineries
Challenge: Distributed reactor control units across multi-acre facilities face EMI from variable frequency drives and high-voltage equipment, causing communication errors in copper-based networks.
Solution: Fiber optic immunity eliminates signal degradation, maintaining deterministic response times for critical interlock functions and batch process safety logic.

→ Power Generation Facilities
Challenge: Turbine control systems in large generation halls require safety communication over distances exceeding copper cable specifications, with zero tolerance for ground potential differences.
Solution: 2km fiber range connects distributed I/O racks to main processors while electrical isolation prevents ground faults from propagating across the safety network.

→ Pipeline & Midstream Operations
Challenge: Compressor stations and pump facilities along pipeline corridors need safety system integration across kilometer-scale distances in lightning-prone areas.
Solution: Fiber optic transmission eliminates lightning-induced surge damage while extending TMR network reach without signal repeaters or amplifiers.

→ Mining & Mineral Processing
Challenge: Conveyor safety systems and crusher interlocks span large open-pit or underground operations where electrical noise from heavy machinery disrupts traditional communication.
Solution: EMI-immune fiber links ensure reliable emergency stop propagation and coordinated shutdown sequences across distributed material handling systems.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose the 4211/3/1 when communication distance exceeds 100 meters or when electrical isolation is required between control zones
• Verify fiber optic cable specifications match single-mode 9/125 μm standards with LC connectors
• Ensure environmental conditions fall within -40°C to 85°C storage and 0°C to 60°C operating ranges
• Confirm compatibility with existing Triconex Tricon or TriStation controller firmware versions
• Plan for redundant fiber paths in critical applications to maintain TMR fault tolerance

Extended Capabilities & Integration Options

IoT & Remote Monitoring Integration:
When paired with Triconex TriStation software and modern SCADA platforms, the 4211/3/1 enables real-time diagnostic data streaming to cloud-based asset management systems. Monitor fiber link quality, signal strength, and communication errors remotely—supporting predictive maintenance strategies and reducing site visits.

Cybersecurity Advantages:
Fiber optic communication is inherently difficult to tap or intercept compared to copper networks, providing an additional layer of physical security for safety-critical control data in high-risk facilities.

Customization & Engineering Support:
Our technical team can assist with custom fiber routing designs, multi-drop network topologies, and integration with third-party safety PLCs via Triconex communication gateways. Contact us for application-specific engineering consultations.

Delivery, Warranty & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; custom configurations available with 10-15 business day lead times.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available upon request.

Technical Support: Lifetime access to our engineering support team for installation guidance, troubleshooting, and configuration assistance. Phone, email, and remote desktop support included.

Documentation Package: Each module ships with installation manual, fiber optic cable specifications, TriStation configuration guide, and SIL 3 certification documents.

Global Shipping: Expedited international shipping available to all major industrial regions. Customs documentation and HS code support provided for seamless cross-border delivery.

Frequently Asked Questions

How does fiber optic communication improve safety system availability compared to copper?
Fiber eliminates common-mode failures caused by ground loops, lightning strikes, and EMI-induced bit errors. In TMR architectures, this reduces spurious trips and maintains voting logic integrity—directly improving system availability metrics and reducing false shutdown events that cost production time.

Can the 4211/3/1 module be installed in hazardous area classifications?
The module itself is rated for safe area installation. For Class I Division 2 or ATEX Zone 2 deployment, install within appropriately rated enclosures and follow local electrical codes. Fiber optic cable can traverse hazardous zones without special conduit requirements since it carries no electrical energy.

What fiber optic cable specifications are required for optimal performance?
Use single-mode 9/125 μm fiber with LC duplex connectors. For industrial environments, specify armored or ruggedized cable jackets rated for your temperature and chemical exposure conditions. Maintain bend radius above 30mm and avoid exceeding 2km total length including patch panels.

Is the module compatible with legacy Triconex controllers from the 1990s?
The 4211/3/1 is backward compatible with most Tricon and TriStation platforms. However, firmware version verification is recommended—contact our technical team with your controller model and firmware revision for compatibility confirmation before ordering.

How do I troubleshoot communication faults on the fiber link?
Start with LED diagnostic indicators on the module faceplate: solid green indicates normal operation, flashing amber signals communication errors, and red indicates hardware fault. Use TriStation diagnostic tools to check link quality metrics. For physical layer issues, verify fiber cleanliness, connector seating, and cable continuity with an optical time-domain reflectometer (OTDR).

What are the power requirements and can it operate on redundant power supplies?
The module operates on standard Triconex chassis power (24VDC nominal). When installed in TMR configurations with redundant power supplies, the module automatically supports fault-tolerant power operation—maintaining communication even during single power supply failures.

Ready to Extend Your Safety System?

Next Steps: Contact our industrial automation specialists for technical consultation, custom configuration support, or volume pricing. We'll help you design the optimal fiber optic network topology for your facility's unique requirements.

Request a Quote: Email us your project specifications including distance requirements, environmental conditions, and existing Triconex system details for a detailed proposal within 24 hours.

Technical Resources: Download installation guides, CAD drawings, and integration white papers from our technical library to support your engineering design process.
